REPAIR FOR COMPONENT PARTS

AT-337

D

E

F

G

H

I

J

K

L

M

A

B

AT

High and low reverse clutch retaining plates and driven plates

●

Check facing for burns, cracks or damage.

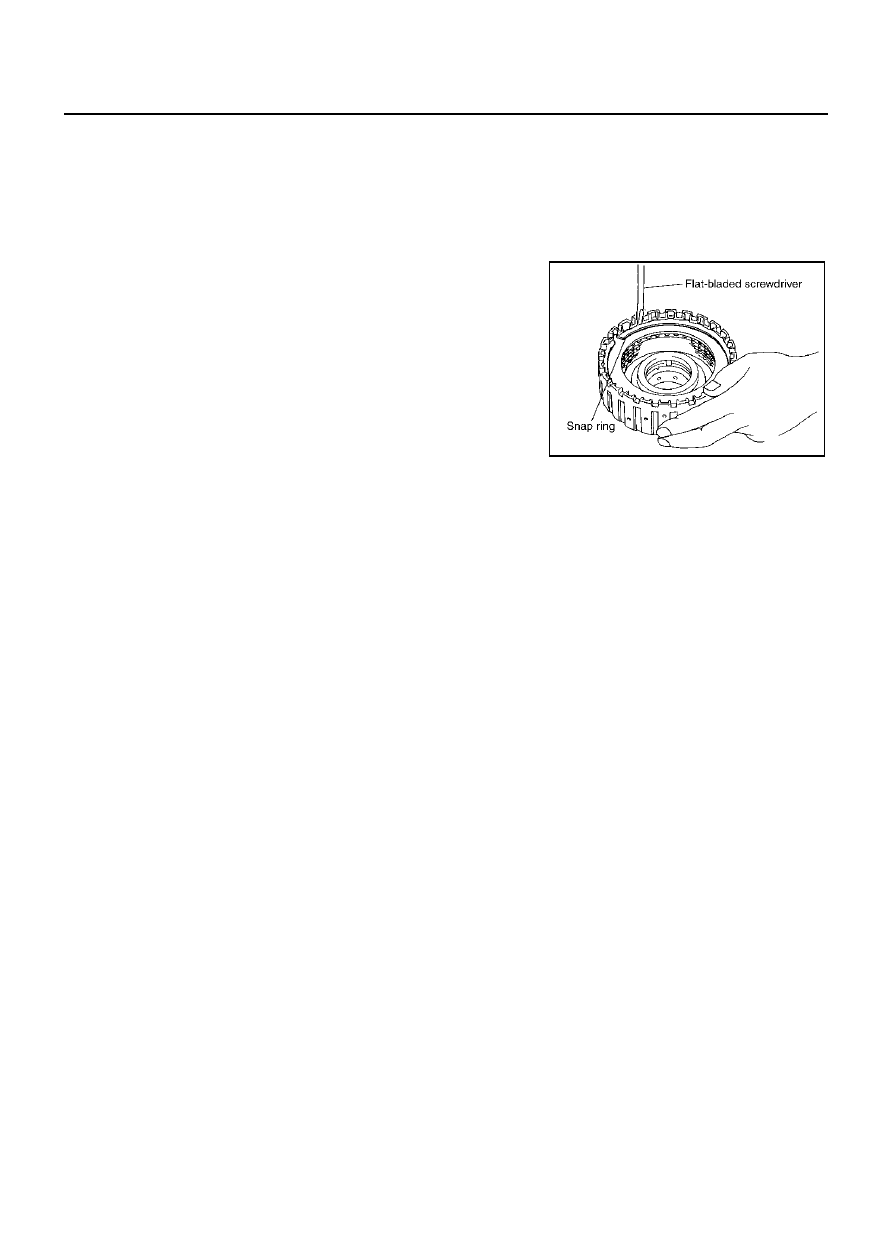

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

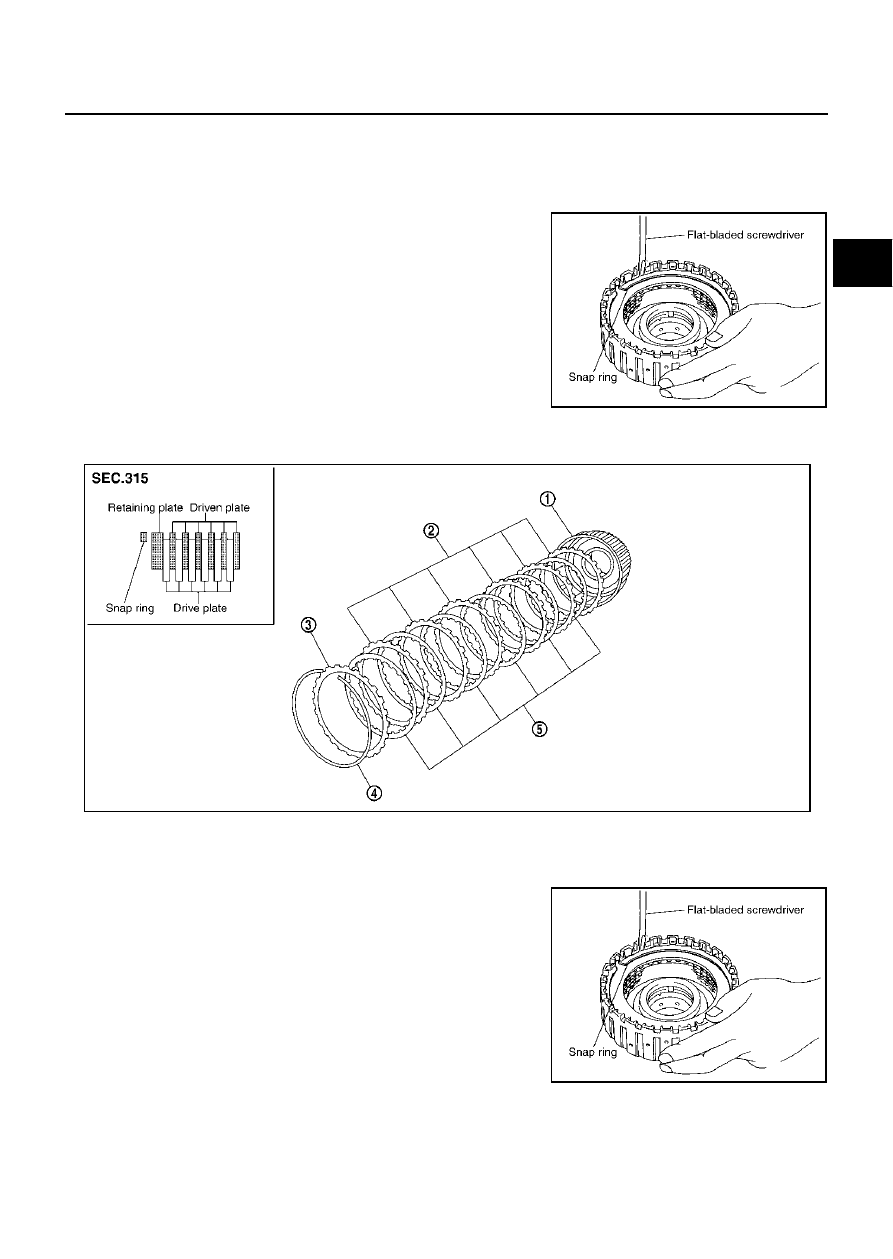

Direct Clutch

ECS00A0E

COMPONENTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.

2.

Remove drive plates, driven plates and retaining plate from
direct clutch drum.

INSPECTION

●

Check the following, and replace direct clutch assembly if necessary.

Direct clutch snap ring

●

Check for deformation, fatigue or damage.

SCIA2868E

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

SCIA2867E

SCIA2868E

AT-338

REPAIR FOR COMPONENT PARTS

Direct clutch drive plates

●

Check facing for burns, cracks or damage.

Direct clutch retaining plates and driven plates

●

Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in direct clutch drum.

2.

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

SCIA2868E

ASSEMBLY

AT-339

D

E

F

G

H

I

J

K

L

M

A

B

AT

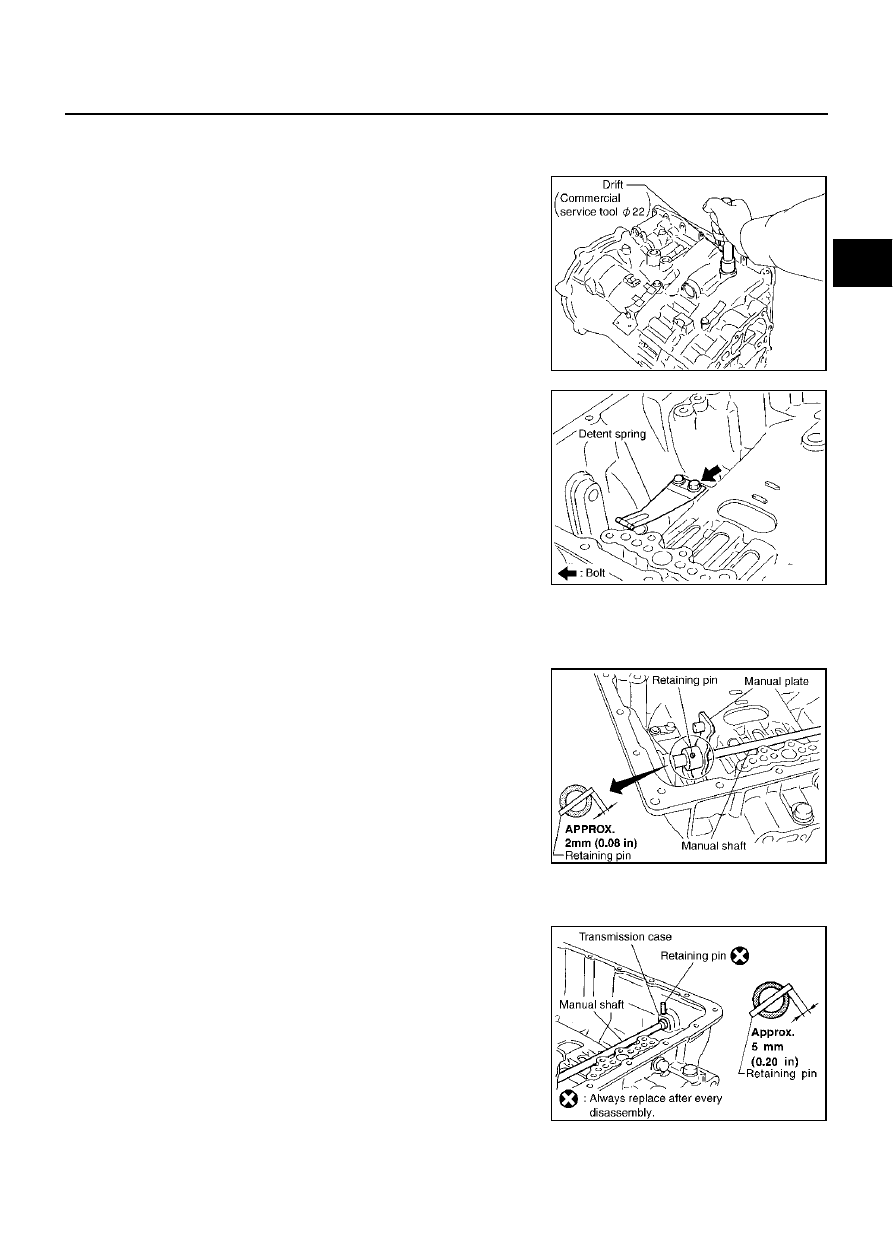

ASSEMBLY

PFP:00000

Assembly (1)

ECS00A0F

1.

As shown below, use a drift (commercial service tool

φ

22) to

drive manual shaft oil seal into the transmission case until it is
flush.

CAUTION:

●

Apply ATF to manual shaft oil seal.

●

Do not reuse manual shaft oil seal.

2.

Install detent spring and spacer in transmission case.

3.

Assemble manual shaft, manual plate, and parking rod after installing manual shaft to transmission case.

4.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

●

Drive retaining pin to 2±0.5 mm over the manual
plate.

●

Do not reuse retaining pin.

5.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

●

Drive retaining pin to 5±1 mm over the transmis-
sion case.

●

Do not reuse retaining pin.

SCIA2423E

SCIA2332E

SCIA3172E

SCIA2427E

AT-340

ASSEMBLY

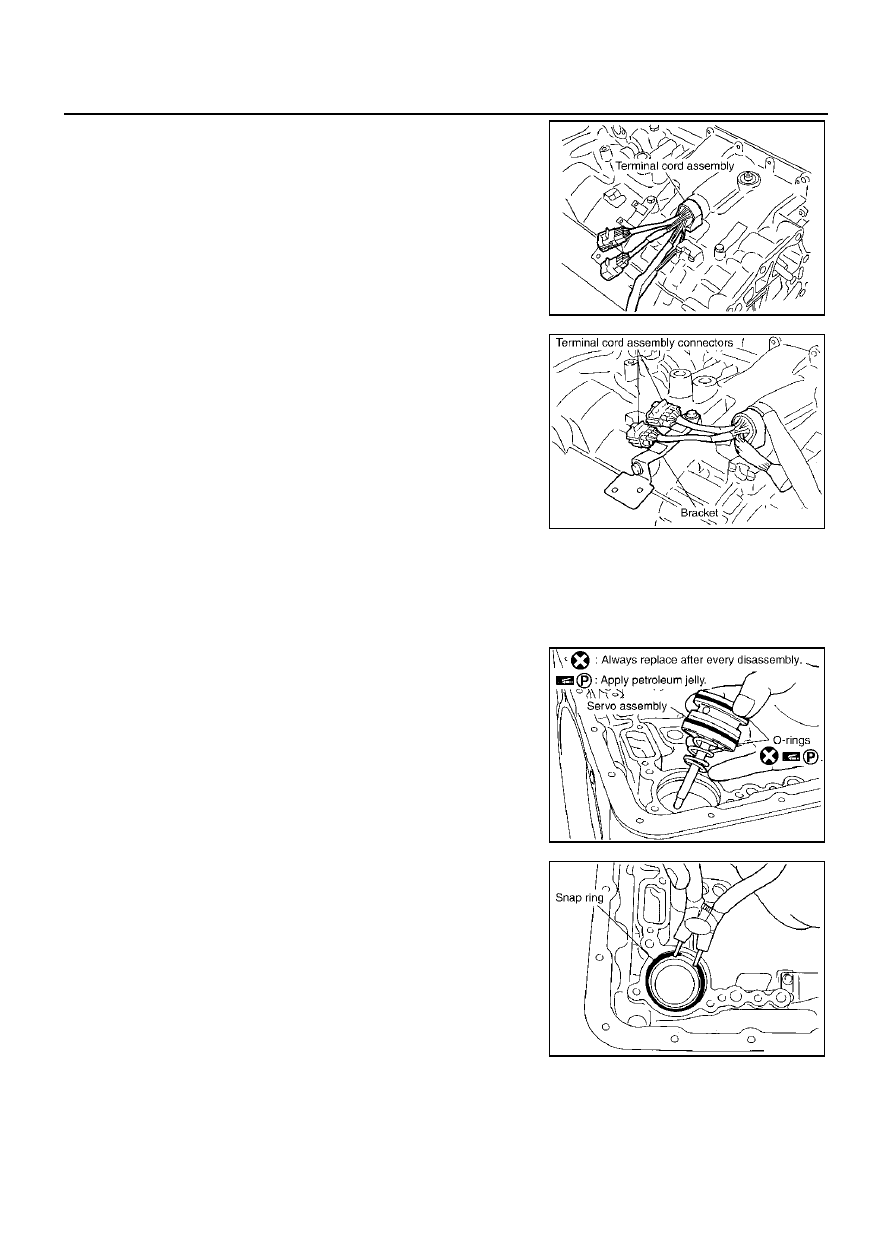

6.

Install terminal cord assembly in transmission case.

CAUTION:

Apply petroleum jelly to O-ring.

7.

Install terminal cord assembly connectors in bracket.

8.

Install O-rings in servo assembly.

CAUTION:

Do not reuse O-rings.
Apply petroleum jelly to O-rings.

9.

Install return spring in servo assembly.

10. Install servo assembly in transmission case.

11. Using snap ring pliers, install snap ring in transmission case.

SCIA2428E

SCIA2326E

SCIA2334E

SCIA2333E
