REPAIR FOR COMPONENT PARTS

AT-325

D

E

F

G

H

I

J

K

L

M

A

B

AT

2.

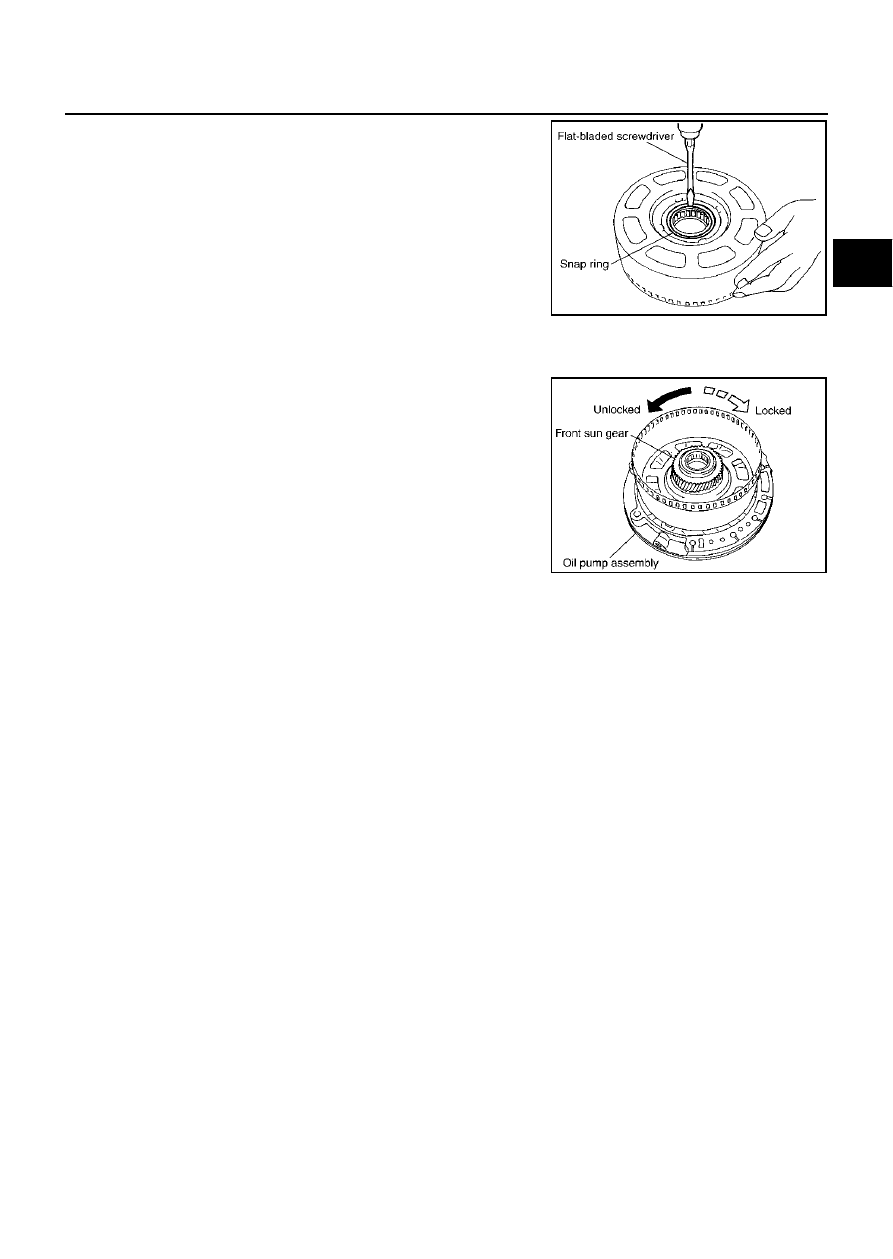

Using a flat-bladed screwdriver, install snap ring in front sun
gear.

3.

Check operation of 3rd one-way clutch.

a.

Hold oil pump assembly and turn front sun gear.

b.

Check 3rd one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in illustration, check installation direction of
3rd one-way clutch.

SCIA3110E

SCIA3131E

AT-326

REPAIR FOR COMPONENT PARTS

Front Carrier, Input Clutch, Rear Internal Gear

ECS00A0B

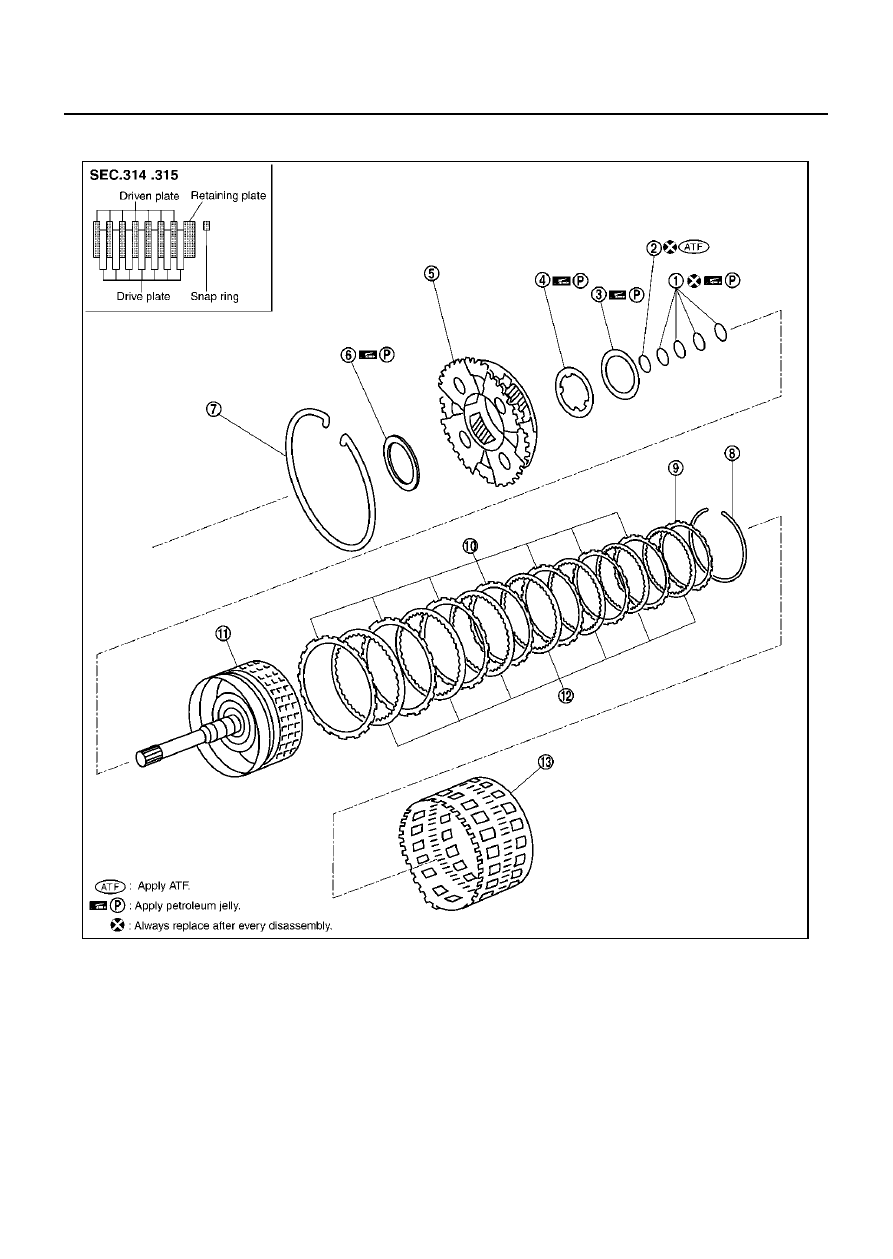

COMPONENTS

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Needle bearing

7.

Snap ring

8.

Snap ring

9.

Retaining plate

10. Driven plate

11.

Input clutch drum

12. Drive plate

13. Rear internal gear

SCIA3043E

REPAIR FOR COMPONENT PARTS

AT-327

D

E

F

G

H

I

J

K

L

M

A

B

AT

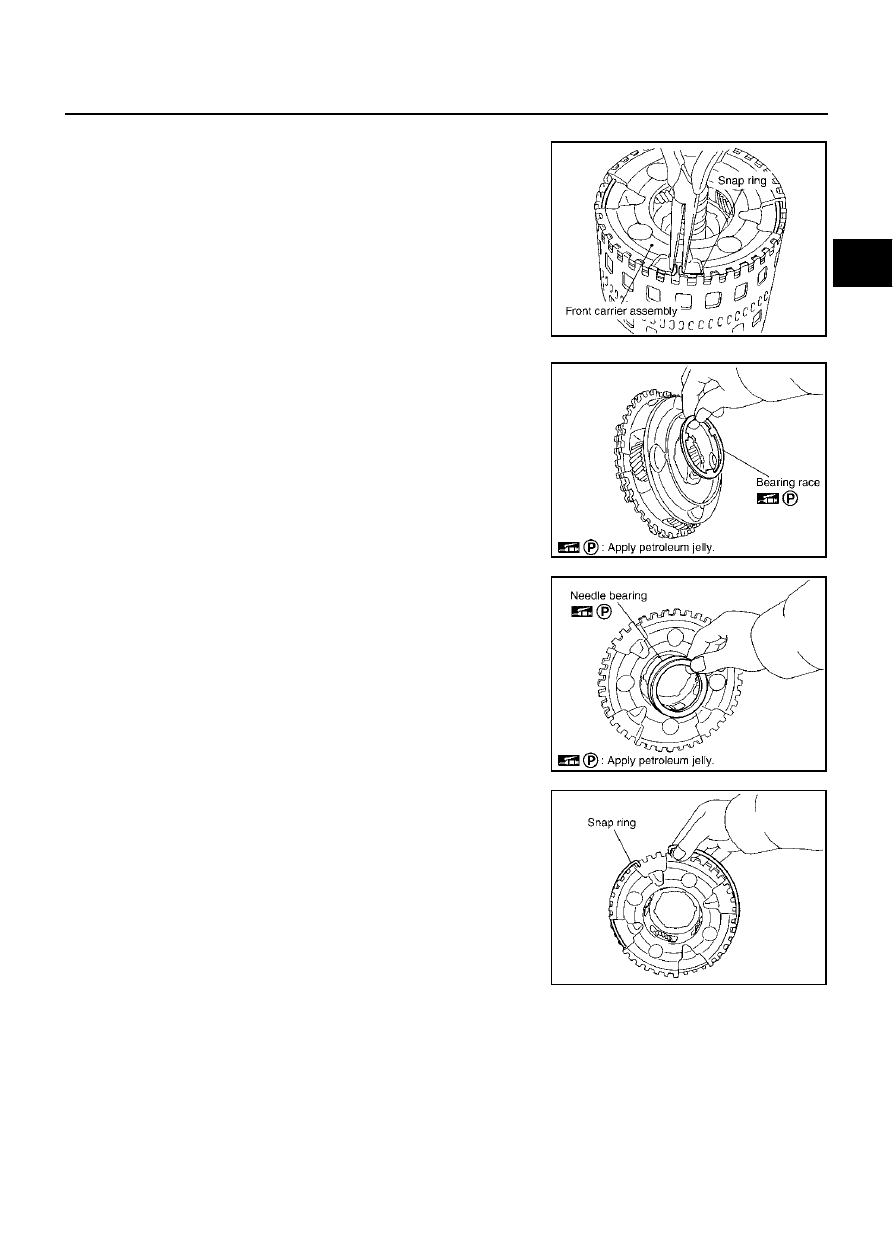

DISASSEMBLY

1.

Remove front carrier assembly from rear internal gear.

a.

Remove bearing race from front carrier.

b.

Remove needle bearing from front carrier.

c.

Remove snap ring from front carrier.

SCIA2844E

SCIA2847E

SCIA2848E

SCIA2852E

AT-328

REPAIR FOR COMPONENT PARTS

2.

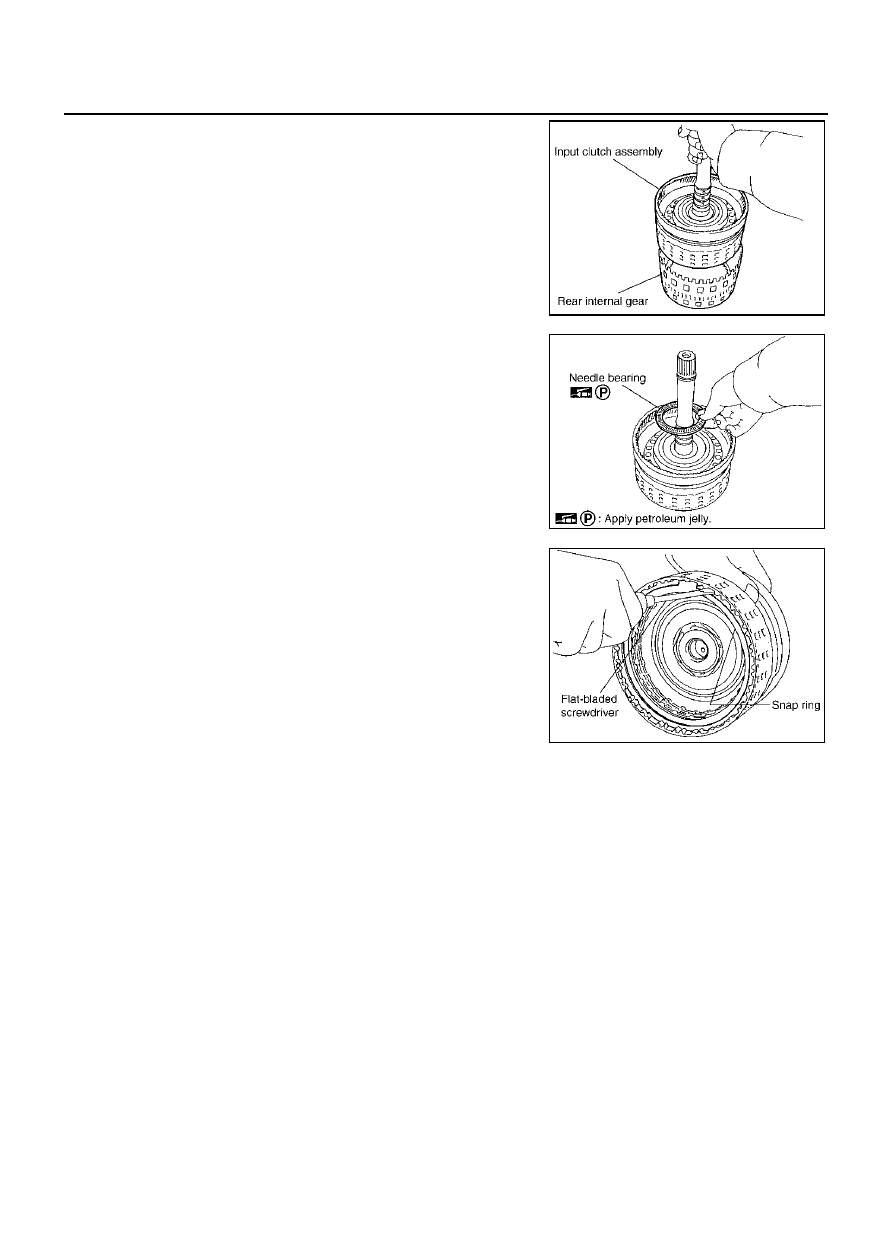

Remove input clutch assembly from rear internal gear.

a.

Remove O-ring and seal rings from input clutch assembly.

b.

Remove needle bearing from input clutch assembly.

c.

Using a flat-bladed screwdriver, remove snap ring from input
clutch drum.

d.

Remove drive plate, driven plate and retaining plate from input
clutch drum.

INSPECTION
Front carrier snap ring

●

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Input  clutch snap ring

●

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the input clutch assembly.

Input clutch drum

●

Check for deformation, fatigue or damage or burns.

CAUTION:

If necessary, replace the input clutch assembly.

Input clutch drive plates

●

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

Input clutch retaining plates and driven plates

●

Check facing for burns, cracks or damage.

SCIA2849E

SCIA2853E

SCIA2864E
