TRANSMISSION ASSEMBLY

AT-297

D

E

F

G

H

I

J

K

L

M

A

B

AT

12. Remove dust cover from converter housing part.

13. Turn crankshaft, and remove the four tightening bolts for drive plate and torque converter.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from the front of the engine.

14. Support A/T assembly with a jack.

CAUTION:

When setting the transmission jack, be careful not to allow it to collide against the drain plug.

15. Remove engine rear member with power tool.

16. Remove bolts fixing A/T assembly to engine with power tool.

CAUTION:

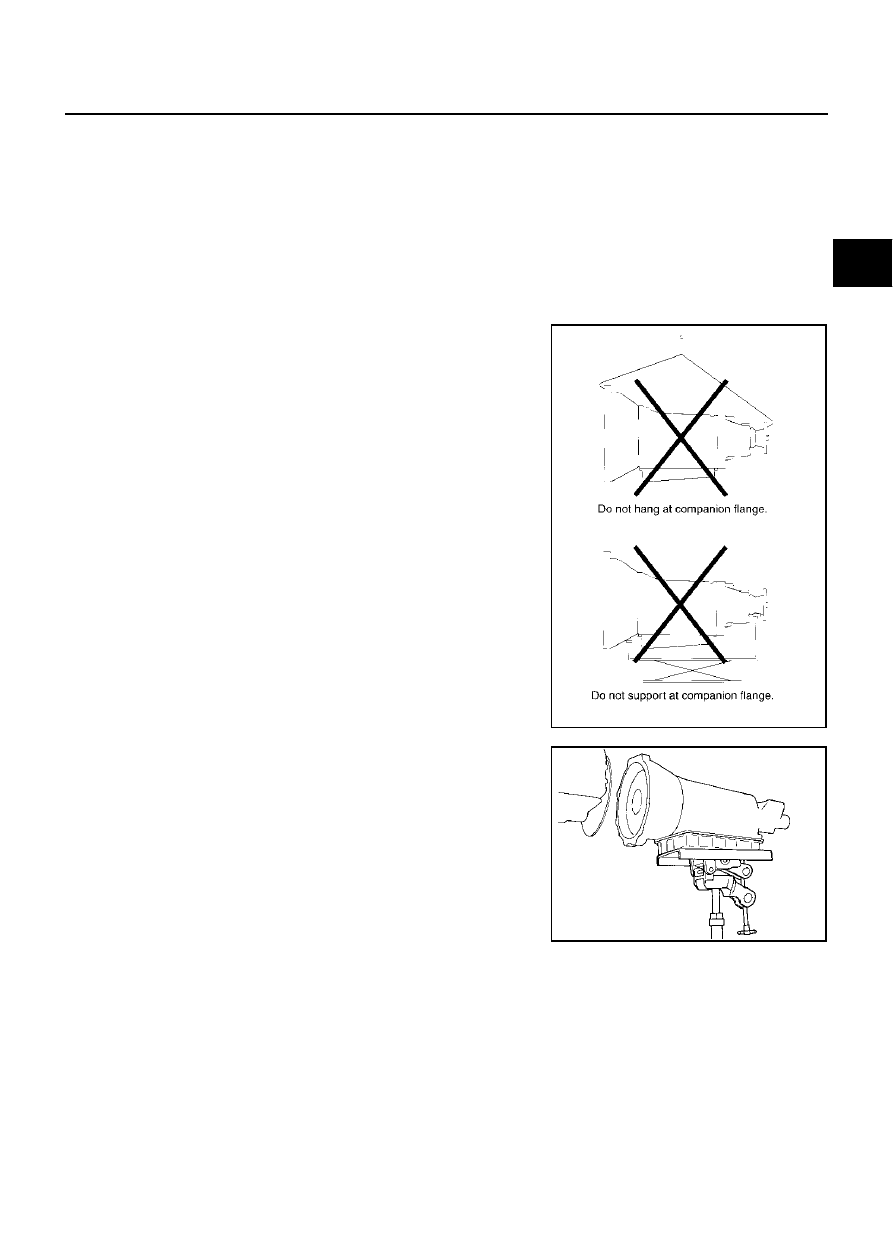

Do not perform any work that uses the companion flange
section located at the rear part of the transmission as a
point of support.

17. Remove A/T assembly from vehicle with a jack.

●

Secure torque converter to prevent it from dropping.

●

Secure A/T assembly to a jack.

SCIA0490E

SCIA0499E

AT-298

TRANSMISSION ASSEMBLY

INSPECTION

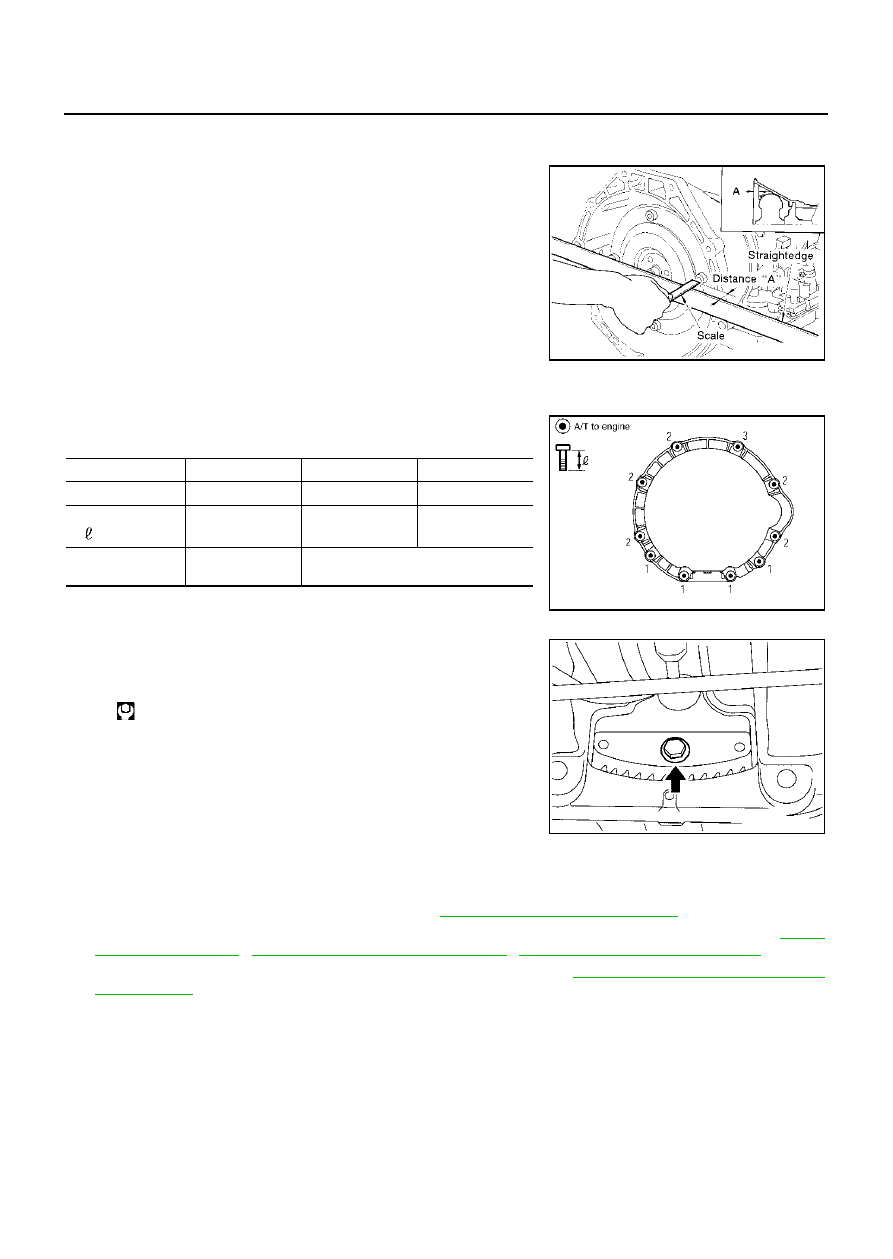

Installation and Inspection of Torque Converter

●

After inserting a torque converter to a transmission, be sure to
check dimension A to ensure it is within the reference value
limit.

INSTALLATION

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

●

When installing transmission to the engine, attach the fixing
bolts in accordance with the following standard.

*: Tightening the bolt With A/T fluid charging pipe.

●

Align the positions of tightening bolts for drive plate with those of
the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts with the specified torque.

CAUTION:

●

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

●

When tightening the tightening bolts for the torque con-
verter after fixing the crankshaft pulley bolts, be sure to
confirm the tightening torque of the crankshaft pulley
mounting bolts.

●

After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that
transmission rotates freely without binding.

●

Install crankshaft position sensor (POS). Refer to

EM-25, "Removal and Installation"

 .

●

After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to

AT-14,

"Checking A/T Fluid"

 ,

AT-282, "Adjustment of A/T Position"

 ,

AT-282, "Checking of A/T Position"

 .

●

When replacing the A/T assembly, erase EEP ROM in TCM. Refer to

AT-8, "Precautions for A/T Assembly

Replacement"

 .

Dimension A

: 22.0 mm (0.87 in) or more

SAT017B

Bolt No.

1

2

3*

Number of bolts

4

5

1

Bolt length

 “

”mm (in)

65 (2.56)

70 (2.76)

70 (2.76)

Tightening torque
N·m (kg-m, ft-lb)

69 - 79

(7.1 - 8.0, 51 - 58)

110 - 118

(11.3 - 12.0, 82 - 87)

PCIA0044E

: 44 - 58 N·m (4.5 - 5.9 kg-m, 33 - 42 ft-lb)

PCIA0045J

OVERHAUL

AT-299

D

E

F

G

H

I

J

K

L

M

A

B

AT

OVERHAUL

PFP:00000

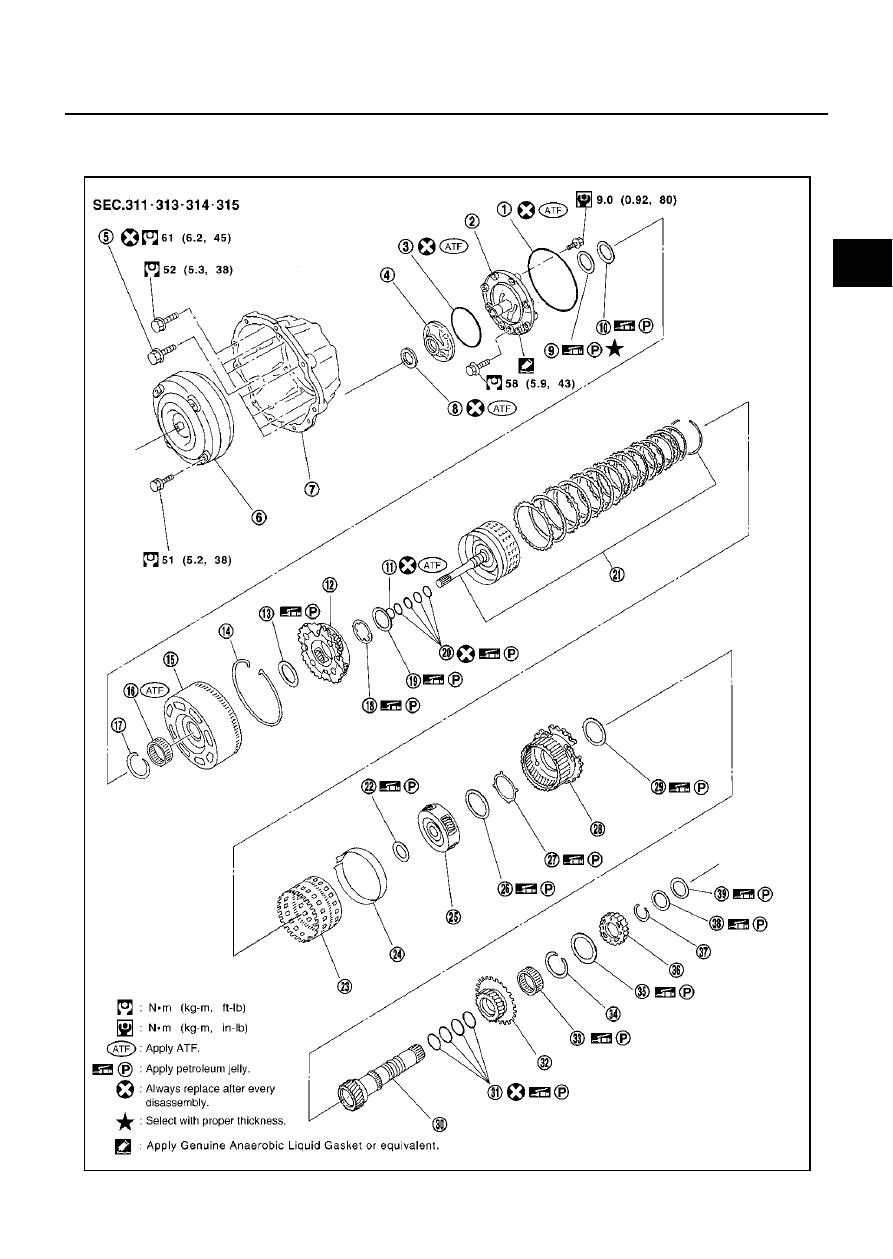

Components

ECS00A06

SCIA2904E

AT-300

OVERHAUL

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolt

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11.

O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing
