TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ACS-65

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

6.

Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC system
warning lamp (orange) does not illuminate.

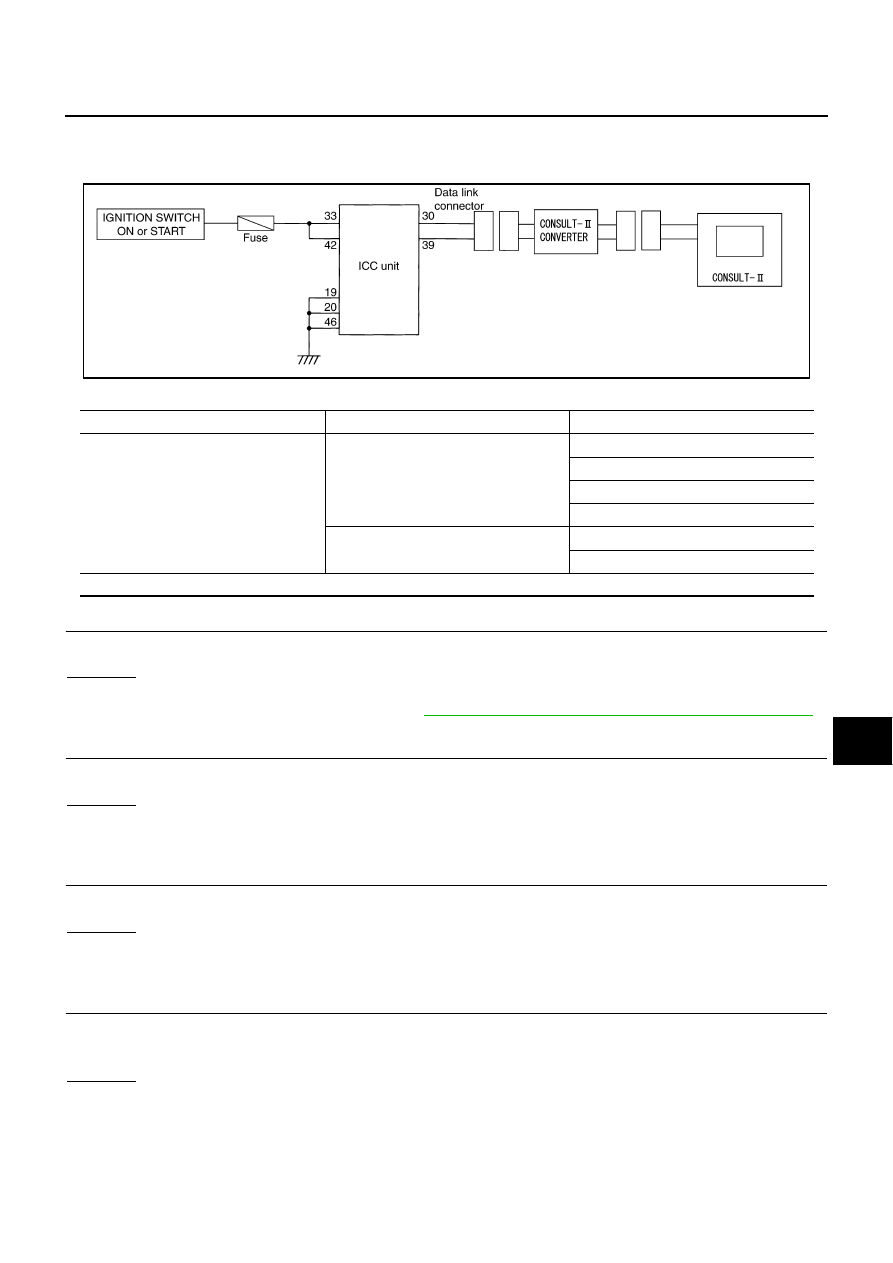

SELF-DIAGNOSIS BY CONSULT-II WILL NOT RUN

Possible Irregular Condition

1.

CHECK CONSULT-II SYSTEM

●

Can CONSULT-II call other systems?

Yes or No

Yes

>> GO TO 2.

No

>> Check CONSULT-ll SYSTEM. Refer to

GI-38, "CONSULT-II Data Link Connector (DLC) Circuit"

 .

2.

CHECK POWER SUPPLY FOR ICC UNIT

●

Is ICC unit turned ON?

Yes or No

Yes

>> GO TO 3.

No

>> Check power supply system, and repair if necessary.

3.

CHECK HARNESS FOR DATA LINK CONNECTOR

●

Is continuity between ICC unit and data link connector normal?

Yes or No

Yes

>> GO TO 4.

No

>> Harness repair

4.

SELF-DIAGNOSIS CHECK

●

Disconnect ICC unit connector, and check terminals for bend and looseness. Securely connect it again.

●

Enter self-diagnosis mode?

Yes or No

Yes

>> Inspection is completed.

No

>> ICC unit replacement

PKIA2368E

Open or short lines

Trouble phenomenon

Malfunction causes

ICC unit power supply malfunction

No voltage supply from ignition switch

Ignition relay malfunctioned

Fuse blown

Harness open

Harness shorted

Ground cable not connected

Harness open

Harness shorted

ICC unit malfunction

ACS-66

[ICC]

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

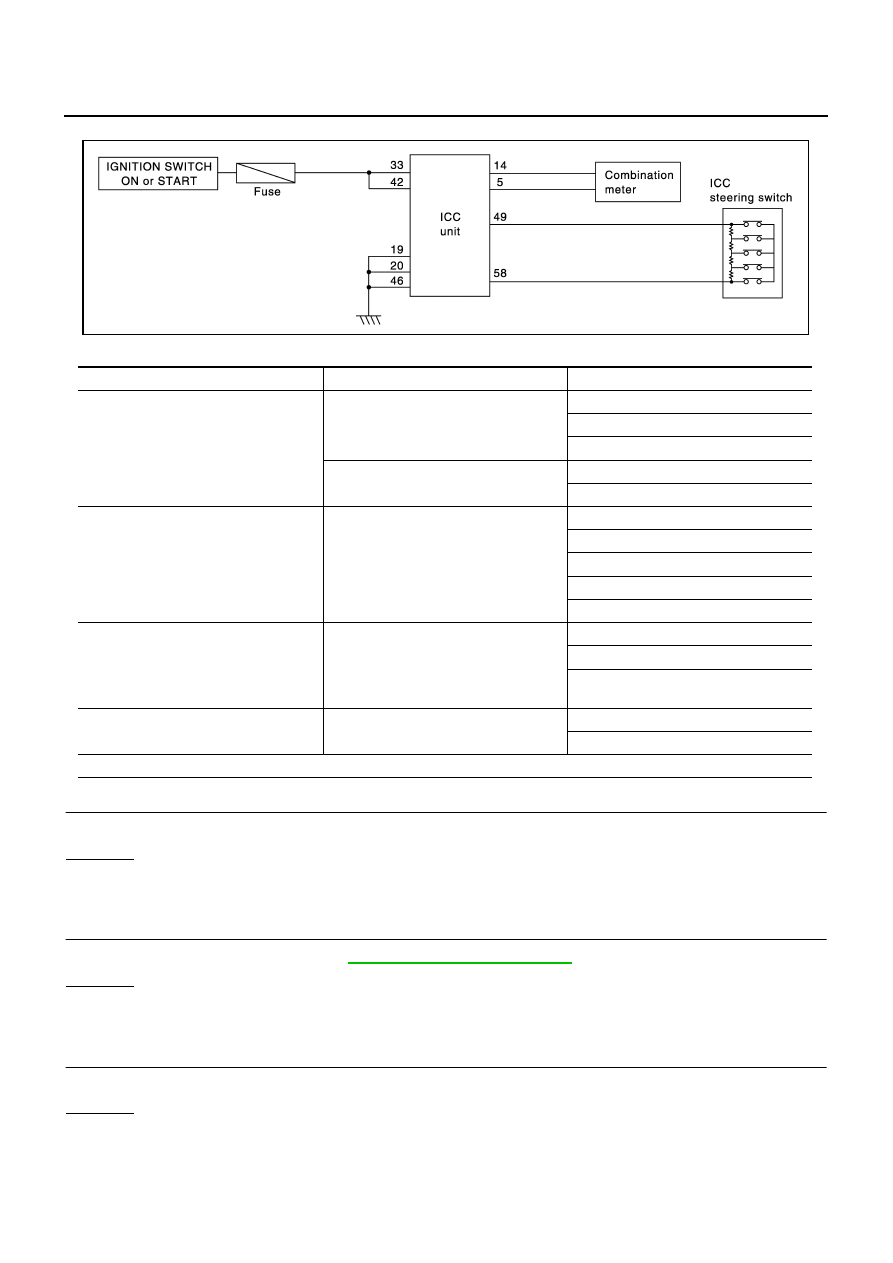

SELF-DIAGNOSIS BY ICC SYSTEM DISPLAY WILL NOT RUN.

Possible Irregular Condition

1.

CHECK ICC SYSTEM DISPLAY

●

When ignition switch is ON, do all displays illuminate?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 5.

2.

CHECK ICC STEERING SWITCH

●

Check ICC steering switch. Refer to

ACS-101, "ICC Steering Switch"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Replace ICC steering switch.

3.

CHECK HARNESS BETWEEN ICC UNIT AND ICC STEERING SWITCH

●

Check harness and spiral cable between ICC unit and ICC steering switch for open or short circuit.

OK or NG

OK

>> GO TO 4.

NG

>> Replace or replace applicable item.

SKIA1239E

Open or short lines

Trouble phenomenon

Malfunction causes

ICC unit power supply malfunction

No voltage supply from ignition switch

Fuse blown

Harness open

Harness shorted

Ground cable not connected

Harness open

Harness shorted

ICC steering switch malfunction

No signal transmitted

Harness open

Harness shorted

Spiral cable open

Spiral cable shorted

Switch malfunction

CAN communication system malfunction

Signal not transmitted

Harness open

Harness shorted

CAN communication outside the stan-
dard

Combination meter system malfunction

Indication not possible

Indicator malfunction

Indicator segments disappear.

ICC unit malfunction

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

ACS-67

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

4.

CHECK SELF-DIAGNOSIS

●

Disconnect connector of ICC unit, and check terminals for bend and looseness. Securely connect it again.

●

Enter self-diagnosis mode?

Yes or No

Yes

>> Inspection is completed.

No

>> GO TO 5.

5.

CHECK POWER SUPPLY FOR ICC UNIT

●

Check ICC unit power supply, and repair if necessary.

●

When ignition switch is ON, do all displays illuminate?

Yes or No

Yes

>> Perform self-diagnosis again.

No

>> GO TO 6.

6.

CHECK CONNECTOR FOR ICC UNIT

●

Disconnect connector of ICC unit, and check terminals for bend and looseness. Securely connect it again.

●

When ignition switch is ON, do all displays illuminate?

Yes or No

Yes

>> Perform self-diagnosis again.

No

>> GO TO 7.

7.

CHECK CAN COMMUNICATION

●

Perform self-diagnosis with CONSULT-II, and check CAN communication system for malfunction.

OK or NG

OK

>> Replace combination meter.

NG

>> CAN communication inspection. Refer to

ACS-70, "DTC 20 CAN COMM CIRCUIT"

 .

ACS-68

[ICC]

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

PFP:00000

Diagnostic Trouble Code (DTC) Chart

EKS003P9

×

:Applicable

DTC

No.

CONSULT-II screen terms

ICC system

warning lamp

Fail-safe

Malfunctions detected where...

Refer-

ence
page

11

CONTROL UNIT

×

×

●

ICC unit internal malfunction

ACS-70

20

CAN COMM CIRCUIT

×

×

●

ICC unit detected CAN communi-
cation malfunction.

ACS-70

31

POWER SUPPLY CIR1

×

×

●

ICC unit power supply voltage is
excessively low. (less than 8V)

ACS-71

34

POWER SUPPLY CIR2

×

×

●

ICC unit power supply voltage is
excessively high.

ACS-71

41

VHCL SPEED SE CIRC

×

×

●

Wheel sensor malfunction.

●

VDC/TCS/ABS control unit mal-
function

●

AT vehicle speed sensor mal-
function

●

TCM malfunction

ACS-71

42

THRTL POS SEN CIRC

×

×

●

Throttle position sensor harness
is open or shorted.

●

Throttle position sensor input is
HI or fixed to LO.

●

Closed throttle position switch is
ON or stuck to OFF.

ACS-72

43

ABS/TCS/VDC CIRC

×

×

●

ABS/TCS/VDC system malfunc-
tion

ACS-73

45

BRAKE SW/ STOP L SW

×

×

●

Brake and stop  lamp switch har-
ness is open or shorted.

●

Brake and stop lamp switch is
ON or stuck to OFF.

●

Brake and stop lamp switch is
stuck to ON.

ACS-74

46

OPERATION SW CIRC

×

×

●

ICC steering switch harness or
spiral cable is open or shorted.

●

ICC steering switch  malfunction

ACS-75

61

PRESS SEN CIRCUIT

×

×

●

Brake pressure sensor harness is
open or shorted.

●

Brake pressure sensor malfunc-
tion

●

Brake pressure sensor input cir-
cuit malfunction

ACS-77

62

BOOSTER SOL/V CIRCUIT

×

×

●

Solenoid harness is open or
shorted.

●

Solenoid is open.

●

Solenoid drive circuit malfunction

ACS-77

63

RELEASE SW CIRCUIT

×

×

●

Release switch harness is open
or shorted.

●

Release switch malfunction

●

Release switch input circuit mal-
function

ACS-78

65

PRESSURE CONTROL

×

×

●

Booster malfunction

ACS-79
