Infiniti I35 (A33). Manual - part 603





SFA508A

ASSEMBLY

NHSU0012

I

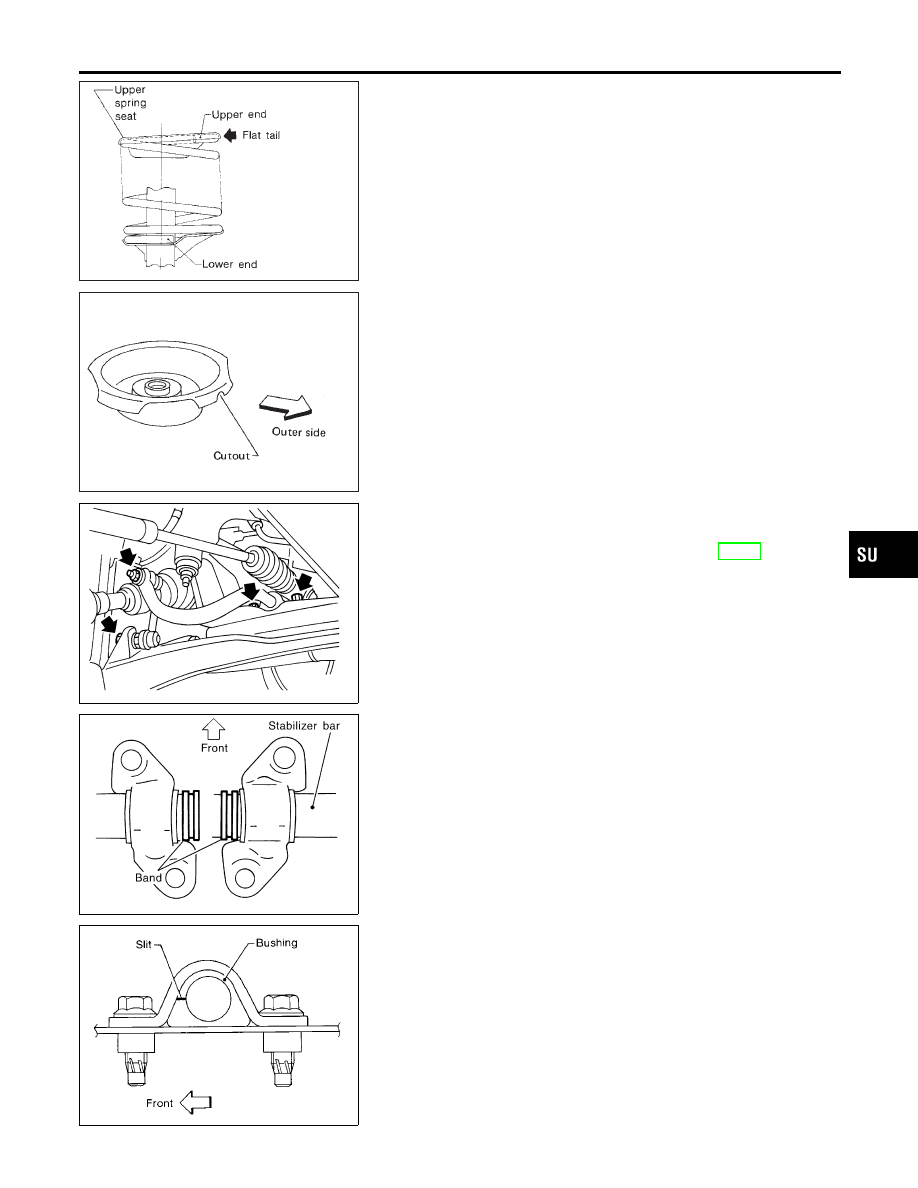

When installing coil spring on strut, it must be positioned as
shown in the figure at left.

SFA664A

I

Install upper spring seat with its cutout facing the outer side of
vehicle.

SSU027

Stabilizer Bar

REMOVAL AND INSTALLATION

NHSU0017

I

Remove power steering gear. Refer to ST-16, “POWER
STEERING GEAR AND LINKAGE”.

I

Remove stabilizer bar.

SSU026

I

When installing stabilizer, make sure that band and clamp face
in their correct directions.

SFA604B

I

Make sure that slit in bushing is in the position shown in the
figure.

GI

MA

EM

LC

EC

FE

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT SUSPENSION

Coil Spring and Shock Absorber (Cont’d)

SU-11

SFA449BB

I

Install stabilizer bar with ball joint socket properly placed.

ARA027

I

Check stabilizer for deformation or cracks. Replace if neces-
sary.

I

Check rubber bushings for deterioration or cracks. Replace if
necessary.

I

Check ball joint can rotate in all directions. If movement is not
smooth and free, replace stabilizer bar connecting rod.

SFA651A

Transverse Link and Lower Ball Joint

REMOVAL AND INSTALLATION

NHSU0018

1.

Remove wheel bearing lock nut.

2.

Remove tie-rod ball joint.

3.

Remove strut lower bracket fixing bolts and nuts.

4.

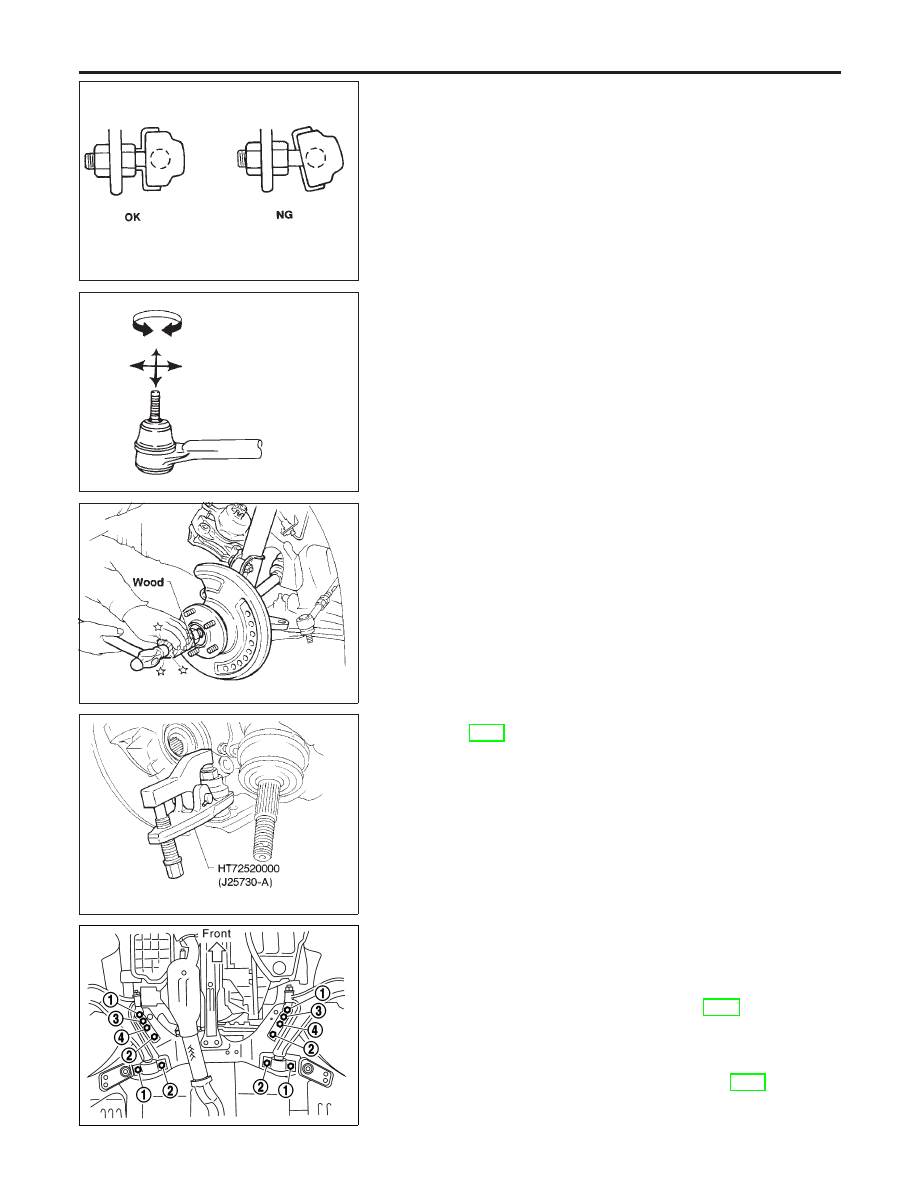

Separate drive shaft from knuckle by slightly tapping drive
shaft end.

Cover boots with shop towel so as not to damage them when
removing drive shaft.

SFA113A

5.

Separate lower ball joint stud from knuckle with suitable tool.
Refer to AX-5, “FRONT AXLE — Wheel Hub and Knuckle”.

SSU012

6.

Remove fixing bolts.

7.

Remove transverse link and lower ball joint.

8.

Install fixing bolts in order of number.

Tightening torque:

Refer to “FRONT SUSPENSION”, SU-6.

9.

During installation, final tightening must be carried out at curb
weight with tires on the ground.

10. After installation, check wheel alignment. Refer to “ON-VE-

HICLE SERVICE — Front Wheel Alignment”, SU-6.

FRONT SUSPENSION

Stabilizer Bar (Cont’d)

SU-12

INSPECTION

NHSU0019

Transverse Link

NHSU0019S01

I

Check transverse link for damage, cracks or deformation.
Replace it if necessary.

I

Check rubber bushing for damage, cracks and deformation.
Replace transverse link if necessary.

SFA858A

Lower Ball Joint

NHSU0019S02

I

Check ball joint for play. Replace transverse link assembly if
any of the following cases occur. Ball stud is worn, play in axial
direction is excessive or joint is hard to swing.
Before checking, turn ball joint at least 10 revolutions so that
ball joint is properly broken in.

Swinging force “A”:
(measuring point: cotter pin hole of ball stud):

7.8 - 77.5 N (0.8 - 7.9 kg, 1.8 - 17.4 lb)

Turning torque “B”:

0.50 - 4.90 N·m (5.1 - 50 kg-cm, 4.4 - 43.4 in-lb)

Vertical end play “C”:

0 mm (0 in)

I

Check dust cover for damage. Replace it and cover clamp if
necessary.

GI

MA

EM

LC

EC

FE

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT SUSPENSION

Transverse Link and Lower Ball Joint (Cont’d)

SU-13

Service Data and Specifications (SDS)

GENERAL SPECIFICATIONS (FRONT)

=NHSU0020

Suspension type

Independent MacPherson strut

Shock absorber type

Double-acting hydraulic

Stabilizer bar

Standard equipment

FRONT SUSPENSION

Service Data and Specifications (SDS)

SU-14
