STARTING & CHARGING SYSTEM

SECTION

SC

CONTENTS

PRECAUTIONS ...............................................................2

Precautions for Supplemental Restraint System
(SRS)

AIR BAG

and

SEAT BELT

PRE-TENSIONER

......................................................2

Wiring Diagrams and Trouble Diagnosis.....................2

PREPARATION ...............................................................3

Special Service Tool ....................................................3

BATTERY.........................................................................4

How to Handle Battery ................................................4

METHODS OF PREVENTING OVER-DISCHARGE

......4

CHECKING ELECTROLYTE LEVEL

............................4

SPECIFIC GRAVITY CHECK

......................................5

CHARGING THE BATTERY

........................................6

Trouble Diagnoses with Battery/Starting/Charging
System Tester
..............................................................7

DIAGNOSTIC RESULT ITEM CHART

..........................9

STARTING SYSTEM .....................................................10

System Description....................................................10
Wiring Diagram - START -......................................... 11
Trouble Diagnoses with Battery/Starting/Charging
System Tester
............................................................12

DIAGNOSTIC RESULT ITEM CHART

........................13

WORK FLOW

..........................................................14

DIAGNOSTIC PROCEDURE 1

..................................15

DIAGNOSTIC PROCEDURE 2

..................................17

MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT
TEMPERATURE

......................................................18

Construction...............................................................18
Removal and Installation ...........................................18

REMOVAL

...............................................................18

INSTALLATION

........................................................19

Pinion/Clutch Check ..................................................19

CHARGING SYSTEM ....................................................20

System Description....................................................20
Wiring Diagram - CHARGE -.....................................21
Trouble Diagnoses with Battery/Starting/Charging
System Tester
............................................................22

DIAGNOSTIC RESULT ITEM CHART

........................24

WORK FLOW

..........................................................25

DIAGNOSTIC PROCEDURE 1

..................................26

DIAGNOSTIC PROCEDURE 2

..................................27

DIAGNOSTIC PROCEDURE 3

..................................28

MALFUNCTION INDICATOR

....................................28

Construction...............................................................29
Removal and Installation ...........................................29

REMOVAL

...............................................................29

INSTALLATION

........................................................29

SERVICE DATA AND SPECIFICATIONS (SDS) .........30

Battery........................................................................30
Starter ........................................................................30
Alternator ...................................................................30

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT
PRE-TENSIONER”

NHSC0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with
a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types
of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS sys-
tem uses the seat belt switches to determine the front air bag deployment, and may only deploy one front air
bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information that is necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized NISSAN/INFINITI dealer.

I

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Wiring Diagrams and Trouble Diagnosis

NHSC0002

When you read wiring diagrams, refer to the following:

I

GI-11, “HOW TO READ WIRING DIAGRAMS”

I

EL-11, “POWER SUPPLY ROUTING” for power distribution circuit

When you perform trouble diagnosis, refer to the following:

I

GI-36, “HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES”

I

GI-25, “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”

PRECAUTIONS

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

SC-2

Special Service Tool

NHSC0017

Tool number
Tool name

Description

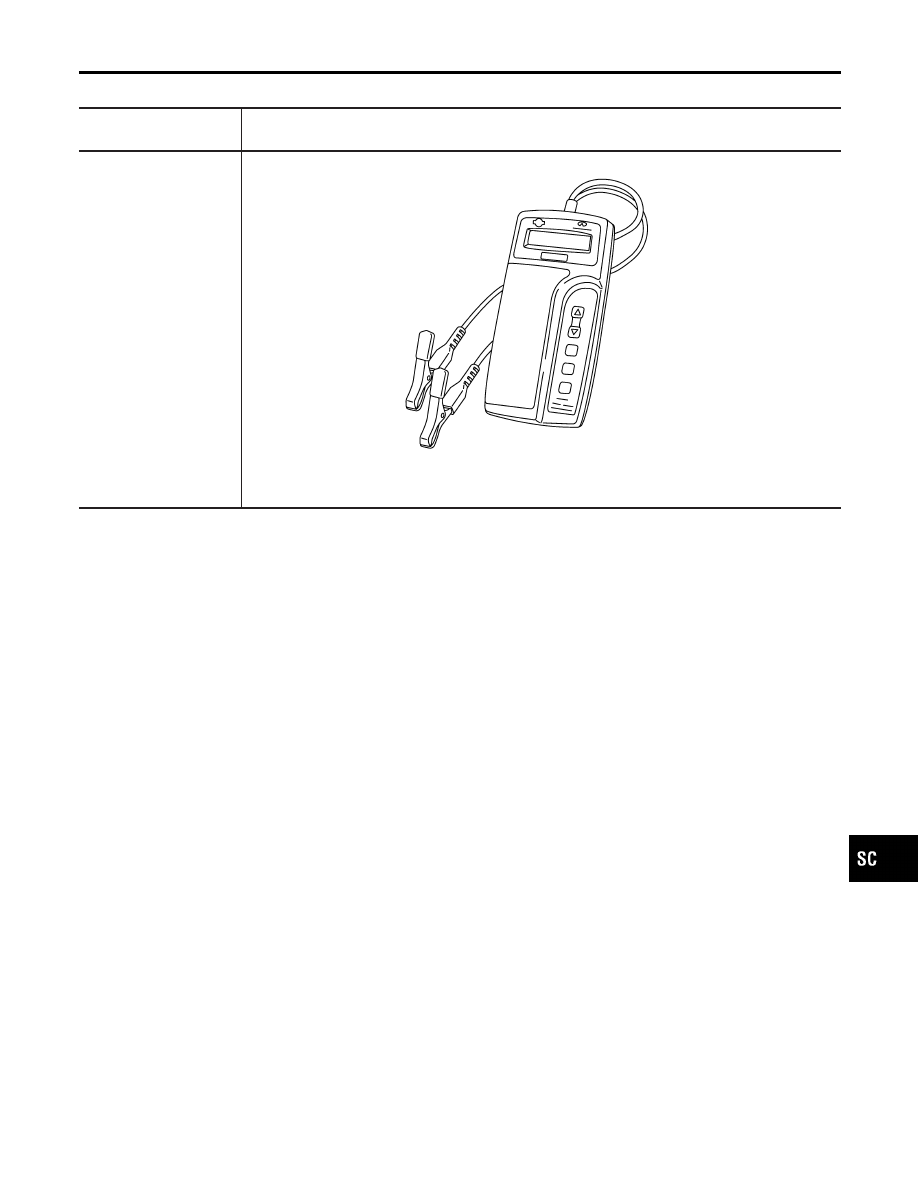

J-44373 Model 620
Battery/Starting/Charging
system tester

SEL403X

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

PREPARATION

Special Service Tool

SC-3

How to Handle Battery

NHSC0003

CAUTION:

I

If it becomes necessary to start the engine with a booster
battery and jumper cables, use a 12-volt booster battery.

I

After connecting battery cables, ensure that they are
tightly clamped to battery terminals for good contact.

I

Never add distilled water through the hole used to check
specific gravity.

MEL040F

METHODS OF PREVENTING OVER-DISCHARGE

NHSC0003S01

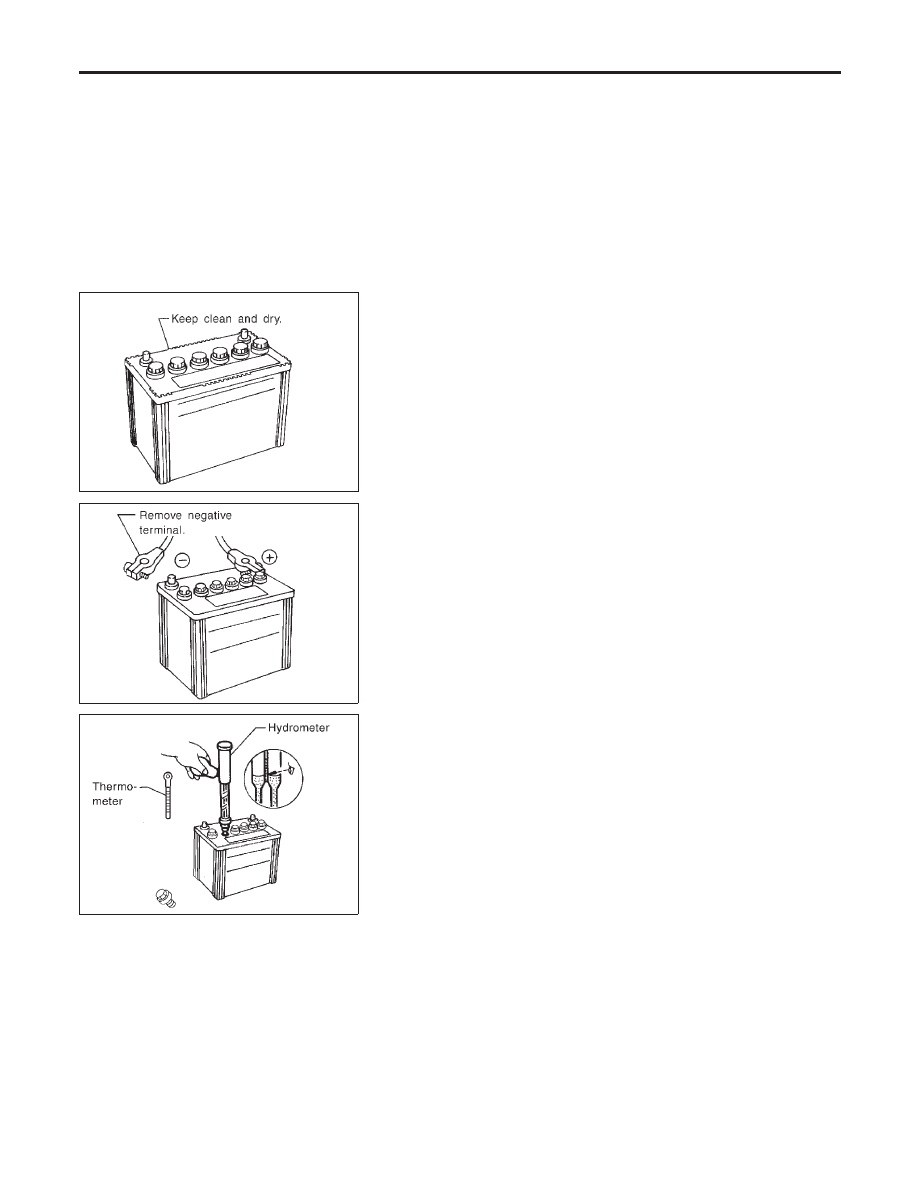

The following precautions must be taken to prevent over-discharg-
ing a battery.

I

The battery surface (particularly its top) should always be kept
clean and dry.

I

The terminal connections should be clean and tight.

I

At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.

MEL041F

I

When the vehicle is not going to be used over a long period of
time, disconnect the negative battery terminal. (If the vehicle
has an extended storage switch, turn it off.)

MEL042F

I

Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep
a close check on charge condition to prevent over-discharge.

CHECKING ELECTROLYTE LEVEL

NHSC0003S02

WARNING:

Do not allow battery fluid to come in contact with skin, eyes,
fabrics, or painted surfaces. After touching a battery, do not
touch or rub your eyes until you have thoroughly washed your
hands. If acid contacts eyes, skin or clothing, immediately
flush with water for 15 minutes and seek medical attention.

BATTERY

How to Handle Battery

SC-4
