SBF276H

DISPOSING OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER

NHRS0022S04

Deployed air bag module and activated seat belt pre-tensioner are
very hot. Before disposing of air bag module, and seat belt pre-
tensioner wait at least 30 minutes, and 10 minutes, respectively.

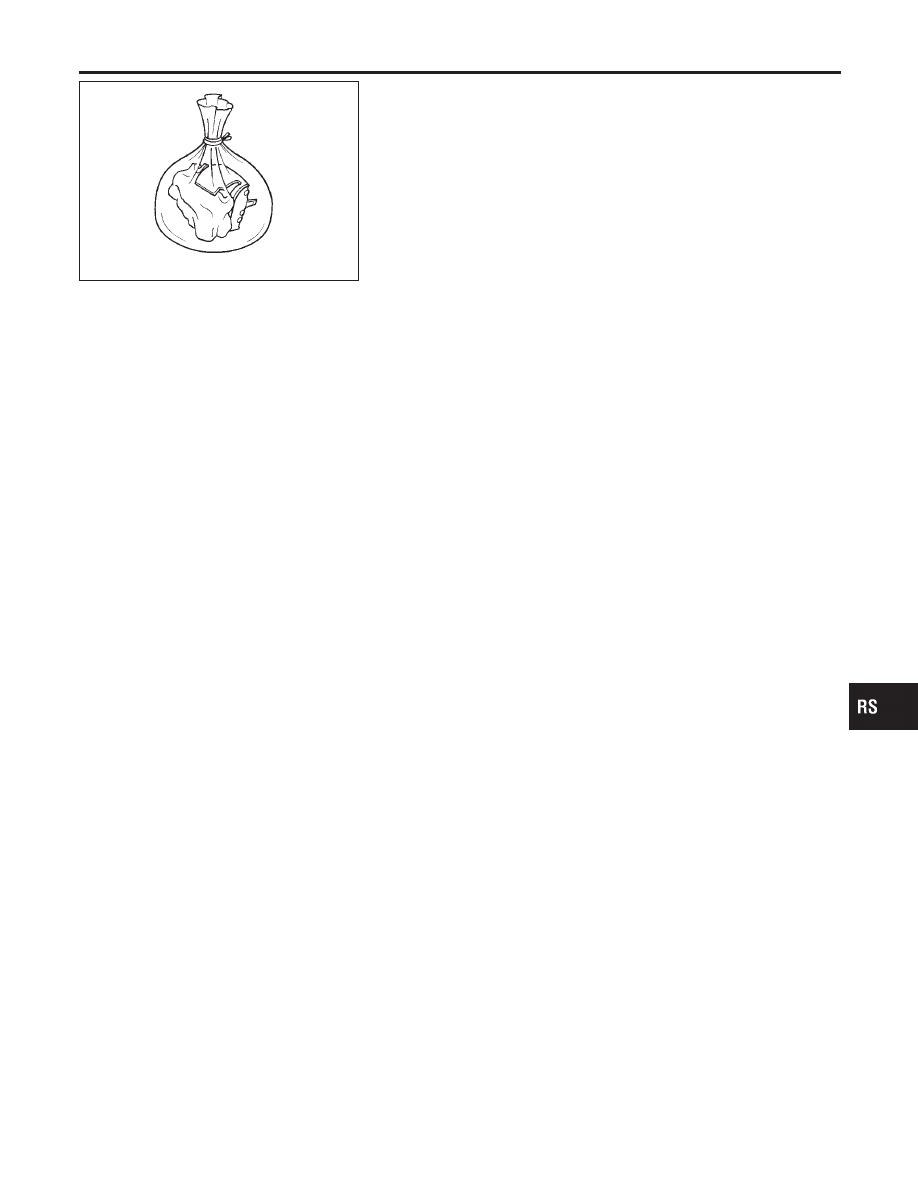

Seal them in a plastic bag before disposal.

CAUTION:

Never apply water to a deployed air bag module and acti-
vated seat belt pre-tensioner.

Be sure to wear gloves when handling a deployed air bag
module and activated seat belt pre-tensioner.

No poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since it
irritates throat and can cause choking.

Do not attempt to disassemble air bag module and seat
belt pre-tensioner.

Air bag module and seat belt pre-tensioner cannot be
reused.

Wash your hands clean after finishing work.

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Disposal of Air Bag Module and Seat Belt Pre-tensioner (Cont’d)

RS-31

Trouble Diagnoses Introduction

=NHRS0043

CAUTION:

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tor.

Do not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged,
replace it with a new one.

Keep ground portion clean.

DIAGNOSIS FUNCTION

NHRS0043S01

The SRS self-diagnostic results can be read by using “AIR BAG” warning lamp and/or CONSULT-II. The
reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis mode”.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system
malfunction through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-II are as follows:

User mode

Diagnosis mode

Display type

“AIR BAG” warning lamp

ON-OFF operation

CONSULT-II

—

Monitoring

DIAGNOSIS MODE FOR CONSULT-II

NHRS0043S02

“SELF-DIAG [CURRENT]”
A current self-diagnostic result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requiring
repairs.

“SELF-DIAG [PAST]”
Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The stored
results are not erased until memory erasing is executed.

“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be displayed
on the CONSULT-II screen.

“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned with its own, individual classification num-
ber. This number will be displayed on the CONSULT-II screen, as shown below. When replacing the diag-
nosis sensor unit, refer to the part number for the compatibility. After installation, replacement with a cor-
rect unit can be checked by confirming this classification number on the CONSULT-II screen.

SRS003A

For INFINITI I35, the diagnosis sensor unit classification numbers assigned is FA50.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses Introduction

RS-32

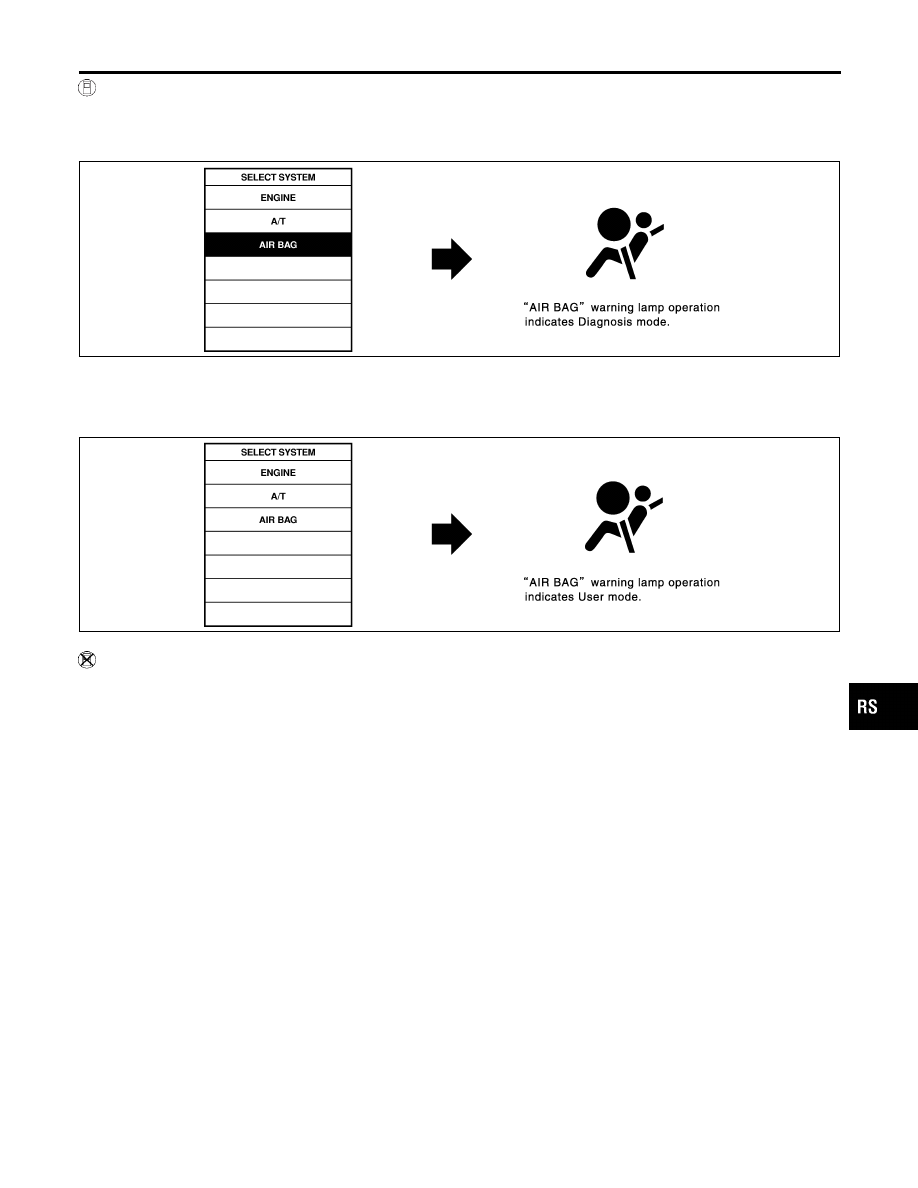

HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II

=NHRS0043S03

From User Mode to Diagnosis Mode

NHRS0043S0301

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagno-
sis mode.

SRS803

From Diagnosis Mode to User Mode

NHRS0043S0302

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.

SRS804

HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-II

NHRS0043S04

From User Mode to Diagnosis Mode

NHRS0043S0401

Diagnosis mode activates only when a malfunction is detected, by turning ignition switch as follows:
1) Turn ignition switch “ON”.
2) After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.
3) Wait more than 3 seconds.
4) Repeat steps 1 to 3 twice (Perform 3 times in total).
5) Turn ignition switch “ON”.
SRS will not enter Diagnosis mode, if no malfunction is detected.

From Diagnosis Mode to User Mode

NHRS0043S0402

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode is returned to User mode.
If switching Diagnosis mode to User mode is required while malfunction is being detected, by turning ignition
switch as follows:
1) Turn ignition switch “ON”.
2) After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.
3) Wait more than 3 seconds.
4) Repeat steps 1 to 3 twice (Perform 3 times in total).
5) Turn ignition switch “ON”.

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses Introduction (Cont’d)

RS-33

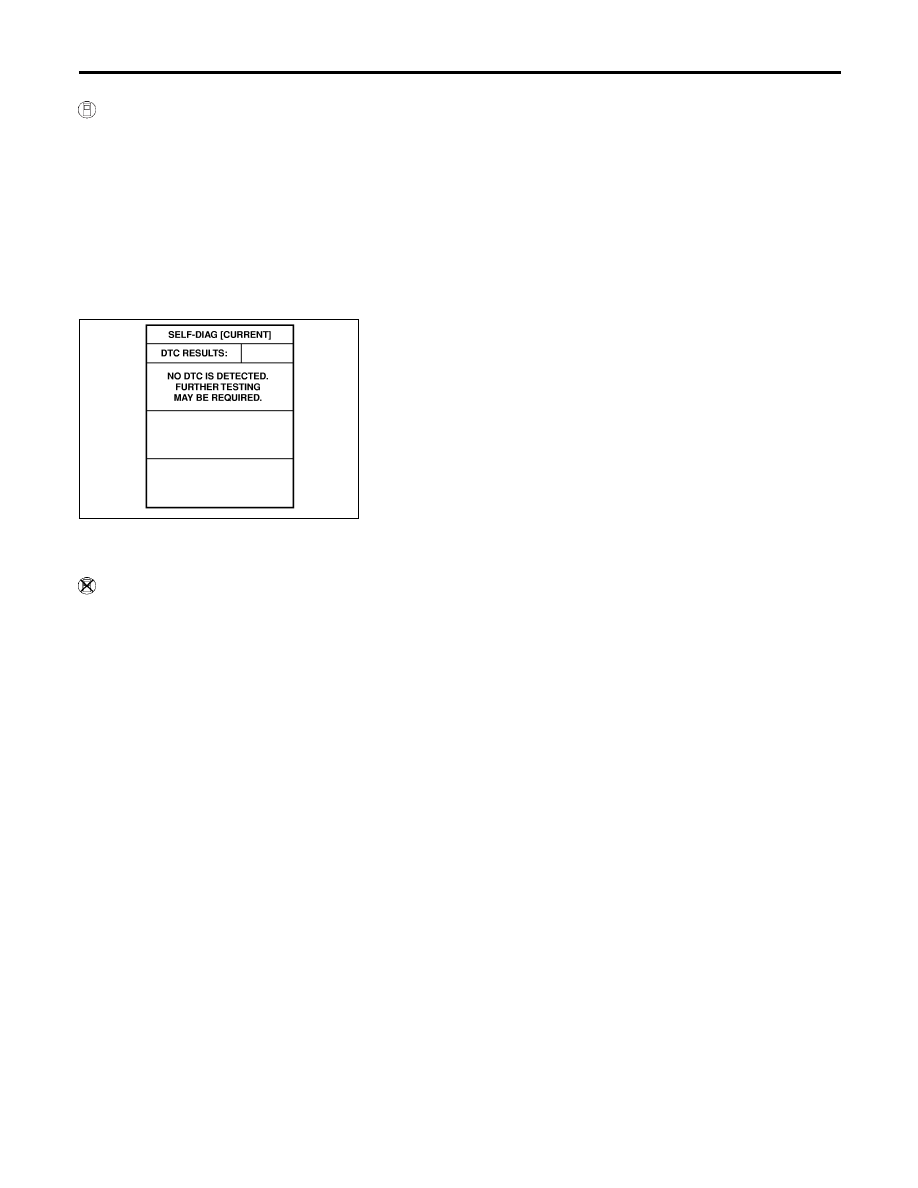

HOW TO ERASE SELF-DIAGNOSIS RESULTS

=NHRS0043S05

With CONSULT-II

NHRS0043S0501

“SELF-DIAG [CURRENT]”
A current self-diagnostic result is displayed on the CONSULT-II screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by pushing “BACK” key of CONSULT-II and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.

NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the sys-
tem malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

SRS701

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.

Without CONSULT-II

NHRS0043S0502

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic result is cleared.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses Introduction (Cont’d)

RS-34
