Maintenance of Lubricant Quantity in
Compressor

NHHA0229

The lubricant in the compressor circulates through the system with
the refrigerant. Add lubricant to compressor when replacing any
component or after a large gas leakage occurred. It is important to
maintain the specified amount. If lubricant quantity is not main-
tained properly, the following malfunctions may result:

I

Lack of lubricant: May lead to a seized compressor

I

Excessive lubricant: Inadequate cooling (thermal exchange
interference)

LUBRICANT

NHHA0229S01

Name: Nissan A/C System Oil Type S
Part number: KLH00-PAGS0

CHECKING AND ADJUSTING

NHHA0229S02

Adjust the lubricant quantity according to the test group shown
below.

1

CHECK LUBRICANT RETURN OPERATION

Can lubricant return operation be performed?

I

A/C system works properly.

I

There is no evidence of a large amount of lubricant leakage.

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

PERFORM LUBRICANT RETURN OPERATION, PROCEEDING AS FOLLOWS:

1. Start engine, and set the following conditions:

Test condition
Engine speed: Idling to 1,200 rpm
AUTO switch: ON
Blower speed: Max. position
Temp. control: Optional [Set so that intake air temperature is 25 to 30°C (77 to 86°F).]

2. Next item is for V-6 compressor. Connect the manifold gauge, and check that the high pressure side pressure

is 588 kPa (6 kg/cm

2

, 85 psi) or higher.

If less than the reference level, attach a cover to the front face of the condenser to raise the pressure.

3. Perform lubricant return operation for about 10 minutes.
4. Stop engine.

CAUTION:

If excessive lubricant leakage is noted, do not perform the lubricant return operation.

OK

©

GO TO 3.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

HFC-134a (R-134a) Service Procedure (Cont’d)

HA-109

3

CHECK COMPRESSOR

Should the compressor be replaced?

Yes or No

Yes

©

Go to “Lubricant Adjustment Procedure for Compressor Replacement”, (HA-110).

No

©

GO TO 4.

4

CHECK ANY PART

Is there any part to be replaced? (Evaporator, condenser, liquid tank or in case there is evidence of a large amount of
lubricant leakage.)

Yes or No

Yes

©

Go to “Lubricant Adjusting Procedure for Components Replacement Except
Compressor”, (HA-110).

No

©

Carry out the A/C performance test.

Lubricant Adjusting Procedure for Components
Replacement Except Compressor

NHHA0229S0201

After replacing any of the following major components, add the
correct amount of lubricant to the system.
Amount of lubricant to be added

Part replaced

Lubricant to be added to

system

Remarks

Amount of lubricant

m



(US fl oz, Imp fl oz)

Evaporator

75 (2.5, 2.6)

Condenser

75 (2.5, 2.6)

Liquid tank

5 (0.2, 0.2)

Add if compressor is not

replaced. *1

In case of refrigerant
leak

30 (1.0, 1.1)

Large leak

Small leak *2

*1:

If compressor is replaced, addition of lubricant is included in the table.

*2:

If refrigerant leak is small, no addition of lubricant is needed.

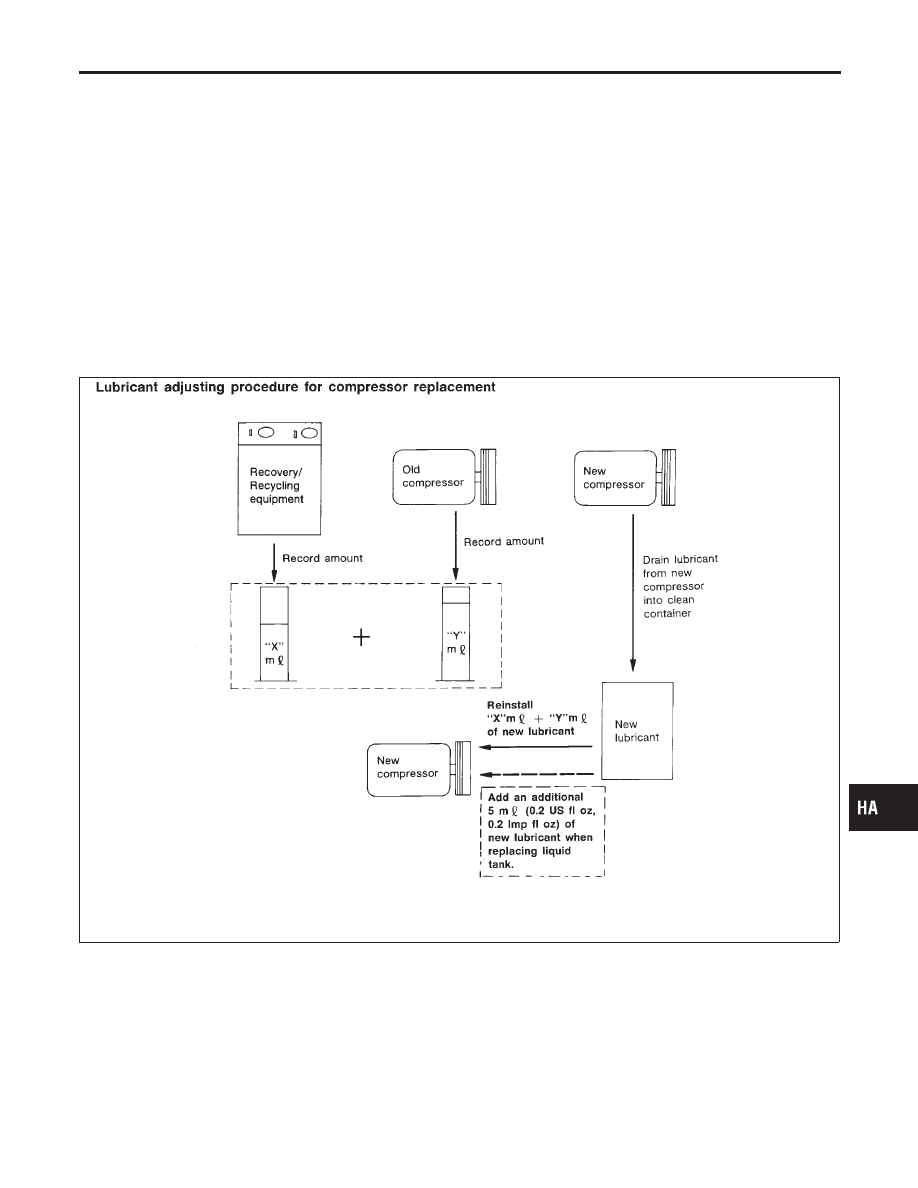

Lubricant Adjusting Procedure for Compressor
Replacement

NHHA0229S0202

1.

Before connecting Recovery/Recycling Recharging equipment
to vehicle, check Recovery/Recycling Recharging equipment
gauges. No refrigerant pressure should be displayed. If NG,
recover refrigerant from equipment lines.

2.

Connect

Recovery/Recycling

Recharging

equipment

to

vehicle. Confirm refrigerant purity in supply tank using
Recovery/Recycling Recharging equipment and refrigerant
identifier. If NG, refer to “CONTAMINATED REFRIGERANT”,
HA-2.

3.

Confirm refrigerant purity in vehicle A/C system using
Recovery/Recycling Recharging equipment and refrigerant
identifier. If NG, refer to “CONTAMINATED REFRIGERANT”,
HA-2.

4.

Discharge refrigerant into the refrigerant recovery/recycling
equipment. Measure lubricant discharged into the recovery/
recycling equipment.

5.

Remove the drain plug of the “old” (removed) compressor.

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor (Cont’d)

HA-110

Drain the lubricant into a graduated container and record the
amount of drained lubricant.

6.

Remove the drain plug and drain the lubricant from the “new”
compressor into a separate, clean container.

7.

Measure an amount of new lubricant installed equal to amount
drained from “old” compressor. Add this lubricant to “new” com-
pressor through the suction port opening.

8.

Measure an amount of new lubricant equal to the amount
recovered during discharging. Add this lubricant to “new” com-
pressor through the suction port opening.

9.

Torque the drain plug.

18 - 19 N·m (1.8 - 1.9 kg-m, 13 - 14 ft-lb)

10. If the liquid tank also needs to be replaced, add an additional

5 m



(0.2 US fl oz, 0.2 Imp fl oz) of lubricant at this time.

Do not add this 5 m



(0.2 US fl oz, 0.2 Imp fl oz) of lubricant

if only replacing the compressor.

RHA065DD

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor (Cont’d)

HA-111

Compressor

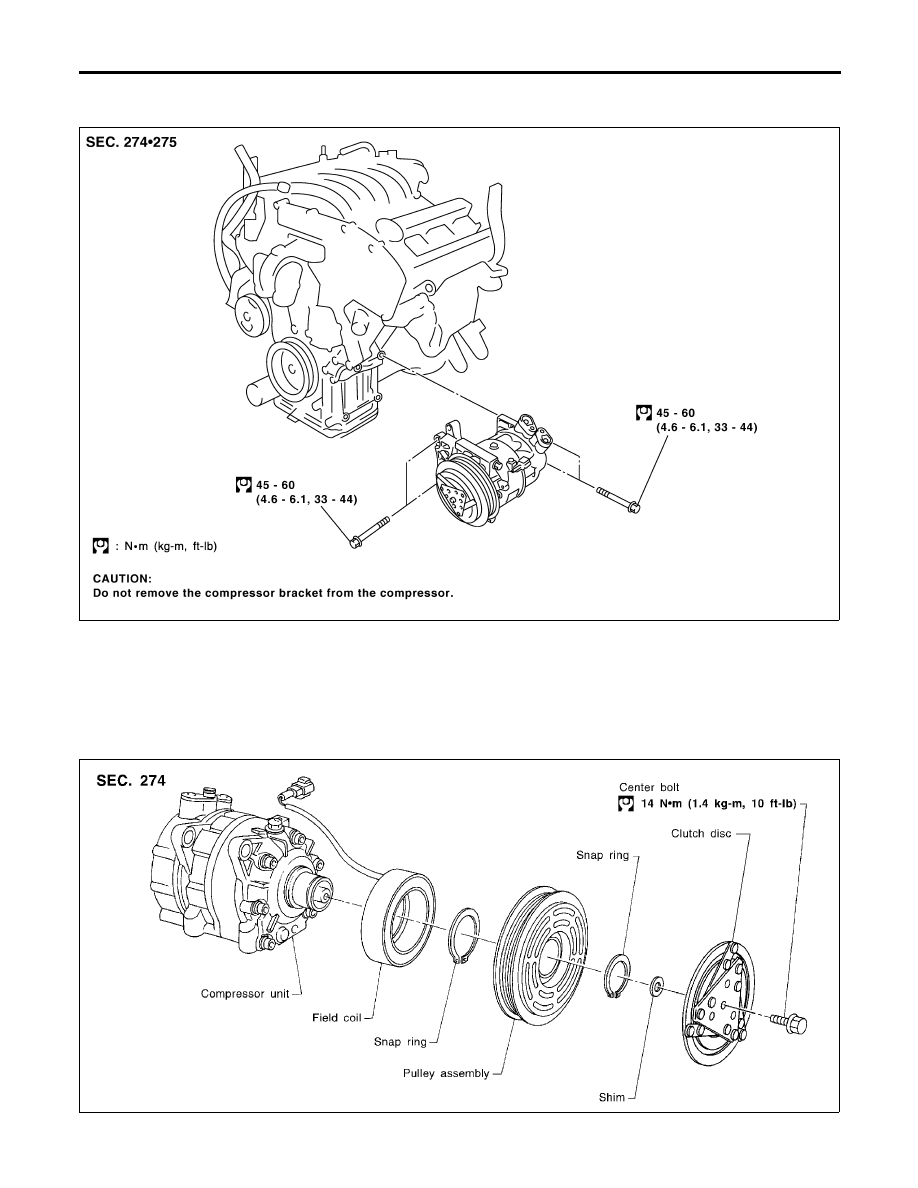

REMOVAL AND INSTALLATION

NHHA0230

RHA062I

Compressor Clutch

OVERHAUL

NHHA0231

RHA122F

SERVICE PROCEDURE

Compressor

HA-112
