Infiniti I35 (A33). Manual - part 537

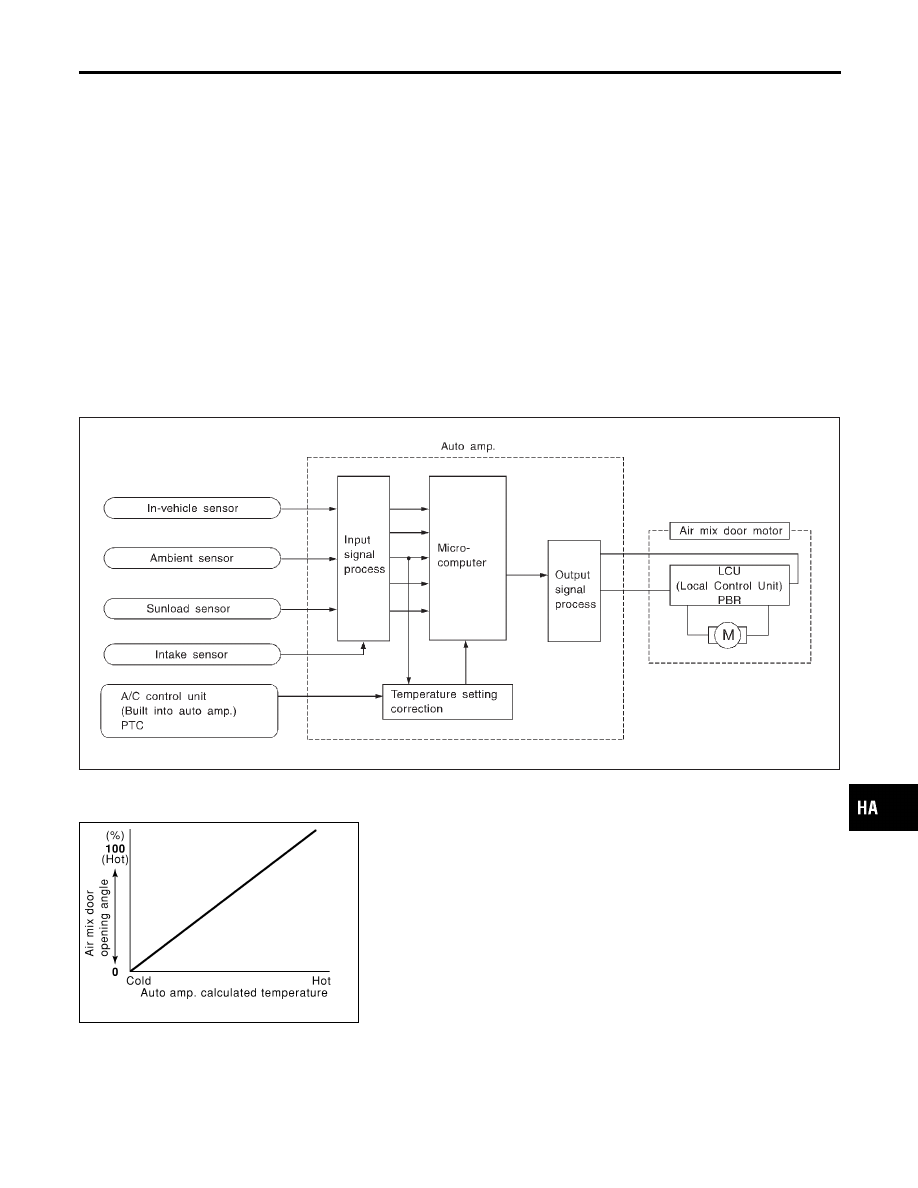

SYSTEM DESCRIPTION

=NHHA0188

Component Parts

NHHA0188S01

Air mix door control system components are:
1) Auto amp.
2) Air mix door motor (LCU)
3) In-vehicle sensor
4) Ambient sensor
5) Sunload sensor
6) Intake sensor

System Operation

NHHA0188S02

The auto amplifier receives data from each of the sensors. The amplifier sends air mix door, mode door, intake
door opening angle data to the air mix door motor LCU, mode door motor LCU and intake door motor LCU.
The air mix door motor, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the auto amplifier and each of the motor posi-
tion sensors are compared by the LCUs in each motor with the existing decision and opening angles.
Subsequently, HOT/COLD or DEFROST/VENT operation is selected. The new selection data is returned to
the auto amplifier.

RHA424GB

Air Mix Door Control Specification

NHHA0188S03

RHA457H

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Air Mix Door Motor (Cont’d)

HA-61

RHA371H

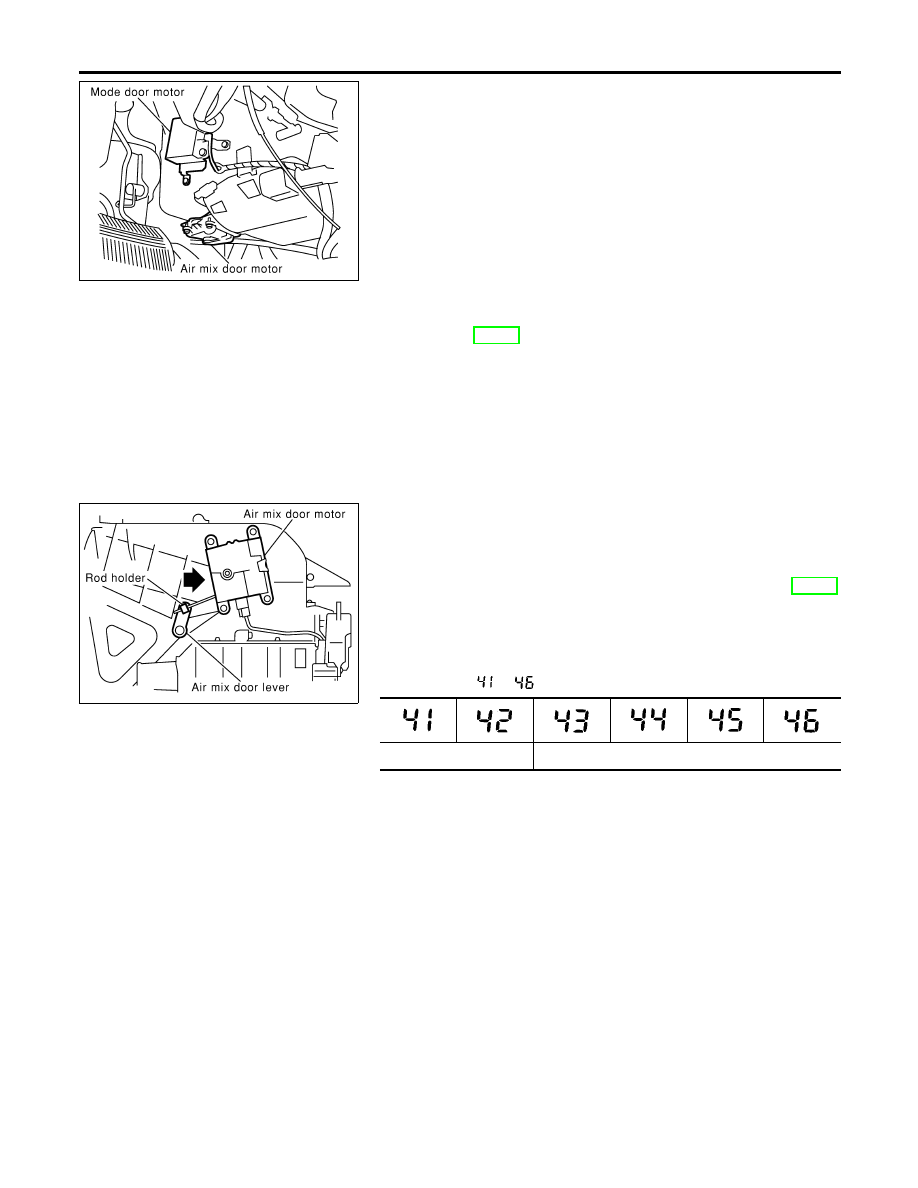

COMPONENT DESCRIPTION

NHHA0189

The air mix door motor is attached to the heater unit. It rotates so
that the air mix door is opened or closed to a position set by the
auto amplifier. Motor rotation is then conveyed through a shaft and
the air mix door position is then fed back to the auto amplifier by
PBR built-in air mix door motor.

DIAGNOSTIC PROCEDURE

NHHA0248

SYMPTOM: Discharge air temperature does not change.

I

Refer to HA-55.

RHA379H

CONTROL LINKAGE ADJUSTMENT

NHHA0190

Air Mix Door

NHHA0190S01

1.

Install air mix door motor on heater unit and connect it to main
harness.

2.

Set up code No. 41 in Self-diagnosis STEP-4. Refer to HA-36.

3.

Move air mix door lever by hand and hold it in full cold posi-
tion.

4.

Attach air mix door lever to rod holder.

5.

Make sure air mix door operates properly when changing from
code No.

to

by pushing DEF switch.

Full cold

Full hot

TROUBLE DIAGNOSES

Air Mix Door Motor (Cont’d)

HA-62

Intake Door Motor

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR (LAN)

=NHHA0191

SYMPTOM:

I

Intake door does not change.

I

Intake door motor does not operate normally.

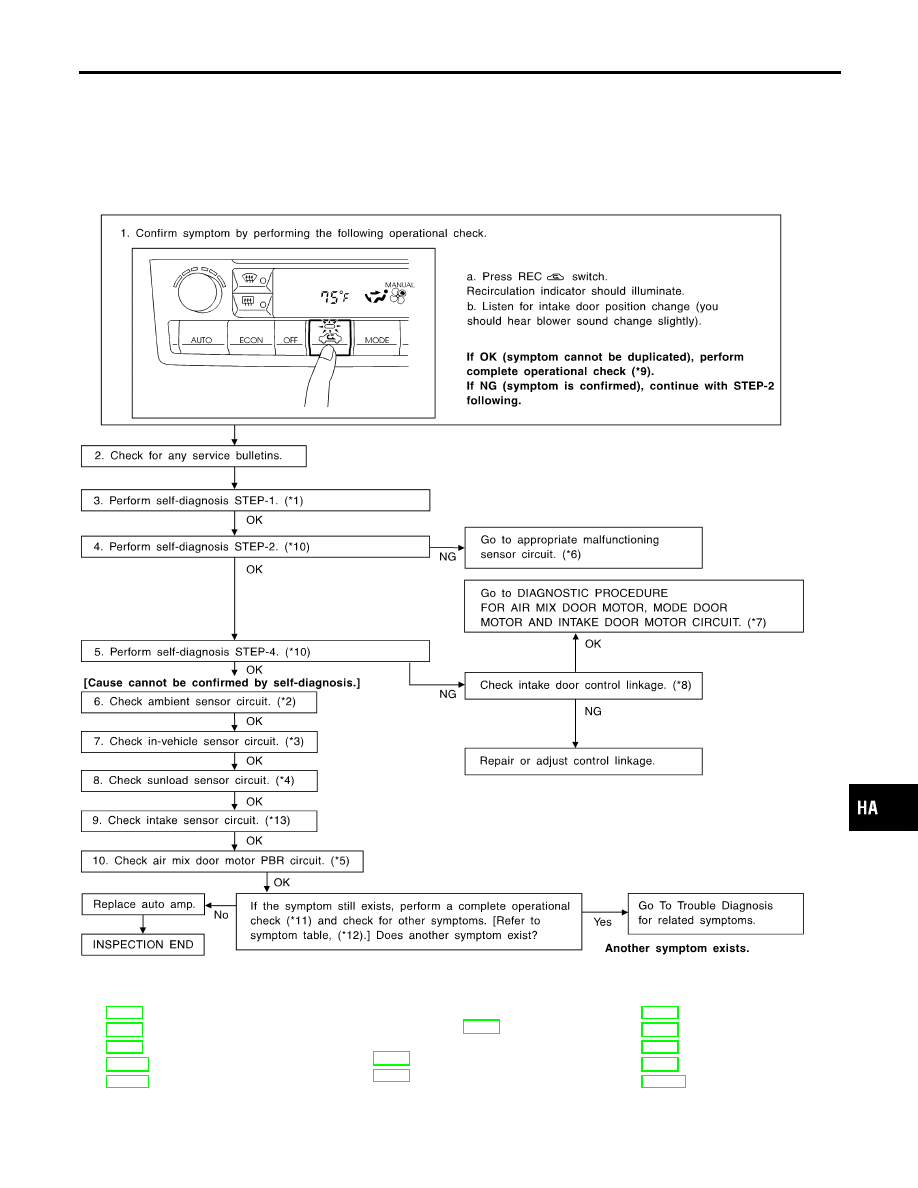

INSPECTION FLOW

RHA100I

*1: HA-36
*2: HA-93
*3: HA-97
*4: HA-100
*5: HA-106

*6: FUNCTION CONFIRMATION

PROCEDURE (HA-37), see No.
13.

*7: HA-55
*8: HA-65

*9: HA-47
*10: HA-37
*11: HA-47
*12: HA-46
*13: HA-104

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Intake Door Motor

HA-63

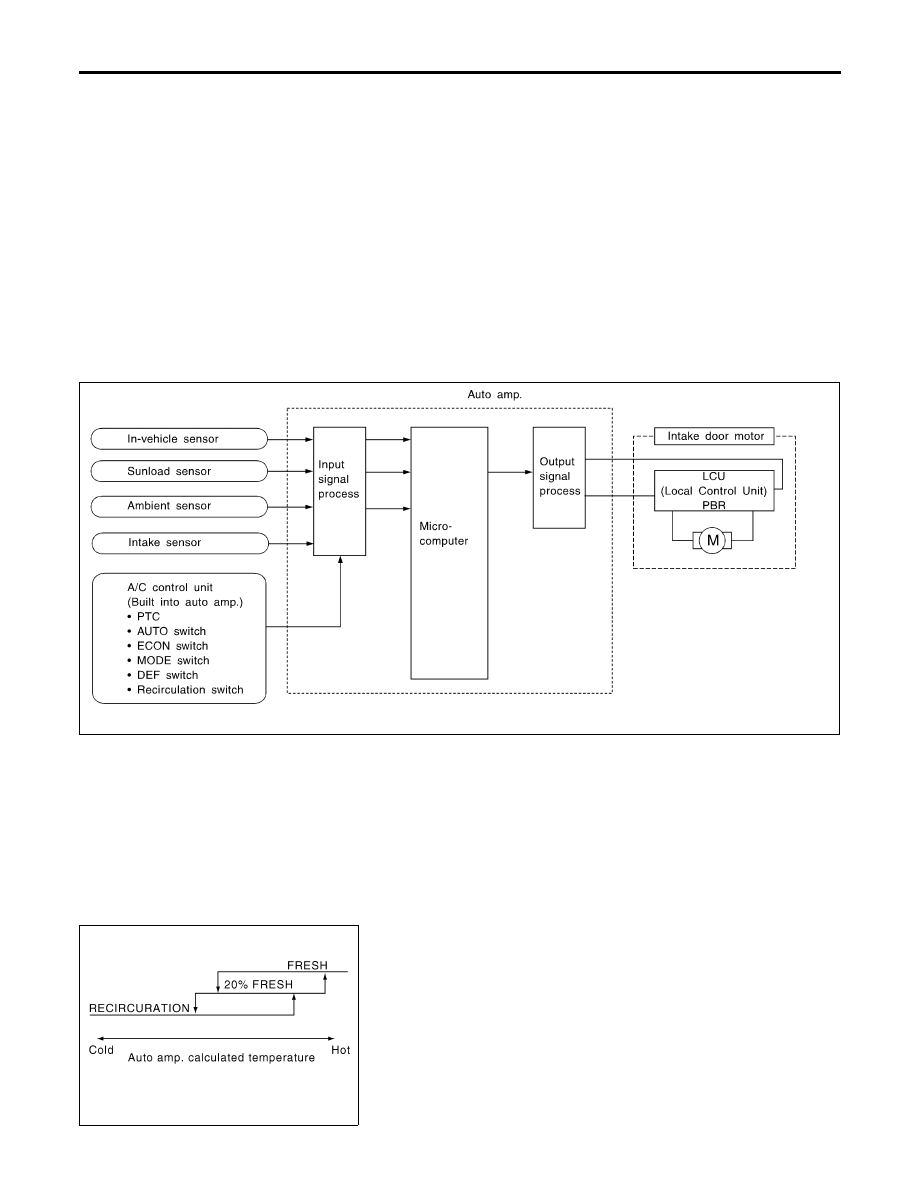

SYSTEM DESCRIPTION

=NHHA0192

Component Parts

NHHA0192S01

Intake door control system components are:
1)

Auto amp.

2)

Intake door motor (LCU)

3)

In-vehicle sensor

4)

Ambient sensor

5)

Sunload sensor

6)

Intake sensor

System Operation

NHHA0192S02

The intake door control determines intake door position based on
the ambient temperature, the intake air temperature and the in-ve-
hicle temperature. When the ECON, DEFROST, or OFF switches
are pushed, the auto amplifier sets the intake door at the “Fresh”
position.

RHA382HH

RHA383H

Intake Door Control Specification

NHHA0192S03

TROUBLE DIAGNOSES

Intake Door Motor (Cont’d)

HA-64
