9

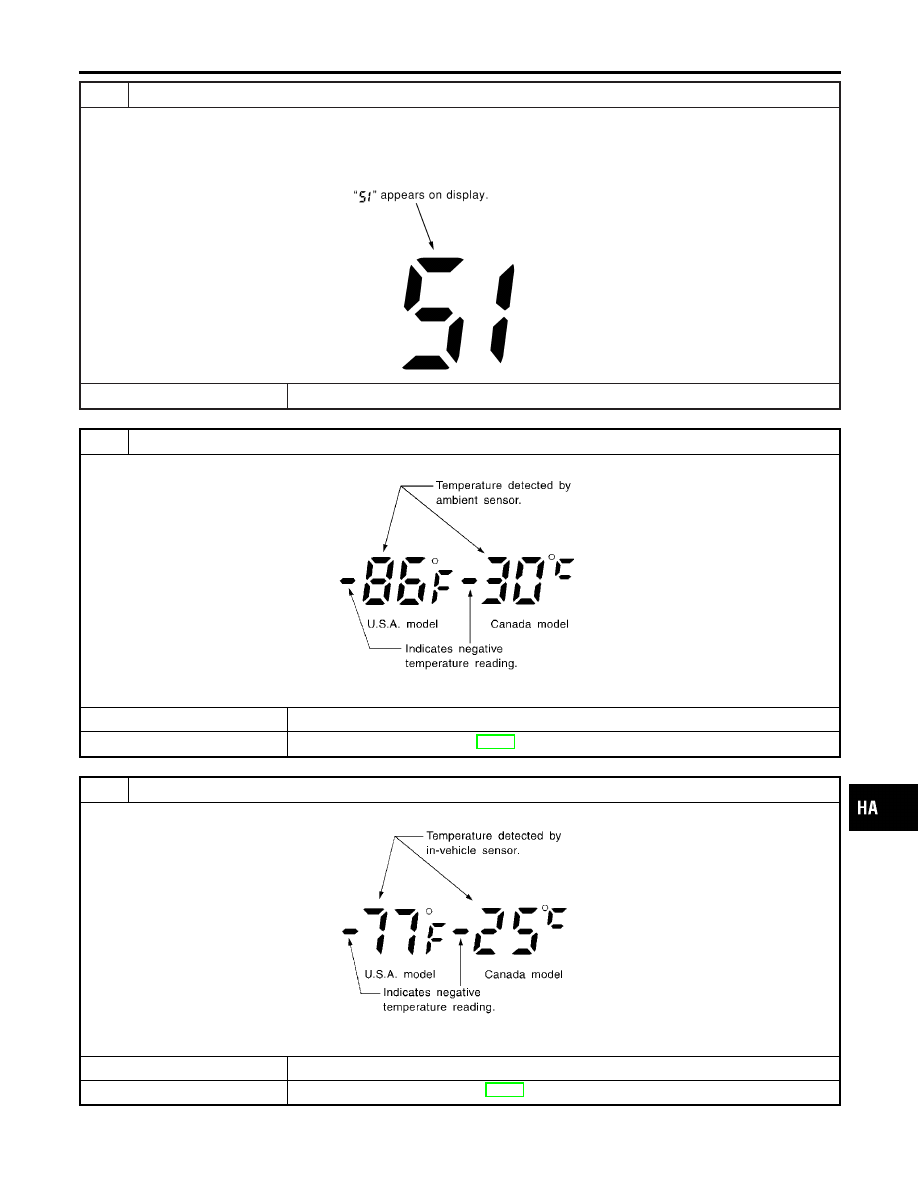

STEP-5 TEMPERATURE OF EACH SENSOR IS CHECKED

Turn the TEMP dial clockwise, advance to STEP-5. This is Intake sensor, In Vehicle sensor and Ambient Sensor function
check. Code 51 will be displayed.
NOTE:
Each sensor reading should be approximately the actual temperature.

RHA359H

©

GO TO 10.

10

CHECK AMBIENT SENSOR

Press DEF once, temperature detected by the Ambient Sensor is displayed.

RHA499G

OK or NG

OK

©

GO TO 11.

NG

©

Go to Ambient Sensor Circuit (HA-93).

11

CHECK IN-VEHICLE SENSOR

Press DEF second time, temperature detected by the In Vehicle Sensor is displayed.

RHA500G

OK or NG

OK

©

GO TO 12.

NG

©

Go to In-vehicle Sensor Circuit (HA-97).

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Self-diagnosis (Cont’d)

HA-41

12

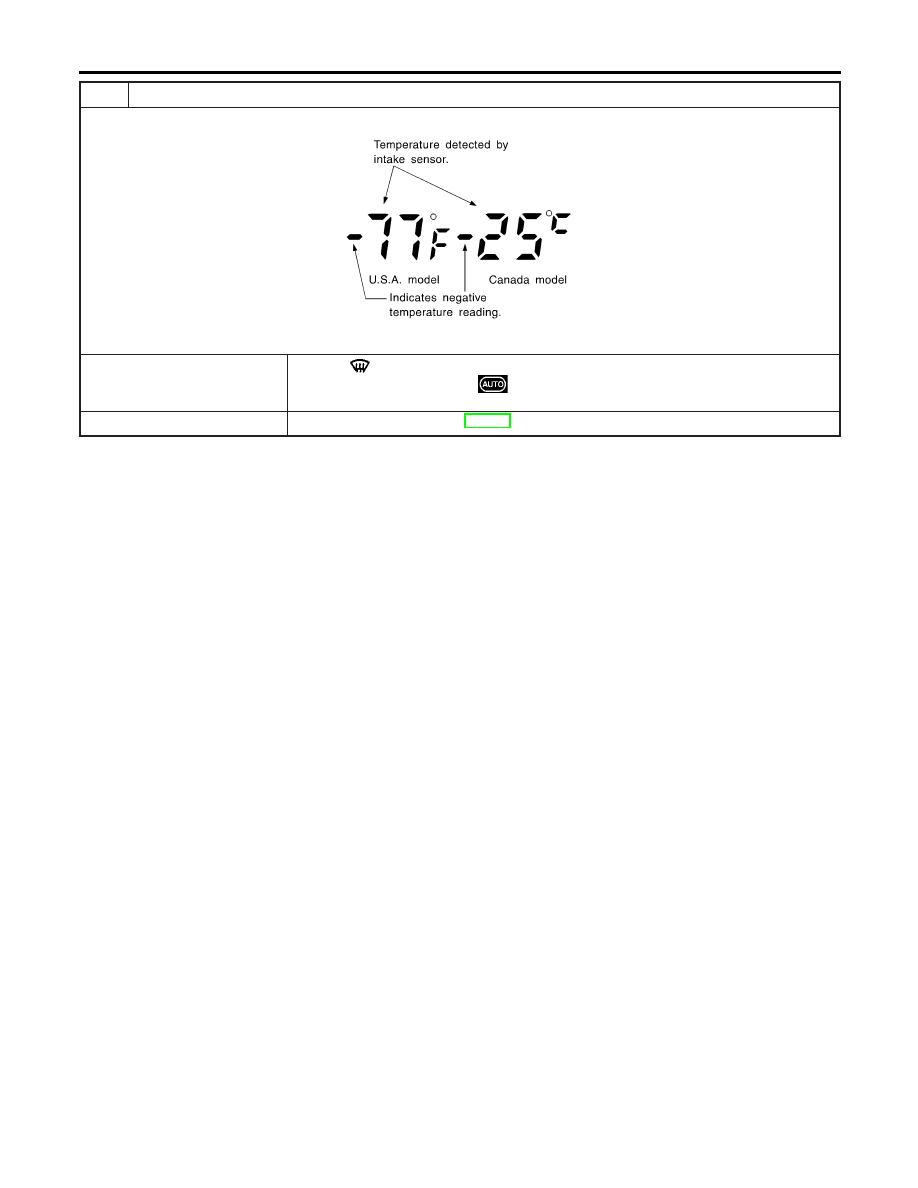

CHECK INTAKE SENSOR

Press DEF third time, temperature detected by the Intake Sensor is displayed.

RHA500GD

OK or NG

OK

©

1. Press

(DEF) switch the fourth time. Display returns to original presentation 51.

2. Turn ignition switch OFF or

(AUTO) switch ON.

3. END

NG

©

Go to Intake Sensor Circuit (HA-104).

TROUBLE DIAGNOSES

Self-diagnosis (Cont’d)

HA-42

13

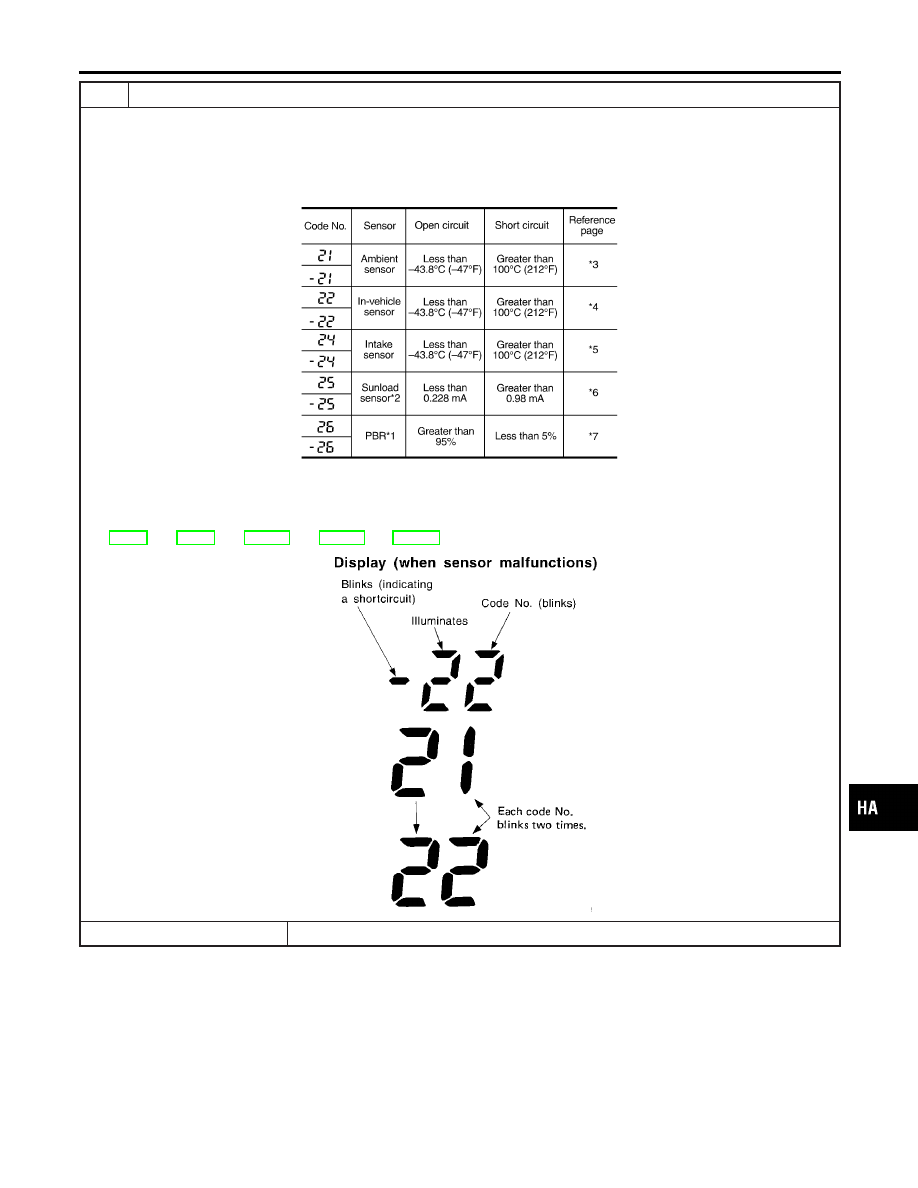

CHECK MALFUNCTIONING SENSOR

NOTE:

I

A blinking mark (-) preceding the Code No. indicates a short circuit.

I

If 2 or more items are malfunctioning, the corresponding codes will alternately blink twice.

I

A circuit will be detected as open or shorted and its code No. will be displayed when input signals correspond with con-
ditions in the following chart.

MTBL1252

*1: “95%” and “5%” refer to percentage with respect to stroke of air mix door. (Full cold: 0%, Full hot: 100%)
*2: Conduct self-diagnosis STEP-2 under sunshine.
When conducting indoors, direct light (more than 60W) at sunload sensor.
*3: HA-93, *4: HA-97, *5: HA-104, *6: HA-100, *7: HA-106

RHA455G

RHA501A

©

INSPECTION END

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Self-diagnosis (Cont’d)

HA-43

14

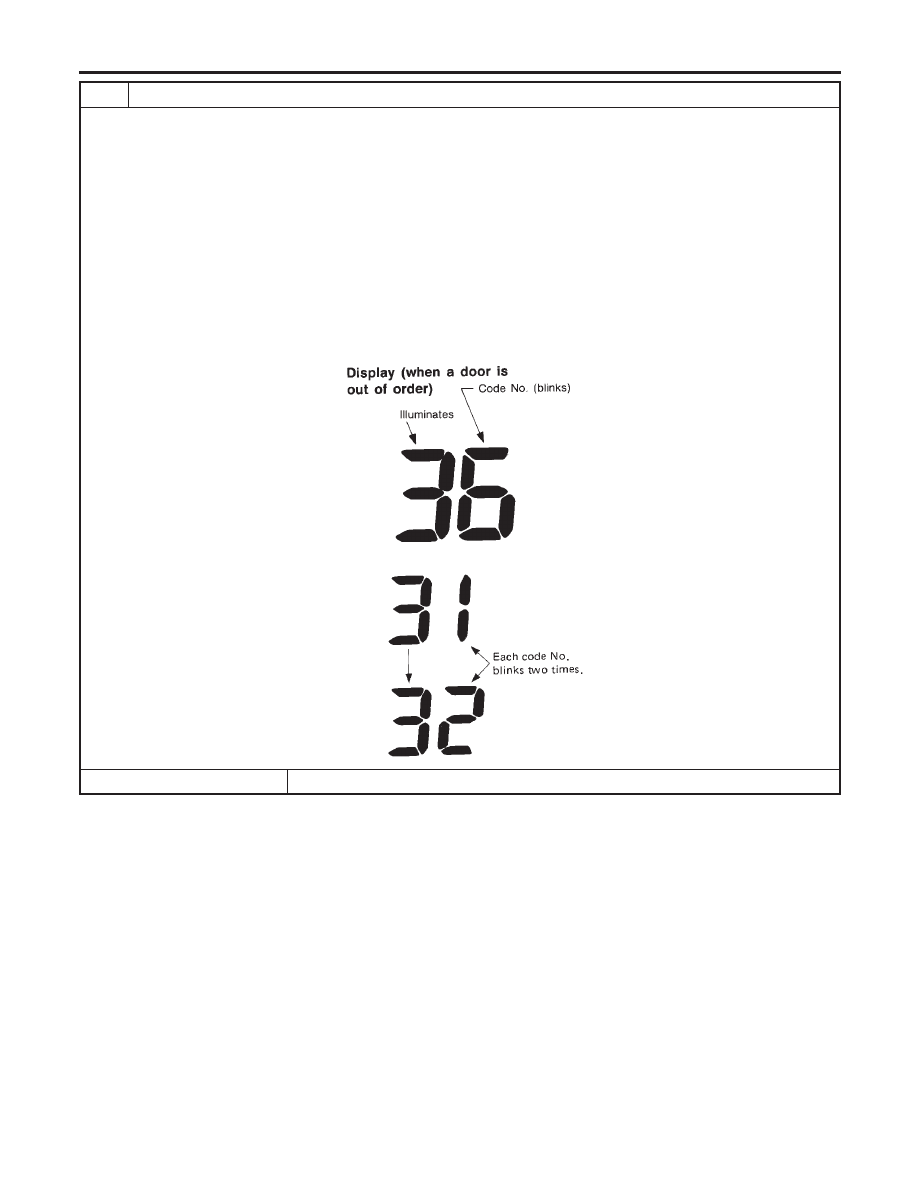

CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH

30-

Mode door and intake door position switches are in working order.

Continue to next step.
31-

Mode door circuit / switch in vent position switch is malfunctioning.

32-

Mode door circuit / switch in B/L position switch is malfunctioning.

34-

Mode door circuit / switch in Foot position switch is malfunctioning.

35-

Mode door circuit / switch in Foot Def. position switch is malfunctioning.

36-

Mode door circuit / switch in Def. position switch is malfunctioning.

37-

Intake door mode circuit / switch in Fresh Air position is malfunctioning.

38-

Intake door mode circuit / switch in 20% Fresh Air position is malfunctioning.

39-

Intake door mode circuit / switch in Recirculation Air position is malfunctioning.

NOTE:

I

If 2 or more items are malfunctioning, the corresponding codes will alternately blink twice.

I

If the Mode Door Motor harness is disconnected, repeated display pattern of 31

,

32

,

34

,

35

,

36 will occur.

I

If Intake Door Motor harness is disconnected, repeated display pattern of 37

,

38

,

39 will occur.

I

If any Mode Door Motor Position Switch is malfunctioning, the Mode Door Motor will also malfunction.

RHA168DA

RHA498A

©

INSPECTION END

TROUBLE DIAGNOSES

Self-diagnosis (Cont’d)

HA-44
