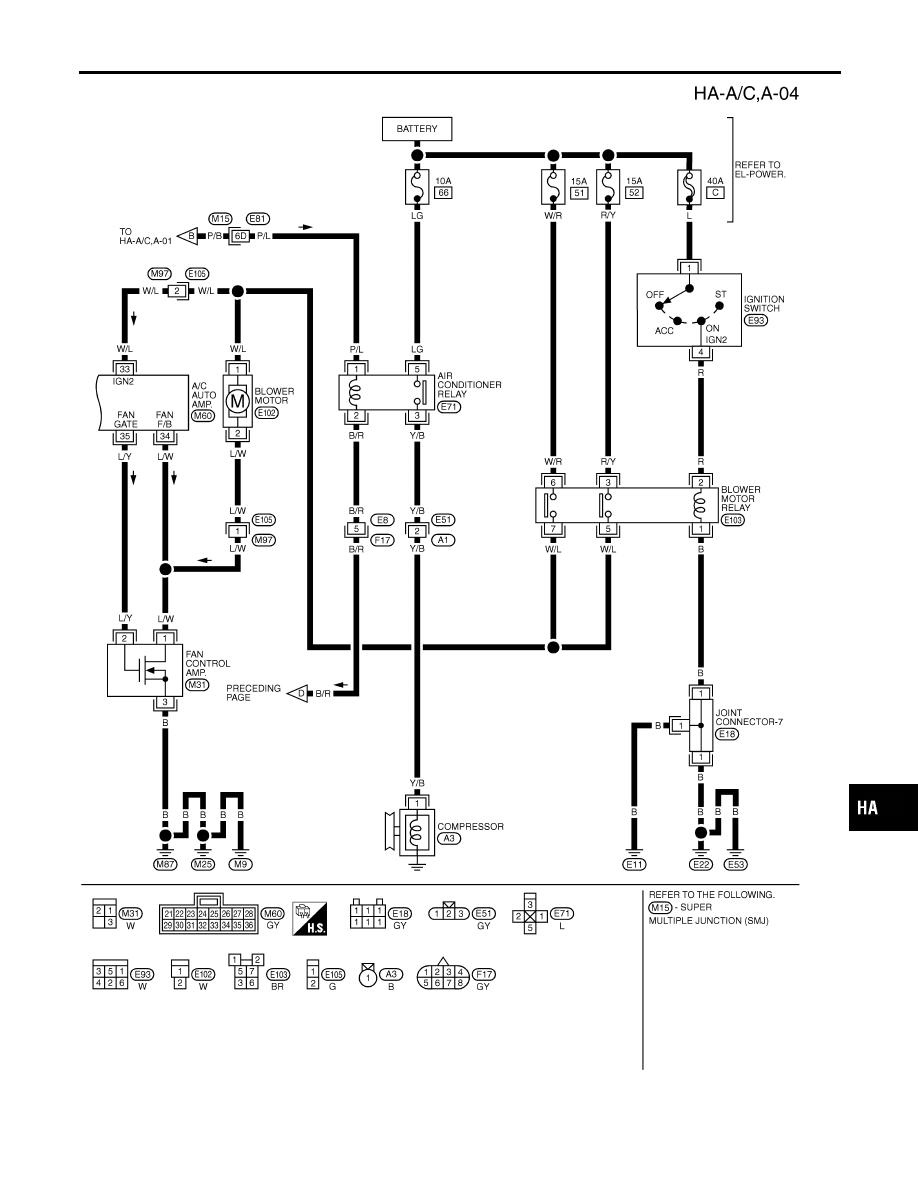

Wiring Diagram — A/C, A — (Cont’d)

HA-33

RHA036IA

Auto Amp. Terminals and Reference Value

NHHA0175

INSPECTION OF AUTO AMP.

NHHA0175S01

I

Measure voltage between each terminal and body ground by
following “AUTO AMP. INSPECTION TABLE”.

I

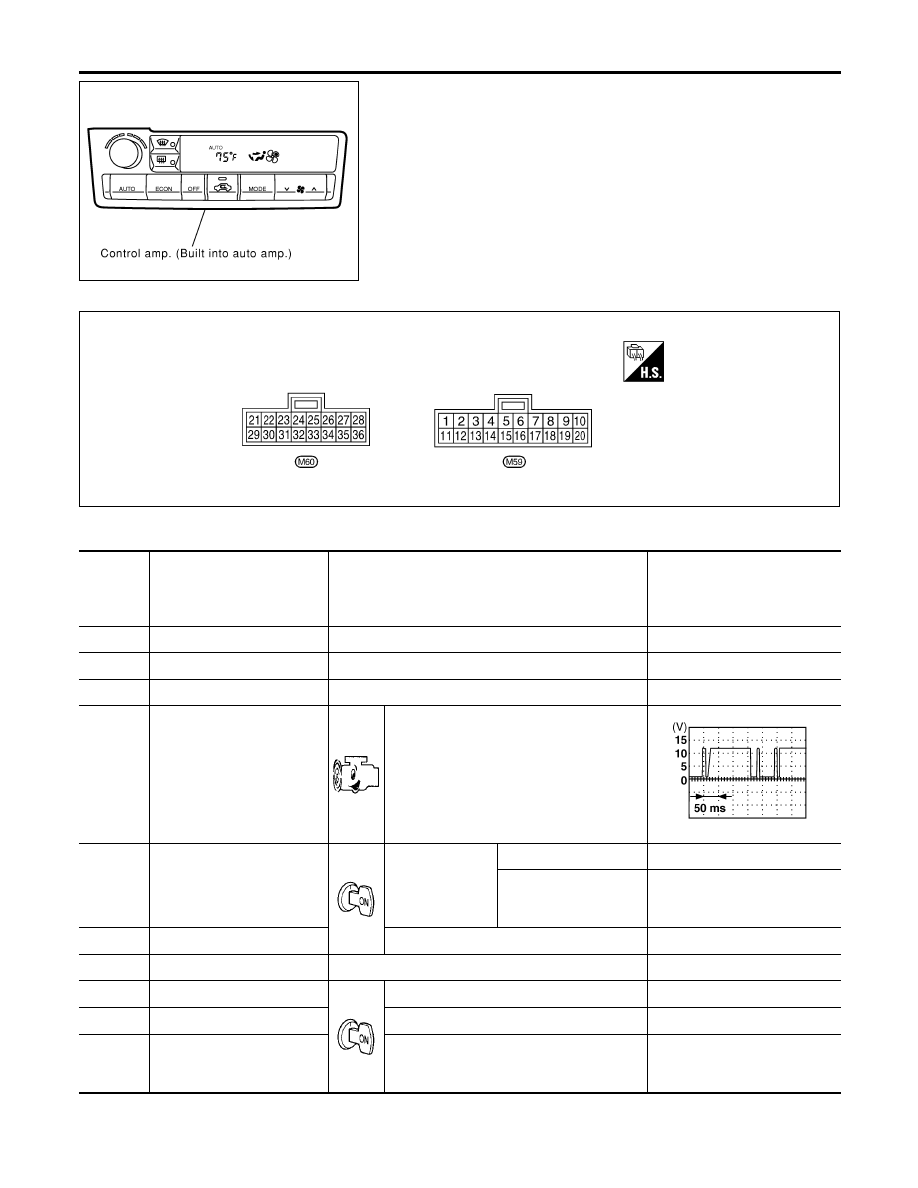

Pin connector terminal layout

RHA501GC

AUTO AMP. INSPECTION TABLE

NHHA0175S02

TERMI-

NAL NO.

(Wire

color)

ITEM

CONDITION

Voltage

V

1 (R/W)

Intake sensor

2 (OR/B)

Ambient sensor

3 (OR/L)

In-vehicle sensor

5 (PU/W)

Engine coolant temperature

sensor

At idle [after warming up, approx. 80°C
(176°F)]
NOTE:
The waveforms vary depending on coolant
temperature.

SHA606F

8 (PU)

Compressor feed back signal

AUTO SW: ON

Approximately 0

When refrigerant pres-

sure sensor connector is

disconnected

Approximately 5

11 (B)

Sensor ground

Approximately 0

12 (OR)

Sunload sensor

14 (B)

Ground (for Canada)

Approximately 0

16 (L/B)

A/C LAN signal

21 (L/W)

Power supply for air mix door

motor, mode door motor and

intake door motor

Approximately 12

TROUBLE DIAGNOSES

Auto Amp. Terminals and Reference Value

HA-34

TERMI-

NAL NO.

(Wire

color)

ITEM

CONDITION

Voltage

V

22 (G/B)

Compressor ON signal

Compressor

ON

Approximately 0

OFF

Approximately 5

24 (R/W)

Power supply for illumination

Lighting switch

OFF

Approximately 0

1st

Approximately 12

25 (R/Y)

Illumination ground

Approximately 0

26 (Y/R)

Power supply for BAT

BATTERY VOLTAGE

27 (P/B)

Power supply for IGN

Approximately 12

28 (SB)

Ambient temperature output

signal

30 (G)

Rear window defogger feed

back

Rear window

defogger switch

ON

Approximately 12

OFF

Approximately 0

31 (G/W)

Rear window defogger ON

signal

Rear window

defogger switch

ON

Approximately 0

OFF

Approximately 12

32 (B)

Ground

Approximately 0

33 (W/L)

Power source for IGN2

Ignition voltage feedback

Approximately 12

34 (L/W)

Feedback signal

Fan speed: Low

Approximately 7 - 10

35 (L/Y)

Fan control AMP. control sig-

nal

Fan speed

Low, Middle low or

Middle high

Approximately 2.5 - 3.0

High

Approximately 9 - 10

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Auto Amp. Terminals and Reference Value (Cont’d)

HA-35

Self-diagnosis

=NHHA0176

INTRODUCTION AND GENERAL DESCRIPTION

NHHA0176S01

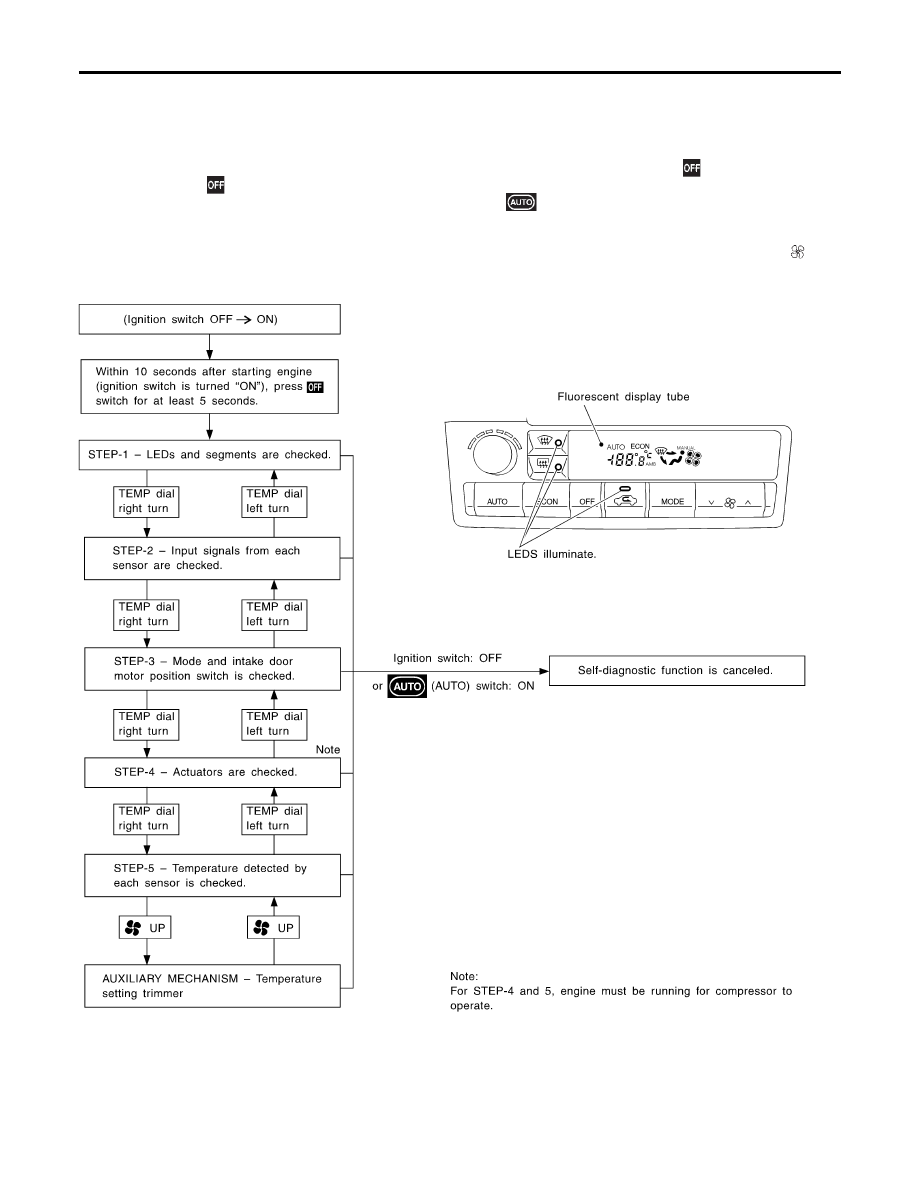

The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from normal control to the self-diagnostic system is accomplished
by starting the engine (turning the ignition switch from “OFF” to “ON”) and pressing “

” switch for at least

5 seconds. The “

” switch must be pressed within 5 seconds after starting the engine (ignition switch is

turned “ON”). This system will be canceled by either pressing

(AUTO) switch or turning the ignition switch

“OFF”. Shifting from one step to another is accomplished by means of turning TEMP dial clockwise or
counterclockwise, as required.
Additionally shifting from STEP 5 to AUXILIARY MECHANISM is accomplished by means of pushing

(fan)

UP switch.

RHA092IA

Perform all of the following tests to narrow the problem to a specific assembly, actuator, or function.
Link to the diagnostic procedure which corresponds to malfunctions noted in these tests.
If the A/C display screen has no display, check all power supply circuits to the A/C auto amp.

TROUBLE DIAGNOSES

Self-diagnosis

HA-36
