Infiniti I35 (A33). Manual - part 524





RHA274DA

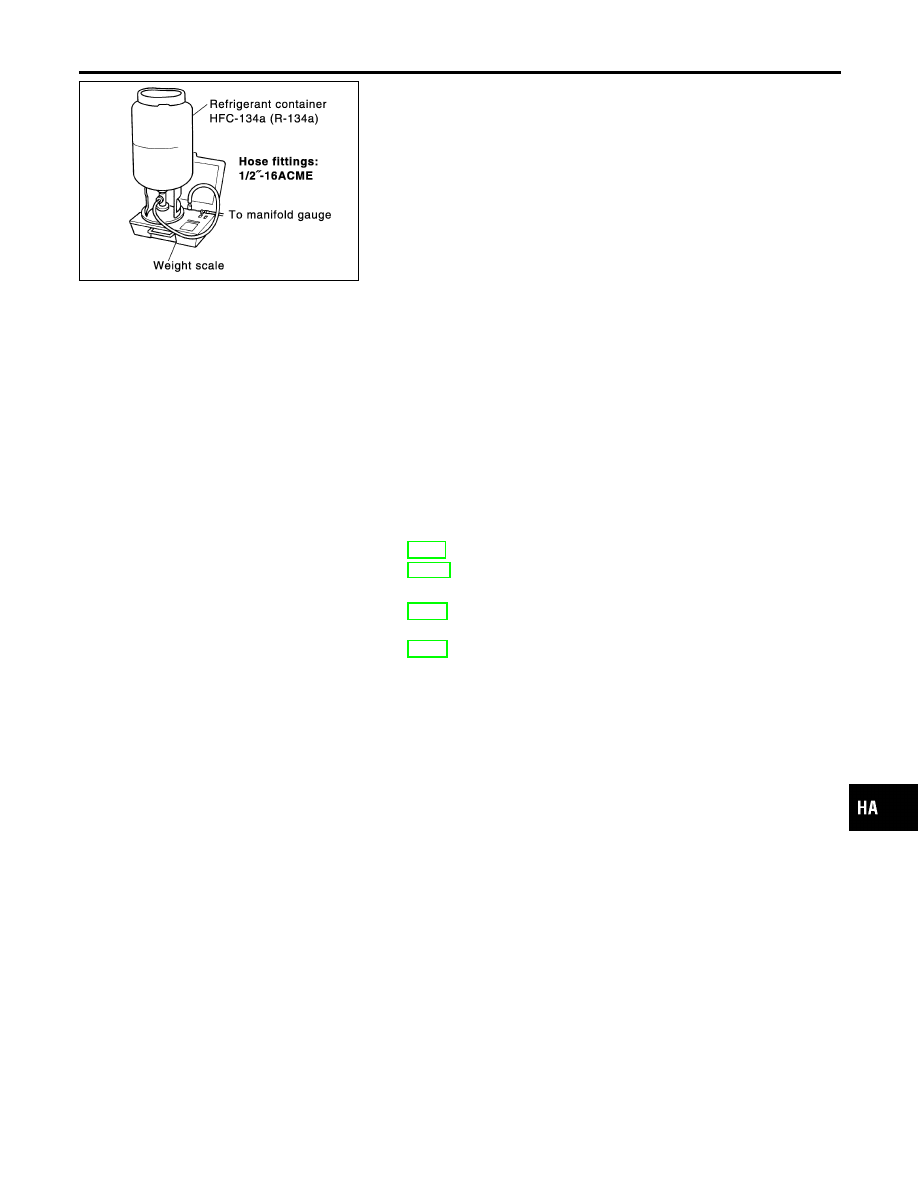

REFRIGERANT WEIGHT SCALE

NHHA0158S07

Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2

-16

ACME.

CHARGING CYLINDER

NHHA0158S09

Using a charging cylinder is not recommended. Refrigerant may be
vented into air from cylinder’s top valve when filling the cylinder
with refrigerant. Also, the accuracy of the cylinder is generally less
than that of an electronic scale or of quality recycle/recharge
equipment.

Wiring Diagrams and Trouble Diagnosis

NHHA0159

When you read wiring diagrams, refer to the following:

I

GI-11, “HOW TO READ WIRING DIAGRAMS”

I

EL-12, “Wiring Diagram — POWER —”

When you perform trouble diagnosis, refer to the following:

I

GI-35, “HOW TO FOLLOW TEST GROUPS IN TROUBLE
DIAGNOSES”

I

GI-25, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN
ELECTRICAL INCIDENT”

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

PRECAUTIONS

Precautions for Service Equipment (Cont’d)

HA-9

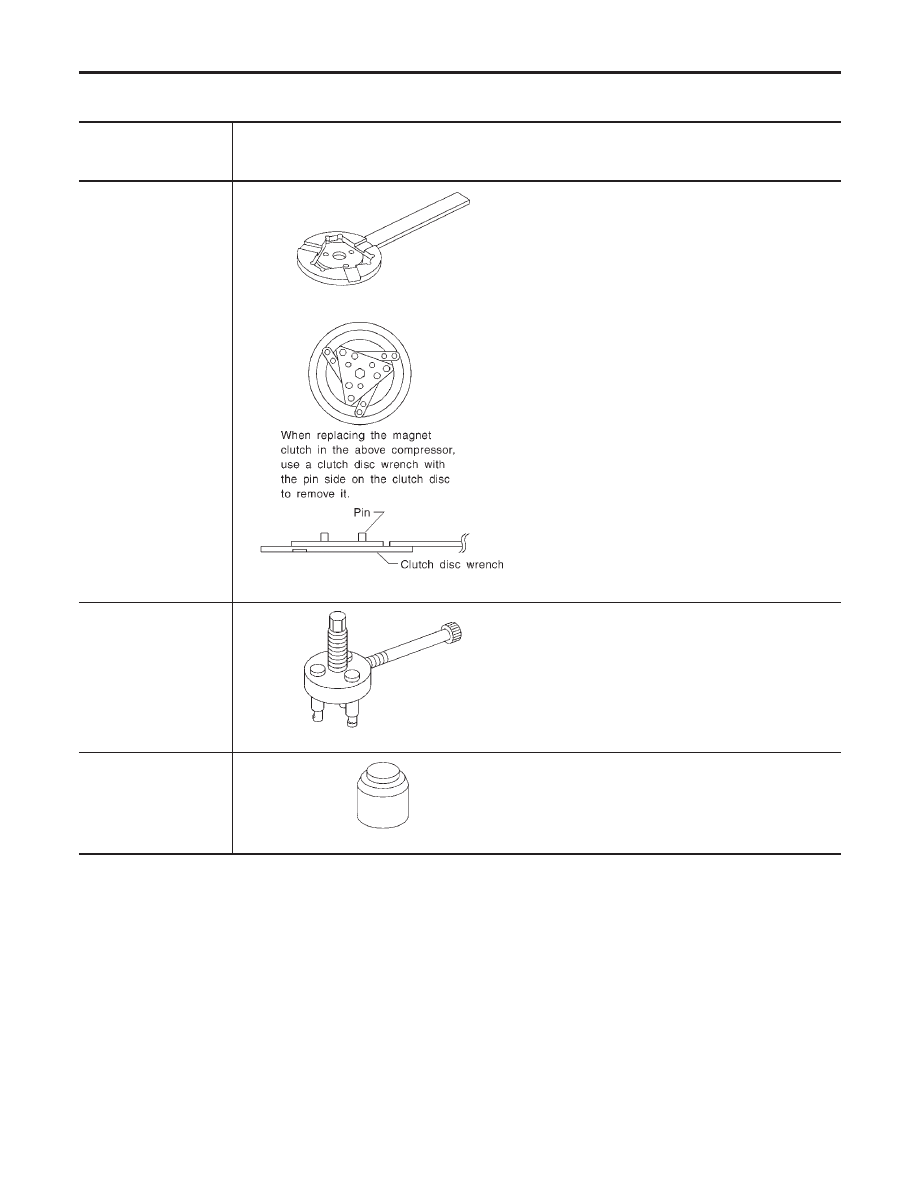

Special Service Tools

NHHA0160

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV99106100
(J-41260)
Clutch disc wrench

NT232

Removing center bolt

NT378

KV99232340
(J-38874)
or
KV992T0001
(

)

Clutch disc puller

NT376

Removing clutch disc

KV99106200
(J-41261)
Pulley installer

NT235

Installing pulley

PREPARATION

Special Service Tools

HA-10

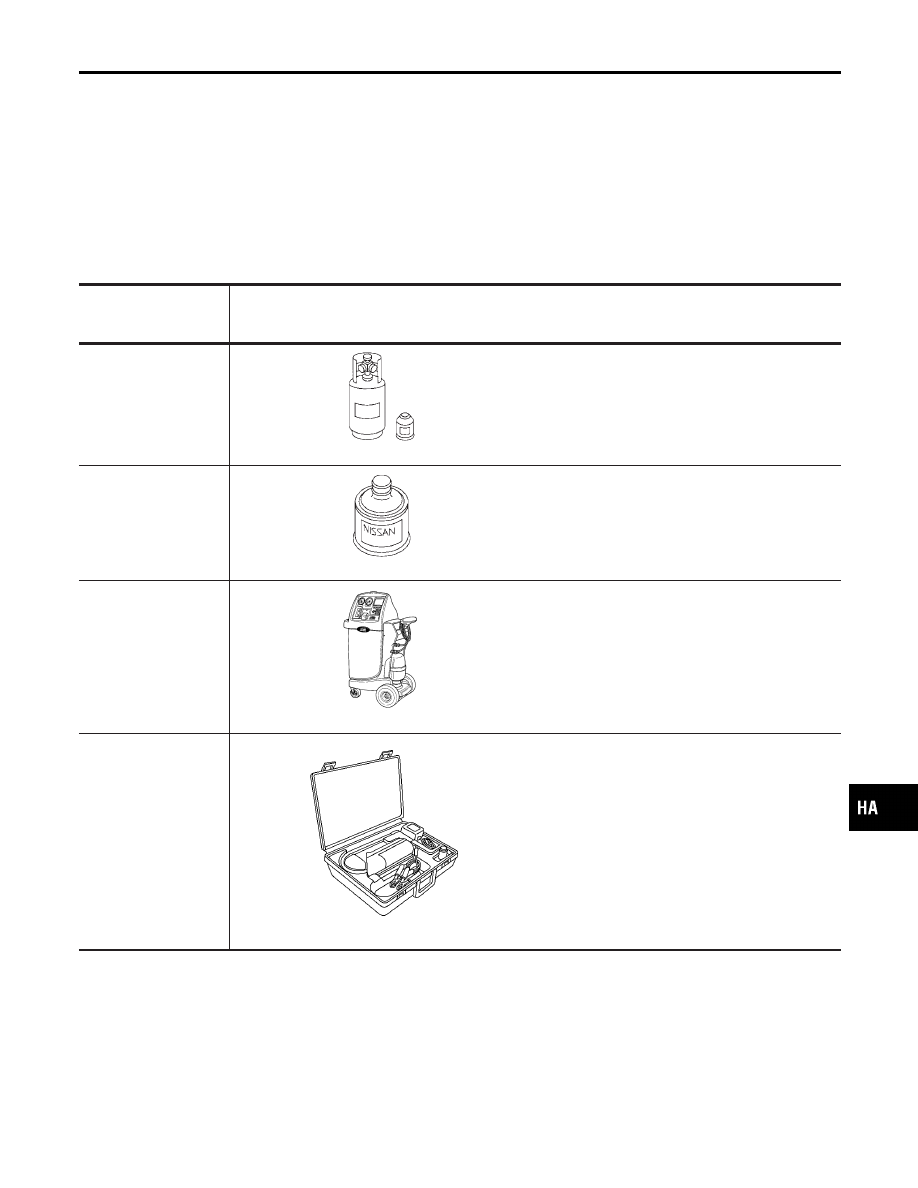

HFC-134a (R-134a) Service Tools and
Equipment

=NHHA0161

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/
lubricant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used: refrigerant/lubricant contamination will
occur and compressor malfunction will result.

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a)
refrigerant

NT196

Container color: Light blue
Container marking: HFC-134a (R-134a)
Fitting size: Thread size

I

Large container 1/2

-16 ACME

KLH00-PAGS0
(

)

Nissan A/C System Oil
Type S

NT197

Type: Poly alkylene glycol oil (PAG), type S
Application: HFC-134a (R-134a) swash plate (pis-
ton) compressors (Nissan only)
Lubricity: 40 m



(1.4 US fl oz, 1.4 Imp fl oz)

(J-43600)
Recovery/Recycling
Recharging equipment
(ACR2000)

WJIA0293E

Function: Refrigerant Recovery and Recycling and
Recharging

(J-41995)
Electrical leak detector

AHA281A

Power supply:

I

DC 12V (Cigarette lighter)

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

PREPARATION

HFC-134a (R-134a) Service Tools and Equipment

HA-11

Tool number
(Kent-Moore No.)
Tool name

Description

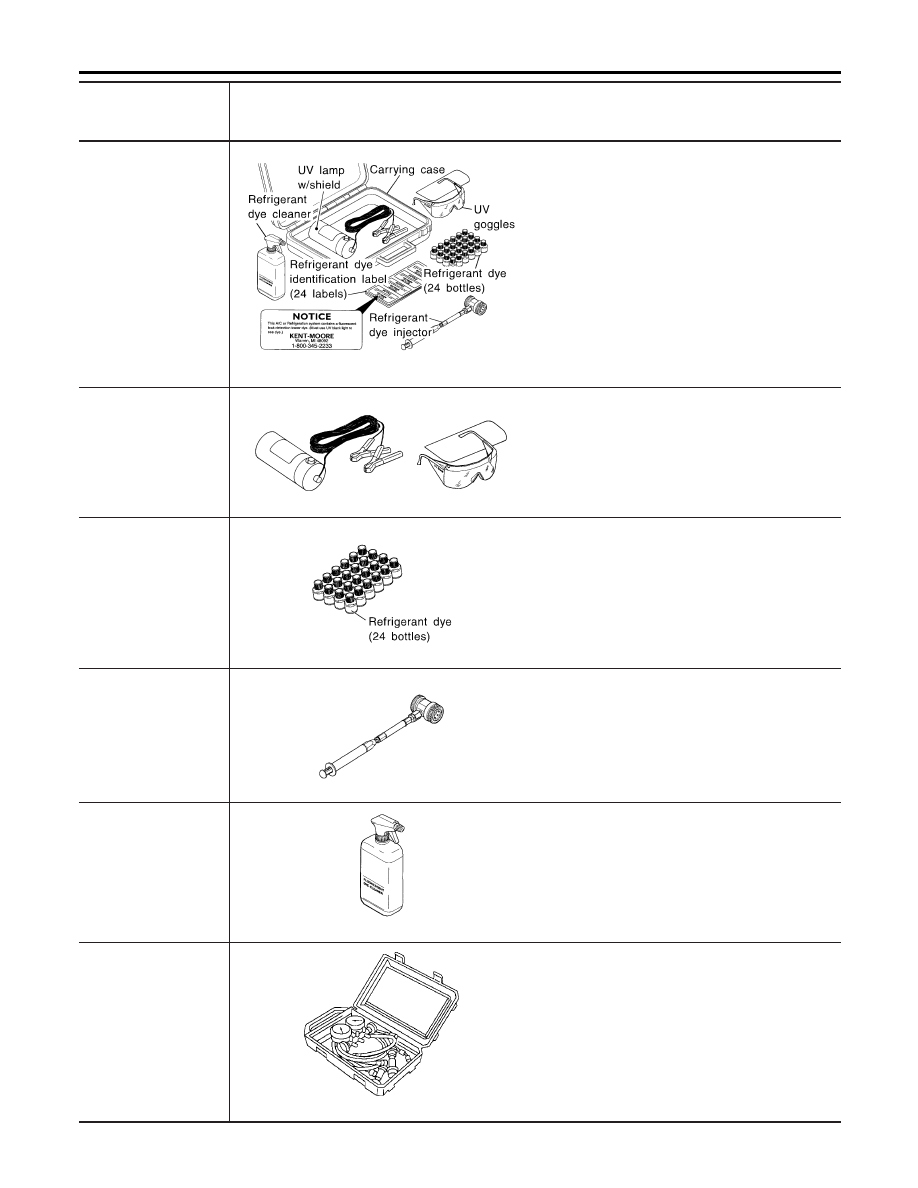

(J-43926)
Refrigerant dye leak
detection kit
Kit includes:
(J-42220) UV lamp and
UV safety goggles
(J-41459) Refrigerant
dye injector
(J-41447)
HFC-134a (R-134a)
Fluorescent Leak
Detection Dye (Box of
24, 1/4 ounce bottles)
(J-43872) Refrigerant
dye cleaner

ZHA200H

Power supply:
DC 12V (Battery terminal)

(J-42220)
UV lamp and UV safety
goggles

UV lamp

SHA438F

Power supply: DC12V (Battery terminal)
For checking refrigerant leak when fluorescent dye
is installed in A/C system.
Includes: UV lamp and UV safety goggles

(J-41447)
HFC-134a (R-134a)
Fluorescent Leak
Detection Dye (Box of
24, 1/4 ounce bottles)

Dye

SHA439F

Application: For HFC-134a (R-134a) PAG oil
Container: 1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identification labels for
affixing to vehicle after charging system with dye.)

(J-41459)
HFC-134a (R-134a)
Dye Injector
Use with J-41447, 1/4
ounce bottle

Dye injector

SHA440F

For injecting 1/4 ounce of Fluorescent Leak Detec-
tion Dye into A/C system.

(J-43872)
Refrigerant dye cleaner

SHA441F

For cleaning dye spills.

(J-39183)
Manifold gauge set
(with hoses and cou-
plers)

NT199

Identification:

I

The gauge face indicates R-134a.

Fitting size: Thread size

I

1/2

-16 ACME

PREPARATION

HFC-134a (R-134a) Service Tools and Equipment (Cont’d)

HA-12
