Infiniti I35 (A33). Manual - part 519





Dimensions

=NHGI0008S03

Unit: mm (in)

Item

Sedan

Overall length

4,921 (193.7)

Overall width

1,782 (70.16)

Overall height

1,449 (57.0)*1

1,440 (56.69)*2

Front tread

1,530 (60.2)*1
1,520 (59.8)*2

Rear tread

1,510 (59.4)*1
1,500 (59.1)*2

Wheelbase

2,750 (108.3)

Gross vehicle weight rating kg (lb)

See the “FMVSS certifica-

tion label” on the driver’s

side lock pillar.

Gross axle weight rating

Front kg (lb)

Rear kg (lb)

*1: For models with P215/55R17 93H tire size
*2: For models with P225/50R17 93V tire size

Wheels and Tires

NHGI0008S04

Item

Size

Offset

Road wheel

Aluminum

17 x 7JJ
17 x 7JJ

40 (1.57)
45 (1.77)

Tire size

Conventional

P215/55R17 93H
P225/50R17 93V

Spare

Conventional
T135/90D16 (T type)

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

IDENTIFICATION INFORMATION

Dimensions

GI-47

NHGI0009

Preparation

NHGI0009S01

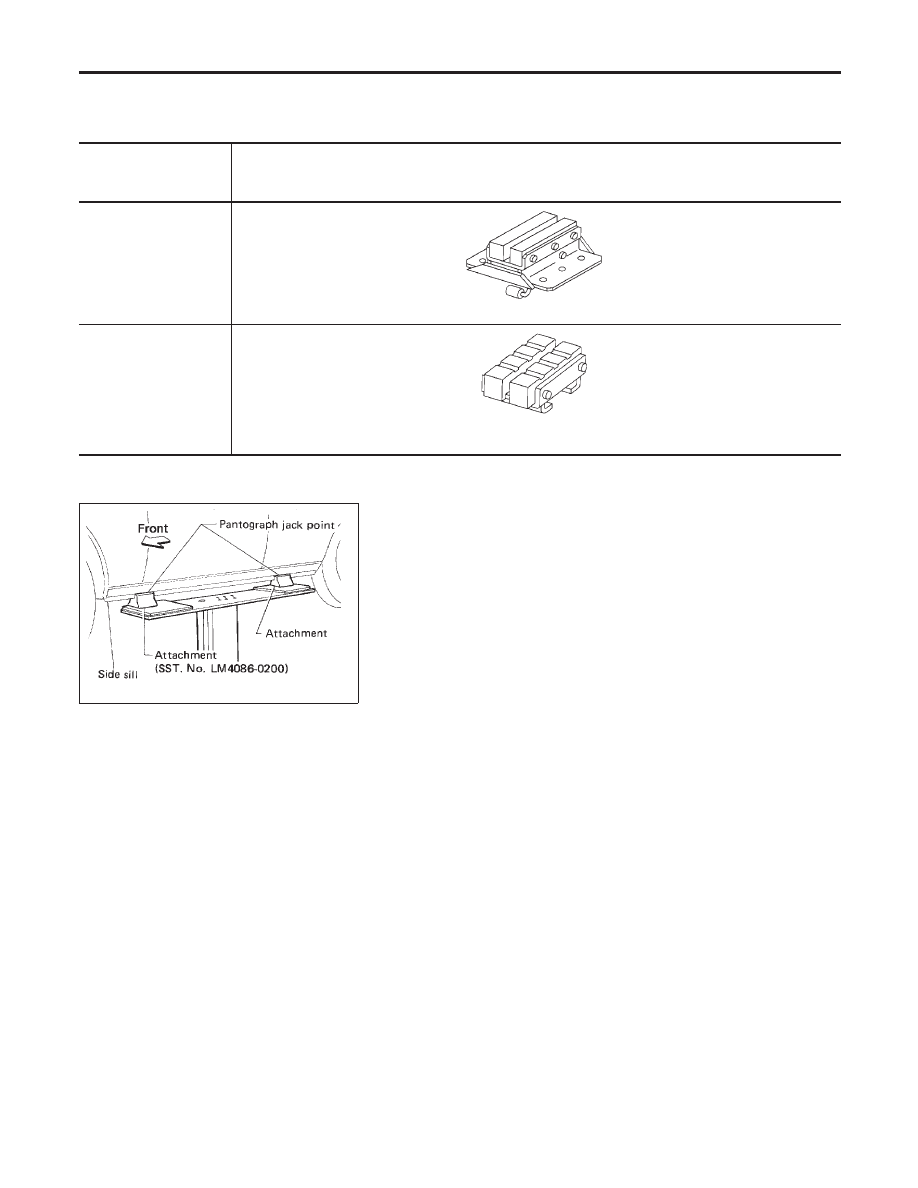

SPECIAL SERVICE TOOLS

NHGI0009S0101

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore number)
Tool name

Description

LM4086-0200
(

)

Board on attachment

NT001

LM4519-0000
(

)

Safety stand attachment

NT002

AGI016

Board-on Lift

NHGI0009S02

CAUTION:

Make sure vehicle is empty when lifting.

I

The board-on lift attachment (LM4086-0200) set at front
end of vehicle should be set on the front of the sill under
the front door opening.

I

Position attachments at front and rear ends of board-on
lift.

LIFTING POINTS AND TOW TRUCK TOWING

Preparation

GI-48

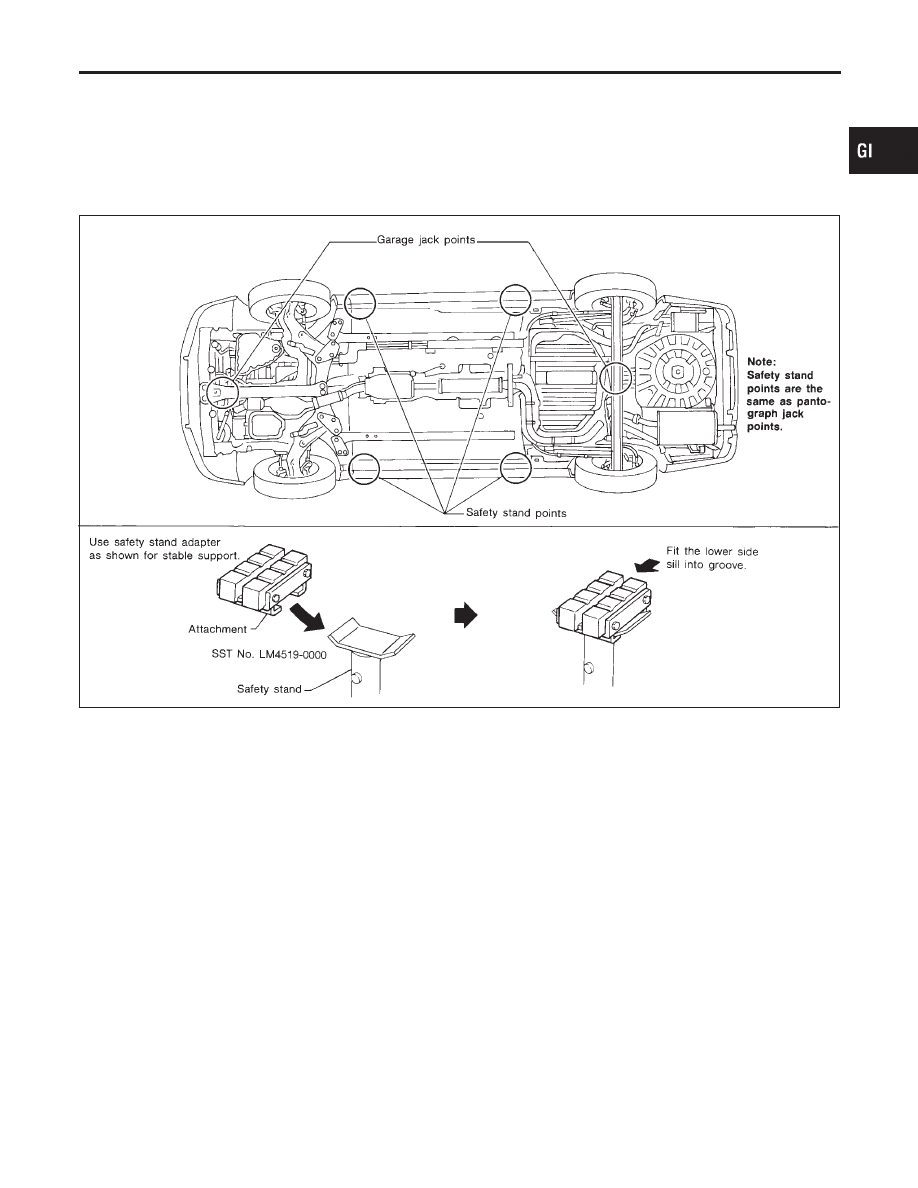

Garage Jack and Safety Stand

=NHGI0009S03

WARNING:

I

Never get under the vehicle while it is supported only by
the jack. Always use safety stands when you have to get
under the vehicle.

I

Place wheel chocks at both front and back of the wheels
on the ground.

SGI902

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

LIFTING POINTS AND TOW TRUCK TOWING

Garage Jack and Safety Stand

GI-49

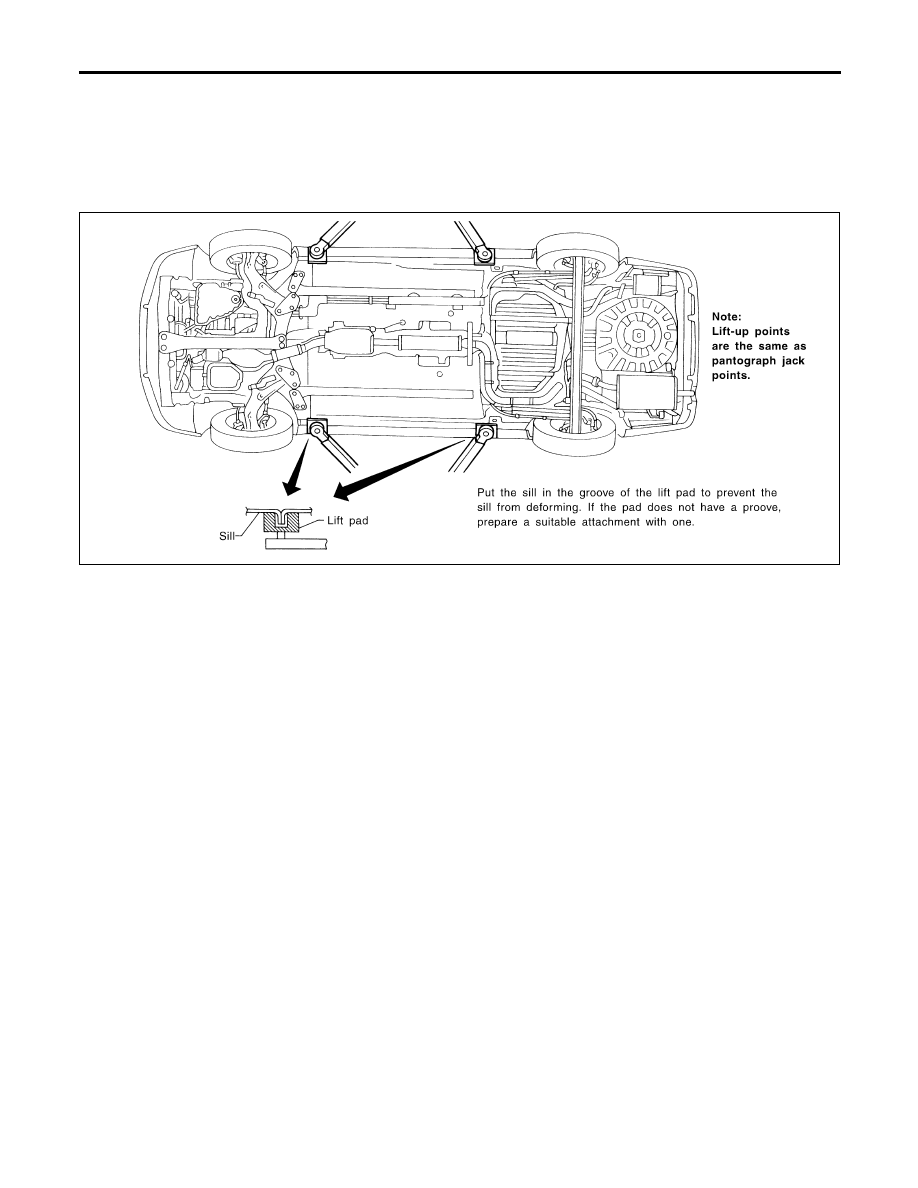

2-pole Lift

=NHGI0009S04

WARNING:

When lifting the vehicle, open the lift arms as wide as possible
and ensure that the front and rear of the vehicle are well bal-
anced.
When setting the lift arm, do not allow the arm to contact the
brake tubes, brake cable, fuel lines and sill spoiler.

SGI903

LIFTING POINTS AND TOW TRUCK TOWING

2-pole Lift

GI-50
