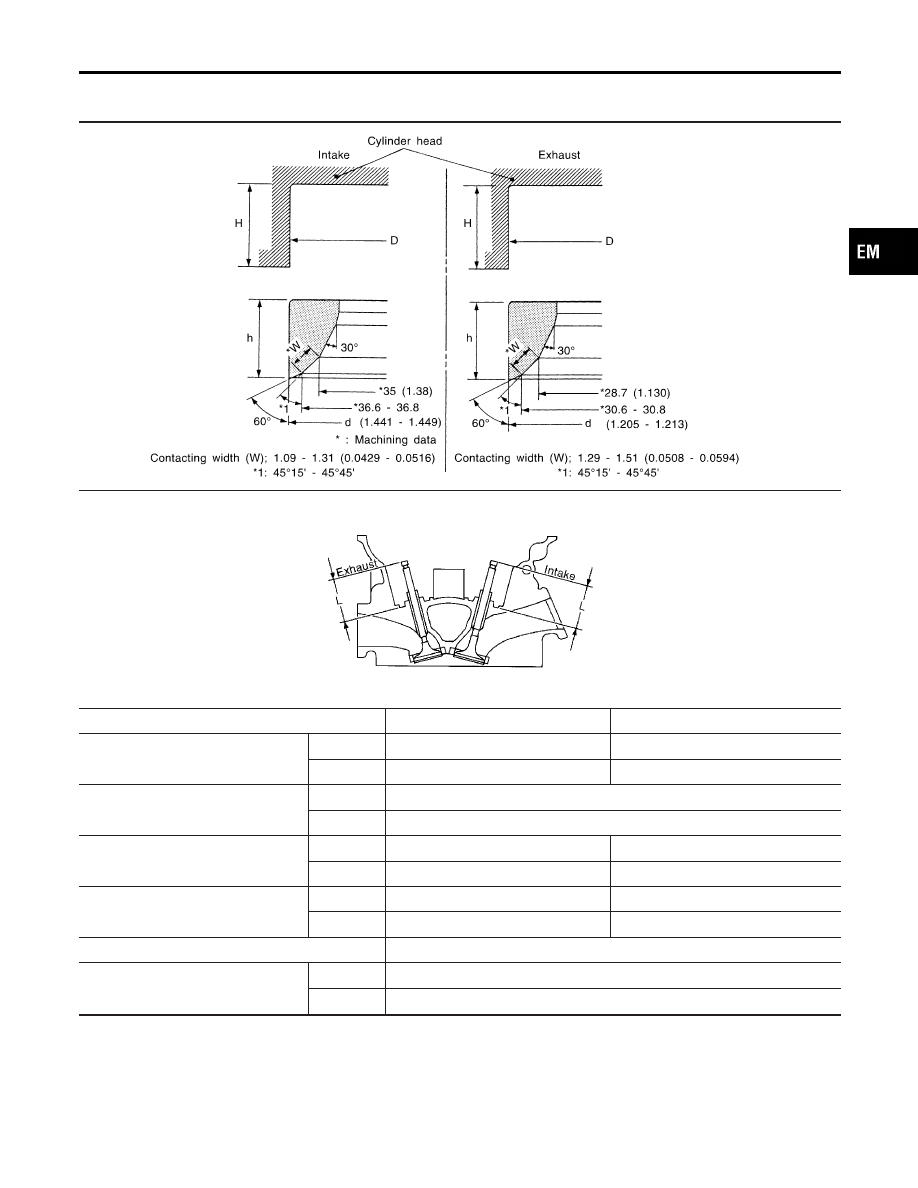

Valve Seat

NHEM0060

Unit: mm (in)

SEM021EC

SEM621F

Standard

Service

Cylinder head seat recess diameter (D)

Intake

38.000 - 38.016 (1.4961 - 1.4967)

38.500 - 38.516 (1.5157 - 1.5164)

Exhaust

32.200 - 32.216 (1.2677 - 1.2683)

32.700 - 32.716 (1.2874 - 1.2880)

Valve seat interference fit

Intake

0.081 - 0.113 (0.0032 - 0.0044)

Exhaust

0.064 - 0.096 (0.0025 - 0.0038)

Valve seat outer diameter (d)

Intake

38.097 - 38.113 (1.4999 - 1.5005)

38.597 - 38.613 (1.5196 - 1.5202)

Exhaust

32.280 - 32.296 (1.2709 - 1.2715)

32.780 - 32.796 (1.2905 - 1.2912)

Height (h)

Intake

5.9 - 6.0 (0.232 - 0.236)

5.05 - 5.15 (0.1988 - 0.2028)

Exhaust

5.9 - 6.0 (0.232 - 0.236)

4.95 - 5.05 (0.1949 - 0.1988)

Depth (H)

5.9 - 6.1 (0.232 - 0.240)

Depth (L)

Intake

41.07 - 41.67 (1.6169 - 1.6405)

Exhaust

41.00 - 41.60 (1.6142 - 1.6378)

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve Seat

EM-91

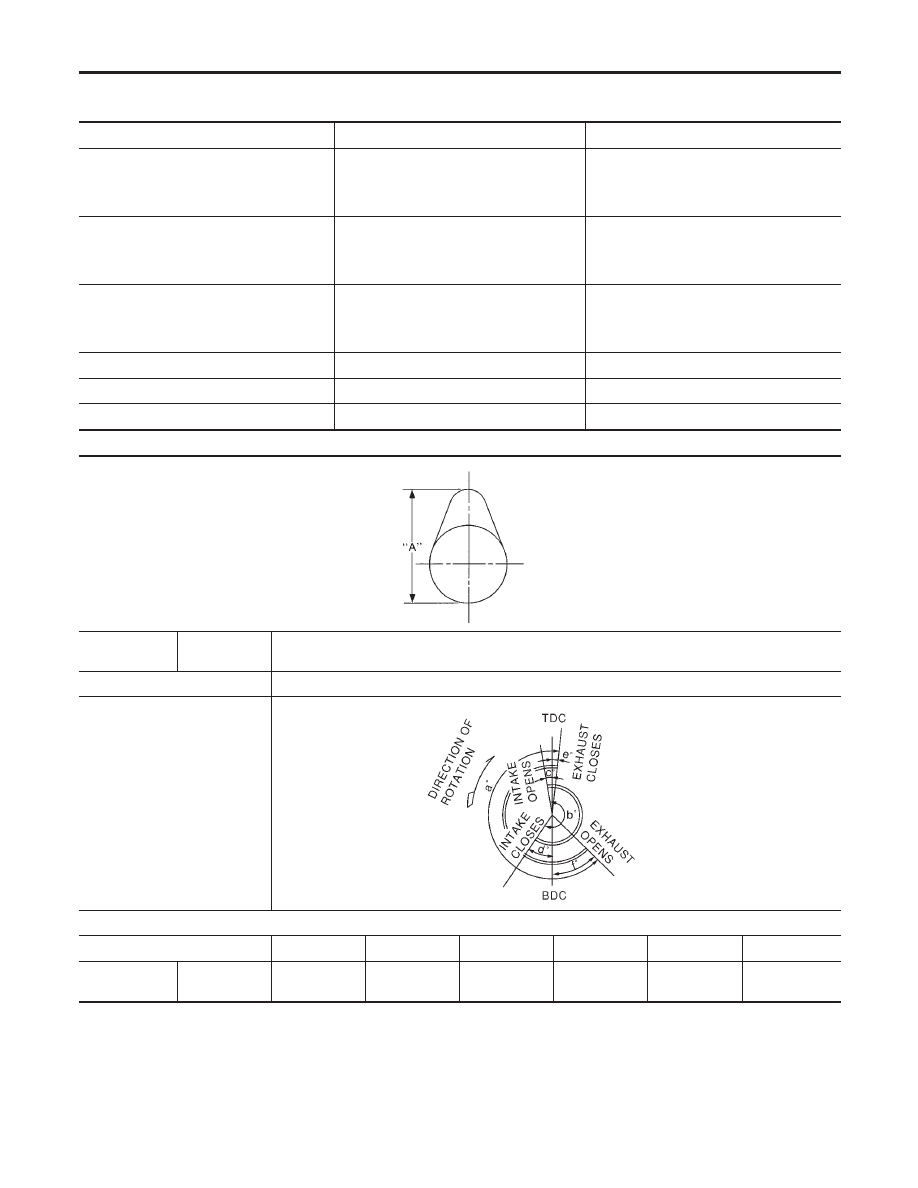

Camshaft and Camshaft Bearing

=NHEM0061

Unit: mm (in)

Standard

Limit

Camshaft journal to bearing clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

No. 2, 3, 4

0.035 - 0.076 (0.0014 - 0.0030)

0.15 (0.0059)

Inner diameter of camshaft bearing

No. 1

26.000 - 26.021 (1.0236 - 1.0244)

No. 2, 3, 4

23.500 - 23.521 (0.9252 - 0.9260)

Outer diameter of camshaft journal

No. 1

25.935 - 25.955 (1.0211 - 1.0218)

No. 2, 3, 4

23.445 - 23.465 (0.9230 - 0.9238)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.05 (0.0020)

Camshaft sprocket runout [TIR*]

Less than 0.15 (0.0059)

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

0.24 (0.0094)

*: Total indicator reading

EM671

Cam height “A”

Intake and
exhaust

44.865 - 45.055 (1.7663 - 1.7738)

Wear limit of cam height

0.2 (0.008)

Valve timing

PBIC0187E

Unit: degree

a

b

c

d

e

f

Intake valve tim-
ing control

OFF

240

238

−6

64

8

52

SERVICE DATA AND SPECIFICATIONS (SDS)

Camshaft and Camshaft Bearing

EM-92

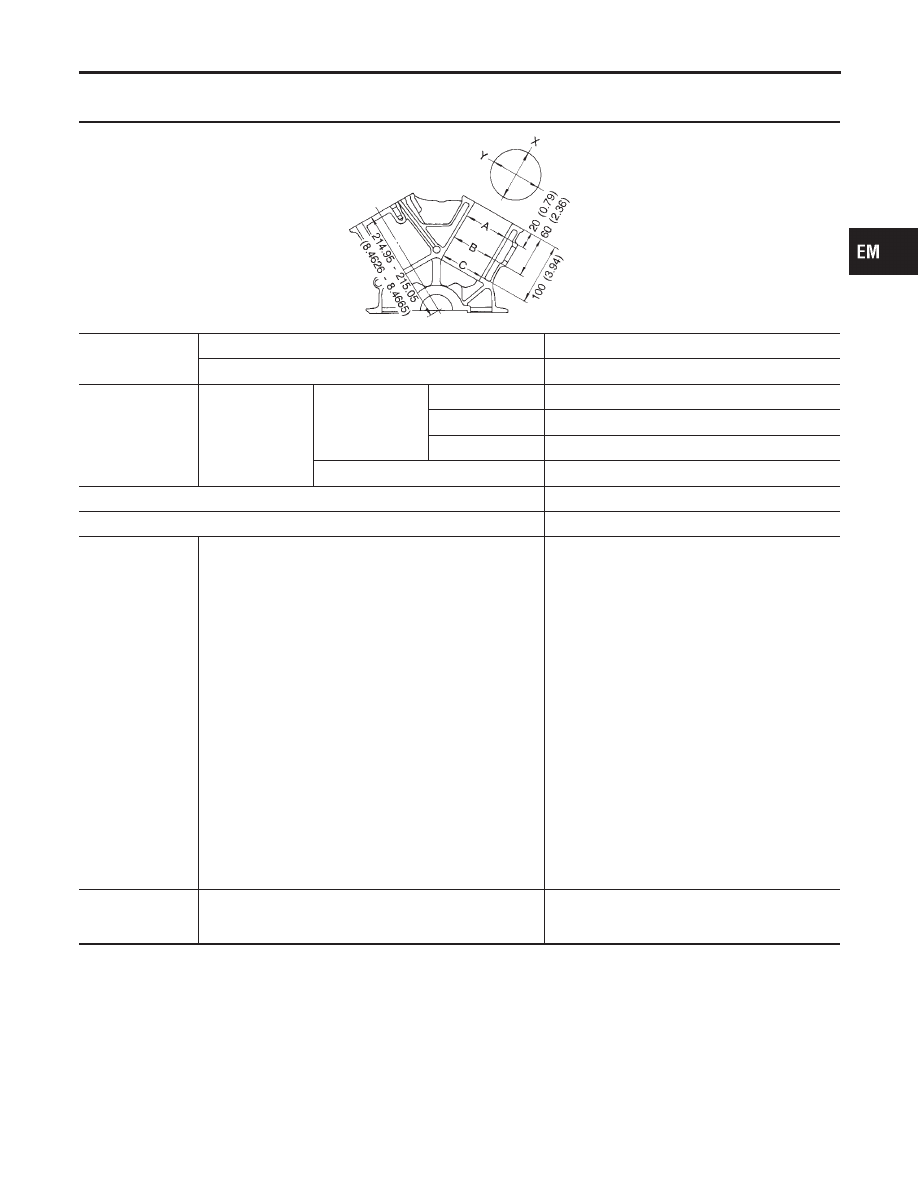

Cylinder Block

NHEM0062

Unit: mm (in)

SEM022EA

Surface flatness

Standard

Less than 0.03 (0.0012)

Limit

0.10 (0.0039)

Cylinder bore

Inner diameter

Standard

Grade No. 1

95.500 - 95.510 (3.7598 - 3.7602)

Grade No. 2

95.510 - 95.520 (3.7602 - 3.7606)

Grade No. 3

95.520 - 95.530 (3.7606 - 3.7610)

Wear limit

0.20 (0.0079)

Out-of-round (Difference between X and Y)

Less than 0.015 (0.0006)

Taper (Difference between A and C)

Less than 0.015 (0.0006)

Main journal inner
diameter grade
(Without bearing)

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

63.993 - 63.994 (2.5194 - 2.5194)
63.994 - 63.995 (2.5194 - 2.5195)
63.995 - 63.996 (2.5195 - 2.5195)
63.996 - 63.997 (2.5195 - 2.5196)
63.997 - 63.998 (2.5196 - 2.5196)
63.998 - 63.999 (2.5196 - 2.5196)
63.999 - 64.000 (2.5196 - 2.5197)
64.000 - 64.001 (2.5197 - 2.5197)
64.001 - 64.002 (2.5197 - 2.5198)
64.002 - 64.003 (2.5198 - 2.5198)
64.003 - 64.004 (2.5198 - 2.5198)
64.004 - 64.005 (2.5198 - 2.5199)
64.005 - 64.006 (2.5199 - 2.5199)
64.006 - 64.007 (2.5199 - 2.5200)
64.007 - 64.008 (2.5200 - 2.5200)
64.008 - 64.009 (2.5200 - 2.5200)
64.009 - 64.010 (2.5200 - 2.5201)

64.010 - 64.011 (2.5201 - 2.5201)
64.011 - 64.012 (2.5201 - 2.5202)

64.012 - 64.013 (2.5202 - 2.5202)
64.013 - 64.014 (2.5202 - 2.5202)
64.014 - 64.015 (2.5202 - 2.5203)
64.015 - 64.016 (2.5203 - 2.5203)
64.016 - 64.017 (2.5203 - 2.5203)

Difference in inner
diameter between
cylinders

Standard

Less than 0.03 (0.0012)

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Block

EM-93

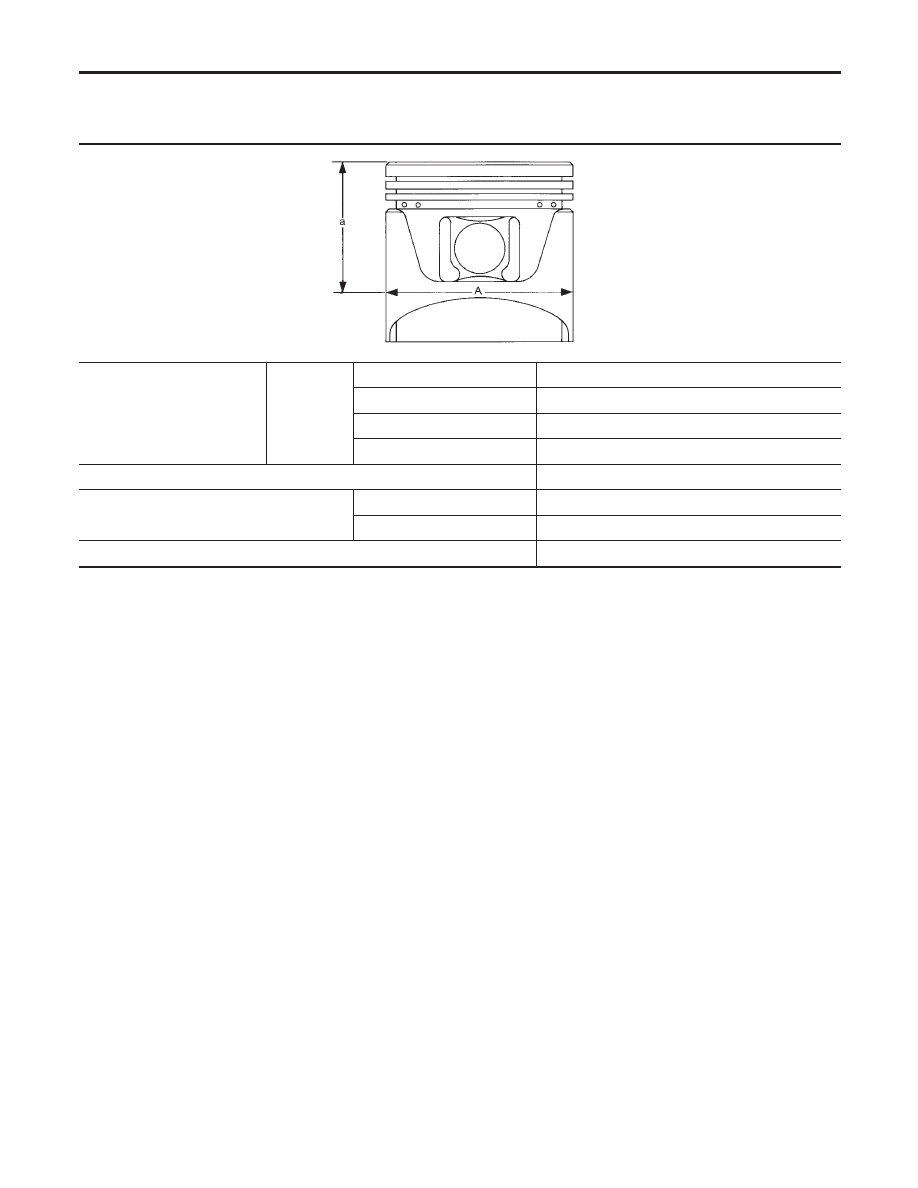

Piston, Piston Ring and Piston Pin

NHEM0063

AVAILABLE PISTON

NHEM0063S01

Unit: mm (in)

SEM882E

Piston skirt diameter “A”

Standard

Grade No. 1

95.480 - 95.490 (3.7590 - 3.7594)

Grade No. 2

95.490 - 95.500 (3.7594 - 3.7598)

Grade No. 3

95.500 - 95.510 (3.7598 - 3.7602)

0.20 (0.0079) oversize (Service)

95.680 - 95.710 (3.7669 - 3.7681)

“a” dimension

41.0 (1.614)

Piston pin hole diameter

Grade No. 0

21.993 - 21.999 (0.8659 - 0.8661)

Grade No. 1

21.999 - 22.005 (0.8661 - 0.8663)

Piston clearance to cylinder block

0.010 - 0.030 (0.0004 - 0.0012)

SERVICE DATA AND SPECIFICATIONS (SDS)

Piston, Piston Ring and Piston Pin

EM-94
