Infiniti I35 (A33). Manual - part 499





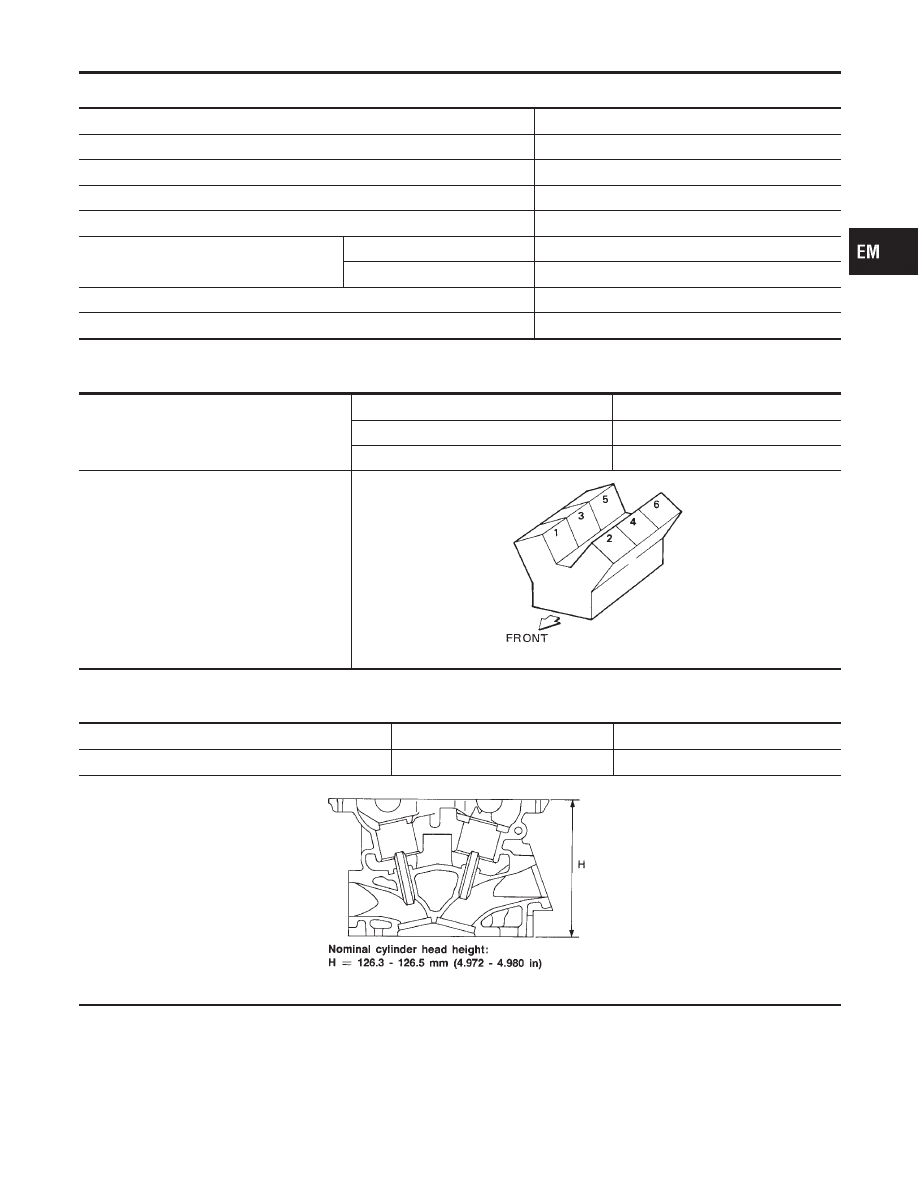

General Specifications

NHEM0056

Cylinder arrangement

V-6

Displacement

cm

3

(cu in)

3,498 (213.45)

Bore and stroke

mm (in)

95.5 x 81.4 (3.760 x 3.205)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

10.3

Compression Pressure

NHEM0057

Unit: kPa (kg/cm

2

, psi)/300 rpm

Compression pressure

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

Cylinder number

SEM713A

Cylinder Head

NHEM0058

Unit: mm (in)

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

SEM949E

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

EM-87

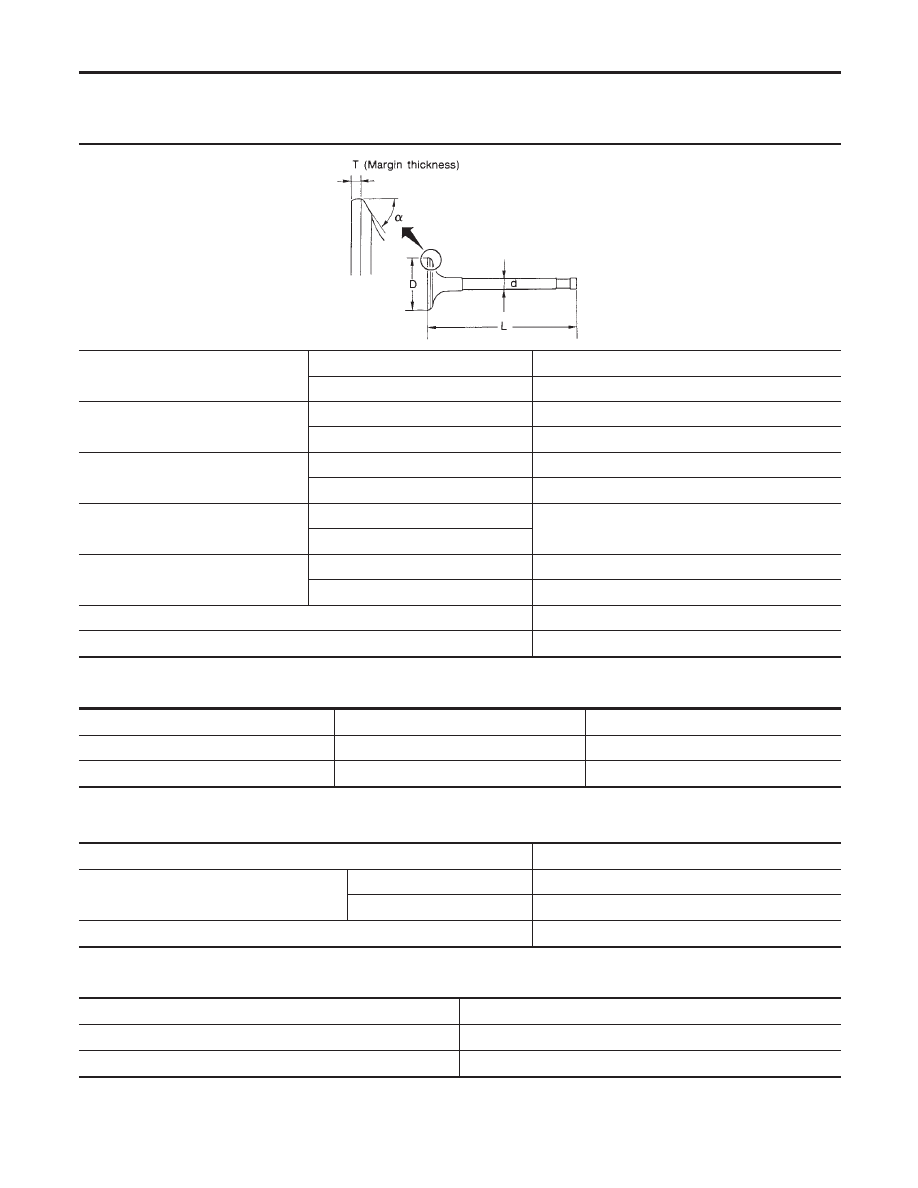

Valve

NHEM0059

VALVE

NHEM0059S01

Unit: mm (in)

SEM188

Valve head diameter “D”

Intake

37.0 - 37.3 (1.4567 - 1.4685)

Exhaust

31.2 - 31.5 (1.228 - 1.240)

Valve length “L”

Intake

96.12 - 96.62 (3.7842 - 3.8039)

Exhaust

93.65 - 94.15 (3.6870 - 3.7067)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle “

α

Intake

45°15

- 45°45

Exhaust

Valve margin “T”

Intake

1.1 (0.043)

Exhaust

1.3 (0.051)

Valve margin “T” limit

More than 0.5 (0.020)

Valve stem end surface grinding limit

Less than 0.2 (0.008)

VALVE CLEARANCE

NHEM0059S02

Unit: mm (in)

Cold

Hot* (reference data)

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

*: Approximately 80°C (176°F)

VALVE SPRING

NHEM0059S04

Free height

mm (in)

45.62 (1.7961)

Pressure

N (kg, lb) at height mm (in)

Installation

196 (20.0, 44.1) at 37.0 (1.457)

Valve open

433 (44.2, 97.3) at 27.8 (1.094)

Out-of-square

mm (in)

Less than 2.0 (0.079)

VALVE LIFTER

NHEM0059S05

Unit: mm (in)

Valve lifter outer diameter

33.977 - 33.987 (1.3377 - 1.3381)

Lifter guide inner diameter

34.000 - 34.016 (1.3386 - 1.3392)

Clearance between lifter and lifter guide

0.013 - 0.039 (0.0005 - 0.0015)

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve

EM-88

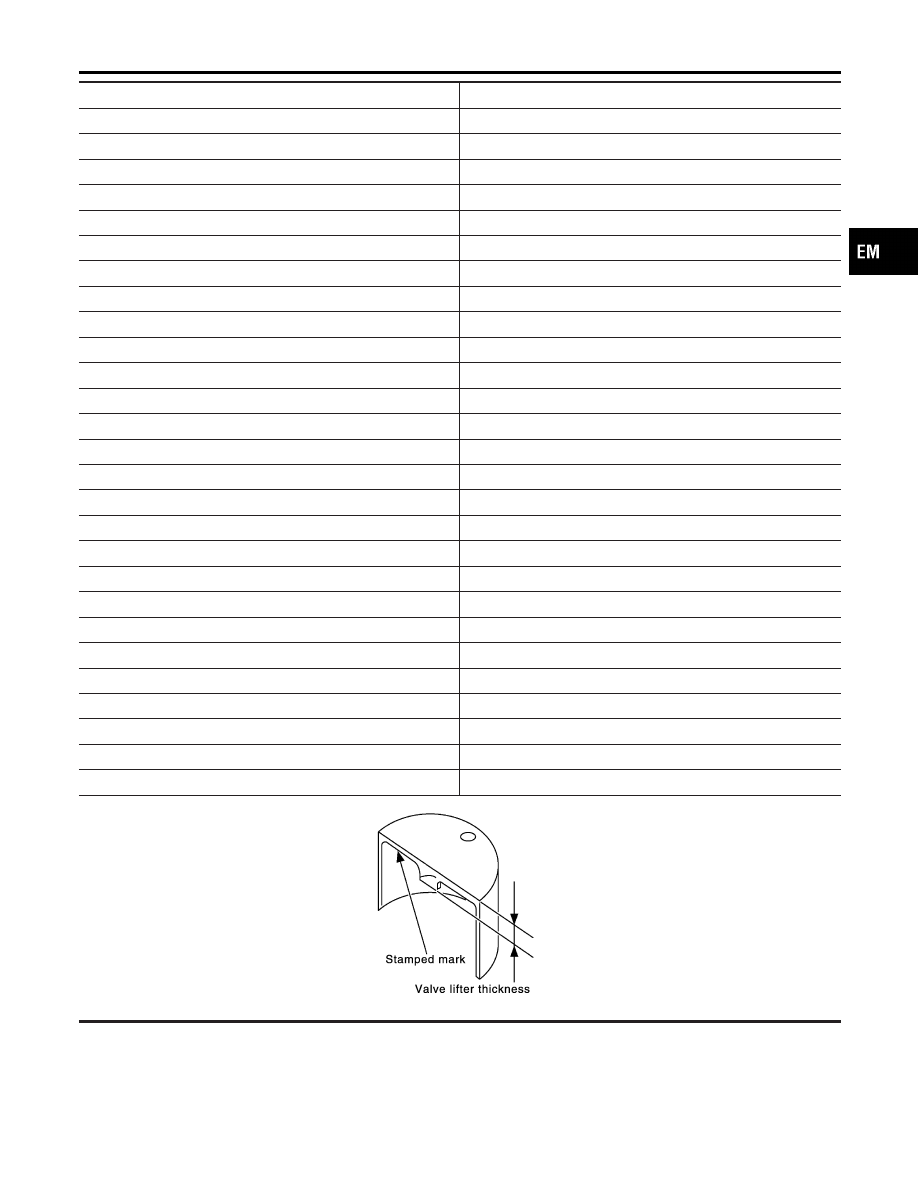

Identification mark

Thickness mm (in)

788U or 788R

7.88 (0.3102)

790U or 790R

7.90 (0.3110)

792U or 792R

7.92 (0.3118)

794U or 794R

7.94 (0.3126)

796U or 796R

7.96 (0.3134)

798U or 798R

7.98 (0.3142)

800U or 800R

8.00 (0.3150)

802U or 802R

8.02 (0.3157)

804U or 804R

8.04 (0.3165)

806U or 806R

8.06 (0.3173)

808U or 808R

8.08 (0.3181)

810U or 810R

8.10 (0.3189)

812U or 812R

8.12 (0.3197)

814U or 814R

8.14 (0.3205)

816U or 816R

8.16 (0.3213)

818U or 818R

8.18 (0.3220)

820U or 820R

8.20 (0.3228)

822U or 822R

8.22 (0.3236)

824U or 824R

8.24 (0.3244)

826U or 826R

8.26 (0.3252)

828U or 828R

8.28 (0.3260)

830U or 830R

8.30 (0.3268)

832U or 832R

8.32 (0.3276)

834U or 834R

8.34 (0.3283)

836U or 836R

8.36 (0.3291)

838U or 838R

8.38 (0.3299)

840U or 840R

8.40 (0.3307)

SEM758G

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve (Cont’d)

EM-89

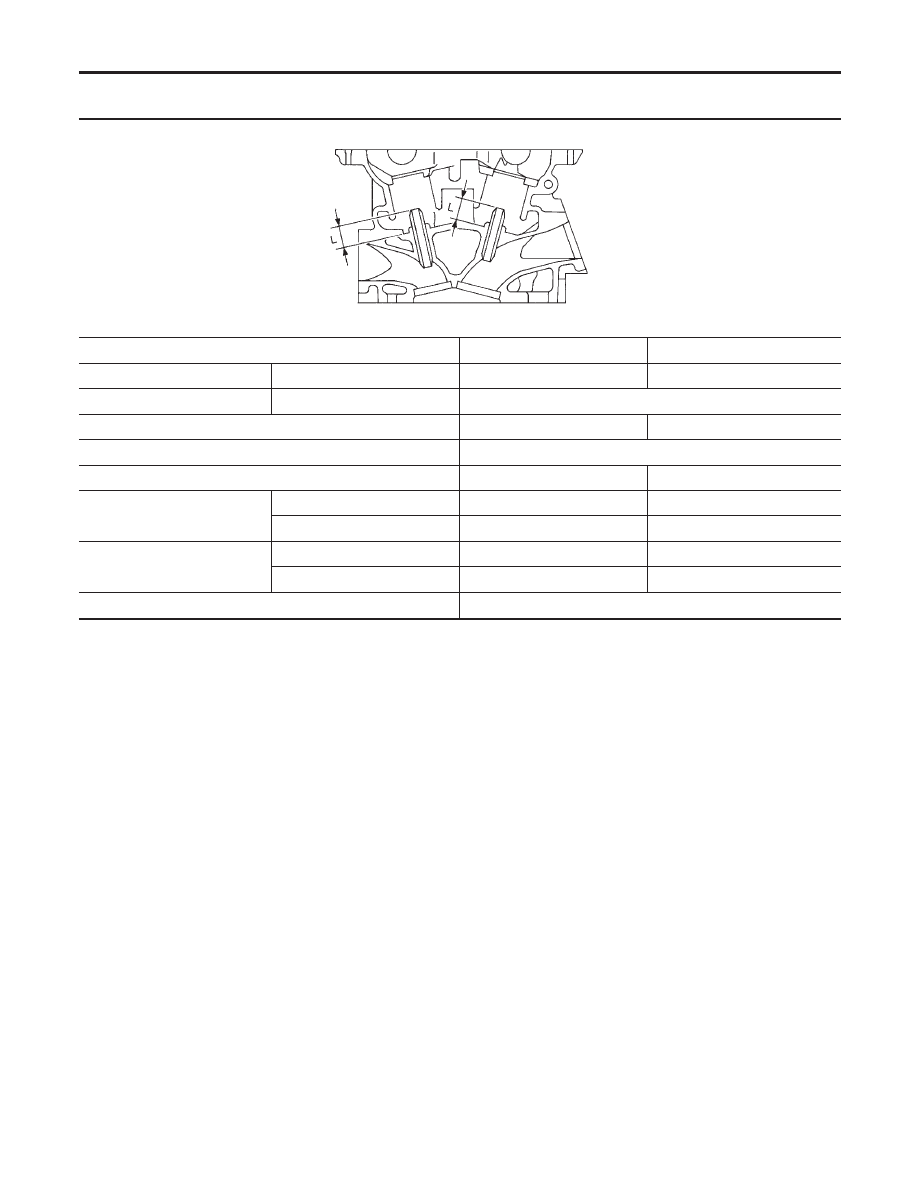

VALVE GUIDE

NHEM0059S06

Unit: mm (in)

SEM950E

Standard

Service

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950)

10.223 - 10.234 (0.4025 - 0.4029)

Valve guide

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Standard

Max. tolerance

Stem to guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.0031)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.0035)

Valve deflection limit

Intake

0.24 (0.0094)

Exhaust

0.28 (0.0110)

Projection length “L”

12.6 - 12.8 (0.496 - 0.504)

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve (Cont’d)

EM-90
