Infiniti I35 (A33). Manual - part 481





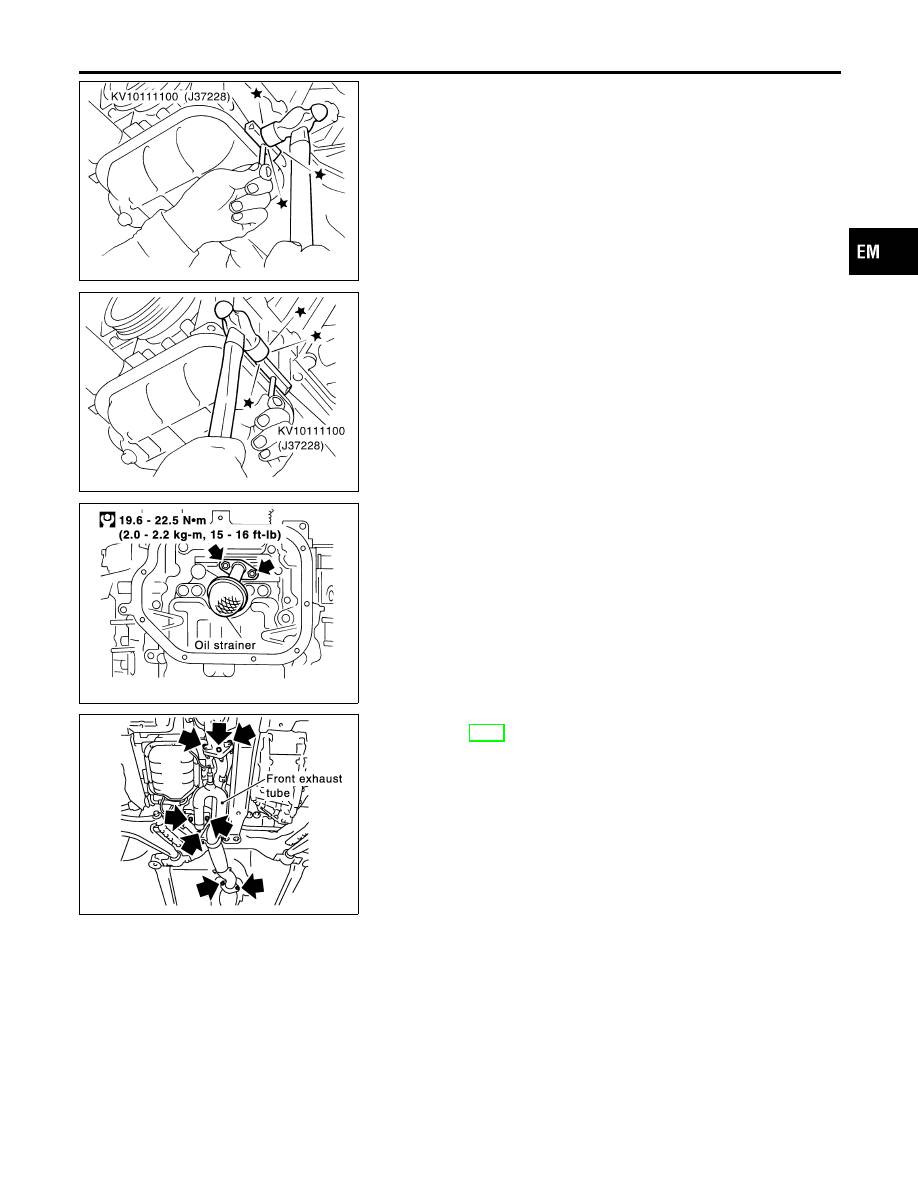

SEM957F

4.

Remove steel oil pan.

a.

Insert seal cutter between aluminum oil pan and steel oil pan.

I

Be careful not to damage aluminum mating surface.

I

Do not insert screwdriver, or oil pan flange will be
deformed.

SEM960F

b.

Slide seal cutter by tapping on the side of it with a hammer.

c.

Remove steel oil pan.

SEM575GA

5.

Remove oil strainer.

SEM716G

6.

Remove front exhaust tube and its support.
Refer to FE-9, “Removal and Installation”.

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

OIL PAN

Removal (Cont’d)

EM-15

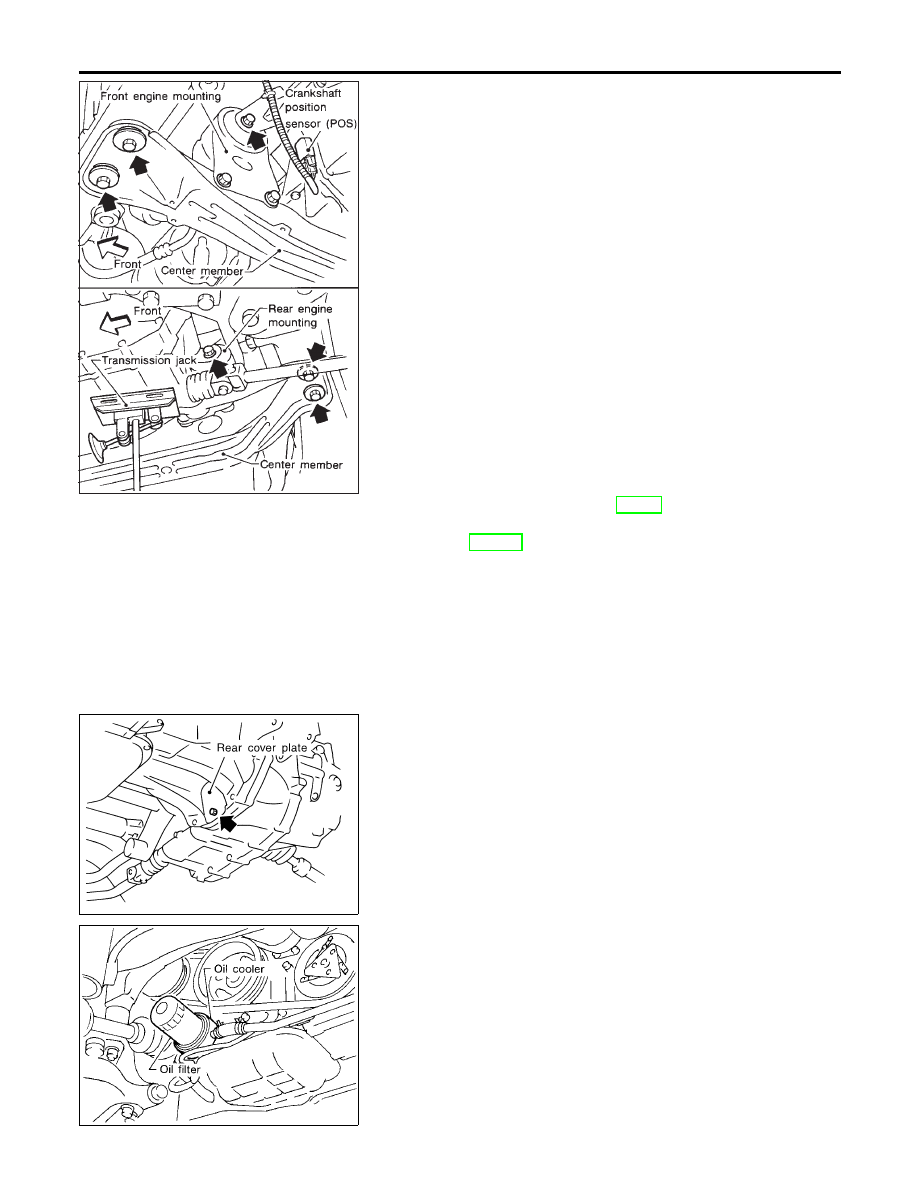

SEM811E

7.

Set a suitable transmission jack under transaxle and hoist
engine with engine slinger.

8.

Remove crankshaft position sensor (POS) from oil pan.

9.

Loosen front and rear engine mounting nuts and bolts.

10. Remove center member.

11. Remove drive belts. Refer to MA-13, “Checking Drive Belts”.
12. Remove air conditioner compressor.

Refer to HA-112, “REMOVAL AND INSTALLATION”.

SEM717G

13. Remove rear cover plate.

SEM154F

14. Remove oil filter, oil cooler fixing bolt and water hoses or pipes

as follows.

a.

Remove oil filter.

b.

Disconnect water hoses from oil cooler, pinching hose to pre-
vent coolant spill.

c.

Remove oil cooler.

OIL PAN

Removal (Cont’d)

EM-16

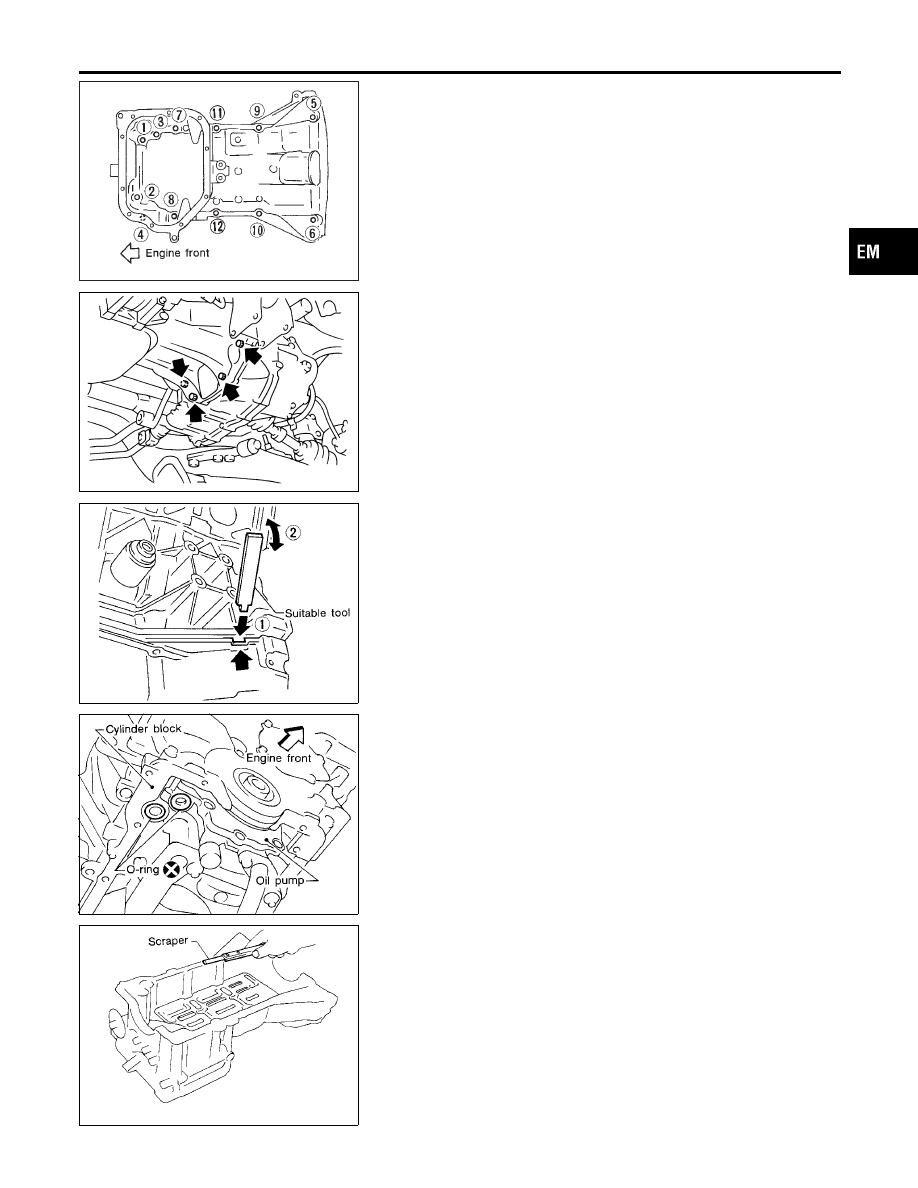

SEM184F

15. Loosen aluminum oil pan bolts in numerical order.

SEM949G

16. Loosen four engine-to-transaxle bolts.

SEM155F

17. Remove aluminum oil pan.
a.

Insert an appropriate size tool into the notch of aluminum oil
pan as shown in the figure.

I

Be careful not to damage aluminum mating surface.

I

Do not insert screwdriver, or oil pan flange will be
deformed.

b.

Pry off aluminum oil pan by moving the tool up and down.

c.

Remove aluminum oil pan.

SEM819E

18. Remove O-rings from cylinder block and oil pump body.

MEM108A

Installation

NHEM0010

1.

Install aluminum oil pan.

a.

Use a scraper to remove old liquid gasket from mating sur-
faces.

I

Also remove old liquid gasket from mating surface of cyl-
inder block, front cover and steel oil pan.

I

Remove old liquid gasket from the bolt hole and thread.

GI

MA

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

OIL PAN

Removal (Cont’d)

EM-17

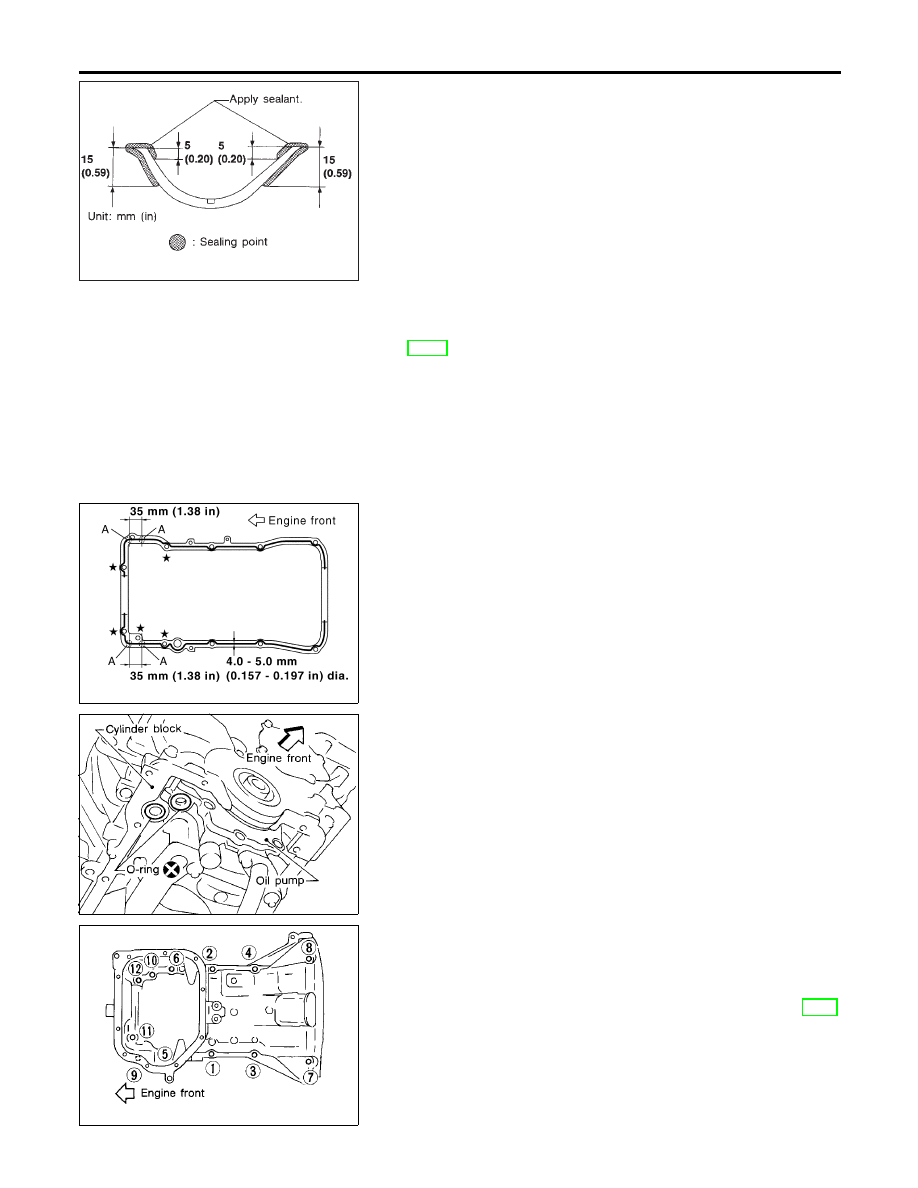

SEM964E

b.

Apply sealant to front cover gasket and rear oil seal retainer
gasket.

c.

Apply a continuous bead of liquid gasket to mating surface of
aluminum oil pan.

I

Use Genuine RTV silicone sealant or equivalent. Refer to
GI-53.

SEM034H

d.

Apply liquid gasket to inner sealing surface as shown in figure.

I

Be sure liquid gasket is 4.0 to 5.0 mm (0.157 to 0.197 in)
or 4.5 to 5.5 mm (0.177 to 0.217 in) wide as shown in the
figure.

I

Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) in diam-
eter to area “A”.

I

For bolt holes with

marks (5 locations), apply liquid

gasket outside the holes.

I

Assembly should be done within 5 minutes after coating.

SEM819E

e.

Install O-rings, cylinder block and oil pump body.

SEM186F

f.

Tighten aluminum oil pan.

I

Tighten bolts in numerical order.

I

Wait at least 30 minutes before refilling engine oil.

g.

Install oil cooler, water hoses and pipes.

I

For tightening torque of the oil cooler fixing bolt, refer to LC-9,
“Oil Cooler”.

OIL PAN

Installation (Cont’d)

EM-18
