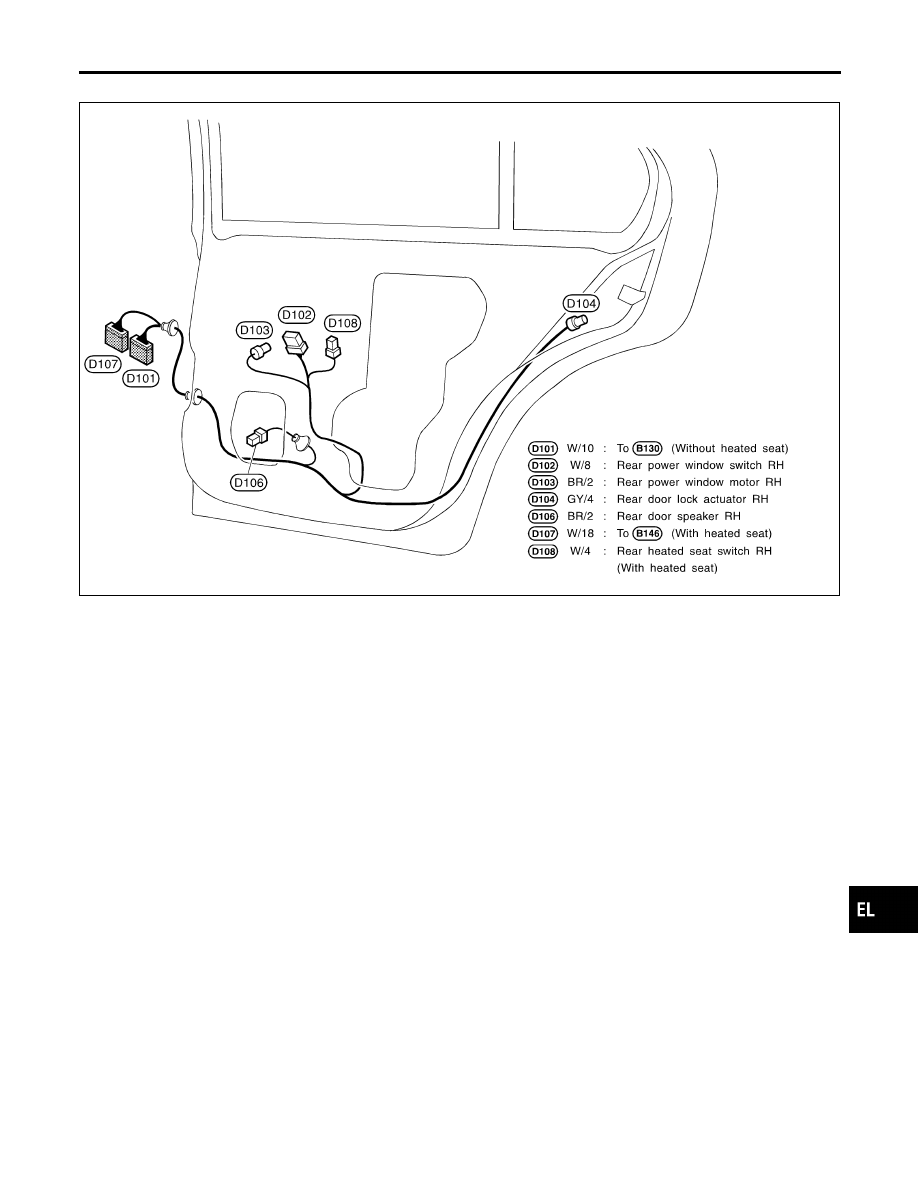

RH SIDE

NHEL0143S04

MEL696R

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Rear Door Harness (Cont’d)

EL-505

NHEL0144

Headlamp

NHEL0144S03

Item

Wattage (W)

High/Low

60/35 (HB3)

Exterior Lamp

NHEL0144S01

Item

Wattage (W)

Front fog lamp

21 (H3)

Front turn signal lamp

21

Parking lamp

5

Front side marker lamp

3.8

Rear combination lamp

Turn signal

21

Stop/Tail

21/5

Back-up

18

Rear side marker lamp

3.8

License lamp

5

High-mounted stop lamp

Without rear air spoiler

5

With rear air spoiler

LED

Interior Lamp

NHEL0144S02

Item

Wattage (W)

Interior room lamp

10

Spot lamp

8

Vanity mirror lamp

8

Trunk room lamp

3.4

Step lamp

2.7

BULB SPECIFICATIONS

Headlamp

EL-506

NHEL0145

Use the chart below to find out what each wiring
diagram code stands for.
Refer to the wiring diagram code in the alphabetical
index to find the location (page number) of each
wiring diagram.

Code

Section

Wiring Diagram Name

1STSIG

AT

A/T 1ST Signal

2NDSIG

AT

A/T 2ND Signal

3RDSIG

AT

A/T 3RD Signal

4THSIG

AT

A/T 4TH Signal

A/C, A

HA

Auto Air Conditioner

APPS2

EC

Accelerator Pedal Position Sen-
sor (Sensor 2)

APPS3

EC

Accelerator Pedal Position Sen-
sor

ASC/BS

EC

Automatic Speed Control Device
(ASCD) Brake Switch

ASC/SW

EC

Automatic Speed Control Device
(ASCD) Steering Switch

ASC/VS

EC

Automatic Speed Control Device
(ASCD) Vehicle Speed Sensor

ASCBOF

EC

Automatic Speed Control Device
(ASCD) Brake Switch (Off)

ASCIND

EC

Automatic Speed Control Device
(ASCD) Indicator

AT/IND

EL

A/T Indicator

AUDIO

EL

Audio

AUT/DP

EL

Automatic Drive Positioner

BACK/L

EL

Back-up Lamp

BA/FTS

AT

A/T Fluid Temperature Sensor
and TCM Power Supply

B/COMP

EL

Board Computer

BRK/SW

EC

Brake Switch

BYPS/V

EC

Vacuum Cut Valve Bypass Valve

CAN

AT

CAN Communication Line

CAN

EC

CAN Communication Line

CAN

EL

CAN System

CHARGE

SC

Charging System

CHIME

EL

Warning Chime

CIGAR

EL

Cigarette Lighter

CLOCK

EL

Clock

COMPAS

EL

Compass

COOL/F

EC

Cooling Fan Control

CORNER

EL

Cornering Lamp

Code

Section

Wiring Diagram Name

DEF

EL

Rear Window Defogger

D/LOCK

EL

Power Door Lock

DLC

EC

Data Link Connectors

DTRL

EL

Headlamp - With Daytime Light
System

ECM/PW

EC

ECM Power Supply

ECTS

EC

Engine Coolant Temperature
Sensor

EMNT

EC

Electronic Controlled Engine
Mount

ENGSS

AT

Engine Speed Signal

ETC1

EC

Electrical Throttle Control Func-
tion

ETC2

EC

Electrical Throttle Control Motor
Relay

ETC3

EC

Electrical Throttle Control Motor

F/FOG

EL

Front Fog Lamp

FLS1

EC

Fuel Level Sensor Circuit
(SLOSH)

FLS2

EC

Fuel Level Sensor Circuit

FLS3

EC

Fuel Level Sensor Circuit
(Ground Signal)

F/PUMP

EC

Fuel Pump Control

FTS

AT

A/T Fluid Temperature Sensor

FTTS

EC

Fuel Tank Temperature Sensor

FUELB1

EC

Fuel Injection System Function
(Bank 1)

FUELB2

EC

Fuel Injection System Function
(Bank 2)

H/LAMP

EL

Headlamp

HORN

EL

Horn

HSEAT

EL

Heated Seat

H/STRG

EL

Heated Steering

I/MIRR

EL

Inside Mirror (Auto Anti-dazzling
Mirror)

IATS

EC

Intake Air Temperature Sensor

IGNSYS

EC

Ignition Signal

ILL

EL

Illumination

INJECT

EC

Injector

INT/L

EL

Interior, Step, Spot, Vanity Mirror
and Trunk Room Lamps

IVCB1

EC

Intake Valve Timing Control Sole-
noid Valve (Bank 1)

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WIRING DIAGRAM CODES (CELL CODES)

EL-507

Code

Section

Wiring Diagram Name

IVCB2

EC

Intake Valve Timing Control Sole-
noid Valve (Bank 2)

KEYLES

EL

Remote Keyless Entry System

KS

EC

Knock Sensor

LOAD

EC

Electrical Load Signal

LPSV

AT

Line Pressure Solenoid Valve

MAFS

EC

Mass Air Flow Sensor

MAIN

AT

Main Power Supply and Ground
Circuit

MAIN

EC

Main Power Supply and Ground
Circuit

METER

EL

Speedometer, Tachometer,
Temp., and Fuel Gauges

MIL

EC

Malfunction Indicator Lamp

MIRROR

EL

Power Door Mirror

NATS

EL

IVIS (Infiniti Vehicle Immobilizer
System — NATS)

NAVI

EL

Navigation System

NONDTC

AT

Non-detectable Items

O2H1B1

EC

Heated Oxygen Sensor 1 Heater
(Bank 1)

O2H1B2

EC

Heated Oxygen Sensor 1 Heater
(Bank 2)

O2H2B1

EC

Heated Oxygen Sensor 2 Heater
(Bank 1)

O2H2B2

EC

Heated Oxygen Sensor 2 Heater
(Bank 2)

O2S1B1

EC

Heated Oxygen Sensor 1 (Bank
1)

O2S1B2

EC

Heated Oxygen Sensor 1 (Bank
2)

O2S2B1

EC

Heated Oxygen Sensor 2 (Bank
1)

O2S2B2

EC

Heated Oxygen Sensor 2 (Bank
2)

OVRCSV

AT

Overrun Clutch Solenoid Valve

PHASE

EC

Camshaft Position Sensor
(Phase) Bank 1

PHASE

EC

Camshaft Position Sensor
(Phase) Bank 2

PHONE

EL

Telephone (Pre-wire)

PGC/V

EC

EVAP Canister Purge Volume
Control Solenoid Valve

PNP/SW

AT

Park/Neutral Position Switch

Code

Section

Wiring Diagram Name

PNP/SW

EC

Park/Neutral Position Switch

POS

EC

Crankshaft Position Sensor
(CKPS) (POS)

POWER

EL

Power Supply Routing

PRE/SE

EC

EVAP Control System Pressure
Sensor

PS/SEN

EC

Power Steering Pressure Sensor

PT/SEN

AT

Power Train Revolution Sensor

REMOTE

EL

Audio (Remote Control Switch)

RP/SEN

EC

Refrigerant Pressure Sensor

SEAT

EL

Power Seat

SEN/PW

EC

Sensor Power Supply

SHADE

EL

Rear Sunshade

SHIFT

AT

A/T Shift Lock System

SROOF

EL

Sunroof

SRS

RS

Supplemental Restraint System

S/SIG

EC

Start Signal

SSV/A

AT

Shift Solenoid Valve A

SSV/B

AT

Shift Solenoid Valve B

START

SC

Starting System

STOP/L

EL

Stop Lamp

TAIL/L

EL

Parking, License and Tail Lamps

TCCSIG

AT

A/T TCC Signal (Lock Up)

TCS

BR

Traction Control System

TCV

AT

Torque Converter Clutch Solenoid
Valve

T&FLID

EL

Trunk Lid and Fuel Filler Lid
Opener

TPS

AT

Throttle Position Sensor

TPS1

EC

Throttle Position Sensor (Sensor
1)

TPS2

EC

Throttle Position Sensor (Sensor
2)

TPS3

EC

Throttle Position Sensor

TRNSCV

EL

Homelink Universal Transceiver

TURN

EL

Turn Signal and Hazard Warning
Lamps

VDC

BR

Vehicle Dynamics Control

VEHSEC

EL

Vehicle Security (Theft Warning)
System

VENT/V

EC

EVAP Canister Vent Control
Valve

WIRING DIAGRAM CODES (CELL CODES)
