Infiniti I35 (A33). Manual - part 465





9

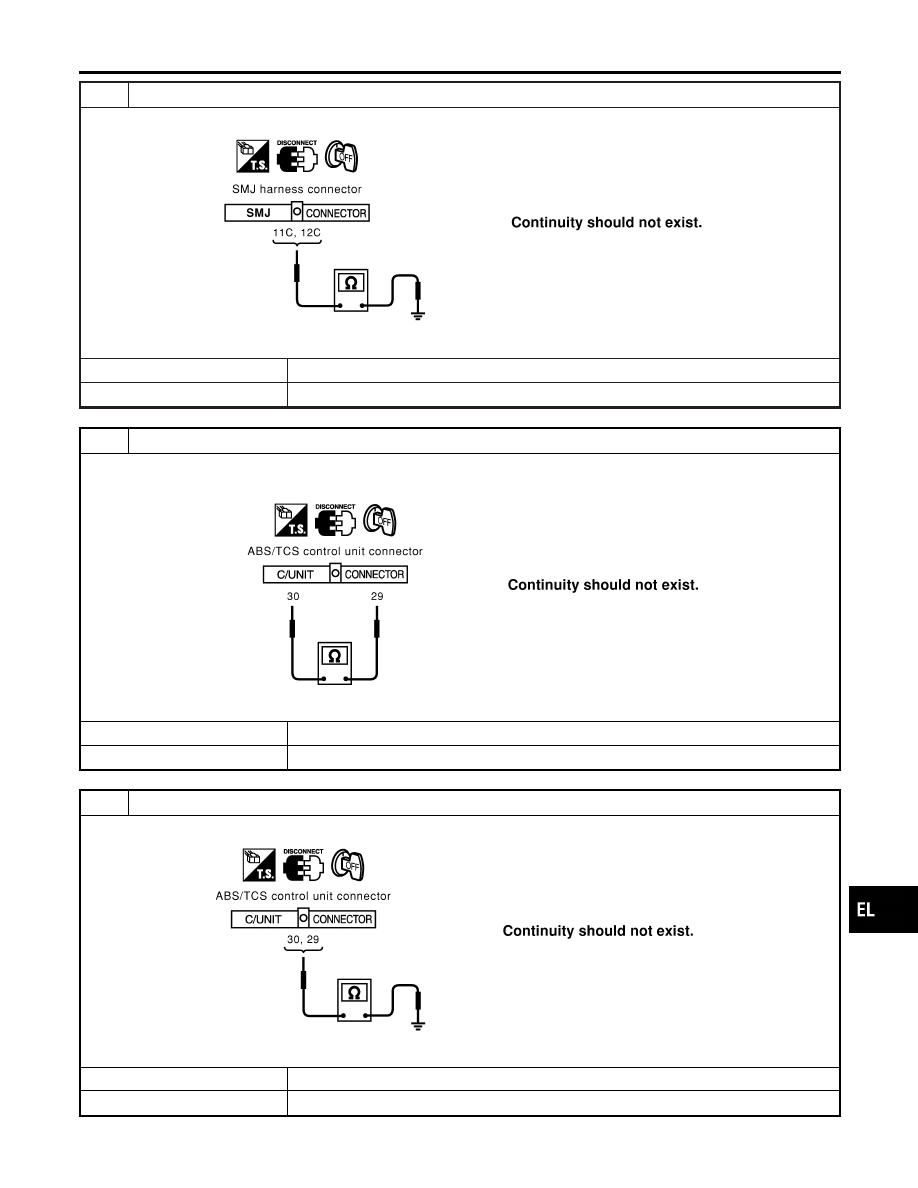

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between harness connector M15 terminals 11C (L), 12C (R) and ground.

SEL445Y

OK or NG

OK

©

GO TO 10.

NG

©

Repair harness between harness connector M223 and harness connector M15.

10

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect ABS/TCS control unit connector.
2. Check continuity between ABS/TCS control unit harness connector E162 terminals 30 (L) and 29 (R).

SEL446Y

OK or NG

OK

©

GO TO 11.

NG

©

Repair harness between ABS/TCS control unit and harness connector E81.

11

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between ABS/TCS control unit harness connector E162 terminals 30 (L), 29 (R) and ground.

SEL447Y

OK or NG

OK

©

GO TO 12.

NG

©

Repair harness between ABS/TCS control unit and harness connector E81.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (FOR TCS MODELS)

Trouble Diagnoses (Cont’d)

EL-461

12

ECM/TCM INTERNAL CIRCUIT INSPECTION

Check components inspection. Refer to “ECM/TCM INTERNAL CIRCUIT INSPECTION” (EL-462).

OK or NG

OK

©

Connect all the connectors and diagnose again. Refer to “Work Flow” (EL-452).

NG

©

Replace ECM and/or TCM.

SEL433Y

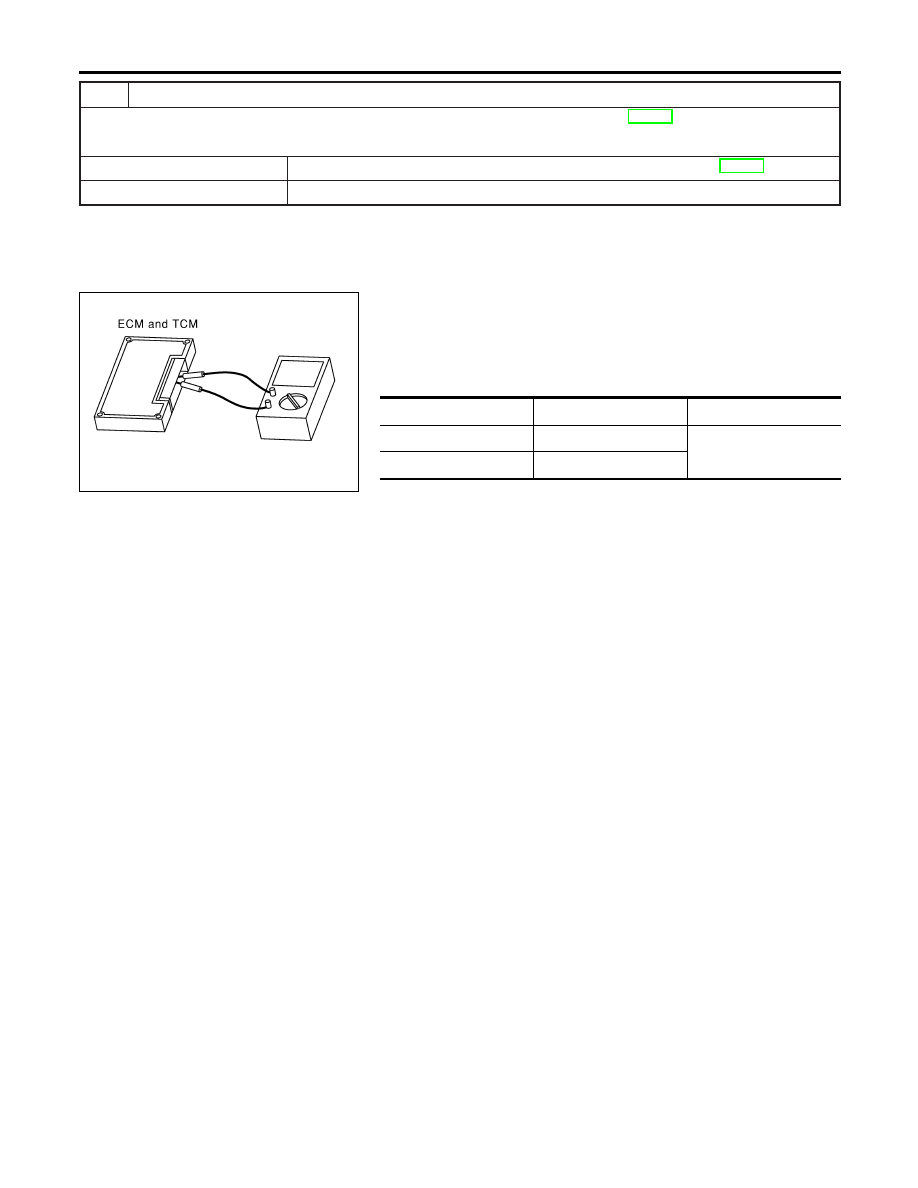

Component Inspection

NHEL0327

ECM/TCM INTERNAL CIRCUIT INSPECTION

NHEL0327S01

I

Remove ECM and TCM from vehicle.

I

Check resistance between ECM terminals 109 and 113.

I

Check resistance between TCM terminals 5 and 6.

Unit

Terminal

Resistance value (

)

ECM

109 - 113

Approx. 108 - 132

TCM

5 - 6

CAN SYSTEM (FOR TCS MODELS)

Trouble Diagnoses (Cont’d)

EL-462

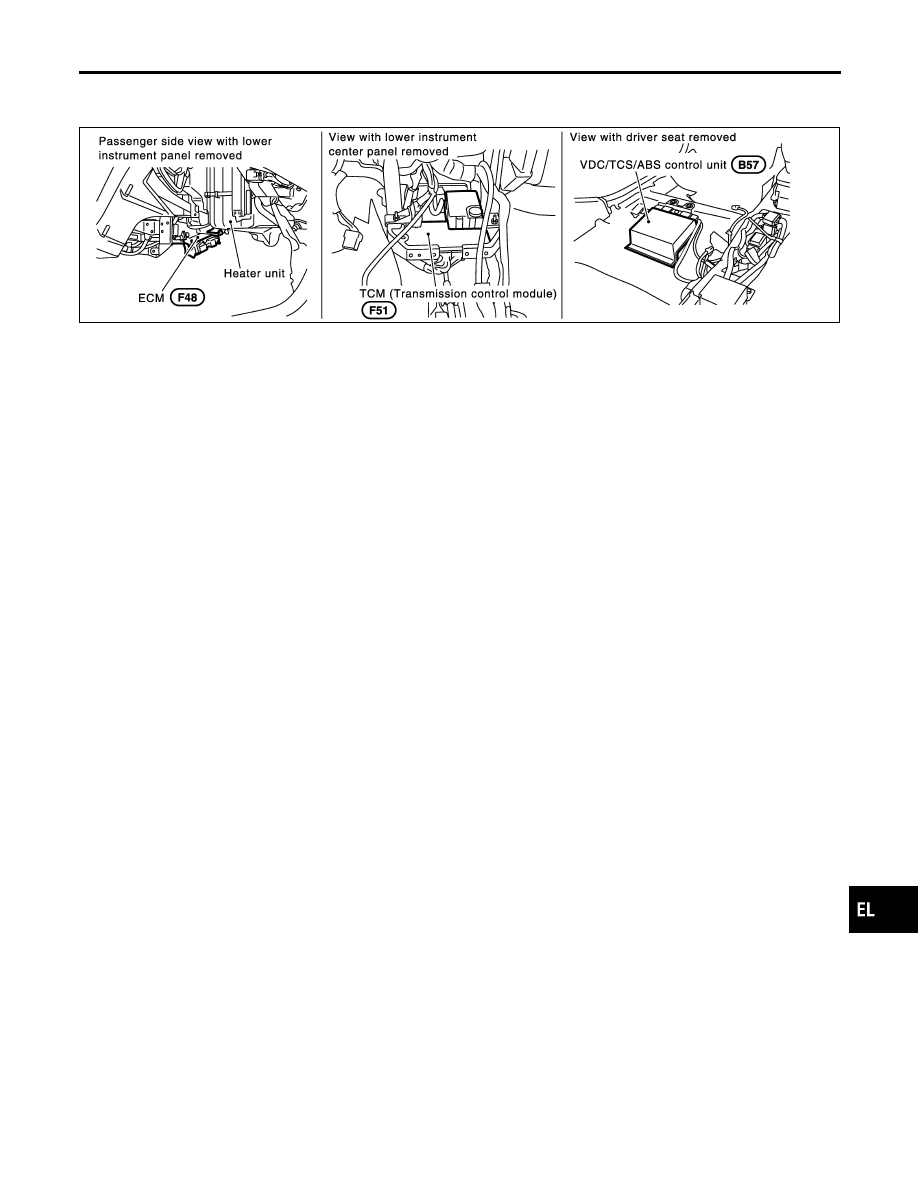

Component Parts and Harness Connector
Location

NHEL0328

SEL573Y

System Description

NHEL0329

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many
electronic control units are equipped onto a vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected with
2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wir-
ing. Each control unit transmits/receives data but selectively reads required data only.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (FOR VDC MODELS)

Component Parts and Harness Connector Location

EL-463

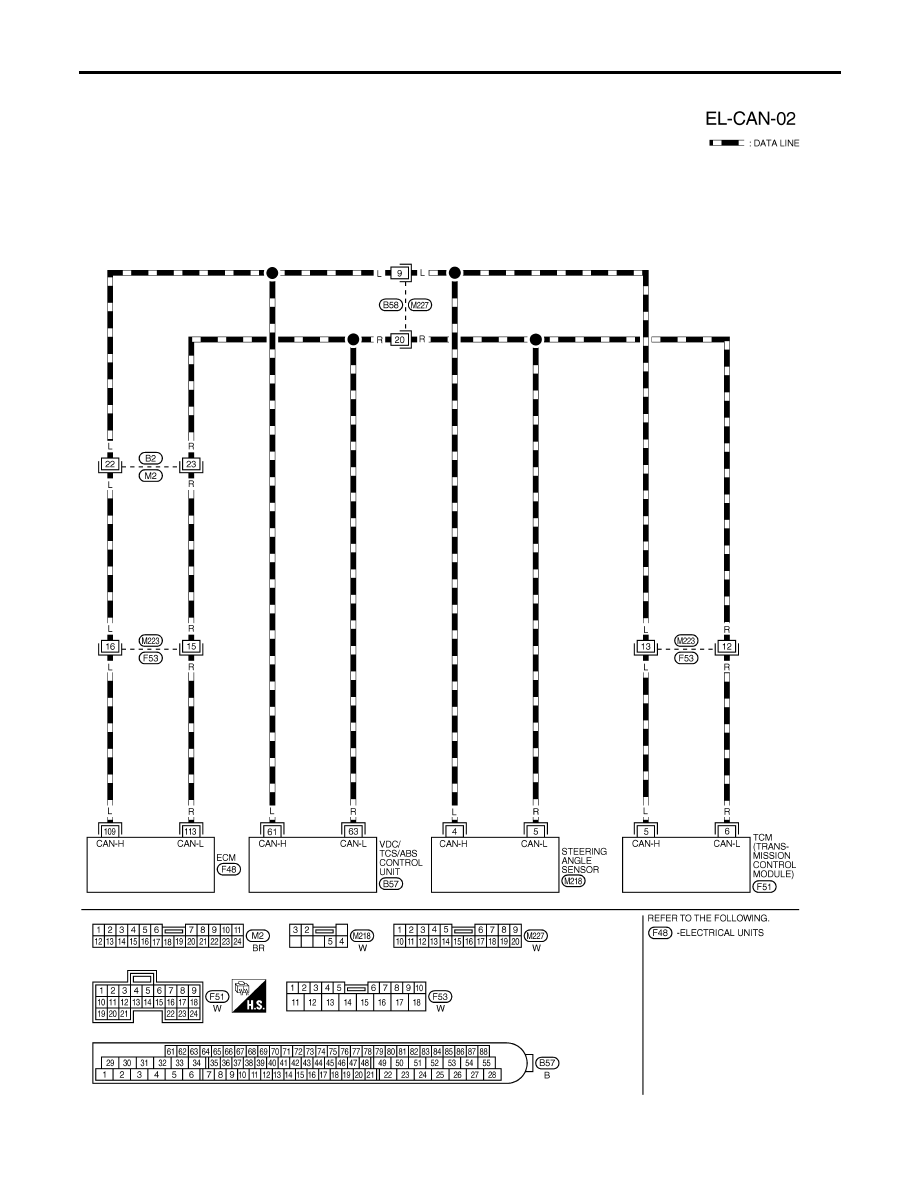

Wiring Diagram — CAN —

NHEL0330

MEL647Q

CAN SYSTEM (FOR VDC MODELS)

Wiring Diagram — CAN —

EL-464
