Infiniti I35 (A33). Manual - part 455





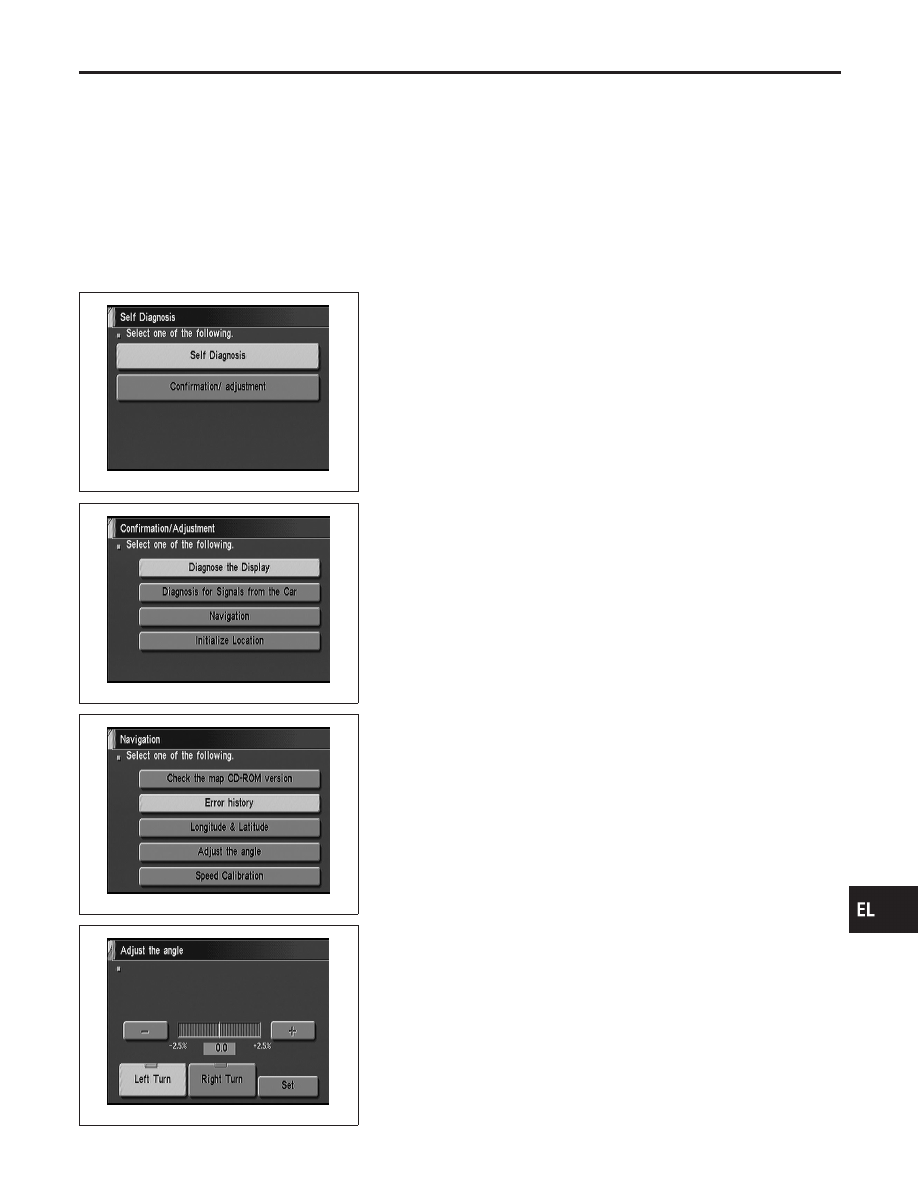

“ADJUST THE ANGLE” MODE

NHEL0300S07

Description

NHEL0300S0701

If the display indicates a larger or smaller turning angle than the
actual turning angle, the gyro (angular speed sensor) sensing val-
ues must be checked.
In case that the vehicle on the display makes larger angle turn than
reality, touch “−”. In case that the vehicle on the display makes
smaller angle turn than reality, touch “+”.

SEL527X

How to Perform

NHEL0300S0702

1.

Start the engine.

2.

Push “OPEN/CLOSE” switch and then open the display.

3.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

4.

Select “Confirmation/ adjustment”.

SEL531X

5.

Select “Navigation”.

SEL532X

6.

Select “Adjust the angle”.

SEL538X

7.

Select “Left Turn” to adjust the angle to the left. Touch “Right
Turn” to adjust the angle to the right.

8.

Select “+” to increase the angle change coefficient or “−” to
reduce the angle change coefficient.

9.

Select “Set” to save the changed values in memory.

10. Then the vehicle turning angle on the display has adjusted.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-421

SEL527X

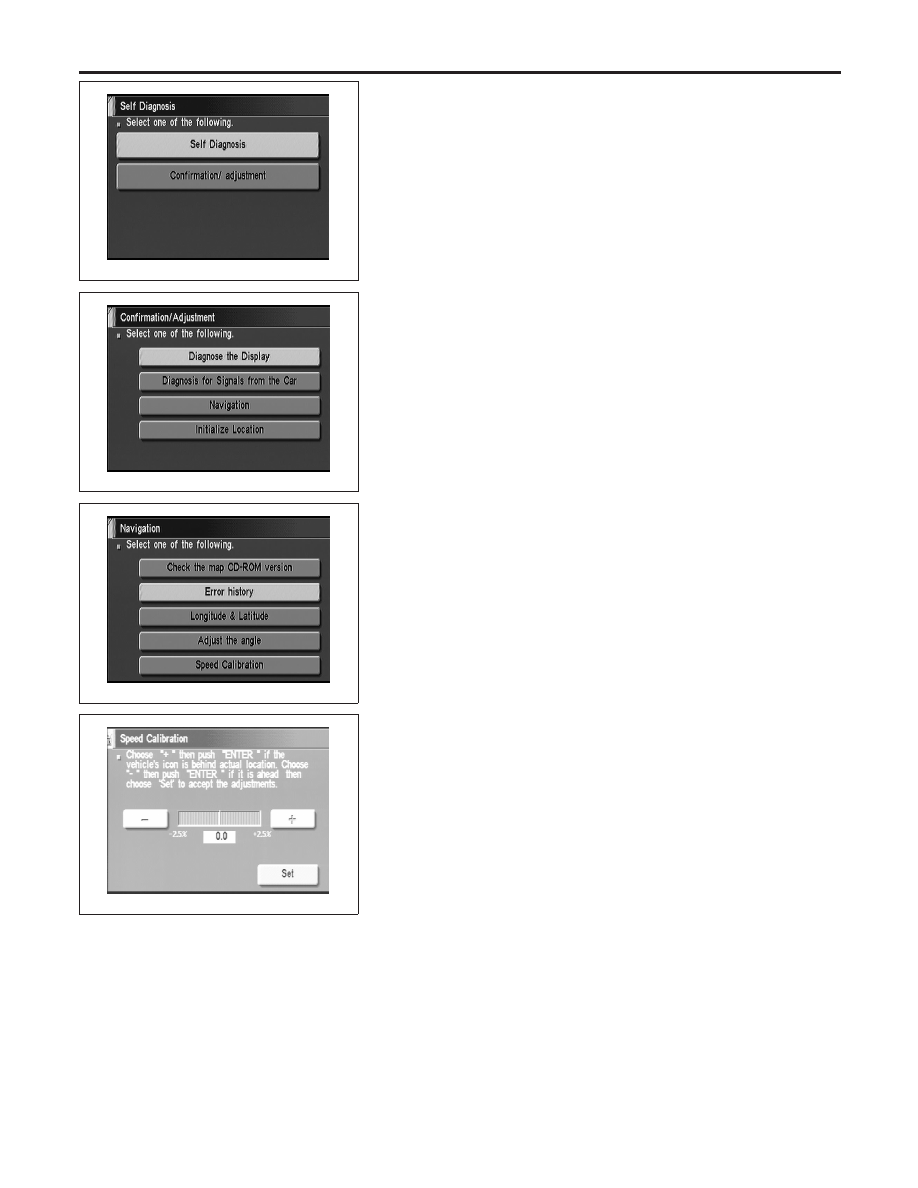

“SPEED CALIBRATION” MODE

NHEL0300S08

How to Perform

NHEL0300S0801

1.

Start the engine.

2.

Push “OPEN/CLOSE” switch and then open the display.

3.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

4.

Select “Confirmation/ adjustment”.

SEL531X

5.

Select “Navigation”.

SEL532X

6.

Select “Speed Calibration”.

SEL539X

7.

Select “+” or “−” to adjust the distance change coefficient.

I

To make the distance change coefficient smaller, touch “−”.

I

To make the distance change coefficient larger, touch “+”.

8.

Select “Set”.

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-422

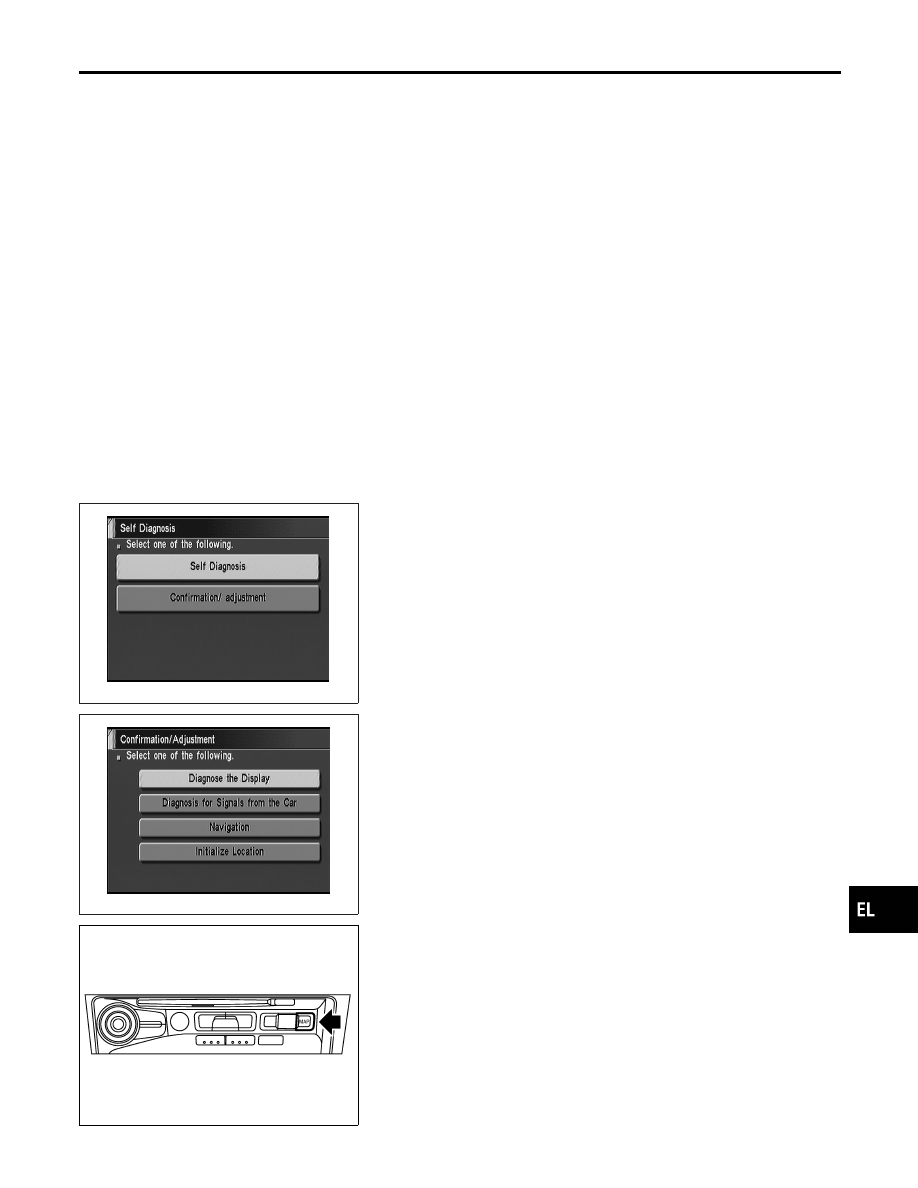

“INITIALIZE LOCATION” MODE

=NHEL0300S09

This procedure is for initializing the current location. Perform “Ini-
tialize Location” when the vehicle is transported a long distance on
a trailer, etc.
Map with grey background appears and the vehicle location can
not be adjusted by scrolling the display when the vehicle location
in the memory is out of the area of the inserted map data. Perform
“Initialize Location” when this occurs.
NOTE:

I

Only initialize the system when the NAVI control unit is
replaced. If the system is initialized in other cases, it may
cause inaccurate positioning of the position marker for a
while.

I

Initialize the system outside for receiving the radio wave
from the GPS satellite.

How to Perform

NHEL0300S0901

1.

Switch the navigation system mode to self-diagnosis by push-
ing both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

SEL527X

2.

Select “Confirmation/ adjustment”.

SEL531X

3.

Select “Initialize Location”. Then the previous screen is dis-
played.

SEL632X

4.

Push “MAP” switch, and then push “SETTING” switch.

5.

Select “System Setting”.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-423

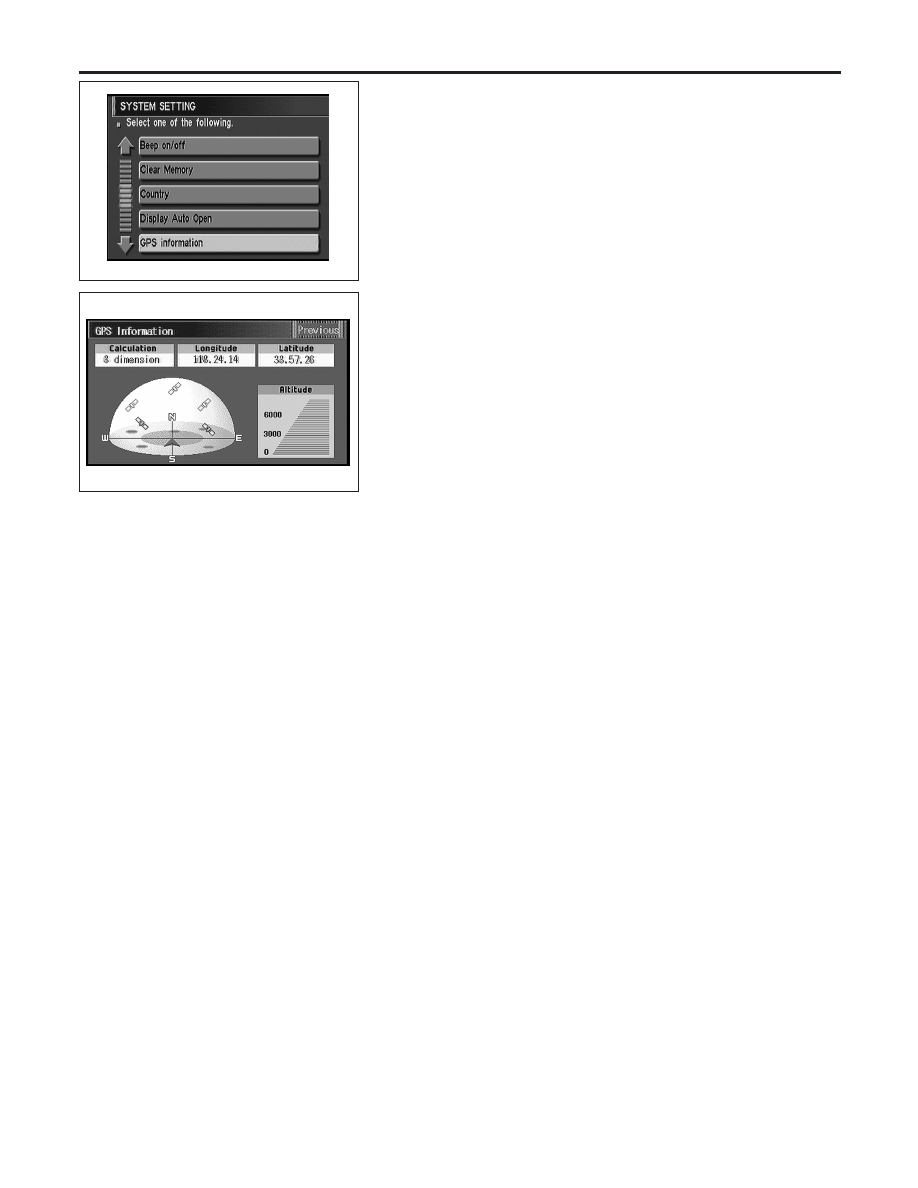

SEL559X

6.

Select “GPS Information”.

SEL146W

7.

More than one GPS satellite icon turns green. (It may take 1
to 15 minutes.)

NOTE:
Drive the vehicle for a while* in order to change the receiving
condition of the radio wave from the GPS satellite if the GPS
icon does not turn green.
* The driving distance which is necessary depends on the
receiving condition of the radio wave from the GPS satellite.

8.

Push “MAP” switch and check the following.

I

Confirm that the GPS icon on the map turns green.

I

Then the position marker should show the current location.

I

Position marker rotates corresponding to the movement of the
vehicle.

9.

Initialization is completed.

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-424
