Infiniti I35 (A33). Manual - part 441





NOTE:

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

SMART ENTRANCE CONTROL UNIT

CONSULT-II (Cont’d)

EL-365

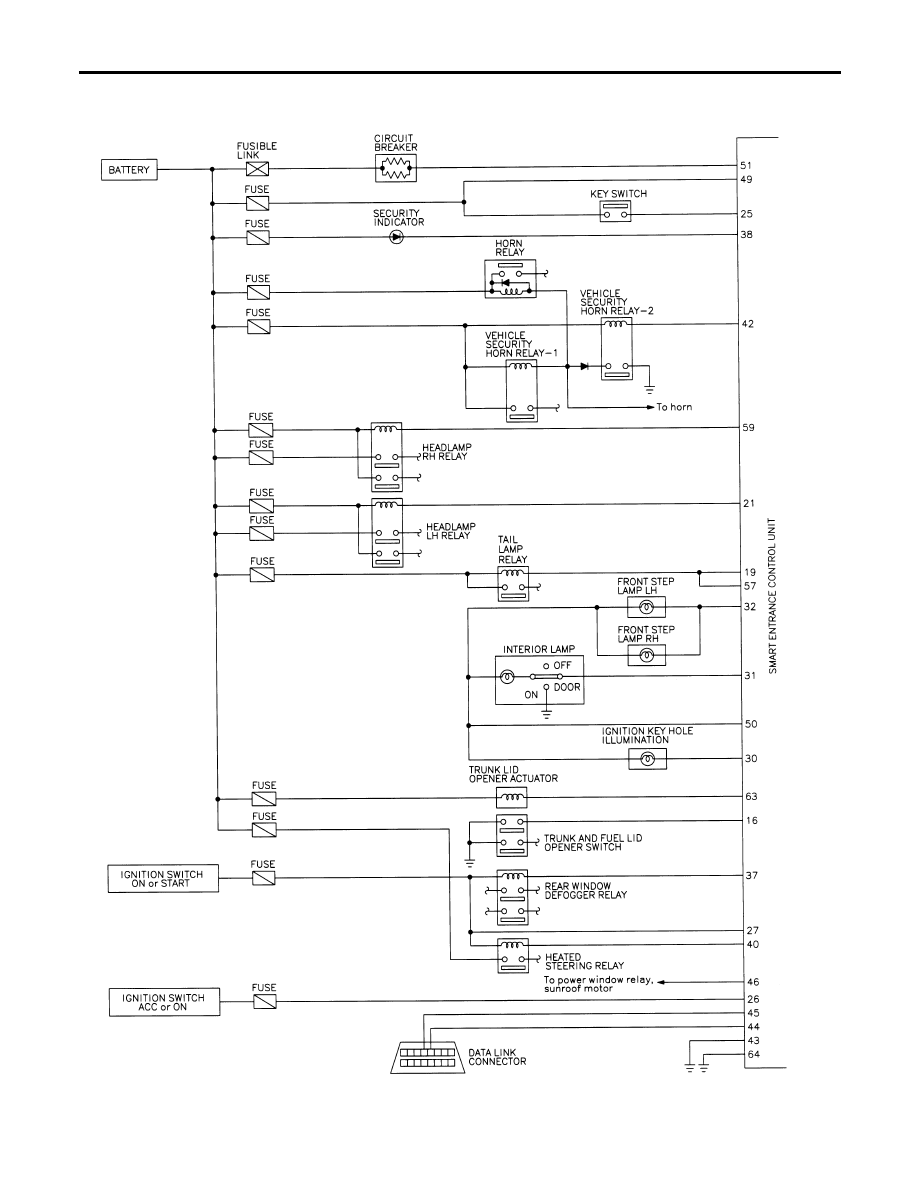

Schematic

NHEL0125

MEL358O

SMART ENTRANCE CONTROL UNIT

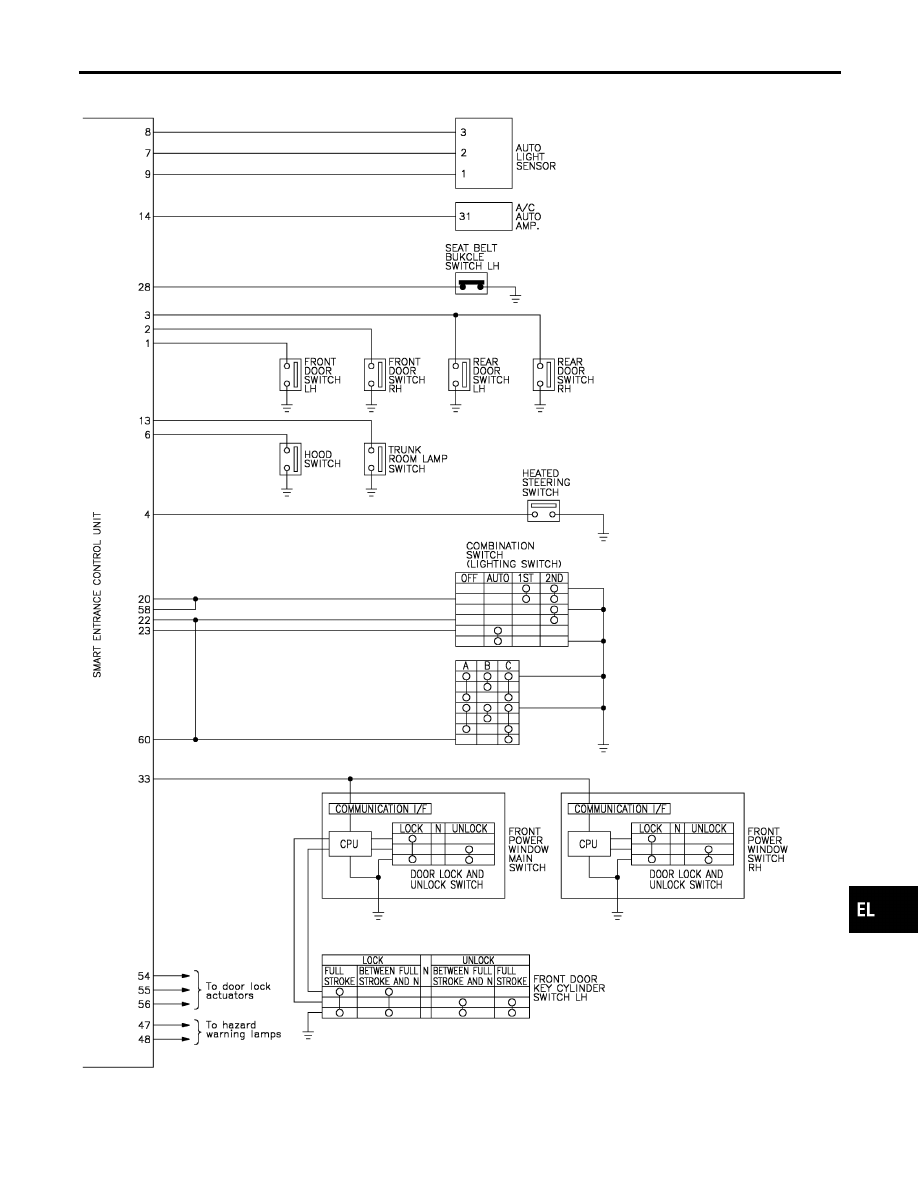

Schematic

EL-366

MEL679R

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

SMART ENTRANCE CONTROL UNIT

Schematic (Cont’d)

EL-367

Smart Entrance Control Unit Inspection Table

NHEL0126

Terminal

No.

Wire

color

Connections

Operated condition

Voltage

(Approximate val-

ues)

1

LG

Driver door switch

OFF (Closed)

,

ON (Open)

12V

,

0V

2

R/L

Passenger door switch

OFF (Closed)

,

ON (Open)

5V

,

0V

3

R/W

Rear door switch

OFF (Closed)

,

ON (Open)

5V

,

0V

4

G

Heated steering switch

OFF

,

ON (Only when pushed)

5V

,

0V

6

Y/R

Hood switch

ON (Open)

,

OFF (Closed)

0V

,

12V

7

W/R

Auto light sensor (Signal)

Ignition switch
ON position

Light is applied to auto light sen-
sor.

1 to 5V

Light is not applied to auto light
sensor.

Less than 1V

8

P/B

Auto light sensor (GND)

9

R

Auto light sensor (Power)

Ignition switch (OFF

,

ON)

0V

,

5V

13

PU/Y

Trunk room lamp switch

ON (Open)

,

OFF (Closed)

0V

,

12V

14

G/W

Rear window defogger switch

OFF

,

ON (Only when pushed)

5V

,

0V

16

L

Trunk and fuel lid opener
switch

OFF

,

ON (Only when pulled)

12V

,

0V

19

Y/B

Tail lamp relay (Output)

Ignition switch
(with lighting
switch 1ST or
2ND)

ON or START

,

OFF position

More than 5
minutes after
ignition switch is
turned to OFF
position

12V

Within 5 minutes
after ignition
switch is turned
to OFF position

0V

ON or START position

0V

Headlamps illuminate by auto light control. (Operate

,

Not operate)

Less than 1V

,

12V

20

SB

Tail lamp switch

Lighting switch (OFF or AUTO

,

1ST or 2ND posi-

tion)

12V

,

0V

21

OR

Headlamp LH relay

Ignition switch
(with lighting
switch 2ND)

ON or START

,

OFF position

More than 5
minutes after
ignition switch is
turned to OFF
position

12V

Within 5 minutes
after ignition
switch is turned
to OFF position

0V

ON or START position

0V

Headlamps illuminate by auto light control.

0V

22

L/OR

Headlamp switch

Lighting switch

Except PASS or 2ND position

12V

PASS or 2ND position

0V

Headlamps illuminate by auto light control. (Operate

,

Not operate)

10V

,

12V

SMART ENTRANCE CONTROL UNIT

Smart Entrance Control Unit Inspection Table

EL-368
