Infiniti I35 (A33). Manual - part 440





Description

NHEL0124

OUTLINE

NHEL0124S01

The smart entrance control unit totally controls the following body electrical system operations.

I

Heated steering

I

Headlamp system

I

Warning chime

I

Rear defogger and door mirror defogger

I

Power door lock

I

Remote keyless entry system

I

Vehicle security system

I

Interior lamp

In addition, the following timer operations are controlled by the smart entrance control unit.

I

Battery saver control

I

Retained power control

BATTERY SAVER CONTROL

NHEL0124S05

Headlamps/Parking Lamps/License Lamps/Tail Lamps/Fog Lamps/Illumination Lamps

NHEL0124S0501

While the headlamp is turned ON by “1st” or “2ND” step of light switch, the 5 minute timer is activated when
the ignition switch signal changes from ON (or START) to OFF (ACC OFF). The headlamps (including parking,
license, tail, fog and illumination lamps) are turned off after 5 minutes.
While the headlamp is turned ON by “AUTO” of light switch, the 5 minute timer is activated when the ignition
switch signal changes from ON (or START) to OFF (ACC OFF), and either one of LH or RH front door switch
ON signal is input.
The auto light delay off timer is activated as the following:

I

When the door switch signal changes from ON to OFF while the timer is activated, the timer in operation
is discontinued and the 45 second timer is reset.

I

When the door switch signal changes from OFF to ON while the timer is activated, the timer is discontin-
ued and the 45 second timer is reset.

I

When the one of four door switch signals changes from OFF to ON while the timer is activated, the timer
is discontinued and the 5 minute timer is reset.

I

When all the door switch ON signals are input while the timer is activated, the timer is discontinued and
the 45 second timer is reset.

Exterior lamp battery saver control mode and auto light delay off timer period can be changed by the function
setting of CONSULT-II.

Interior Lamp/Spot Lamp/Vanity Mirror Illumination

NHEL0124S0502

The lamps turn off automatically when the interior lamp, spot lamp or/and vanity mirror illumination are illumi-
nated with the ignition key in the OFF position, if the lamp remains lit by the door switch open signal or if the
lamp switch is in the ON position for more than 30 minutes.
After lamps are turned off by the battery saver system, the lamps illuminate again when:

I

Driver’s door is locked or unlocked with keyfob, door lock/unlock switch or door key cylinder.

I

Ignition switch is turned to ON.

I

Door is opened or closed,

I

Key is inserted into ignition key cylinder.

Interior lamp battery saver control period can be changed by the function setting of CONSULT-II.

Rear Window Defogger/Door Mirror Defogger

NHEL0124S0503

Rear window defogger and door mirror defogger are turned off in approximately 15 minutes after the rear win-
dow defogger switch is turned on.

Heated Steering

NHEL0124S0504

Heated steering is turned off in approximately 30 minutes after the heated steering switch is turned ON.

RETAINED POWER CONTROL

NHEL0124S06

When the ignition switch is turned to OFF (or ACC) position from ON or START position, the following sys-
tems can be operated for 45 seconds by the RAP signal from the smart entrance control unit terminal 46.

I

Electric sunroof

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

SMART ENTRANCE CONTROL UNIT

Description

EL-361

I

Power window

The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II.

INPUT/OUTPUT

NHEL0124S04

System

Input

Output

Power door lock

Door lock and unlock switch LH and RH
Key switch (Insert)
Door switches
Door key cylinder switches

Door lock actuator

Remote keyless entry

Key switch (Insert)
Ignition switch (ACC)
Door switches
Keyfob signal
Door lock/unlock switch LH

Horn relay
Vehicle security horn relay-1
Vehicle security horn relay-2
Hazard warning lamp
Interior lamp
Ignition key hole illumination
Door lock actuator
Trunk lid opener actuator

Warning chime

Key switch (Insert)
Ignition switch (ON)
Lighting switch (1st)
Seat belt switch (driver’s seat)
Front door switch LH

Warning chime (located in smart entrance
control unit)

Rear window defogger and
door mirror defogger

Ignition switch (ON)
Rear window defogger switch

Rear window defogger relay

Vehicle security

Ignition switch (ACC, ON)
Door switches
Hood switch
Trunk room lamp switch
Door lock/unlock switches
Door key cylinder switch (lock/unlock)

Vehicle security horn relay-2
Headlamp relay
Security indicator

Interior lamp

Door switches
Keyfob signal (lock/unlock)
Door lock/unlock switches (lock/unlock)
Door key cylinder switch (lock/unlock)
Ignition switch (ON)
Key system

Interior lamp
Key hole illumination
Step lamp
Door indicator

Battery saver control for
headlamps/parking lamps/
licence lamps/tail lamps/fog
lamps/illumination lamps

Ignition switch (ON)
Front door switches
Lighting switch

Headlamps
Parking lamps
License lamps
Tail lamps
Fog lamps
Illumination lamps

Battery saver control for inte-
rior lamp/step lamp/spot lamp/
vanity mirror illumination

Ignition switch (ON)
Front door switches
Lighting switch

Interior lamps
Step lamp
Spot lamp
Vanity mirror illumination

Battery saver control for rear
window defogger and door
mirror defogger

Ignition switch (ON)
Rear window defogger switch

Rear window defogger relay

Retained power control for
electric sunroof

Ignition switch (ON)
Front door switches

Sunroof motor

Retained power control for
power window

Ignition switch (ON)
Front door switches

Power window relay

Heated steering

Ignition switch (ON)
Heated steering switches

Heated steering relay

SMART ENTRANCE CONTROL UNIT

Description (Cont’d)

EL-362

CONSULT-II

=NHEL0247

DIAGNOSTIC ITEMS APPLICATION

NHEL0247S01

Item (CONSULT-II

screen terms)

Diagnosed system

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

DOOR LOCK

Power door lock

X

X

X

REAR DEFOGGER

Rear window defogger

X

X

KEY WARN ALM

Warning chime

X

X

LIGHT WARN ALM

Warning chime

X

X

SEAT BELT ALM

Warning chime

X

X

INT LAMP

Interior lamps

X

X

X

BATTERY SAVER

Battery saver control for
interior lamp

X

X

X

THEFT WAR ALM

Vehicle security system

X

X

X

RETAINED PWR

Retained power control

X

X

X

MULTI REMOTE ENT

Remote keyless entry
system

X

X

X

HEADLAMP

Headlamp

X

X

X

X: Applicable
For diagnostic item in each control system, refer to the relevant pages for each system.

DIAGNOSTIC ITEM DESCRIPTION

NHEL0247S02

MODE

Description

DATA MONITOR

Input/output data in the smart entrance control unit can be
read.

ACTIVE TEST

Diagnostic Test Mode in which CONSULT-II drives some sys-
tems apart from the smart entrance control unit.

WORK SUPPORT for DOOR LOCK

I

Select unlock mode ON-OFF setting can be changed.

I

Key reminder door mode ON-OFF setting can be changed.

WORK SUPPORT for INT LAMP

Interior lamp timer mode ON-OFF setting can be changed.

WORK SUPPORT for BATTERY SAVER

Interior lamp battery saver period can be changed.

WORK SUPPORT for THEFT WAR ALM

I

The recorded trigger signal when vehicle security system
was activated can be checked.

I

Security alarm ON-OFF setting can be changed.

WORK SUPPORT for RETAINED PWR SET

RAP signal’s power supply period can be changed.

WORK SUPPORT for MULTI REMOTE ENT

I

ID code of keyfob can be registered and erased.

I

Keyless answer back mode can be changed.

I

Pressing time of panic alarm, trunk lid opener and door
unlock (for power window down operation) buttons on keyfob
can be changed.

I

Auto lock operation starting time can be changed.

WORK SUPPORT for HEAD LAMP

I

Auto light sensitivity can be changed.

I

Exterior lamp battery saver control ON-OFF setting can be
changed.

I

Auto light delay off time can be changed.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

SMART ENTRANCE CONTROL UNIT

CONSULT-II

EL-363

SEF289X

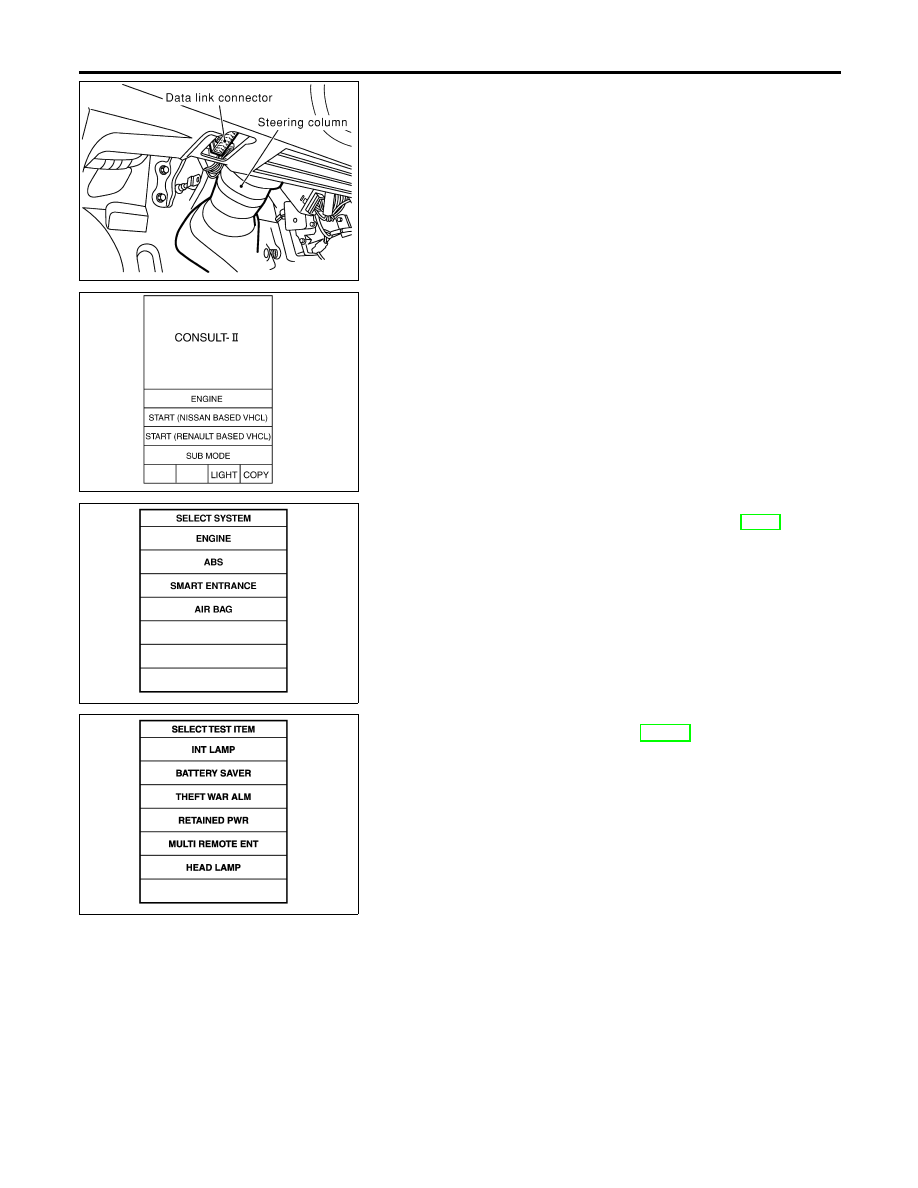

CONSULT-II INSPECTION PROCEDURE

=NHEL0247S03

1.

Turn the ignition switch “OFF”.

2.

Connect “CONSULT-II” and “CONSULT-II CONVERTER” to
the data link connector.

SKIA3098E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SEL398Y

5.

Touch “SMART ENTRANCE”.
If “SMART ENTRANCE” is not indicated, go to GI-42.

SEL401Y

6.

Perform each diagnostic item according to “DIAGNOSTIC
ITEMS APPLICATION”. Refer to EL-363.

SMART ENTRANCE CONTROL UNIT

CONSULT-II (Cont’d)

EL-364
