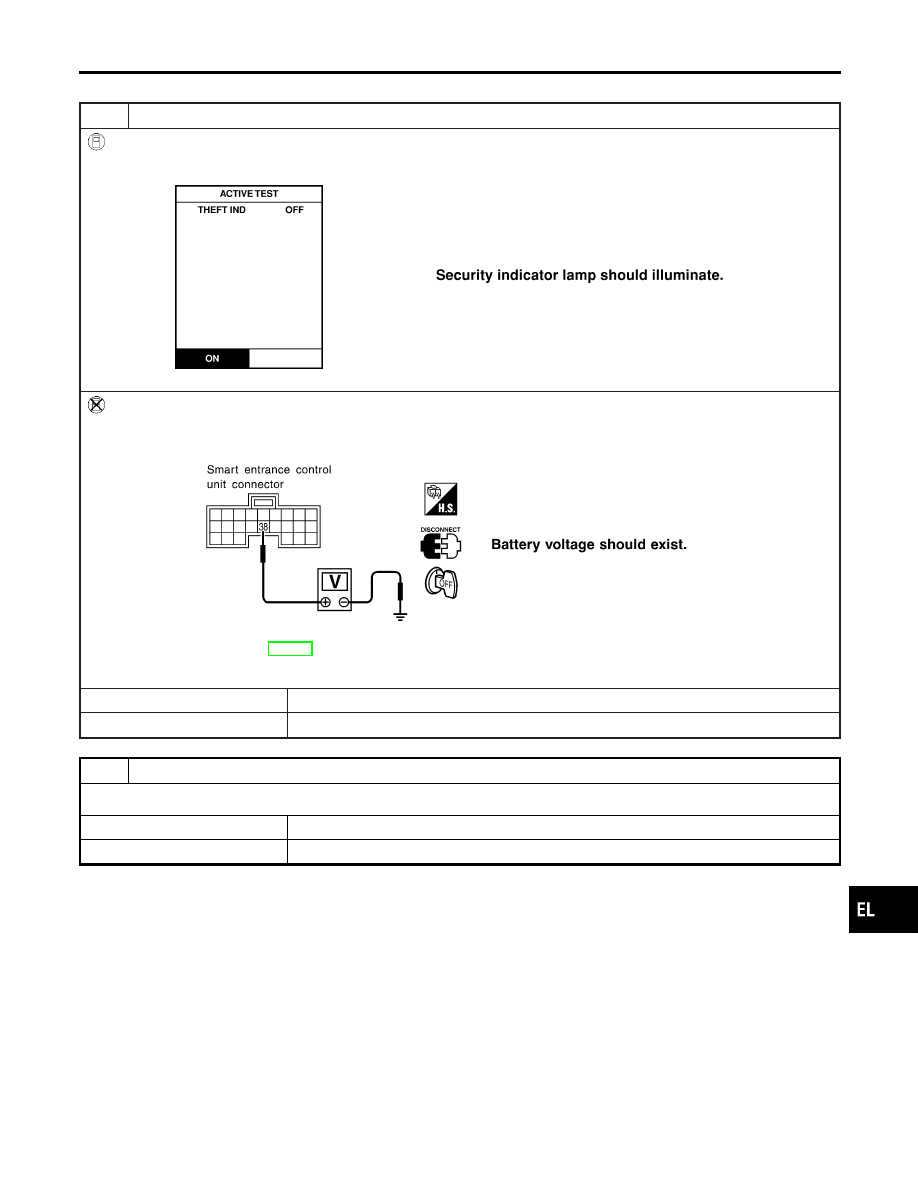

SECURITY INDICATOR LAMP CHECK

=NHEL0123S05

1

CHECK SECURITY INDICATOR LAMP OPERATION

With CONSULT-II

1. Select “ACTIVE TEST” in “THEFT WAR ALM” with CONSULT-II.
2. Select “THEFT IND” and touch “ON”.

SEL356W

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Check voltage between smart entrance control unit harness connector M144 terminal 38 (G/OR) and ground.

SEL037Y

Refer to wiring diagram in EL-336.

OK or NG

OK

©

Security indicator lamp is OK.

NG

©

GO TO 2.

2

CHECK SECURITY INDICATOR LAMP

OK or NG

OK

©

GO TO 3.

NG

©

Replace security indicator lamp.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-353

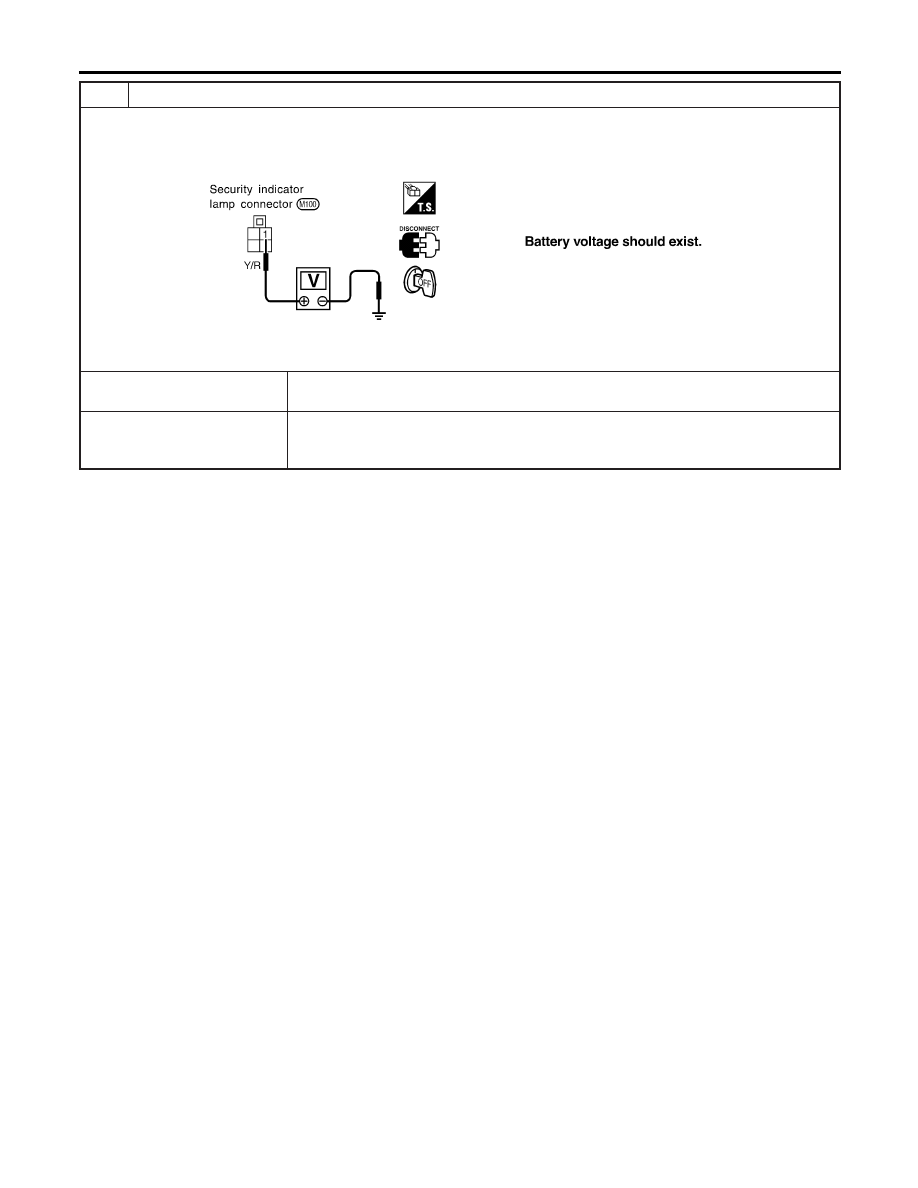

3

CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP

1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp terminal 1 and ground.

SEL653WA

OK or NG

OK

©

Check harness for open or short between security indicator lamp and smart entrance
control unit.

NG

©

Check the following.

I

10A fuse [No. 12, located in fuse block (J/B)]

I

Harness for open or short between security indicator lamp and fuse

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-354

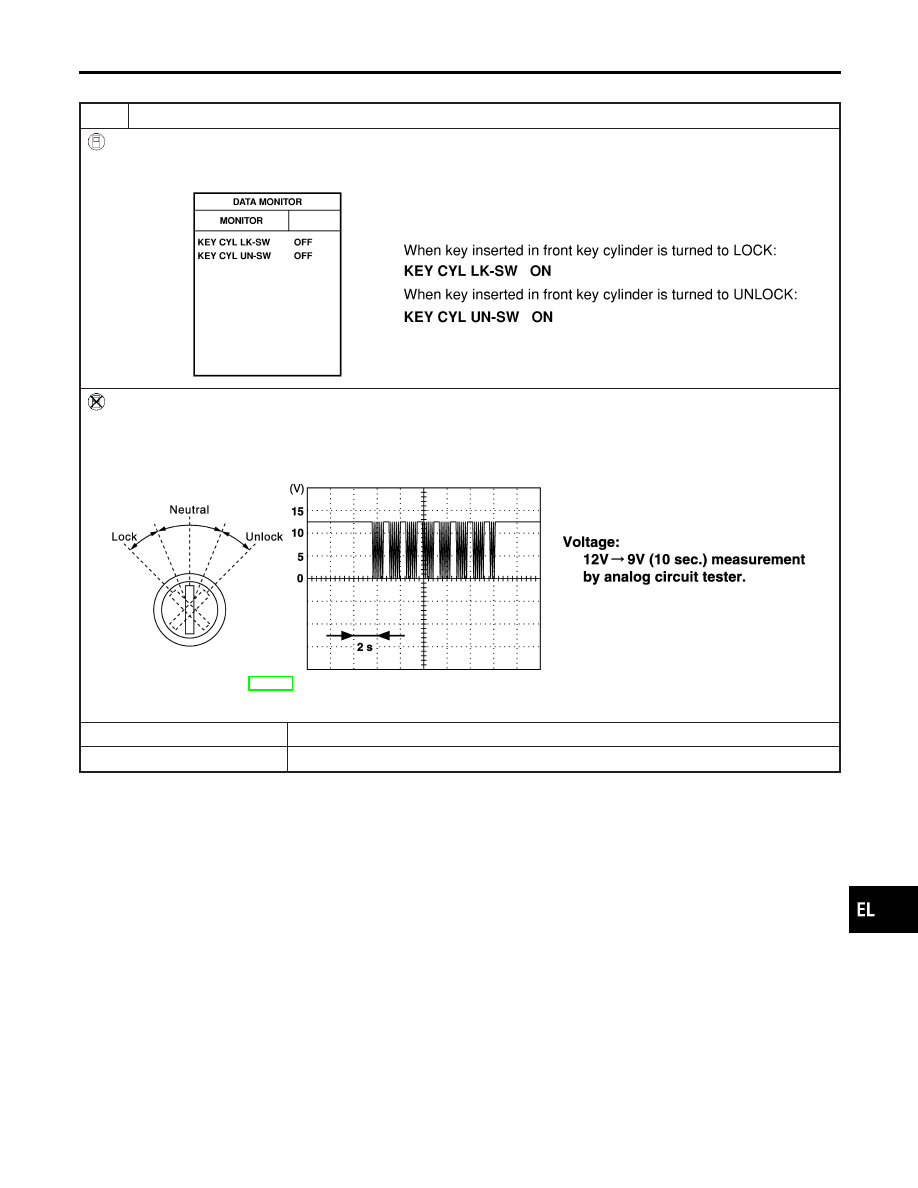

DOOR KEY CYLINDER SWITCH CHECK

=NHEL0123S07

1

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL)

With CONSULT-II

Check front door key cylinder switch (“KEY CYL LK-SW”/“KEY CYL UN-SW”) in “DATA MONITOR” mode with CONSULT-
II.

SEL342W

Without CONSULT-II

1. Check the signal between smart entrance control unit harness connector M144 terminal 33 (L) and ground with oscillo-

scope when key inserted in front key cylinder is turned to “LOCK” or “UNLOCK”.

2. Make sure signals which are shown in the figure below can be detected during 10 sec. just after key is turned to

“LOCK” or “UNLOCK”.

SEL397Y

Refer to wiring diagram in EL-338.

OK or NG

OK

©

Door key cylinder switch is OK.

NG

©

GO TO 2.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-355

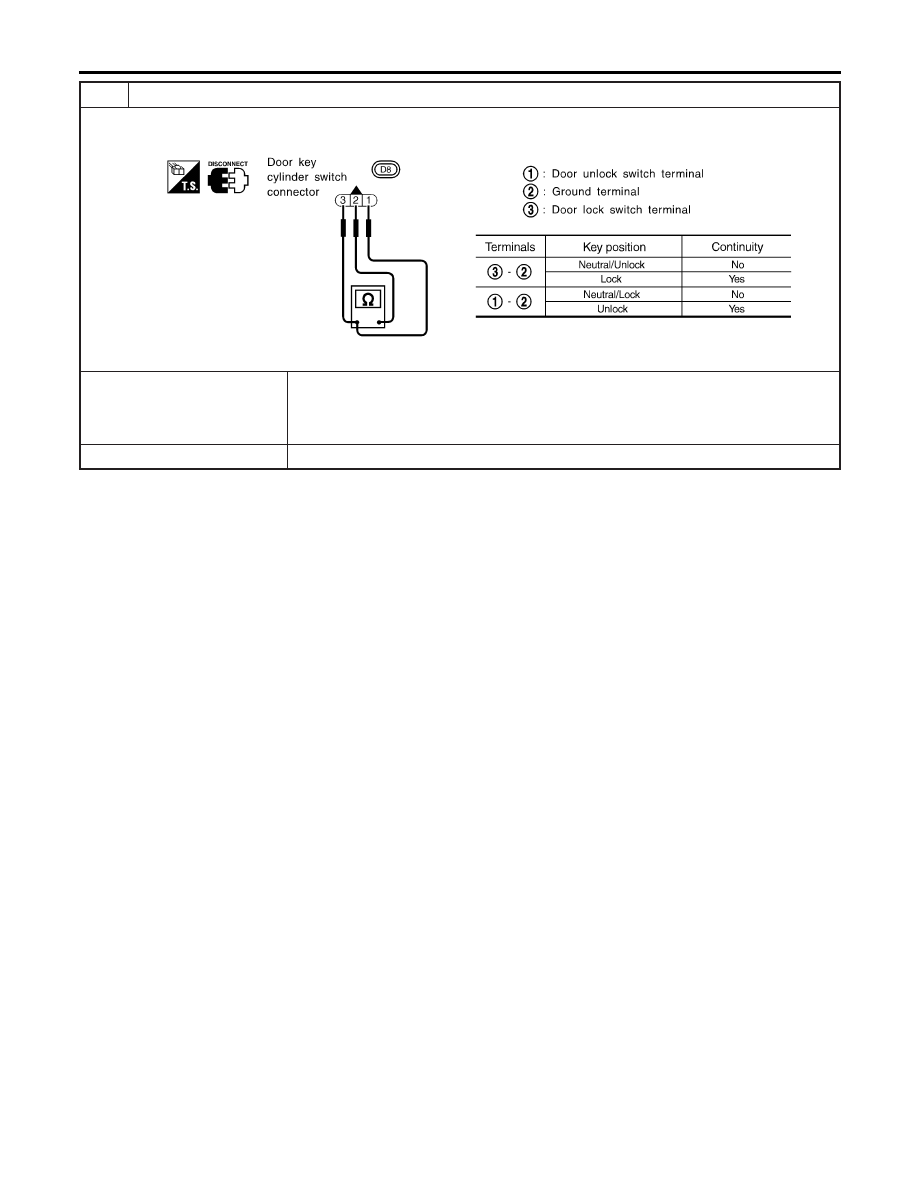

2

CHECK DOOR KEY CYLINDER SWITCH

1. Disconnect door key cylinder switch connector.
2. Check continuity between door key cylinder switch connector terminals.

SEL034X

OK or NG

OK

©

Check the following.

I

Door key cylinder switch ground circuit

I

Harness for open or short between smart entrance control unit and door key cylinder
switch

NG

©

Replace door key cylinder switch.

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-356
