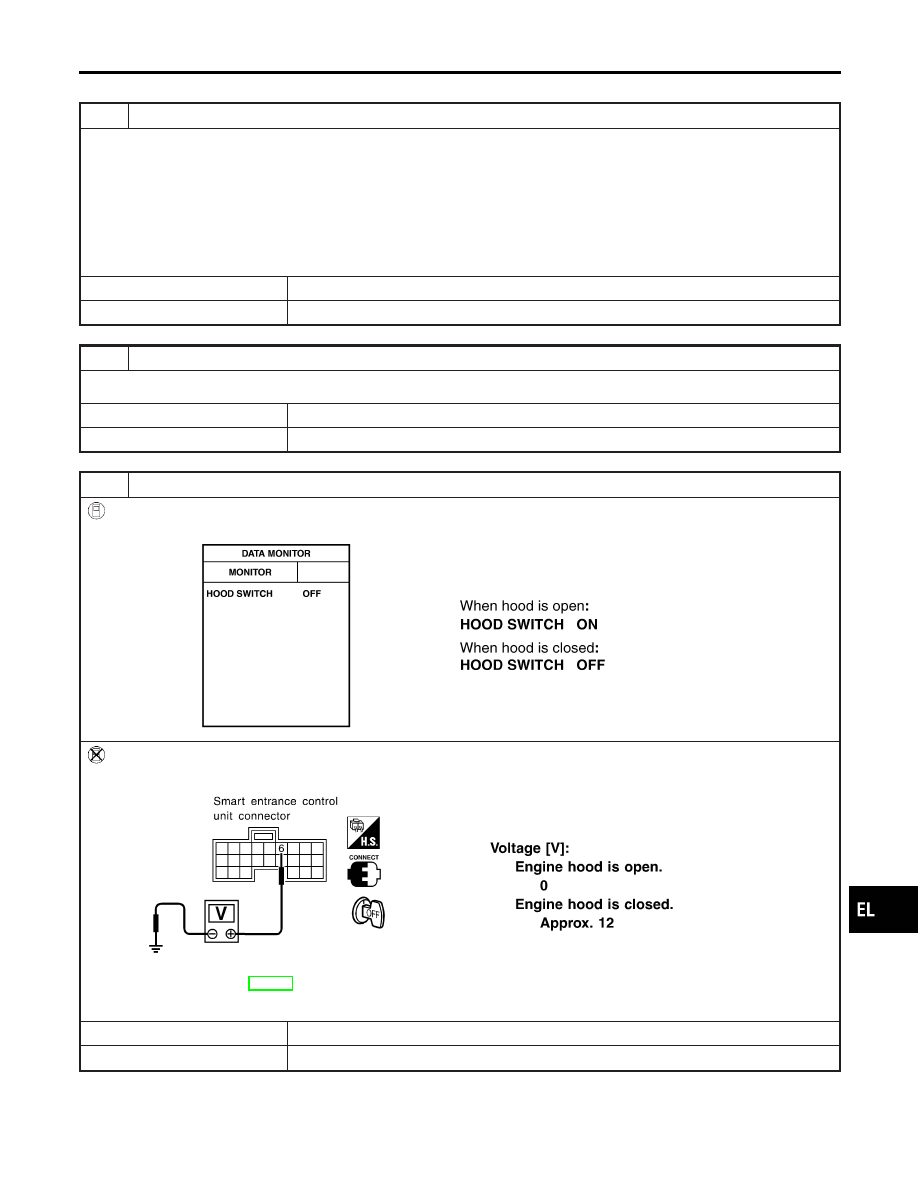

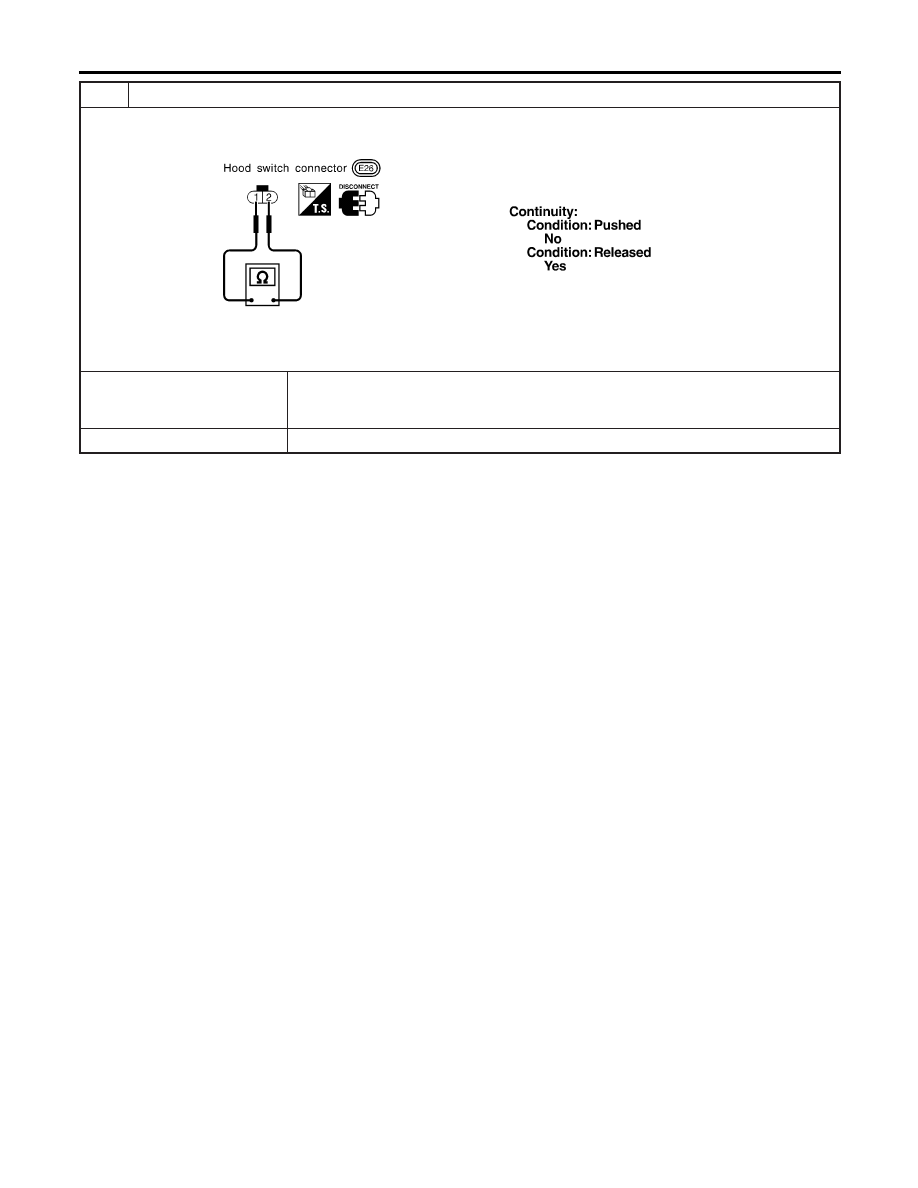

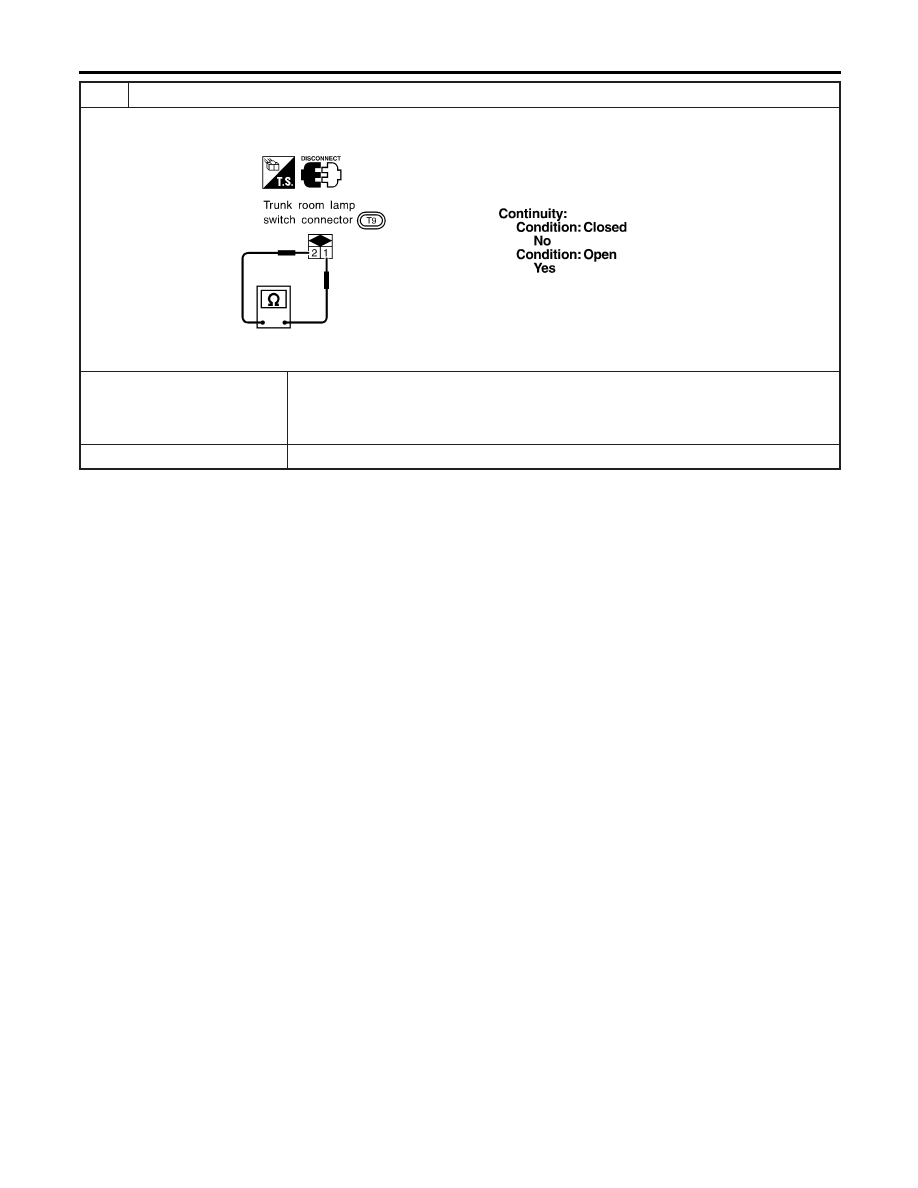

Hood Switch Check =NHEL0123S0402 1 PRELIMINARY CHECK 1. Turn ignition switch OFF and remove key from ignition key cylinder. “SECURITY” indicator lamp should blink every 2.6 seconds. 2. Close all doors, hood and trunk lid. “SECURITY” indicator lamp should turn on for 30 seconds. 4. Unlock hood with hood opener within 30 seconds after door is locked. “SECURITY” indicator lamp should turn off. OK or NG OK © Hood switch is OK, and go to trunk room lamp switch check. NG © GO TO 2. 2 CHECK HOOD SWITCH FITTING CONDITION OK or NG OK © GO TO 3. NG © Adjust installation of hood switch or hood. 3 CHECK HOOD SWITCH INPUT SIGNAL With CONSULT-II Check hood switch (“HOOD SWITCH”) in “DATA MONITOR” mode with CONSULT-II. SEL354W Without CONSULT-II Check voltage between smart entrance control unit harness connector M143 terminal 6 (Y/R) and ground. SEL035YA Refer to wiring diagram in EL-336. OK or NG OK © Hood switch is OK, and go to trunk room lamp switch check. NG © GO TO 4. GI MA EM LC EC FE AT AX SU BR ST RS BT HA SC IDX VEHICLE SECURITY (THEFT WARNING) SYSTEM Trouble Diagnoses (Cont’d) EL-349 |
