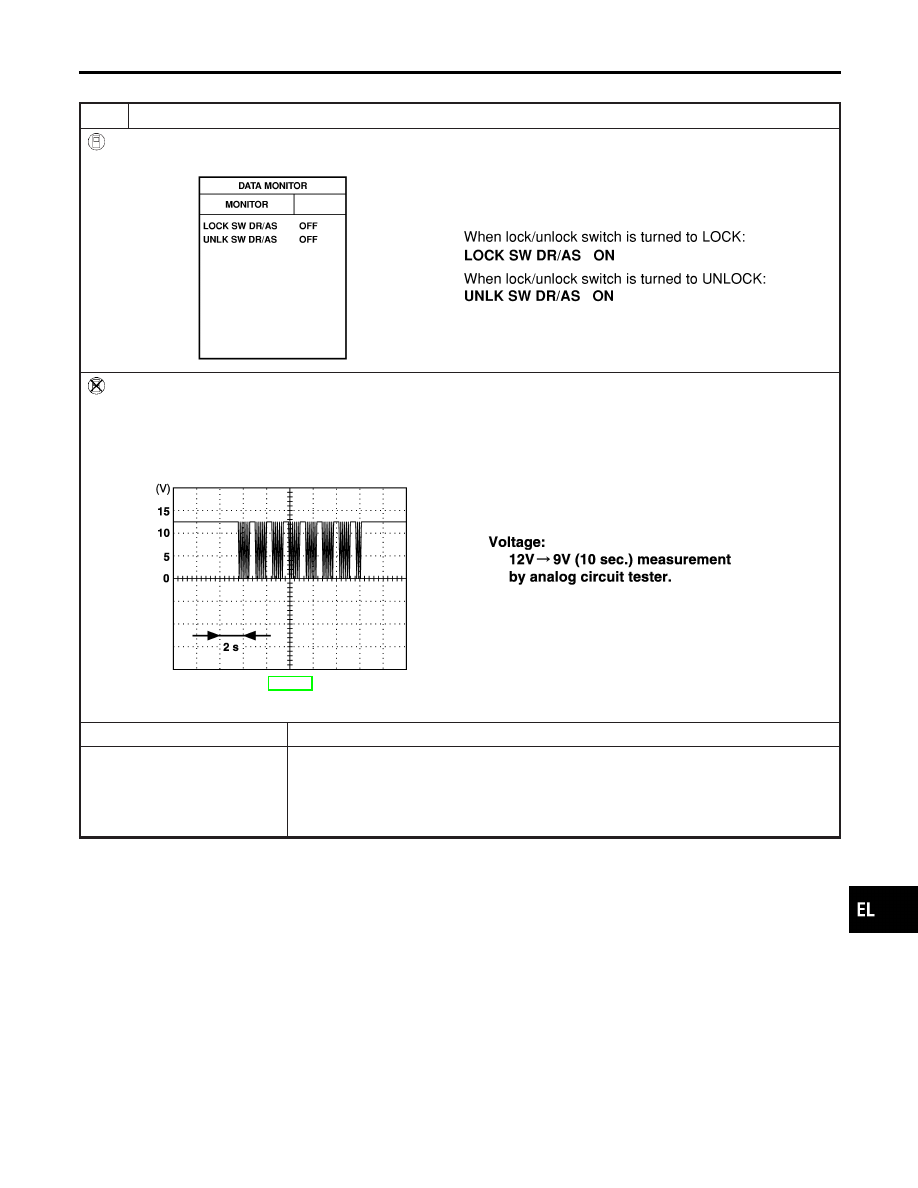

DOOR LOCK/UNLOCK SWITCH LH CHECK

=NHEL0195S06

1

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL

With CONSULT-II

Check door lock/unlock switch (“LOCK SW DR/AS”/“UNLK SW DR/AS”) in “DATA MONITOR” mode with CONSULT-II.

SEL341W

Without CONSULT-II

1. Remove key from ignition switch.
2. Check the signal between smart entrance control unit harness connector M144 terminal 33 (L) and ground with oscillo-

scope when door lock/unlock switch is turned “LOCK” or “UNLOCK”.

3. Make sure signals which are shown in the figure below can be detected during 10 sec. just after door lock/unlock

switch is turned “LOCK” or “UNLOCK”.

SEL396Y

Refer to wiring diagram in EL-303.

OK or NG

OK

©

Door lock/unlock switch is OK.

NG

©

Check the following.

I

Ground circuit for each front power window switch.

I

Harness for open or short between each front power window switch and smart
entrance control unit connector

If above systems are normal, replace the front power window switch.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REMOTE KEYLESS ENTRY SYSTEM

Trouble Diagnoses (Cont’d)

EL-317

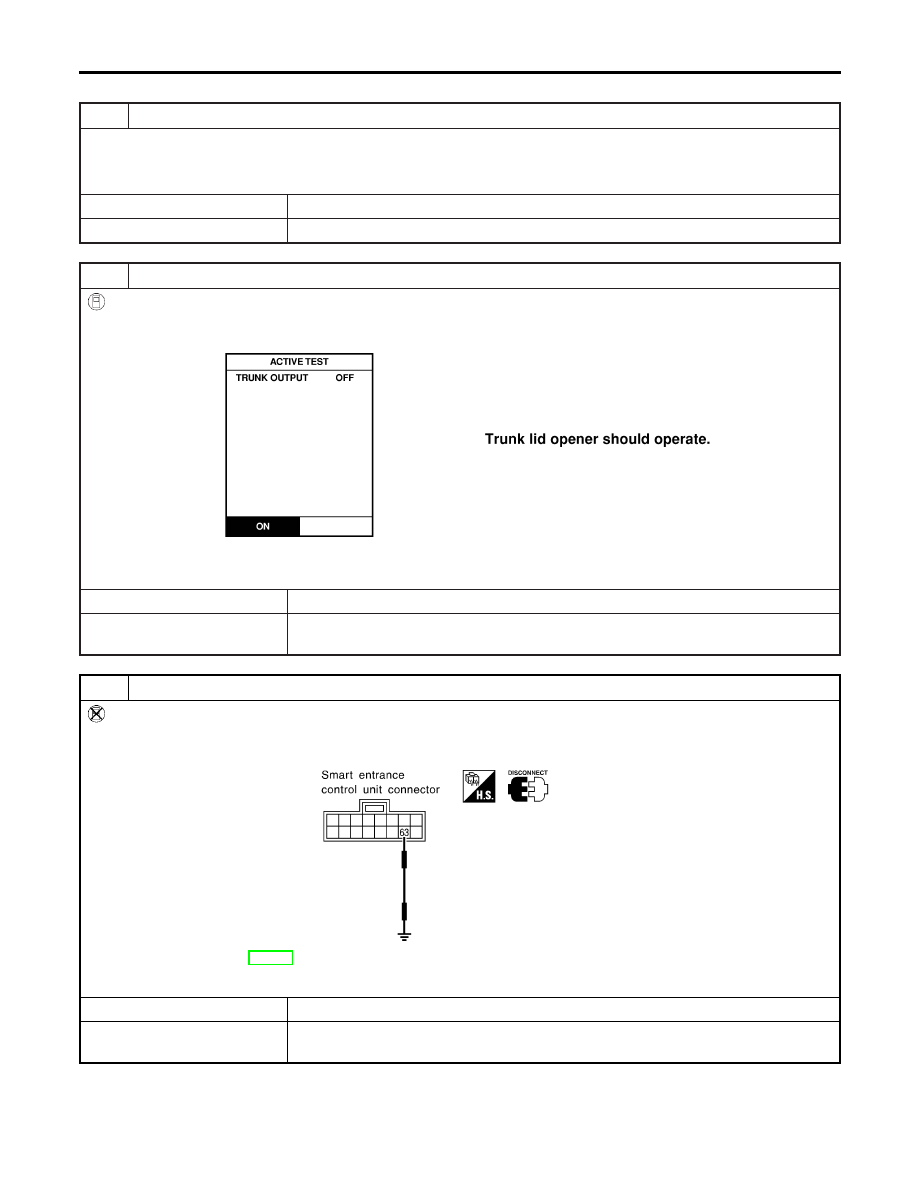

TRUNK LID OPENER ACTUATOR CHECK

=NHEL0195S12

1

CHECK TRUNK LID OPENER

Check trunk lid opener operation with trunk lid opener switch.
NOTE: First check trunk lid opener cancel lever position.

Does trunk lid open?

Yes

©

GO TO 2.

No

©

Check trunk lid opener actuator and the circuit.

2

CHECK TRUNK LID OPENER ACTUATOR OPERATION

With CONSULT-II

1. Select “ACTIVE TEST” in “MULTI REMOTE ENT” with CONSULT-II.
2. Select “TRUNK OUTPUT” and touch “ON”.

SEL345W

NOTE: If CONSULT-II is not available, skip this procedure and go to the next step.

OK or NG

OK

©

Trunk lid opener actuator circuit is OK.

NG

©

Check harness for open or short between smart entrance control unit and trunk lid
opener actuator.

3

CHECK TRUNK LID OPENER ACTUATOR CIRCUIT

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector M145 terminal 63 (L).

SEL026Y

Refer to wiring diagram in EL-305.

Does trunk lid open?

Yes

©

Replace smart entrance control unit.

No

©

Check harness for open or short between smart entrance control unit and trunk lid
opener actuator.

REMOTE KEYLESS ENTRY SYSTEM

Trouble Diagnoses (Cont’d)

EL-318

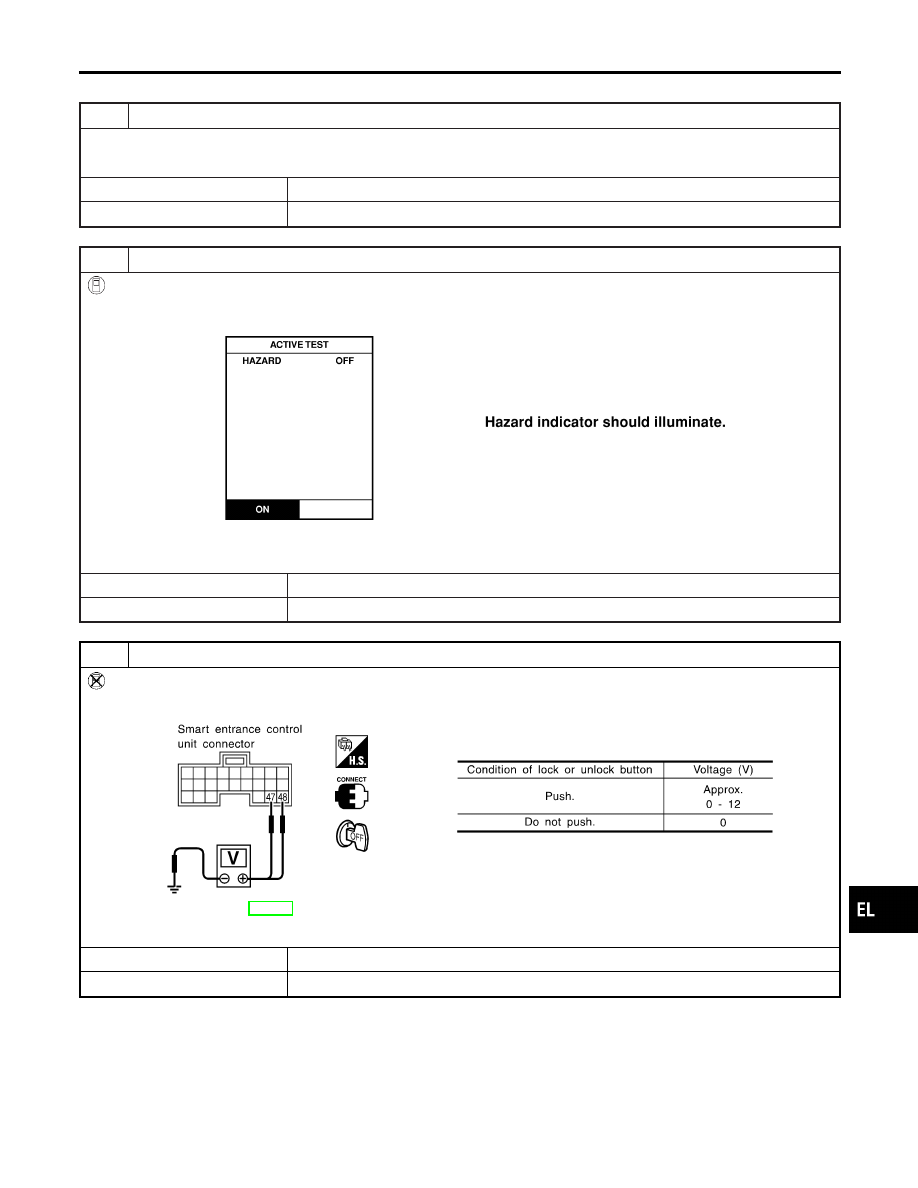

HAZARD REMINDER CHECK

=NHEL0195S08

1

CHECK HAZARD INDICATOR

Check if hazard indicator flashes with hazard switch.

Does hazard indicator operate?

Yes

©

GO TO 2.

No

©

Check “hazard indicator” circuit.

2

CHECK HAZARD REMINDER OPERATION WITH CONSULT-II

With CONSULT-II

1. Select “ACTIVE TEST” in “MULTI REMOTE ENT” with CONSULT-II.
2. Select “HAZARD” and touch “ON”.

SEL347W

NOTE: If CONSULT-II is not available, skip this procedure and go to the next step.

OK or NG

OK

©

Hazard reminder operation is OK.

NG

©

Replace smart entrance control unit.

3

CHECK HAZARD REMINDER OPERATION WITHOUT CONSULT-II

Without CONSULT-II

Check voltage between smart entrance control unit harness connector M144 terminal 47 (G/B) or 48 (G/Y) and ground.

SEL581Y

Refer to wiring diagram in EL-305.

OK or NG

OK

©

System is OK.

NG

©

Replace smart entrance control unit.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REMOTE KEYLESS ENTRY SYSTEM

Trouble Diagnoses (Cont’d)

EL-319

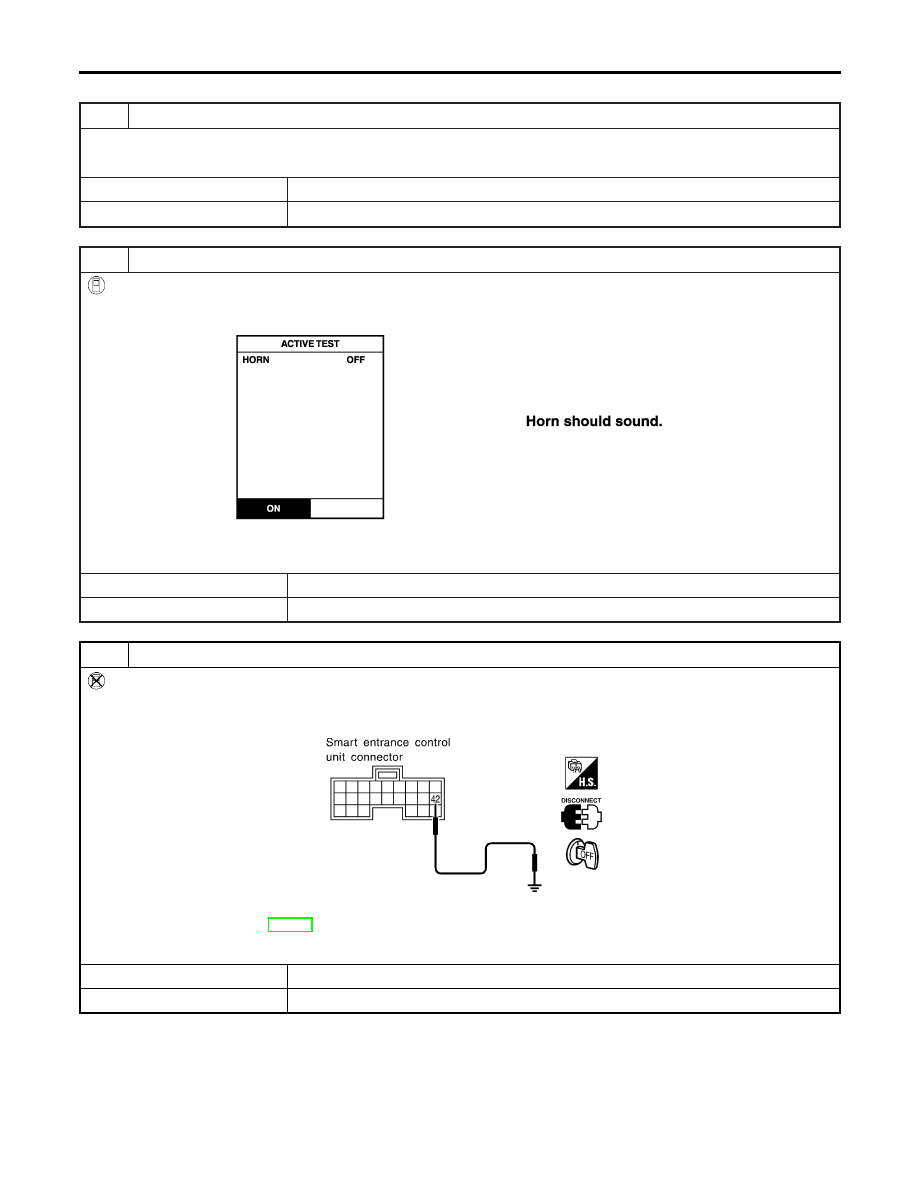

HORN REMINDER CHECK

=NHEL0195S09

1

CHECK HORN

Check if horn sounds with horn switch.

Does horn operate?

Yes

©

GO TO 2.

No

©

Check horn circuit.

2

CHECK HORN REMINDER OPERATION WITH CONSULT-II

With CONSULT-II

1. Select “ACTIVE TEST” in “MULTI REMOTE ENT” with CONSULT-II.
2. Select “HORN” and touch “ON”.

SEL451Y

NOTE: If CONSULT-II is not available, skip this procedure and go to the next step.

OK or NG

OK

©

Horn reminder operation is OK.

NG

©

GO TO 4.

3

CHECK HORN REMINDER OPERATION WITHOUT CONSULT-II

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector M144 terminal 42 (BR/Y).

SEL028Y

Refer to wiring diagram in EL-305.

Does horn sound?

Yes

©

Replace smart entrance control unit.

No

©

GO TO 4.

REMOTE KEYLESS ENTRY SYSTEM

Trouble Diagnoses (Cont’d)

EL-320
