Infiniti I35 (A33). Manual - part 421





SEL579Y

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER DOOR LOCK

Wiring Diagram — D/LOCK — (Cont’d)

EL-285

SEF289X

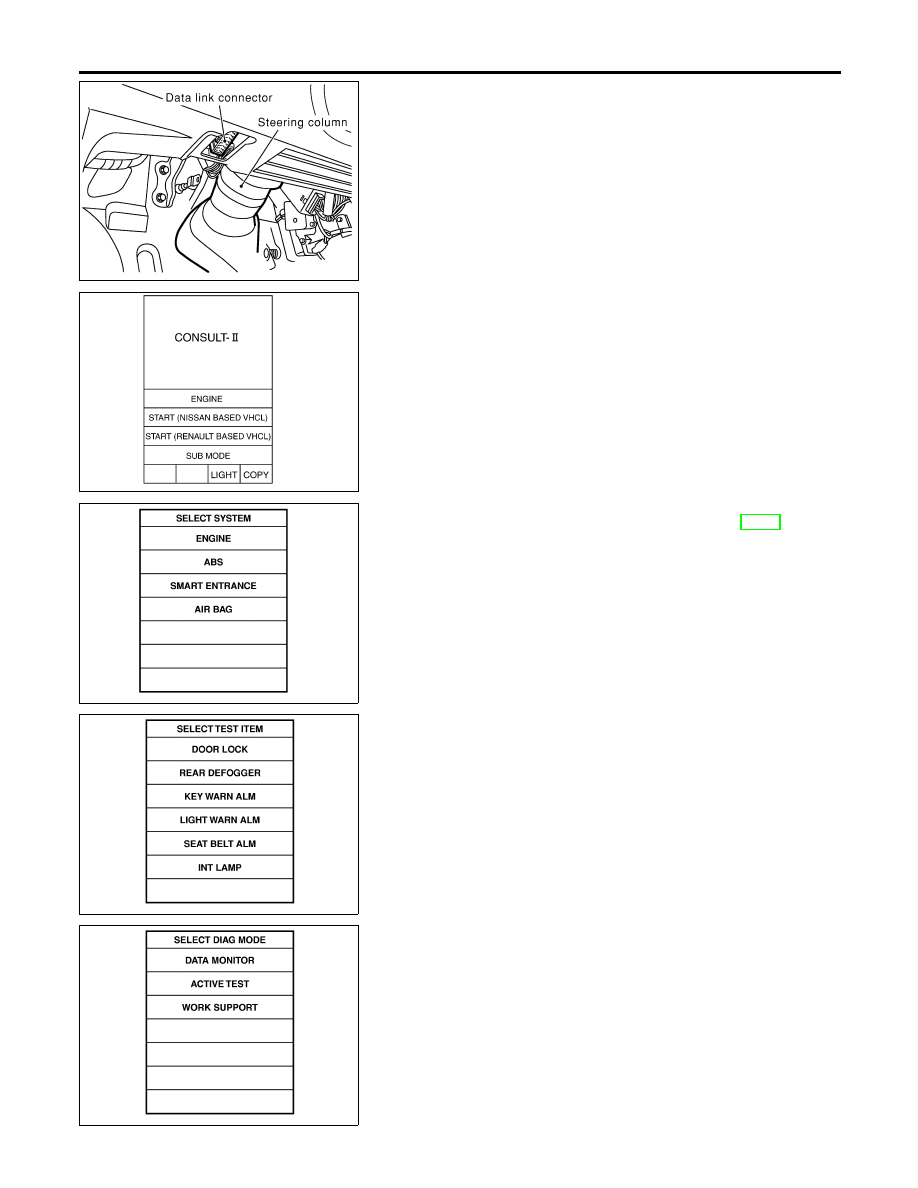

CONSULT-II Inspection Procedure

=NHEL0238

“DOOR LOCK”

NHEL0238S01

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” and “CONSULT-II CONVERTER” to
the data link connector.

SKIA3098E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SEL398Y

5.

Touch “SMART ENTRANCE”.
If “SMART ENTRANCE” is not indicated, go to GI-42.

SEL023X

6.

Touch “DOOR LOCK”.

SEL274W

7.

Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.

POWER DOOR LOCK

CONSULT-II Inspection Procedure

EL-286

CONSULT-II Application Items

NHEL0239

“DOOR LOCK”

NHEL0239S01

Data Monitor

NHEL0239S0101

Monitored Item

Description

KEY ON SW

Indicates [ON/OFF] condition of key switch.

LOCK SW DR/AS

Indicates [ON/OFF] condition of lock signal from lock/unlock switch LH and RH.

DOOR SW-RR

Indicates [ON/OFF] condition of door switch (Rear).

UNLK SW DR/AS

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch LH and RH.

KEY CYL LK SW

Indicates [ON/OFF] condition of lock signal from key cylinder.

KEY CYL UN SW

Indicates [ON/OFF] condition of unlock signal from key cylinder.

LK BUTTON/SIG

Indicates [ON/OFF] condition of lock signal from remote controller.

UN BUTTON/SIG

Indicates [ON/OFF] condition of unlock signal from remote controller.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

Active Test

NHEL0239S0102

Test Item

Description

ALL D/LK MTR

This test is able to check all door lock actuators lock operation. These actuators lock when
“ON” on CONSULT-II screen is touched.

DR D/UN MTR

This test is able to check front door lock actuator LH unlock operation. The actuator unlocks
when “ON” on CONSULT-II screen is touched.

NON DR D/UN

This test is able to check door lock actuators (except front door lock actuator LH) unlock
operation. These actuators unlock when “ON” on CONSULT-II screen is touched.

Work Support

NHEL0239S0103

Work Item

Description

DOOR LOCK-UNLOCK SET

Select unlock mode can be changed in this mode. Selects ON-OFF of select unlock mode.

ANTI-LOCK OUT SET

Key reminder door mode can be changed in this mode. Selects ON-OFF of key reminder door
mode.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER DOOR LOCK

CONSULT-II Application Items

EL-287

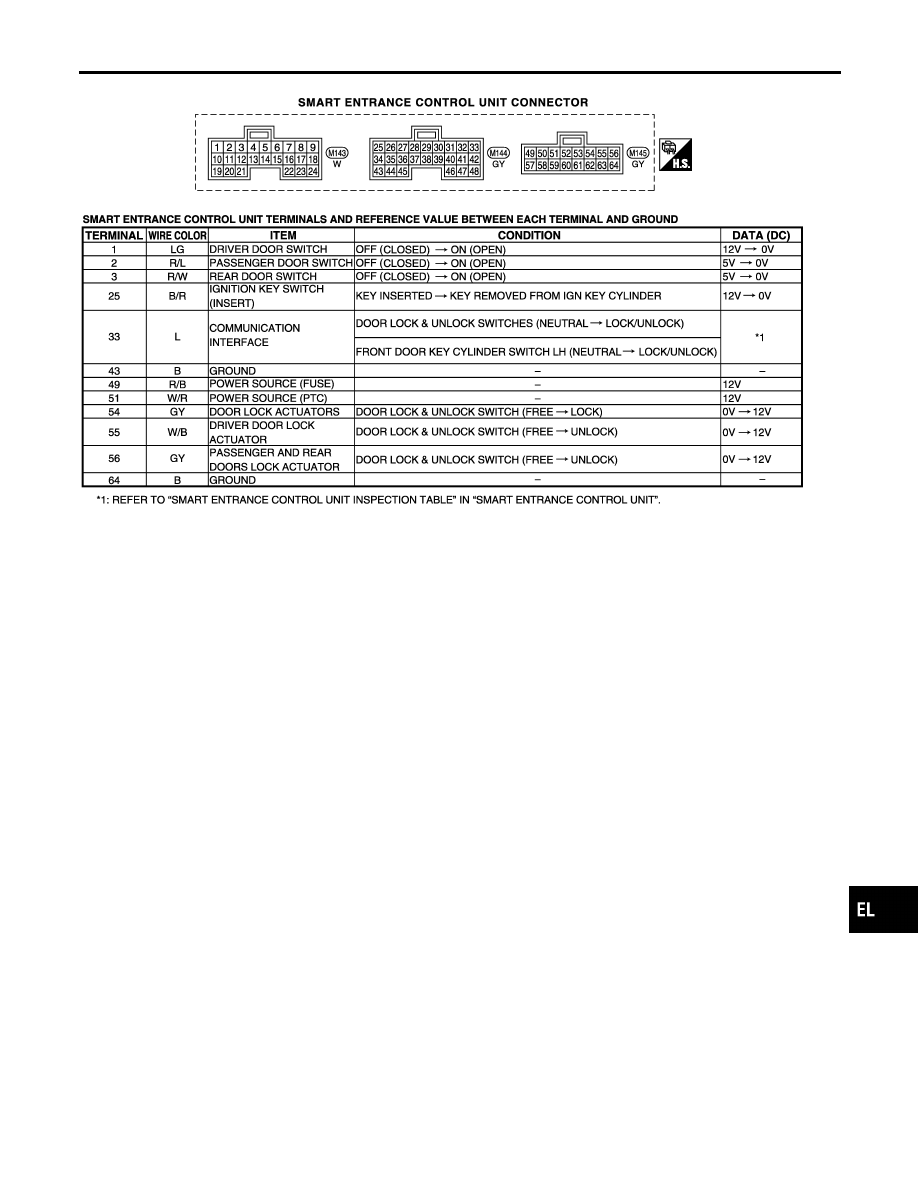

Trouble Diagnoses

=NHEL0193

SYMPTOM CHART

NHEL0193S01

REFERENCE PAGE (EL-

)

289

290

291

292

293

295

SYMPTOM

MAIN

POWER

SUPPL

Y

AND

GROUND

CIRCUIT

CHECK

DOOR

SWITCH

CHECK

KEY

SWITCH

(INSER

T)

CHECK

DOOR

LOCK/UNLOCK

SWITCH

CHECK

FRONT

DOOR

KEY

CYLINDER

SWITCH

CHECK

DOOR

LOCK

ACTUA

T

O

R

CHECK

Key reminder door system does not operate prop-
erly.

X

X

X

X

Specific door lock actuator does not operate.

X

X

Power door lock does not operate with door lock
and unlock switch (LH and RH) on door trim.

X

X

Power door lock does not operate with front door
key cylinder operation.

X

X

POWER DOOR LOCK

Trouble Diagnoses

EL-288
