Infiniti I35 (A33). Manual - part 400





MEL657R

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

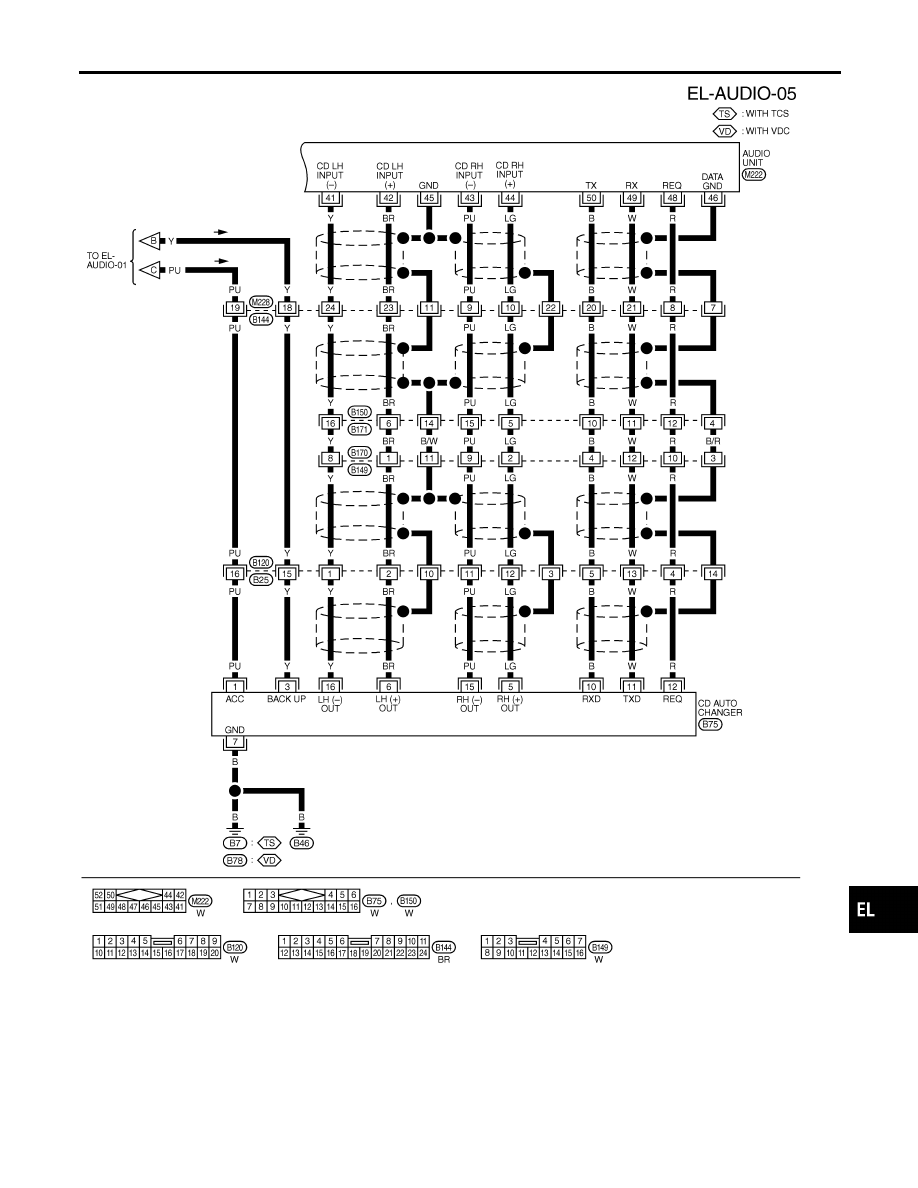

Wiring Diagram — AUDIO — (Cont’d)

EL-201

Trouble Diagnoses

NHEL0220

AUDIO UNIT

NHEL0220S01

Symptom

Possible causes

Repair order

Audio unit inoperative (no
digital display and no
sound from speakers).

1. 10A fuse
2. Poor audio unit case ground
3. Audio unit

1. Check 10A fuse [No. 1, located in fuse block (J/B)].

Turn ignition switch ON and verify that battery posi-
tive voltage is present at terminal 10 of audio unit.

2. Check audio unit case ground.
3. Remove audio unit for repair.

Audio unit presets are lost
when ignition switch is
turned OFF.

1. 15A fuse
2. Audio unit

1. Check 15A fuse [No. 56, located in fuse and fusible

link box] and verify that battery positive voltage is
present at terminal 6 of audio unit.

2. Remove audio unit for repair.

Audio unit controls are
operational, but no sound
is heard from any speaker.

1. 15A fuse
2. Amp. ON/OFF signal circuit
3. Speaker amp. ground

1. Check 15A fuse [No. 56, located in fuse and fusible

link box]. Verify battery positive voltage is present at
terminal 27 of BOSE speaker amp.

2. Check harness continuity between audio unit terminal

12 and BOSE speaker amp. terminal 25.

3. Check harness continuity between BOSE speaker

amp. terminal 40 and ground.

Individual speaker is noisy
or inoperative.

1. Each speaker
2. Output circuit to each speaker

1. Check speaker.
2. Check the output circuits to each speaker

I

between audio unit and BOSE speaker amp.

I

between BOSE speaker amp. and each speaker.

Woofer does not operate.

1. Power supply to woofer
2. Amp. ON/OFF signal circuit
3. Speaker amp. ground
4. Output circuit to woofer

1. Check 15A fuse (No. 67, located in fuse and fusible

link box).
Verify battery positive voltage is present at terminal
48 of woofer.

2. Check harness continuity between audio unit terminal

12 and woofer terminal 45.

3. Check harness continuity between woofer terminal 47

and ground.

4. Check the output circuits to woofer from BOSE

speaker amp.

AM/FM stations are weak
or noisy.

1. Window antenna
2. Audio unit ground
3. Audio unit

1. Check window antenna.
2. Check audio unit ground condition.
3. Remove audio unit for repair.

Audio unit generates noise
in AM and FM modes with
engine running.

1. Poor audio unit ground
2. Loose or missing ground bonding straps
3. Ignition condenser or rear window

defogger noise suppressor condenser

4. Ignition coil or secondary wiring
5. Audio unit

1. Check audio unit ground.
2. Check ground bonding straps.
3. Replace ignition condenser or rear window defogger

noise suppressor condenser.

4. Check ignition coil and secondary wiring.
5. Remove audio unit for repair.

Audio unit generates noise
in AM and FM modes with
accessories on (switch
pops and motor noise).

1. Poor audio unit ground
2. Antenna
3. Accessory ground
4. Faulty accessory

1. Check audio unit ground.
2. Check antenna.
3. Check accessory ground.
4. Replace accessory.

AUDIO

Trouble Diagnoses

EL-202

Inspection

=NHEL0221

AUDIO UNIT AND AMP.

NHEL0221S01

All voltage inspections are made with:

I

Ignition switch ON or ACC

I

Audio unit ON

I

Audio unit and amps. connected (If audio unit or amp. is removed for inspection, supply a ground to the
case using a jumper wire.)

ANTENNA

NHEL0221S02

Using a jumper wire, clip an auxiliary ground between antenna and body.

I

If reception improves, check antenna ground (at body surface).

I

If reception does not improve, check main feeder cable for short circuit or open circuit.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

Inspection

EL-203

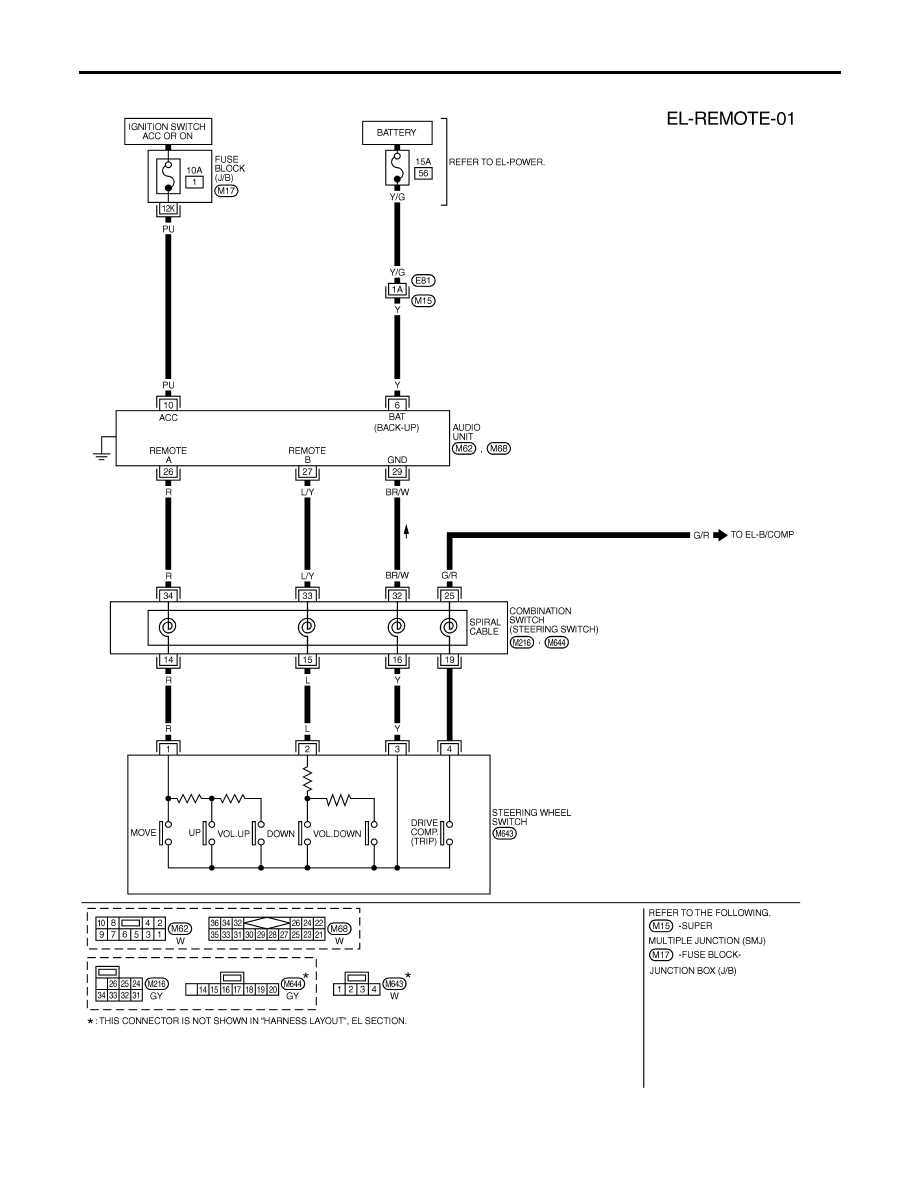

Wiring Diagram — REMOTE —

NHEL0306

MEL658R

AUDIO

Wiring Diagram — REMOTE —

EL-204
