Trouble Diagnoses

NHEL0075

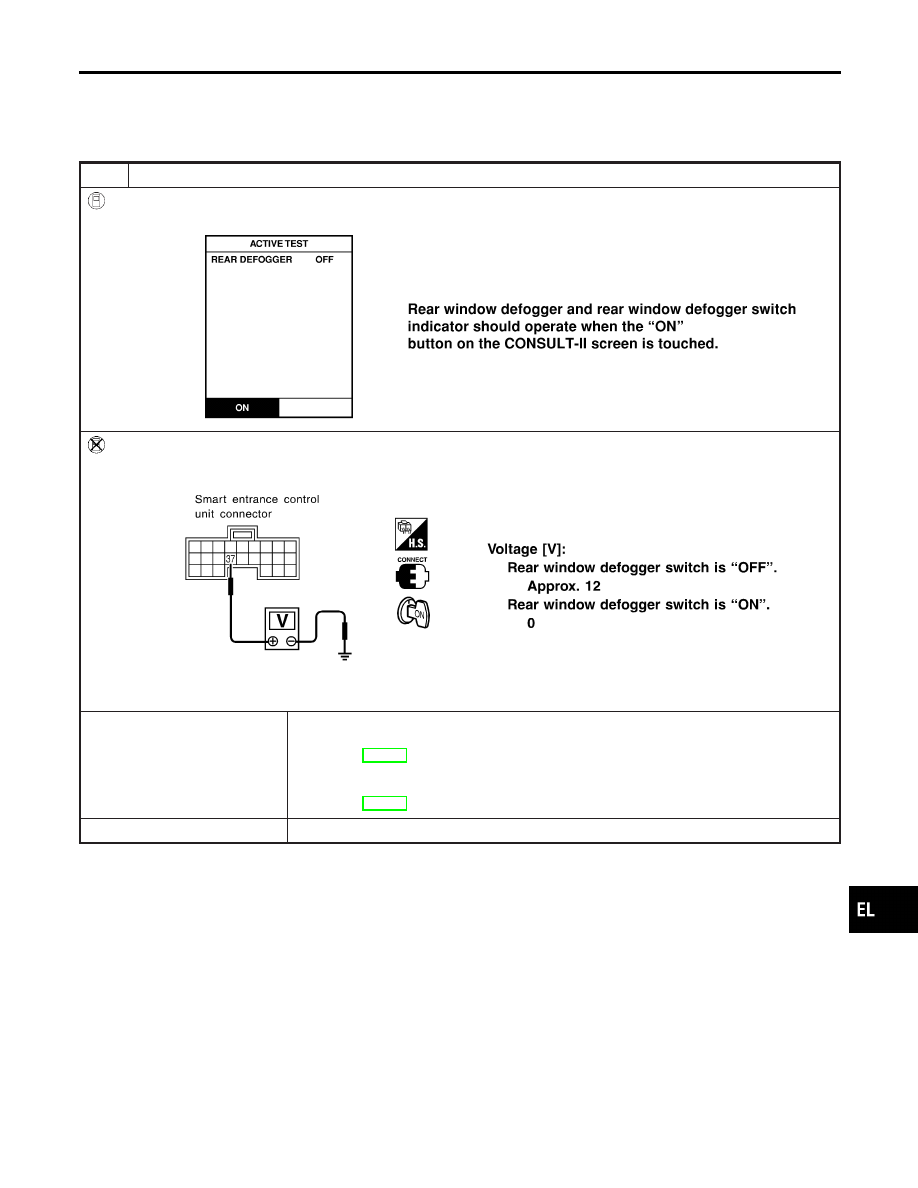

DIAGNOSTIC PROCEDURE

NHEL0075S01

SYMPTOM: Rear window defogger does not activate, or does
not go off after activating.

1

CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL

With CONSULT-II

Select “ACTIVE TEST” in “REAR DEFOGGER” with CONSULT-II.

SEL353W

Without CONSULT-II

1. Turn ignition switch to ON position.
2. Check voltage between smart entrance control unit harness connector M144 terminal 37 (G/R) and ground.

SEL997X

OK or NG

OK

©

Check the following.

I

Rear window defogger relay
(Refer to EL-192.)

I

Rear window defogger circuit

I

Rear window defogger filament
(Refer to EL-192.)

NG

©

GO TO 2.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REAR WINDOW DEFOGGER

Trouble Diagnoses

EL-189

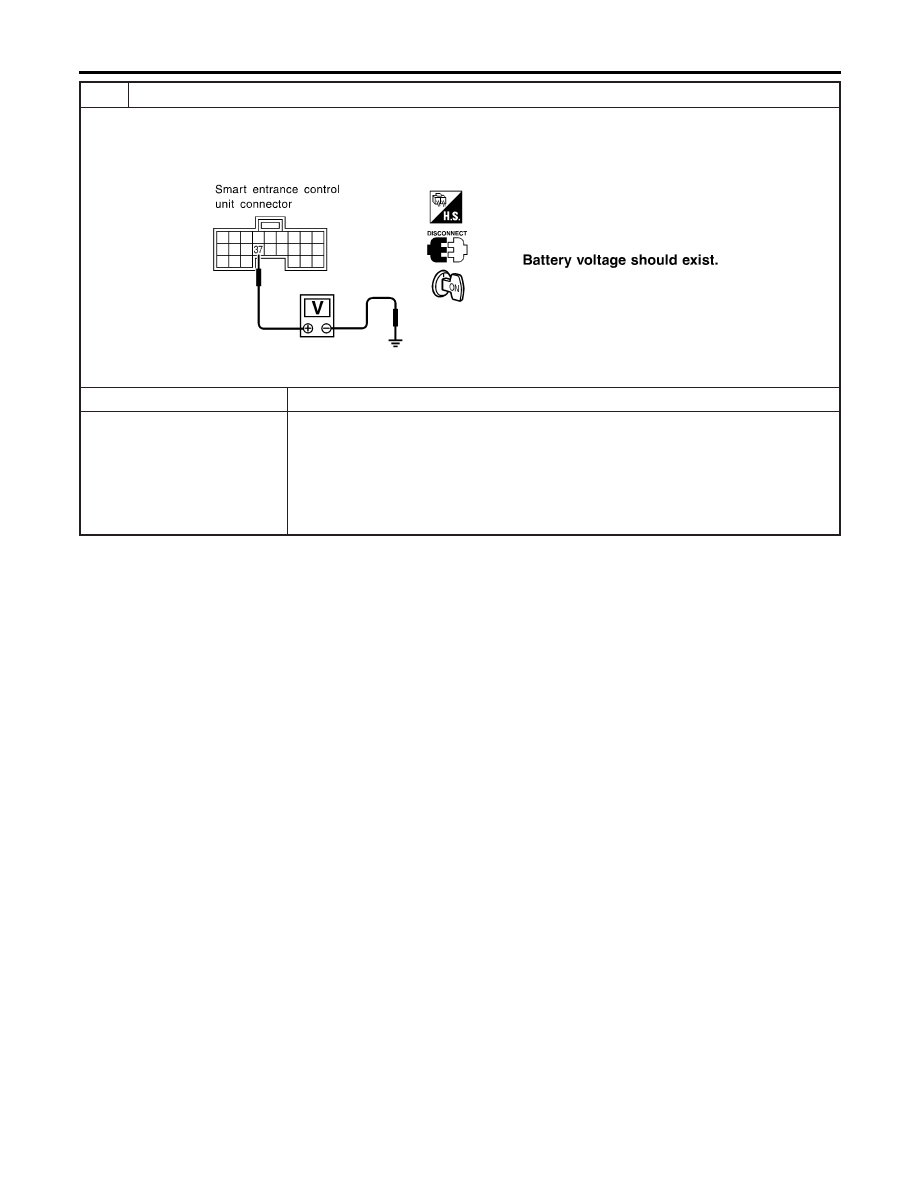

2

CHECK DEFOGGER RELAY COIL SIDE CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Turn ignition switch to ON position.
3. Check voltage between smart entrance control unit harness connector M144 terminal 37 (G/R) and ground.

SEL998X

OK or NG

OK

©

GO TO 3.

NG

©

Check the following.

I

10A fuse [No. 10, located in the fuse block (J/B)]

I

Rear window defogger relay

I

Harness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)]
and rear window defogger relay

I

Harness for open or short between rear window defogger relay and smart entrance
control unit

REAR WINDOW DEFOGGER

Trouble Diagnoses (Cont’d)

EL-190

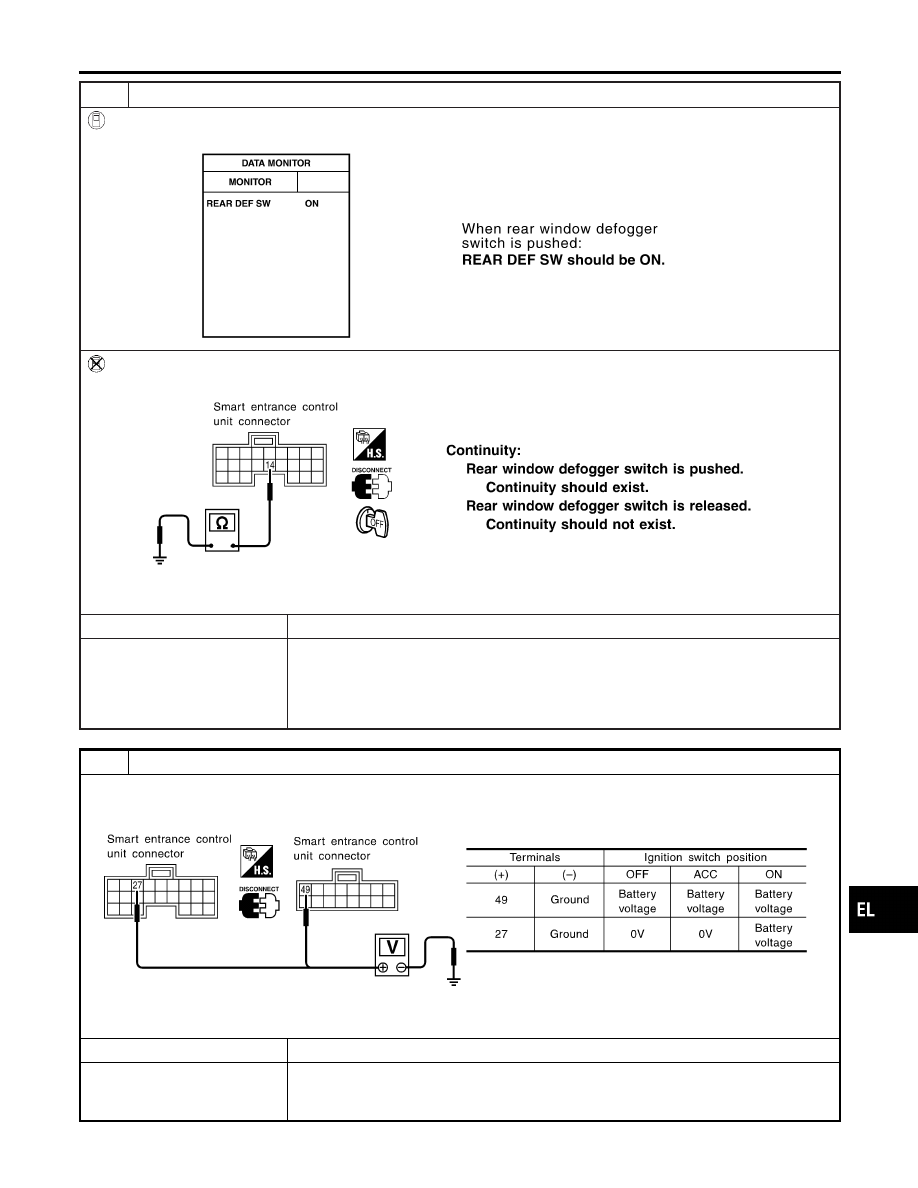

3

CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL

With CONSULT-II

Select “REAR DEF SW” in “DATA MONITOR” mode with CONSULT-II.

SEL352W

Without CONSULT-II

Check continuity between smart entrance control unit harness connector M143 terminal 14 (G/W) and ground.

SEL999X

OK or NG

OK

©

GO TO 4.

NG

©

Check the following.
1. Harness for open or short between smart entrance control unit and rear window

defogger switch

2. Rear window defogger switch ground circuit
3. Replace rear window defogger switch.

4

CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL

Check voltage between smart entrance control unit harness connector M144 terminal 27 (G), M145 terminal 49 (R/B) and
ground.

SEL001Y

OK or NG

OK

©

GO TO 5.

NG

©

Check the following.

I

10A fuse [No. 10 or No. 13, located in the fuse block (J/B)]

I

Harness for open or short between smart entrance control unit and fuse

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REAR WINDOW DEFOGGER

Trouble Diagnoses (Cont’d)

EL-191

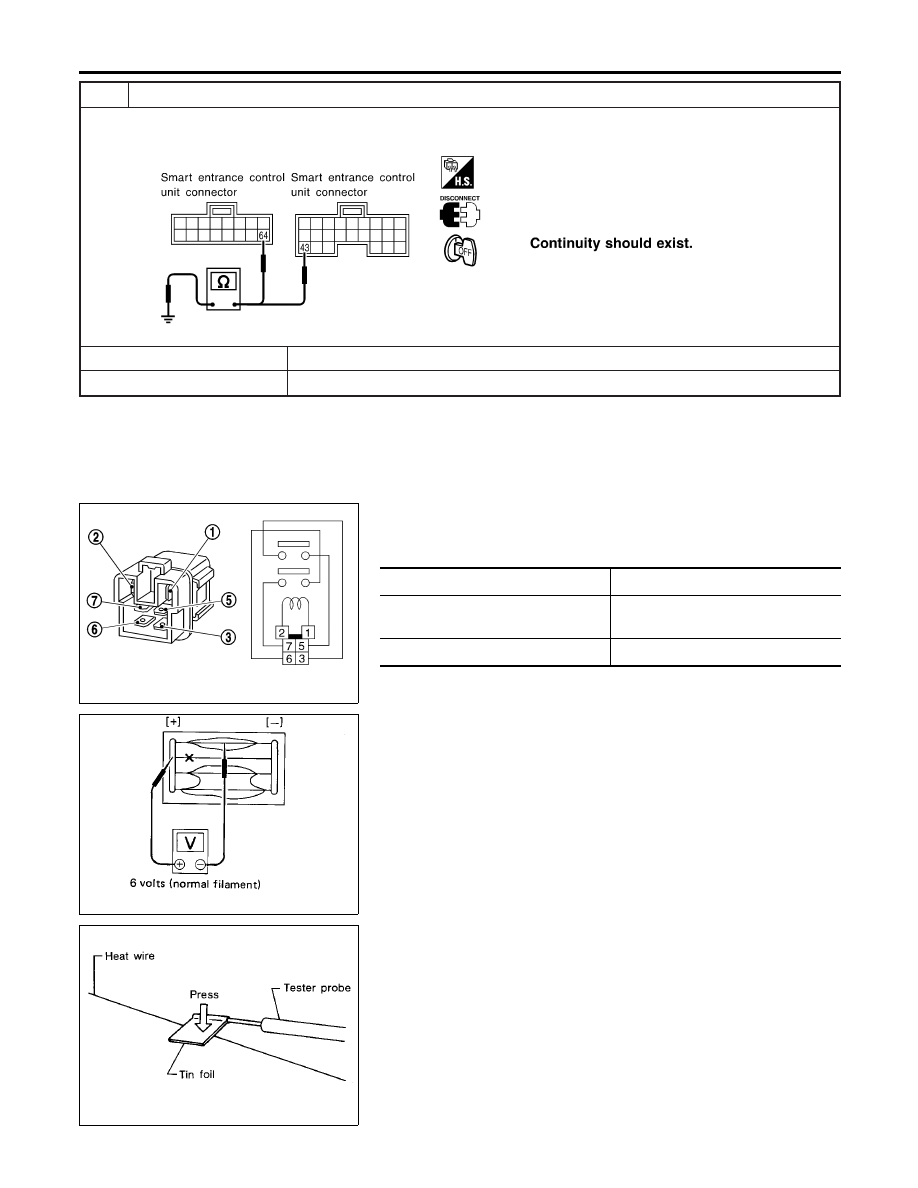

5

CHECK CONTROL UNIT GROUND CIRCUIT

Check continuity between smart entrance control unit harness connector M144 terminal 43 (B), M145 terminal 64 (B) and
ground.

SEL002Y

Yes

©

Replace smart entrance control unit.

No

©

Repair harness or connectors.

SEC202B

Electrical Components Inspection

NHEL0076

REAR WINDOW DEFOGGER RELAY

NHEL0076S01

Check continuity between terminals 3 and 5, 6 and 7.

Condition

Continuity

12V direct current supply between ter-
minals 1 and 2

Yes

No current supply

No

SEL263

Filament Check

NHEL0077

1.

Attach probe circuit tester (in volt range) to middle portion of
each filament.

SEL122R

I

When measuring voltage, wrap tin foil around the top of
the negative probe. Then press the foil against the wire
with your finger.

REAR WINDOW DEFOGGER

Trouble Diagnoses (Cont’d)

EL-192
