Infiniti I35 (A33). Manual - part 375





And power is supplied:

I

to interior lamp terminal 1

I

from smart entrance control unit terminal 50.

When spot lamp (LH and/or RH) is ON, ground is supplied:

I

through body grounds M9, M25 and M87

I

to spot lamp terminal 2.

And power is supplied:

I

to spot lamp terminal 1

I

from smart entrance control unit terminal 50.

When vanity mirror illumination (LH and/or RH) is ON, ground is supplied:

I

through body grounds M9, M25 and M87

I

to vanity mirror illuminations (LH and RH) terminals 2.

And power is supplied:

I

to vanity mirror illuminations (LH and RH) terminals 1

I

from smart entrance control unit terminal 50.

When rear door switch LH and/or RH is ON (door is opened), the smart entrance control unit receives a ground
signal:

I

through case ground of the each rear door switch

I

from the each rear door switch terminal 1

I

to smart entrance control unit terminal 3.

I

from smart entrance control unit terminal 32

I

to from front step lamp LH and RH terminal 1.

And power is supplied:

I

to front step lamp LH and RH terminals 2

I

from smart entrance control unit terminal 50.

When front door switch LH and/or RH is ON (door is opened), ground is supplied:

I

through body grounds B7 (with TCS) or B78 (with VDC) and B46, and/or B106 and B127

I

to the front door switch (LH and RH) terminal 3

I

from the front door switch (LH and RH) terminal 2

I

to smart entrance control unit terminal 1 and/or 2

I

from smart entrance control unit terminal 32

I

to front step lamp LH and RH terminals 1.

And power is supplied:

I

to front step lamp LH and RH terminals 2

I

from smart entrance control unit terminal 50.

When trunk room lamp switch is ON (trunk lid is opened), ground is supplied:

I

through body grounds T6 and T8

I

to trunk room lamp switch terminal 2

I

from trunk room lamp switch terminal 1

I

to trunk room lamp terminal 1

And power is supplied:

I

to trunk room lamp terminal 2

I

through 10A fuse [No. 13 located in the fuse block (J/B)].

With power and ground supplied, interior lamps turn ON.

INTERIOR LAMP TIMER OPERATION

NHEL0165S03

When interior lamp switch is in the “DOOR” position, the smart entrance control unit keeps the interior lamp
illuminated for about 30 seconds when:

I

unlock signal is supplied from driver’s door lock and unlock switch while all doors are closed and key is
out of ignition key cylinder

I

unlock signal is supplied from keyfob or door key cylinder while driver’s door is locked and all doors are
closed

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR, STEP, SPOT, VANITY MIRROR AND TRUNK ROOM LAMPS

System Description (Cont’d)

EL-101

I

key is removed from ignition key cylinder while all doors are closed

I

driver’s door is opened and then closed while key is out of the iginition key cylinder. (However, if the driv-
er’s door is closed with the key inserted in the ignition key cylinder after the driver’s door is opened with
the key removed, the timer is operated.)

The timer is canceled when:

I

driver’s door is locked,

I

driver’s door is opened, or

I

ignition switch is turned ON.

When driver’s door is locked, interior room lamp timer is canceled as described before.
However, ignition key hole illumination remains on for about 30 seconds after driver’s door has been locked.

ON-OFF CONTROL

NHEL0165S04

When the driver side door, front passenger door, rear LH or RH door is opened, the interior room lamp turns
on while the interior room lamp switch is in the “DOOR” position.
When any door is opened, step lamps turn ON.

INTERIOR LAMP BATTERY SAVER CONTROL

NHEL0165S05

The lamp turns off automatically when interior lamp, step lamp, spot lamp and/or vanity mirror illumination is
illuminated with the ignition key is in OFF position, if the lamp remains lit by the door switch open signal or if
the lamp switch is in ON position for more than 10 minutes.
After lamps turn OFF by the battery saver system, the lamps illuminate again when:

I

driver’s door is locked or unlocked,

I

door is opened or closed,

I

key is removed from ignition key cylinder or inserted in ignition key cylinder

Interior lamp battery saver control period can be changed by the function setting of CONSULT-II (EL-110).

INTERIOR, STEP, SPOT, VANITY MIRROR AND TRUNK ROOM LAMPS

System Description (Cont’d)

EL-102

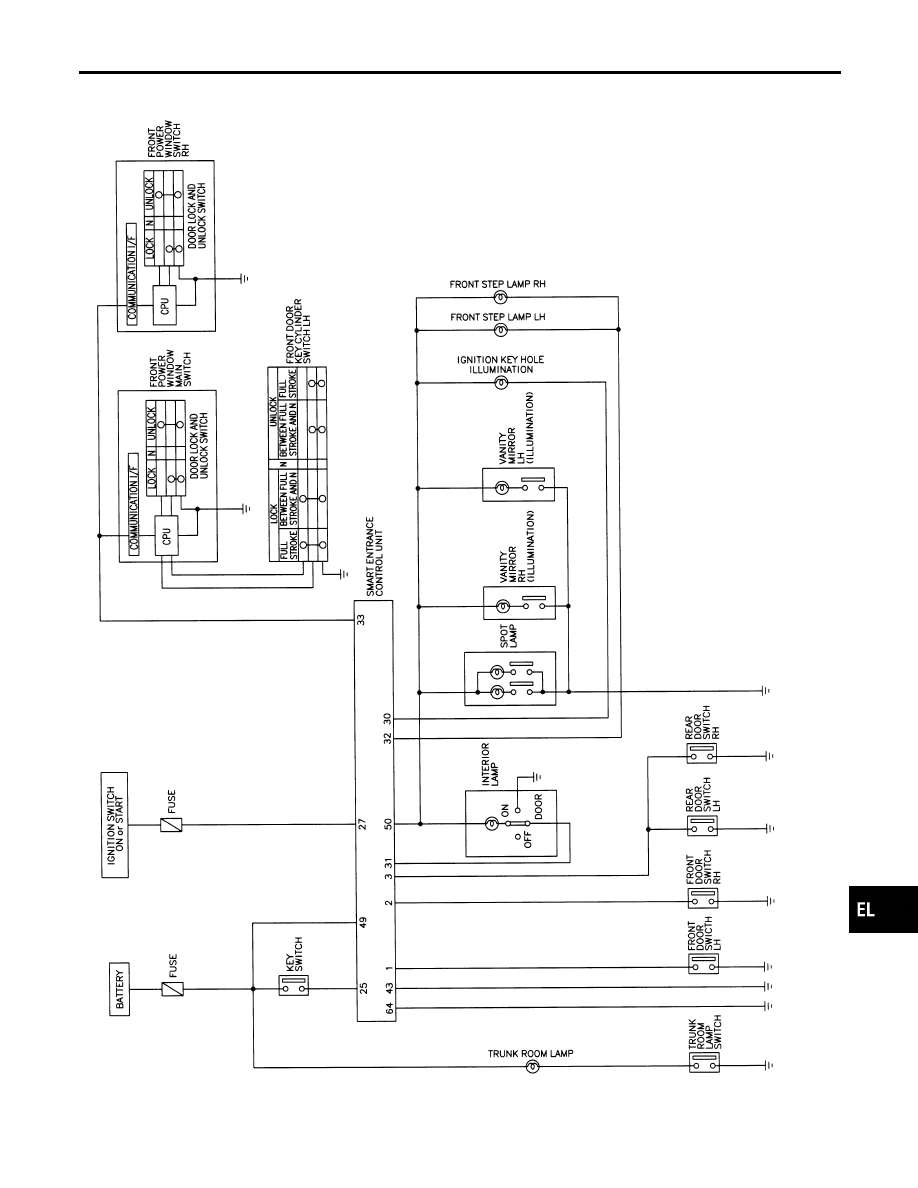

Schematic

NHEL0212

MEL287O

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR, STEP, SPOT, VANITY MIRROR AND TRUNK ROOM LAMPS

Schematic

EL-103

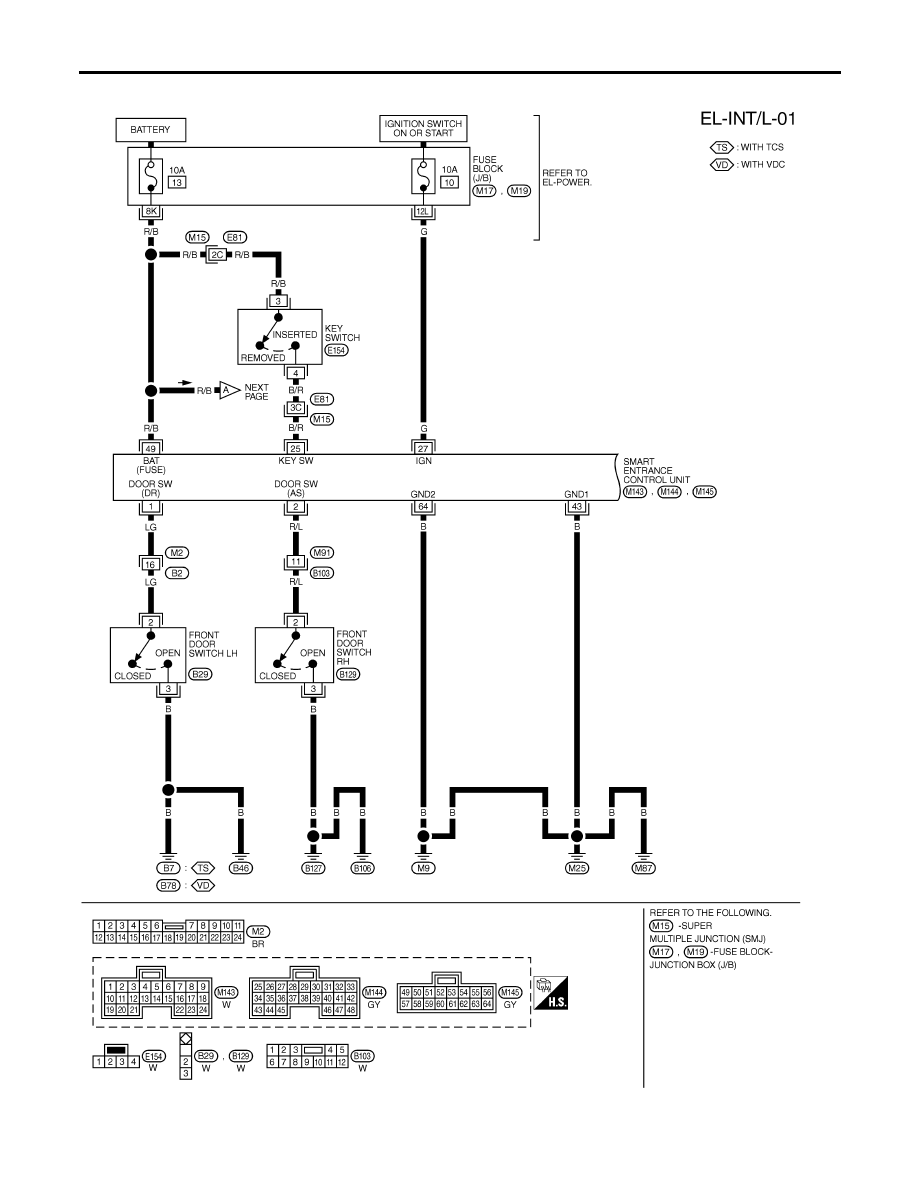

Wiring Diagram — INT/L —

NHEL0163

MEL642R

INTERIOR, STEP, SPOT, VANITY MIRROR AND TRUNK ROOM LAMPS

Wiring Diagram — INT/L —

EL-104
