Infiniti I35 (A33). Manual - part 347





11

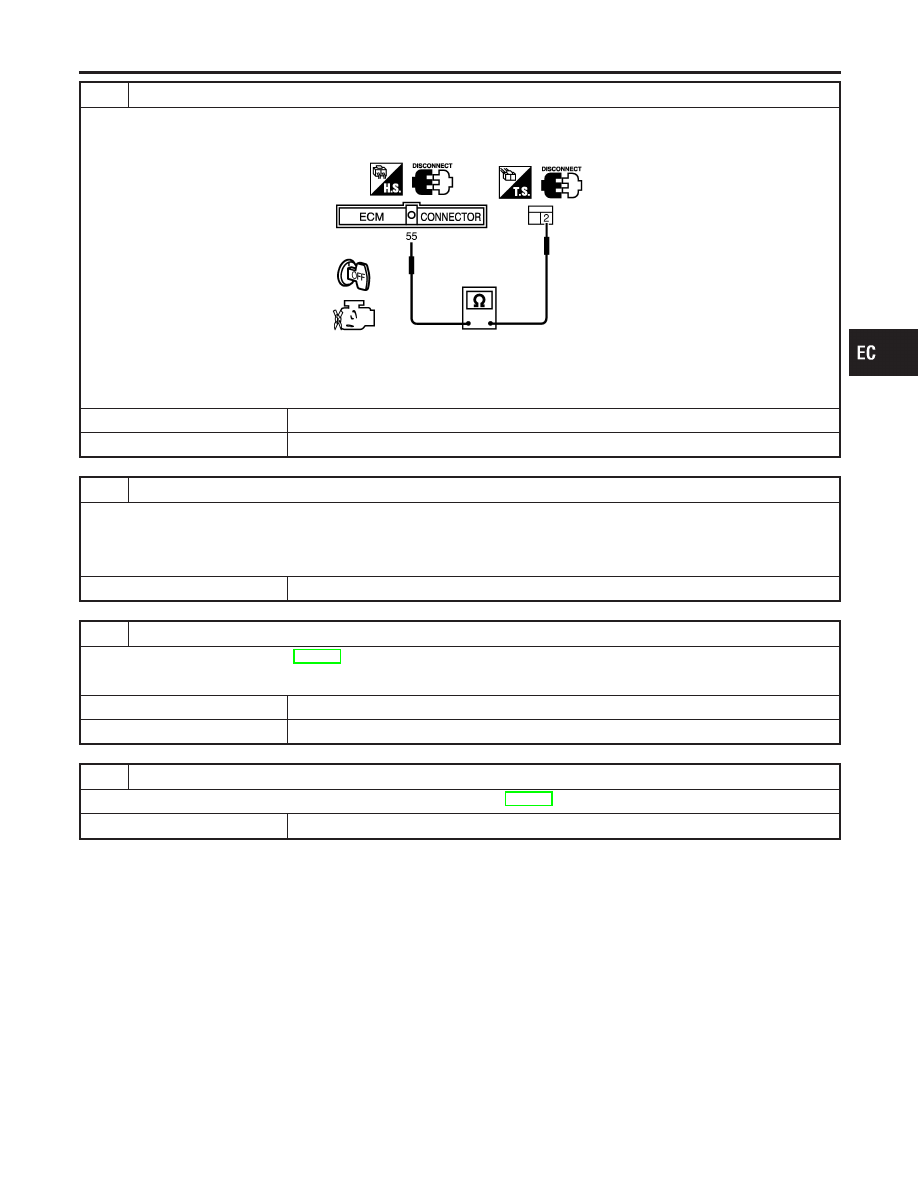

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between stop lamp switch terminal 2 and ECM terminal 55.

SEC216D

Continuity should exist

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 13.

NG

©

GO TO 14.

12

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M15, E81

I

Harness connectors M223, F53

I

Harness for open or short between stop lamp switch and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

13

CHECK STOP LAMP SWITCH

Refer to “Component Inspection”, EC-628.

OK or NG

OK

©

GO TO 14.

NG

©

Replace stop lamp switch.

14

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASCD BRAKE SWITCH

Diagnostic Procedure (Cont’d)

EC-729

Component Description

NHEC1240

ASCD indicator lamp illuminates to indicate ASCD operation status.
Lamp has two indicators, CRUISE and SET, and is integrated in
combination meter.
CRUISE indicator illuminates when MAIN switch on steering switch
is turned ON to indicate that ASCD system is ready for operation.
SET indicator illuminates when following conditions are met.
CRUISE indicator illuminates, and SET switch on steering switch
is turned ON while vehicle speed is within range of ASCD setting.
SET indicator remains lit during ASCD control. Refer to EC-54 for
ASCD functions.

CONSULT-II Reference Value in Data Monitor
Mode

NHEC1474

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

CRUISE LAMP

I

Ignition switch: ON

I

MAIN switch is pressed at 1st
time

,

2nd time.

ON

,

OFF

SET LAMP

I

When vehicle speed is between 40
km/h (25 MPH) to 144 km/h (89 MPH),
and CRUISE switch is ON.

I

SET/COAST switch: Pressed

ON

I

SET/COAST switch: Released

OFF

ASCD INDICATOR LAMP

Component Description

EC-730

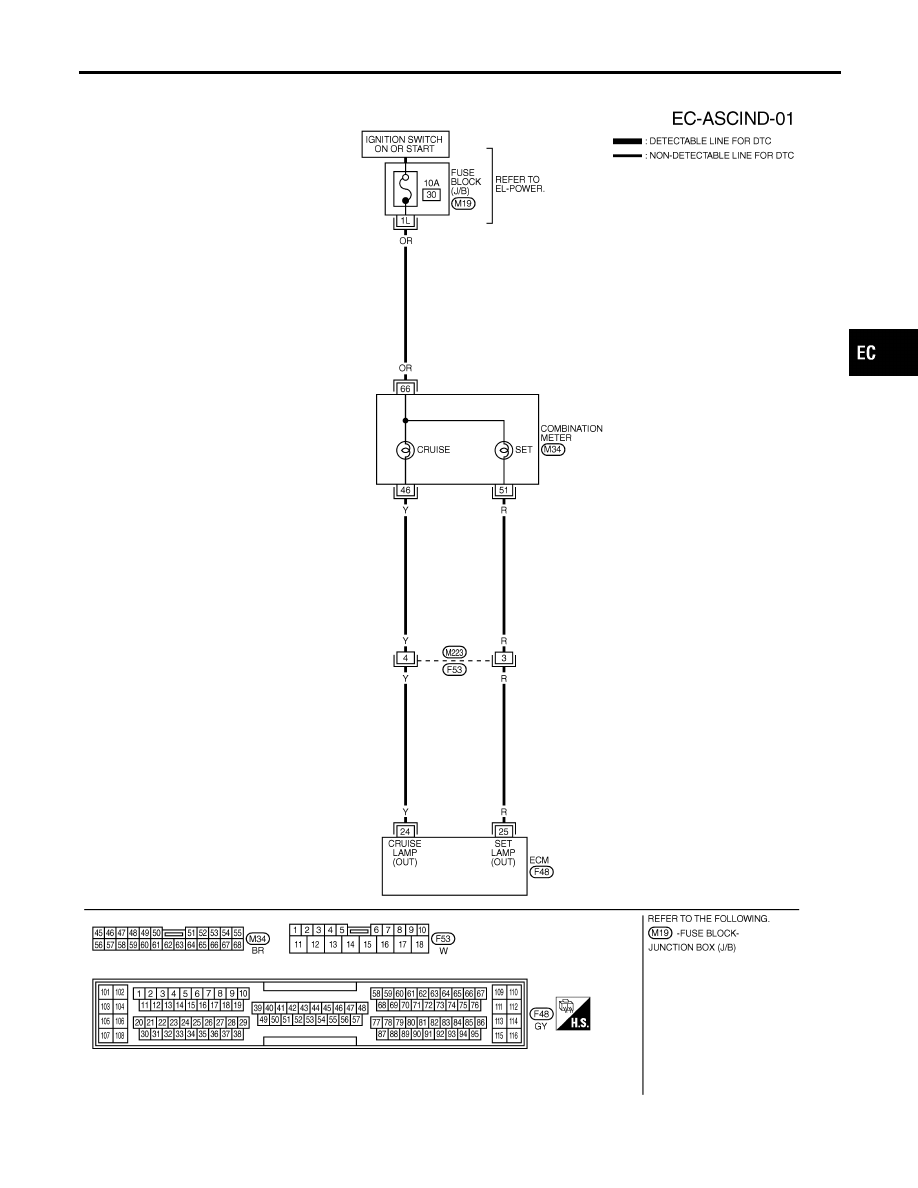

Wiring Diagram

NHEC1242

MEC899D

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASCD INDICATOR LAMP

Wiring Diagram

EC-731

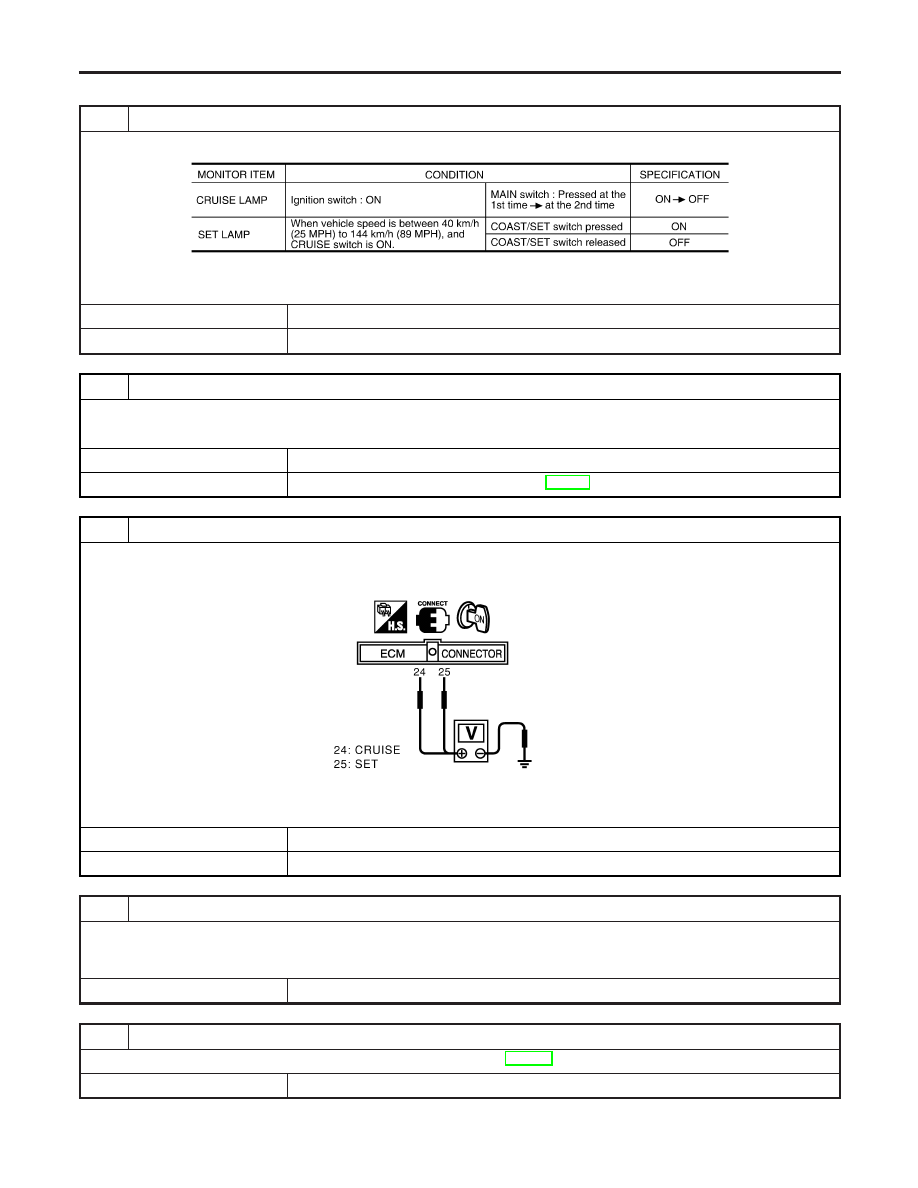

Diagnostic Procedure

NHEC1243

1

CHECK OVERALL FUNCTION

Check ASCD indicator under the following conditions.

MTBL1843

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 2.

2

CHECK COMBINATION METER OPERATION

Check that combination meter operates normally.

OK or NG

OK

©

GO TO 3.

NG

©

Check combination meter circuit. Refer to EL-129.

3

CHECK INDICATOR CIRCUIT

1. Turn ignition switch ON.
2. Check voltage between ECM terminals 24, 25 and ground with CONSULT-II or tester.

SEC028D

Battery voltage should exist.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors F53, M223

I

Harness for open or short between combination meter and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

ASCD INDICATOR LAMP

Diagnostic Procedure

EC-732
