Infiniti I35 (A33). Manual - part 339

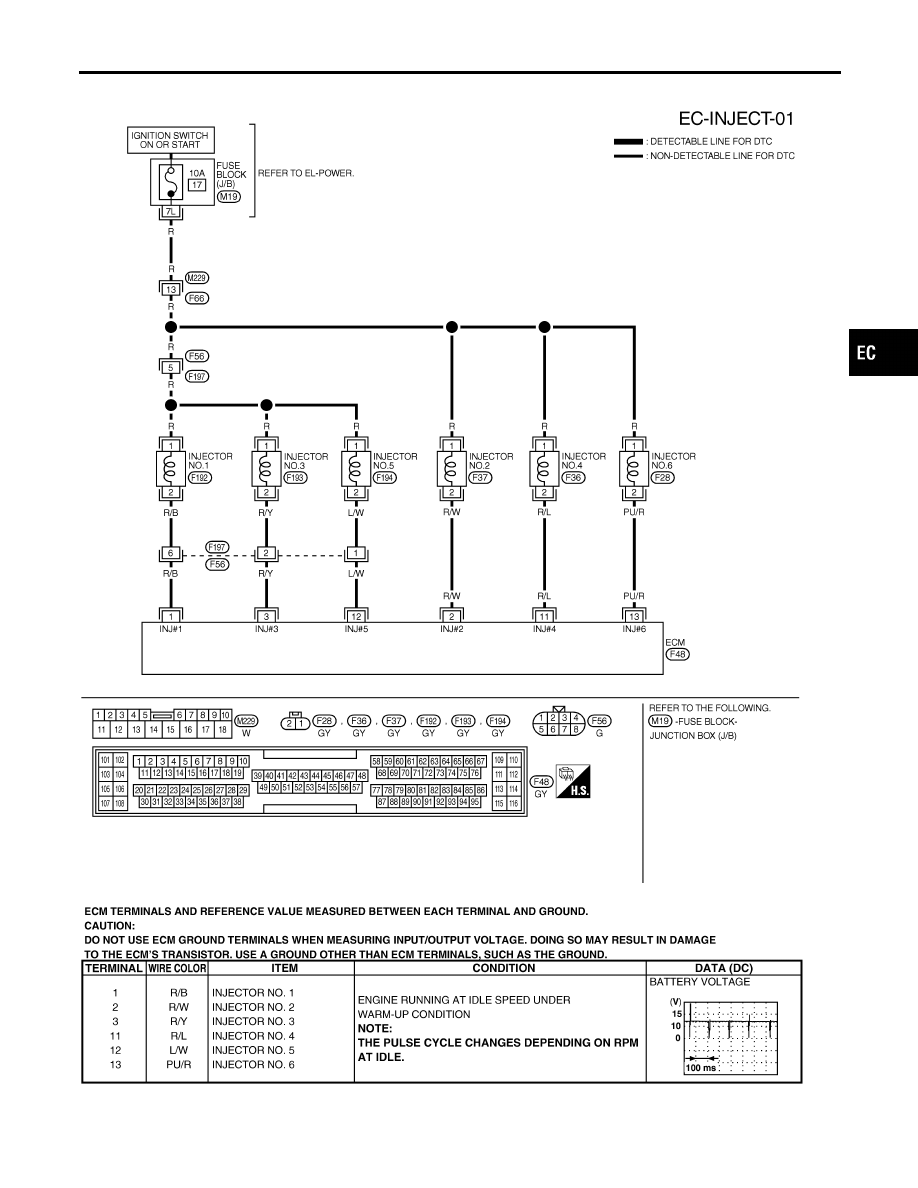

Wiring Diagram

NHEC0386

MEC564D

SEF796YC

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

INJECTOR

Wiring Diagram

EC-697

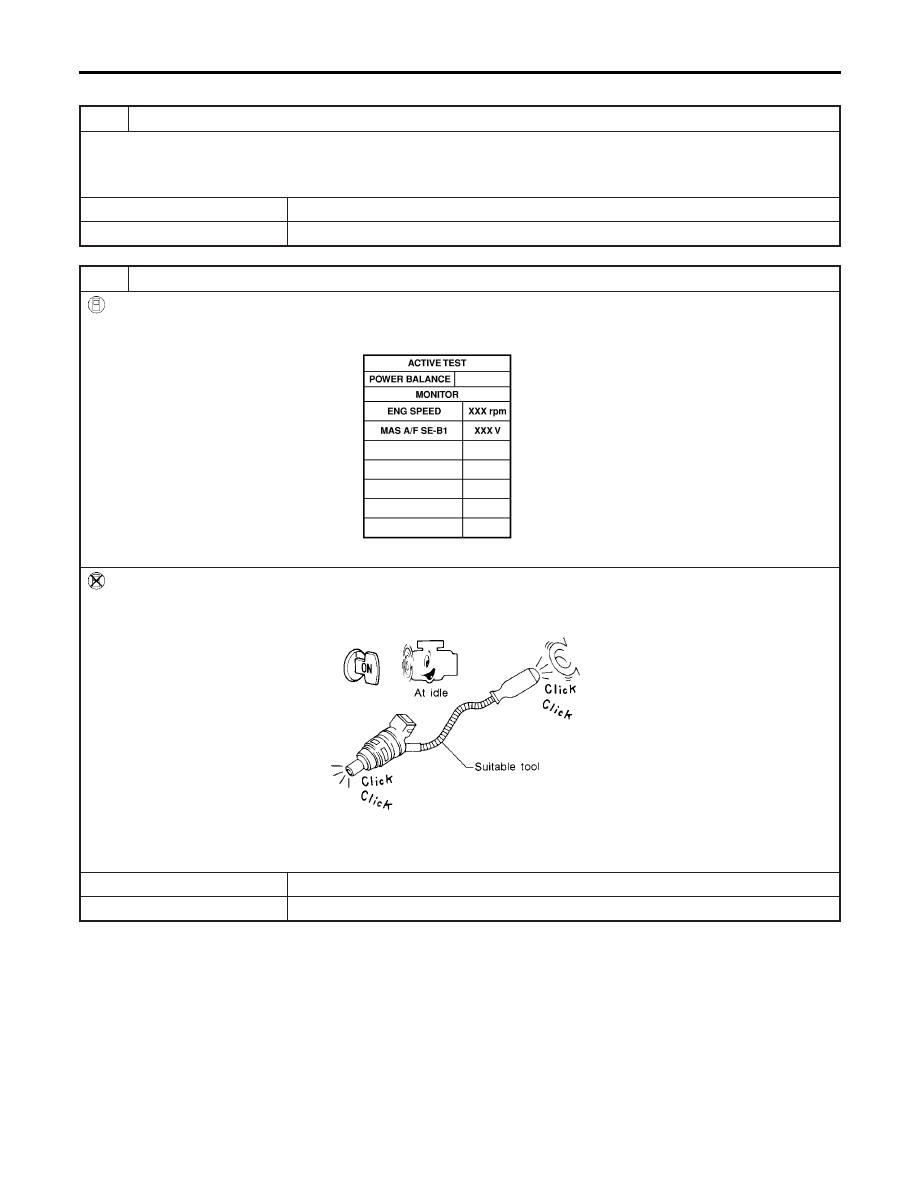

Diagnostic Procedure

NHEC0387

1

INSPECTION START

Turn ignition switch to “START”.
Is any cylinder ignited?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

CHECK OVERALL FUNCTION

With CONSULT-II

1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.

PBIB0133E

3. Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT-II

1. Start engine.
2. Listen to each injector operating sound.

MEC703B

Clicking noise should be heard.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 3.

INJECTOR

Diagnostic Procedure

EC-698

3

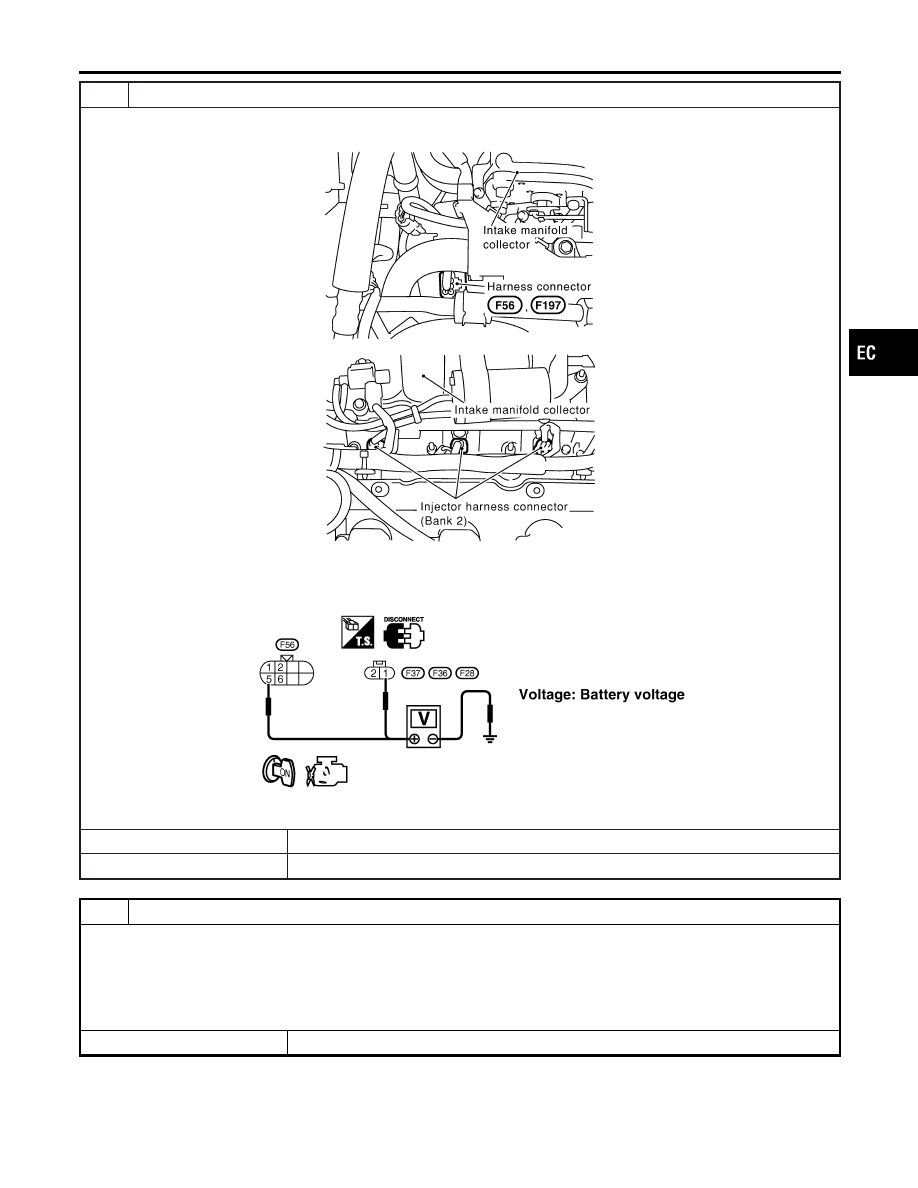

CHECK INJECTOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect injector harness connectors (bank 2) and harness connectors F58, F197 (bank 1).

SEC007E

SEC087D

3. Turn ignition switch ON.
4. Check voltage between injector terminal 1 and ground, harness connector F56 terminal 5 and ground with CONSULT-II

or tester.

SEC008E

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M229, F66

I

Fuse block (J/B) connector M19

I

10A fuse

I

Harness for open or short between injector and fuse

I

Harness for open or short between harness connector F56 and fuse

©

Repair harness or connectors.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

INJECTOR

Diagnostic Procedure (Cont’d)

EC-699

5

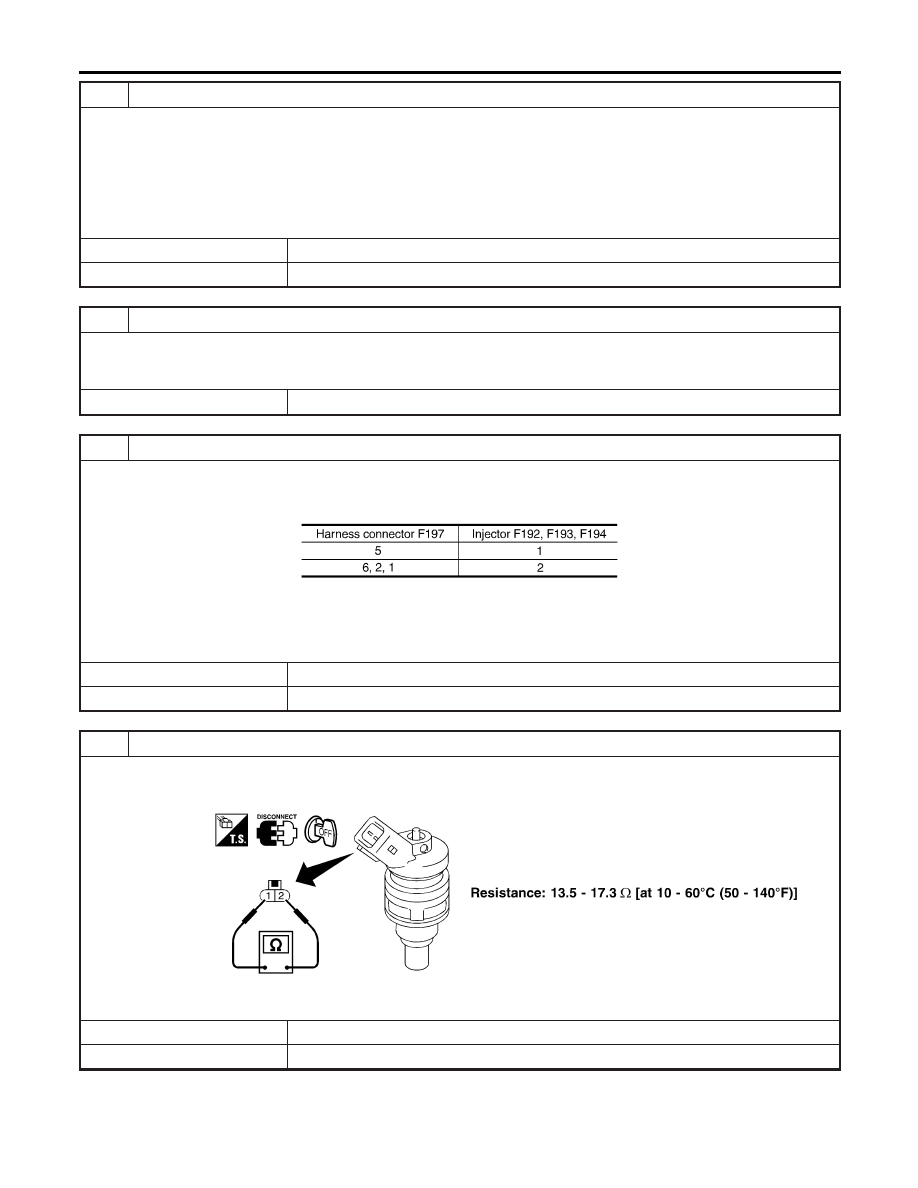

CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector terminal 2 and ECM terminals 2, 11, 13, harness connector F56 terminals 6,

2, 1 and ECM terminals 1, 3, 12. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 6.

6

DETECT MALFUNCTIONING PART

Check the following.

I

Harness for open or short between harness connector F58 and ECM

I

Harness for open or short between ECM and injector

©

Repair open circuit or short to ground or short to power in harness or connectors.

7

CHECK SUB-HARNESS CIRCUIT FOR OPEN AND SHORT (BANK 1)

1. Remove intake manifold collector.
2. Disconnect injector harness connectors (Bank 1).
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.

MTBL1173

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 8.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

8

CHECK INJECTOR

1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.

SEF964XE

OK or NG

OK

©

GO TO 9.

NG

©

Replace injector.

INJECTOR

Diagnostic Procedure (Cont’d)

EC-700
