4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors F66, M229

I

Harness for open or short between combination meter and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1574 ASCD VEHICLE SPEED SENSOR

Diagnostic Procedure (Cont’d)

EC-633

SAT644J

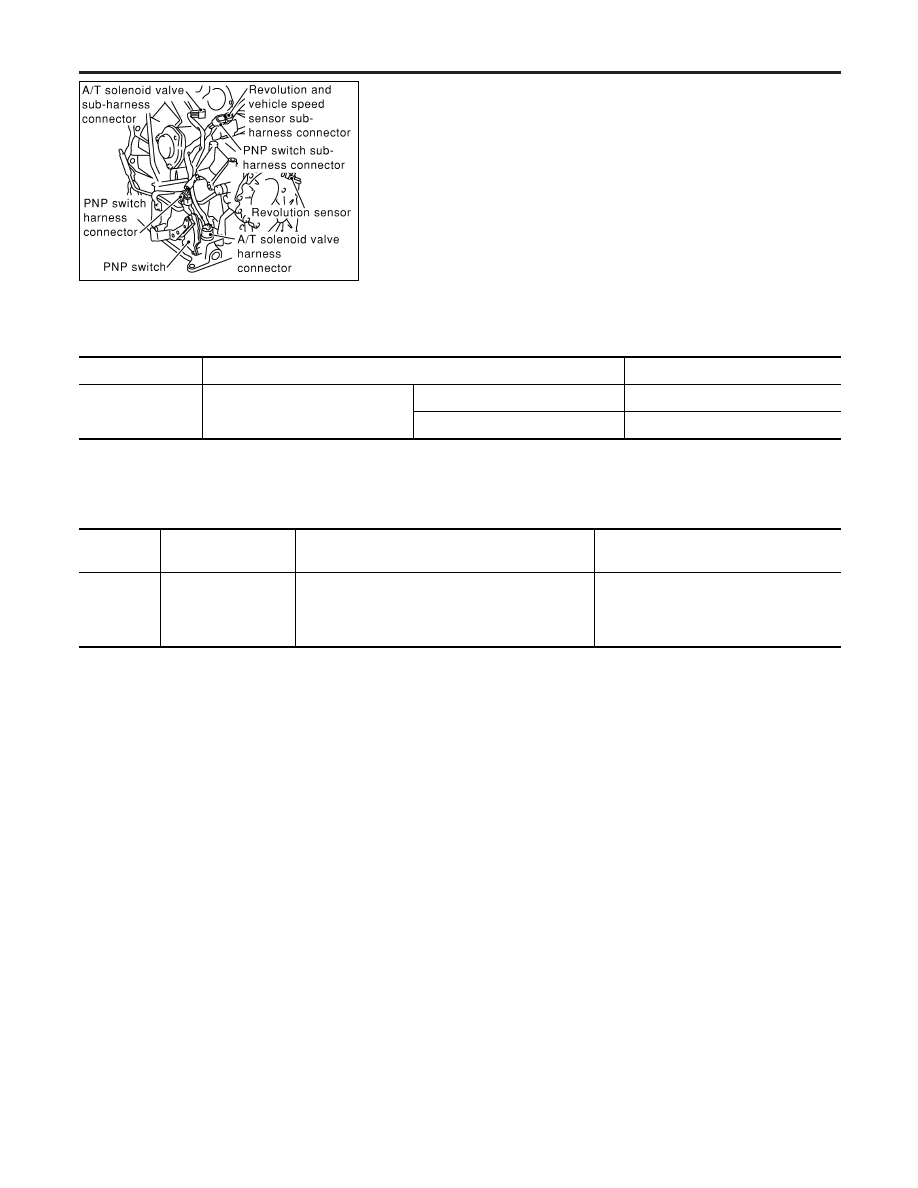

Component Description

NHEC1134

When the gear position is P or N, park/neutral position (PNP)
switch is ON.
ECM detects the position because the continuity of the line (the ON
signal) exists.
The park/neutral position (PNP) switch assembly also includes a
transmission range switch to detect selector lever position.

CONSULT-II Reference Value in Data Monitor
Mode

NHEC1135

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

I

Ignition switch: ON

Shift lever: P or N

ON

Except above

OFF

On Board Diagnosis Logic

NHEC1137

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P1706
1706

Park/Neutral position
switch

The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

I

Harness or connectors
[The park/neutral position (PNP)
switch circuit is open or shorted.]

I

Park/neutral position (PNP) switch

DTC Confirmation Procedure

NHEC1138

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.

DTC P1706 PNP SWITCH

Component Description

EC-634

SEF212Y

SEF213Y

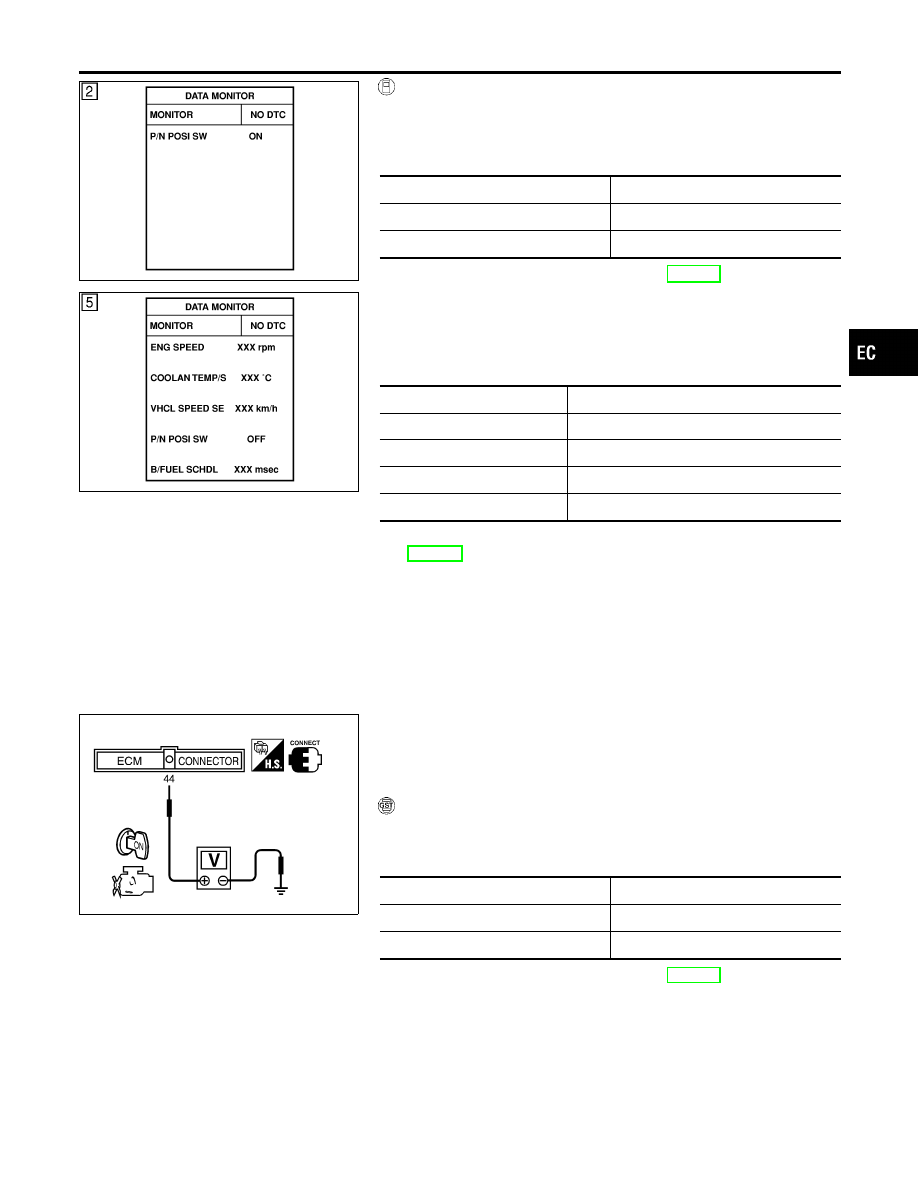

WITH CONSULT-II

=NHEC1138S01

1)

Turn ignition switch ON.

2)

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the fol-
lowing conditions.

Position (Selector lever)

Known-good signal

“N” and “P” position

ON

Except the above position

OFF

If NG, go to “Diagnostic Procedure”, EC-637.
If OK, go to following step.

3)

Select “DATA MONITOR” mode with CONSULT-II.

4)

Start engine and warm it up to normal operating temperature.

5)

Maintain the following conditions for at least 60 consecutive
seconds.

ENG SPEED

More than 1,400 rpm

COOLAN TEMP/S

More than 70°C (158°F)

B/FUEL SCHDL

More than 2 msec

VHCL SPEED SE

More than 65 km/h (40 MPH)

Selector lever

Suitable position

6)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-637.

SEF359X

Overall Function Check

NHEC1139

Use this procedure to check the overall function of the park/neutral
position (PNP) switch circuit. During this check, a 1st trip DTC
might not be confirmed.

WITH GST

NHEC1139S01

1)

Turn ignition switch ON.

2)

Check voltage between ECM terminal 44 and body ground
under the following conditions.

Condition (Gear position)

Voltage V (Known-good data)

“P” and “N” position

Approx. 0

Except the above position

Battery voltage

3)

If NG, go to “Diagnostic Procedure”, EC-637.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1706 PNP SWITCH

DTC Confirmation Procedure (Cont’d)

EC-635

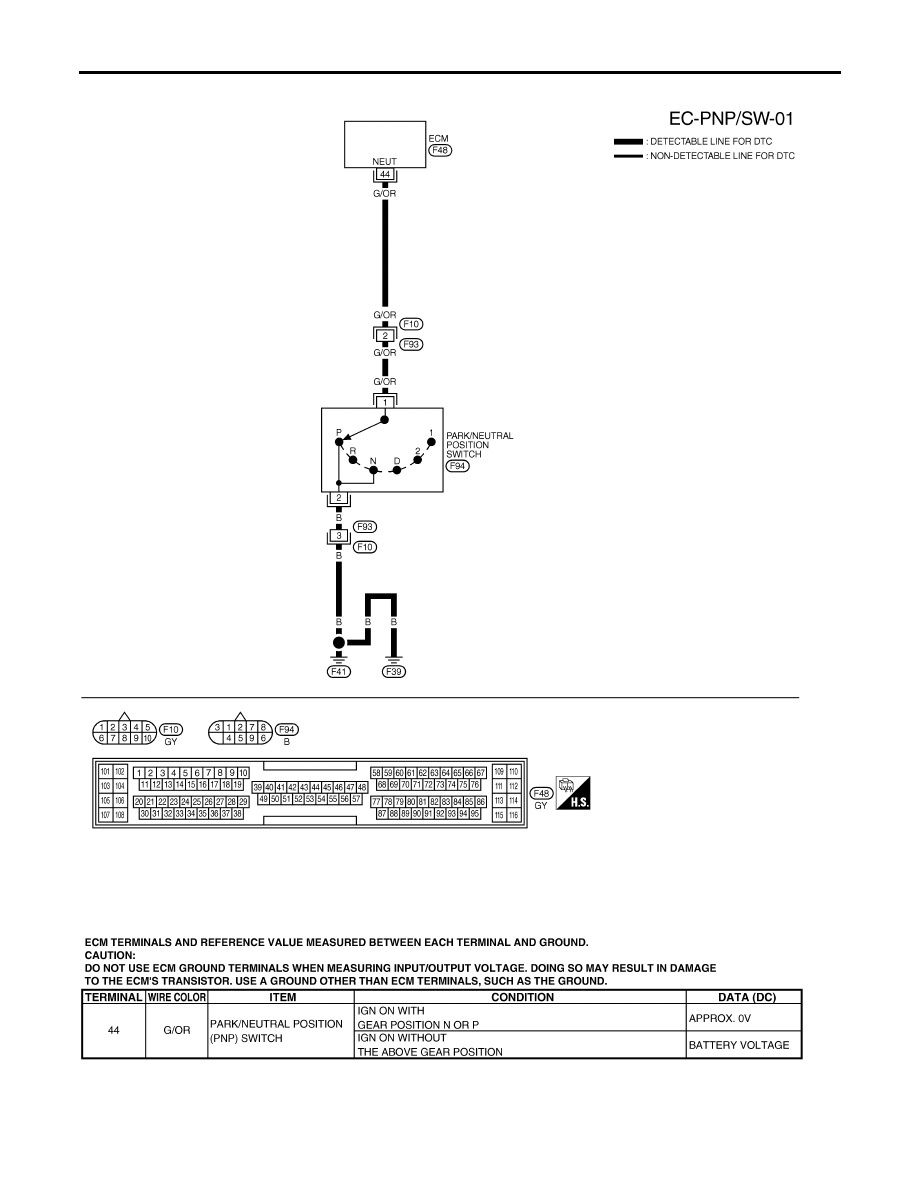

Wiring Diagram

NHEC1140

MEC369E

SEF635XI

DTC P1706 PNP SWITCH

Wiring Diagram

EC-636
