Infiniti I35 (A33). Manual - part 282

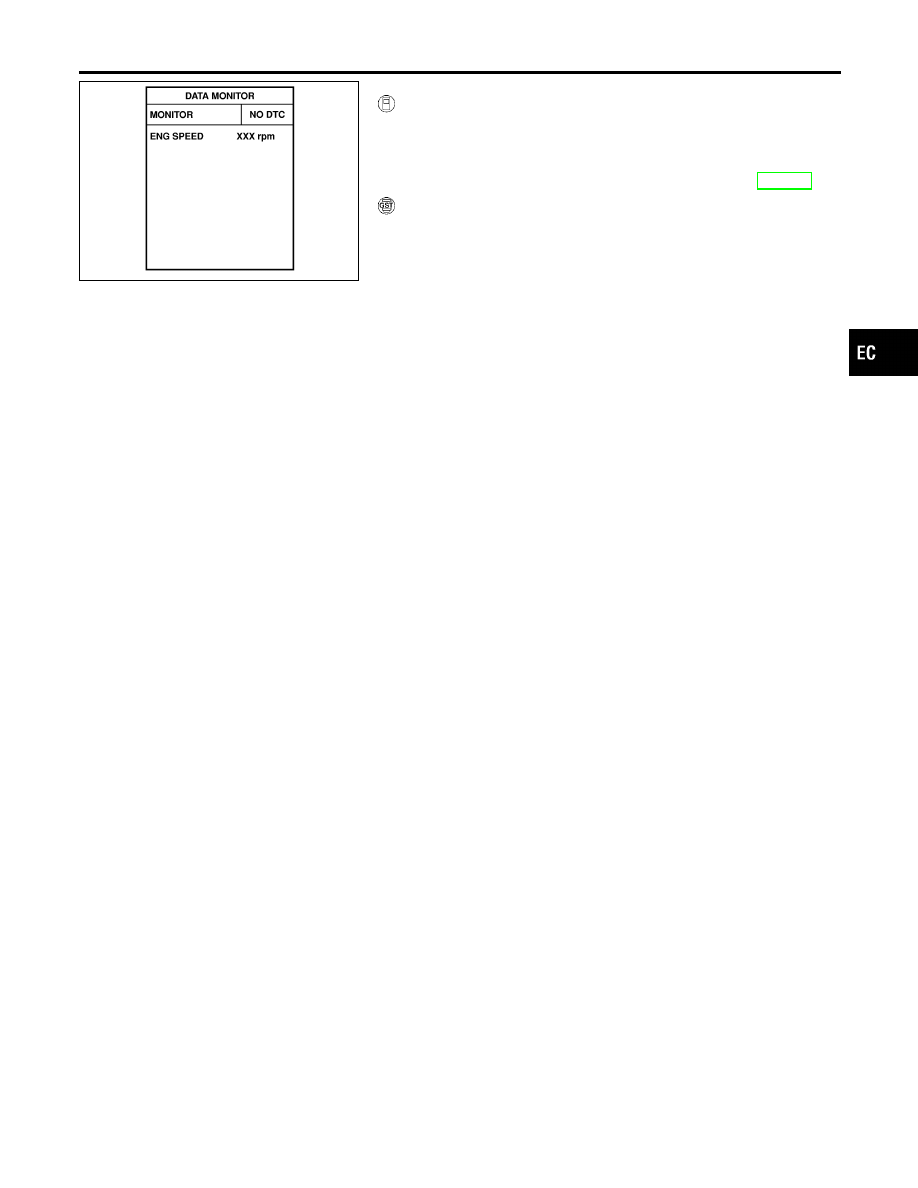

SEF058Y

PROCEDURE FOR DTC P1126

With CONSULT-II

1)

Turn ignition switch ON and wait at least 2 seconds.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and let it idle for 5 seconds.

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-471.

With GST

Follow the procedure “With CONSULT-II” above.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

DTC Confirmation Procedure (Cont’d)

EC-469

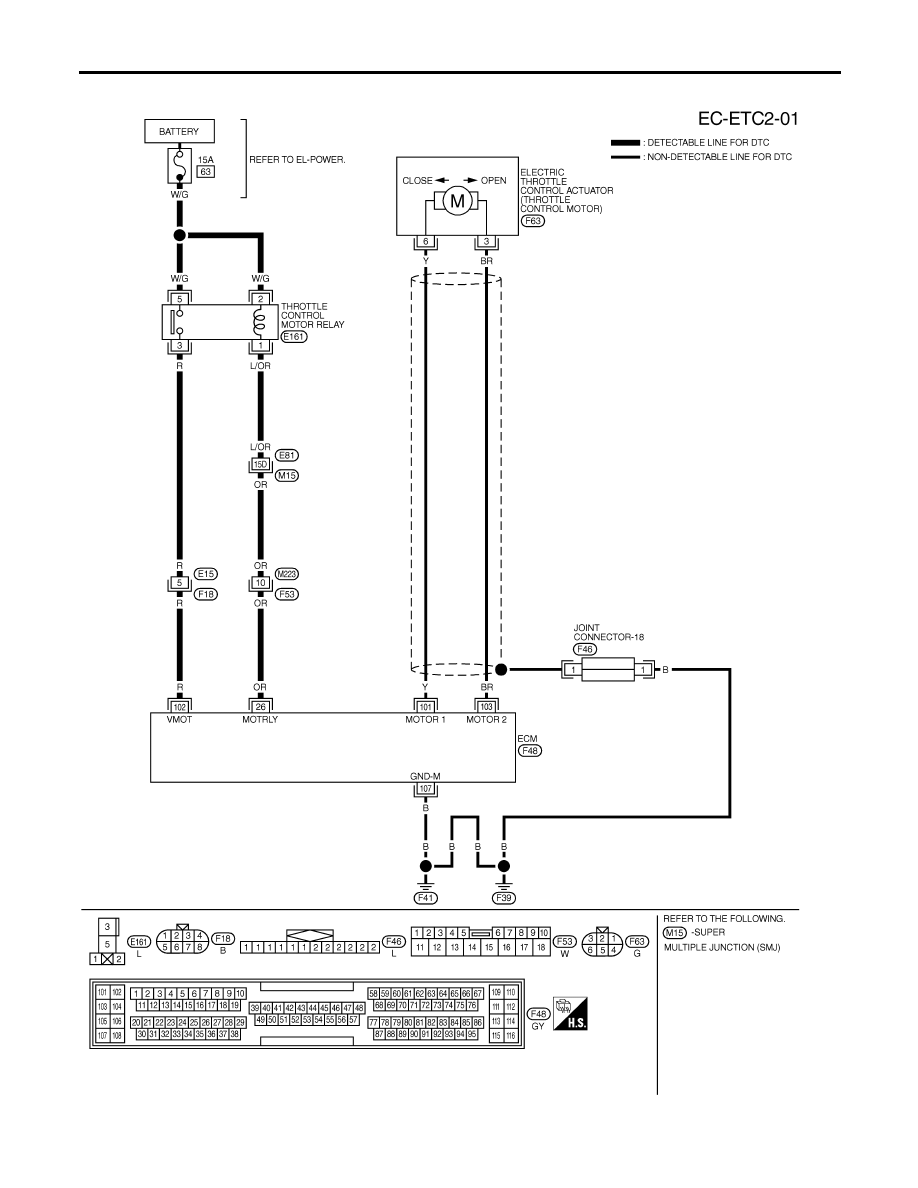

Wiring Diagram

NHEC1310

MEC360E

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Wiring Diagram

EC-470

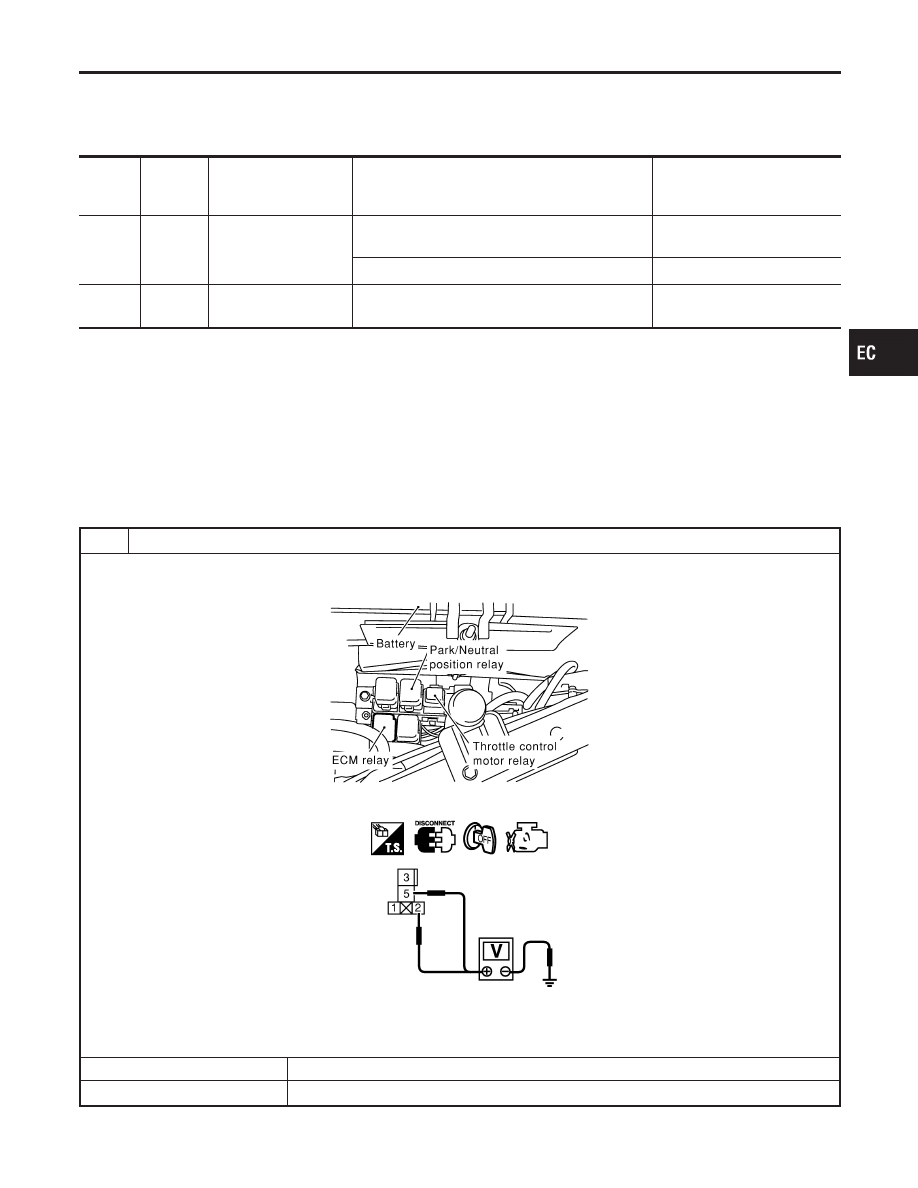

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

26

OR

Throttle control motor
relay

[Ignition switch OFF]

BATTERY VOLTAGE
(11 - 14V)

[Ignition switch ON]

0 - 1.0V

102

R

Throttle control motor
relay power supply

[Ignition switch ON]

BATTERY VOLTAGE
(11 - 14V)

Diagnostic Procedure

NHEC1311

1

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect throttle control motor relay.

SEC044D

3. Check voltage between throttle control motor relay terminals 2, 5 and ground with CONSULT-II or tester.

SEC091D

Voltage: Battery voltage

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Wiring Diagram (Cont’d)

EC-471

2

DETECT MALFUNCTIONING PART

Check the following.

I

15A fuse

I

Harness for open and short between throttle control motor relay and fuse

©

Repair open circuit or short to ground or short to power in harness or connectors.

3

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and throttle control motor relay terminal 3.

Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connector E15, F18

I

Harness for open and short between throttle control motor relay and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check harness continuity between ECM terminal 26 and throttle control motor relay terminal 1.

Refer to Wiring Diagram.

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 6.

6

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connector E81, M15

I

Harness connectors M223, F53

I

Harness for open and short between throttle control motor relay and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

7

CHECK THROTTLE CONTROL MOTOR RELAY

Refer to “Component Inspection”, EC-473.

OK or NG

OK

©

GO TO 8.

NG

©

Replace throttle control motor relay.

8

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Diagnostic Procedure (Cont’d)

EC-472
