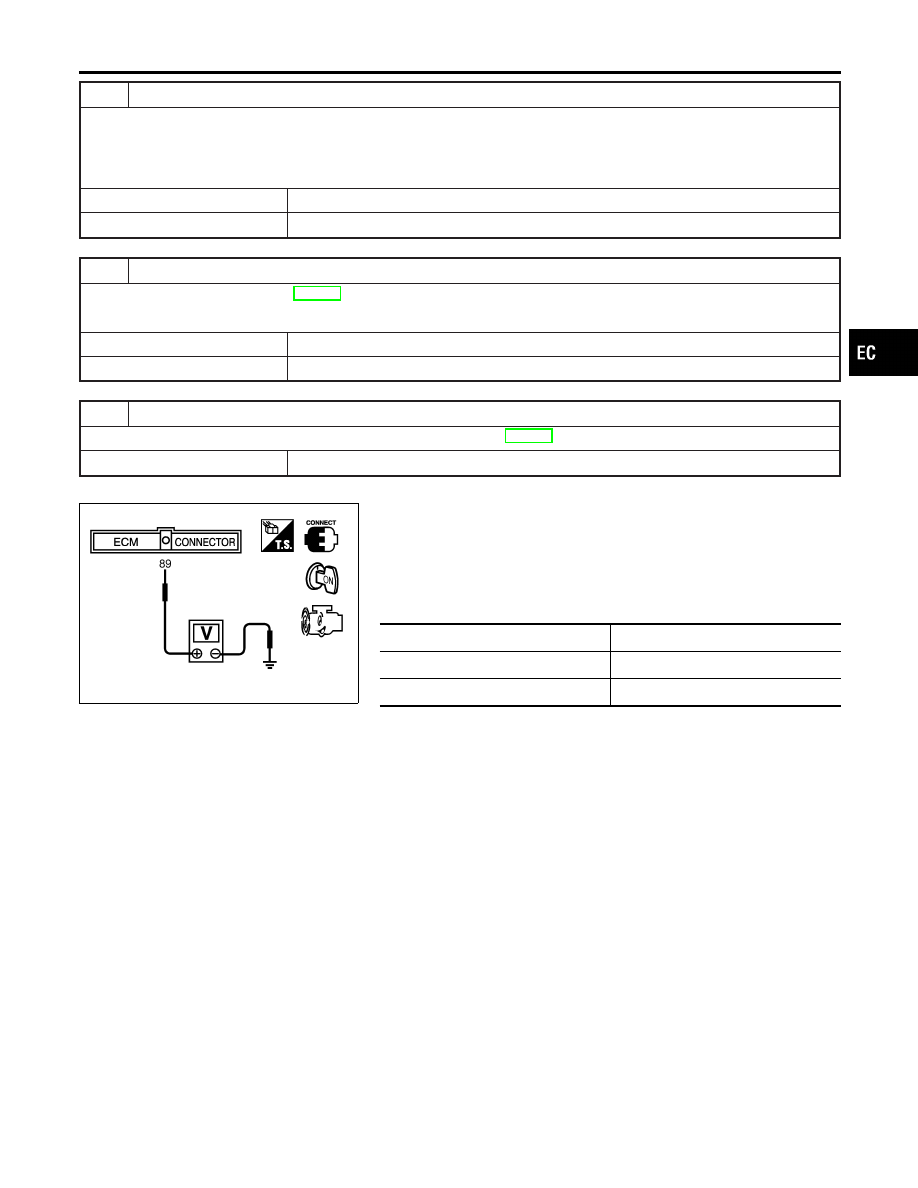

Infiniti I35 (A33). Manual - part 275





5

CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check harness continuity between ECM terminal 89 and PSP sensor terminal 2.

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

6

CHECK PSP SENSOR

Refer to “Component Inspection”, EC-441.

OK or NG

OK

©

GO TO 7.

NG

©

Replace PSP sensor.

7

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

SEC049D

Component Inspection

NHEC1257

POWER STEERING PRESSURE SENSOR
1.

Reconnect all harness connectors disconnected.

2.

Start engine and let it idle.

3.

Check voltage between ECM terminal 89 and ground under
the following conditions.

Condition

Voltage

Steering wheel is turned fully.

Approximately 0.5 - 4.0V

Steering wheel is not turned.

Approximately 0.4 - 0.8V

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0550 PSP SENSOR

Diagnostic Procedure (Cont’d)

EC-441

SEF093X

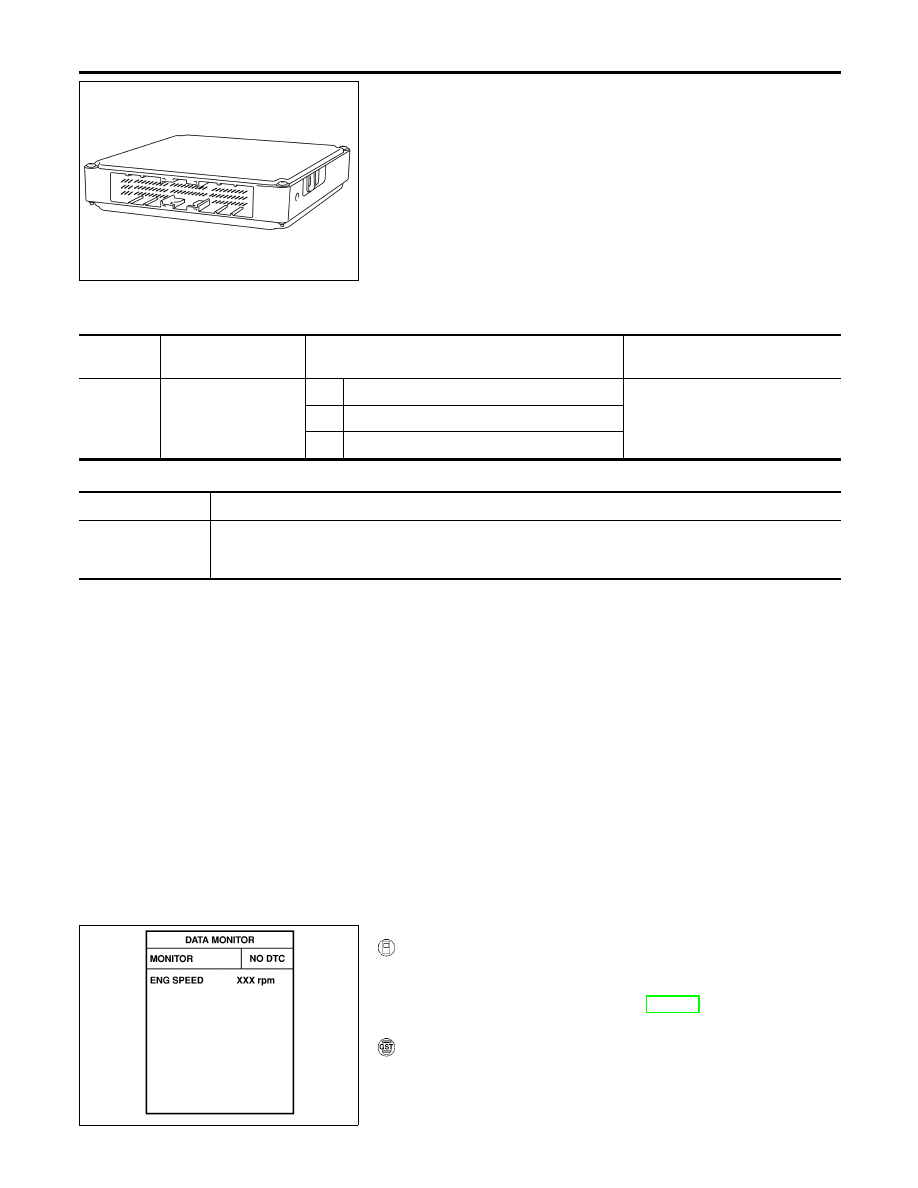

Component Description

NHEC1032

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the engine.

On Board Diagnosis Logic

NHEC1033

This self-diagnosis has one or two trip detection logic.

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P0605
0605

Engine control module

A)

ECM calculation function is malfunctioning.

I

ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.

FAIL-SAFE MODE

Detected items

Engine operation condition in fail-safe mode

Malfunction A

I

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening
(approx. 5 degrees) by the return spring.

I

ECM deactivates ASCD operation.

DTC Confirmation Procedure

NHEC1445

Perform PROCEDURE FOR MALFUNCTION A first. If the 1st
trip DTC cannot be confirmed, perform PROCEDURE FOR
MALFUNCTION B. If there is no malfunction on PROCEDURE
FOR MALFUNCTION B, perform PROCEDURE FOR MALFUNC-
TION C.
NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.

SEF058Y

PROCEDURE FOR MALFUNCTION A

With CONSULT-II

1)

Turn ignition switch ON.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

If 1st trip DTC is detected, go to EC-443, “Diagnostic Proce-
dure”.

With GST

Follow the procedure “With CONSULT-II” above.

DTC P0605 ECM

Component Description

EC-442

SEF058Y

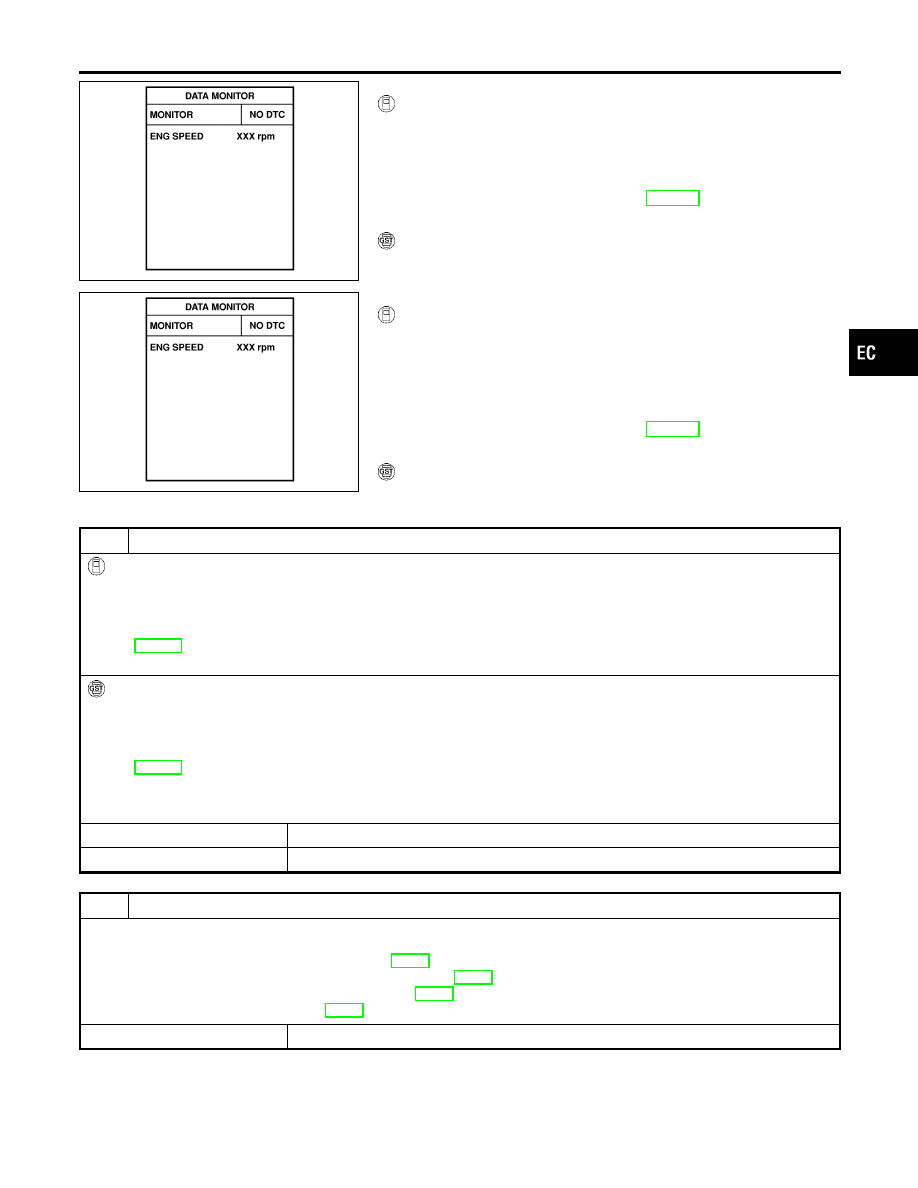

PROCEDURE FOR MALFUNCTION B

With CONSULT-II

1)

Turn ignition switch ON and wait at least 1 second.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Turn ignition switch OFF, wait at least 10 seconds, and then
turn ON.

4)

If 1st trip DTC is detected, go to EC-443, “Diagnostic Proce-
dure”.

With GST

Follow the procedure “With CONSULT-II” above.

SEF058Y

PROCEDURE FOR MALFUNCTION C

With CONSULT-II

1)

Turn ignition switch ON and wait at least 1 second.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Turn ignition switch OFF, wait at least 10 seconds, and then
turn ON.

4)

Repeat step 3 procedure, 32 times.

5)

If 1st trip DTC is detected, go to EC-443, “Diagnostic Proce-
dure”.

With GST

Follow the procedure “With CONSULT-II” above.

Diagnostic Procedure

NHEC1035

1

INSPECTION START

With CONSULT-II

1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform “DTC Confirmation Procedure”.

See EC-442.

5. Is the 1st trip DTC P0605 displayed again?

With GST

1. Turn ignition switch ON.
2. Select MODE 4 with GST.
3. Touch “ERASE”.
4. Perform “DTC Confirmation Procedure”.

See EC-442.

5. Is the 1st trip DTC P0605 displayed again?

Yes or No

Yes

©

GO TO 2.

No

©

INSPECTION END

2

REPLACE ECM

1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to “IVIS (INFINITI

VEHICLE IMMOBILIZER SYSTEM — NATS)”, EC-90.

3. Perform “Accelerator Pedal Released Position Learning”, EC-70.
4. Perform “Throttle Valve Closed Position Learning”, EC-70.
5. Perform “Idle Air Volume Learning”, EC-70.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0605 ECM

DTC Confirmation Procedure (Cont’d)

EC-443

Component Description

NHEC1258

Malfunction Indicator Lamp (MIL) is located on the instrument panel. When the ignition switch is turned ON
without engine running, MIL will light up. This is a bulb check. When the engine is started, MIL should go off.
If MIL remains on, the on board diagnostic system has detected an engine system malfunction.

On Board Diagnosis Logic

NHEC1259

The MIL will not light up for this self-diagnosis.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0650
0650

Malfunction indicator
(MIL) control circuit

I

An excessively high voltage is sent to ECM
through the MIL circuit under the condition
that calls for MIL light up.

I

An excessively low voltage is sent to ECM
through the MIL circuit under the condition
that calls for MIL not to light up.

I

Harness or connectors
(MIL circuit is open or shorted.)

I

MIL

FAIL-SAFE MODE
ECM enters fail-safe mode when both DTC P0650 and another DTC, which calls for MIL to light up, are
detected at the same time.

Detected items

Engine operating condition in fail-safe mode

MIL circuit

Engine speed will not rise more than 2,500 rpm due to the fuel cut.

DTC Confirmation Procedure

NHEC1260

NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.

SEF058Y

With CONSULT-II

1.

Turn ignition switch ON and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-446.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC P0650 MIL (CIRCUIT)

Component Description

EC-444
