CHECK VACUUM HOSE

Check vacuum hoses for clogging or disconnection. Refer to “Vacuum Hose Drawing”, EC-31.

OK or NG

OK (With CONSULT-II)

©

GO TO 16.

OK (Without CONSULT-
II)

©

GO TO 17.

NG

©

Repair or reconnect the hose.

16

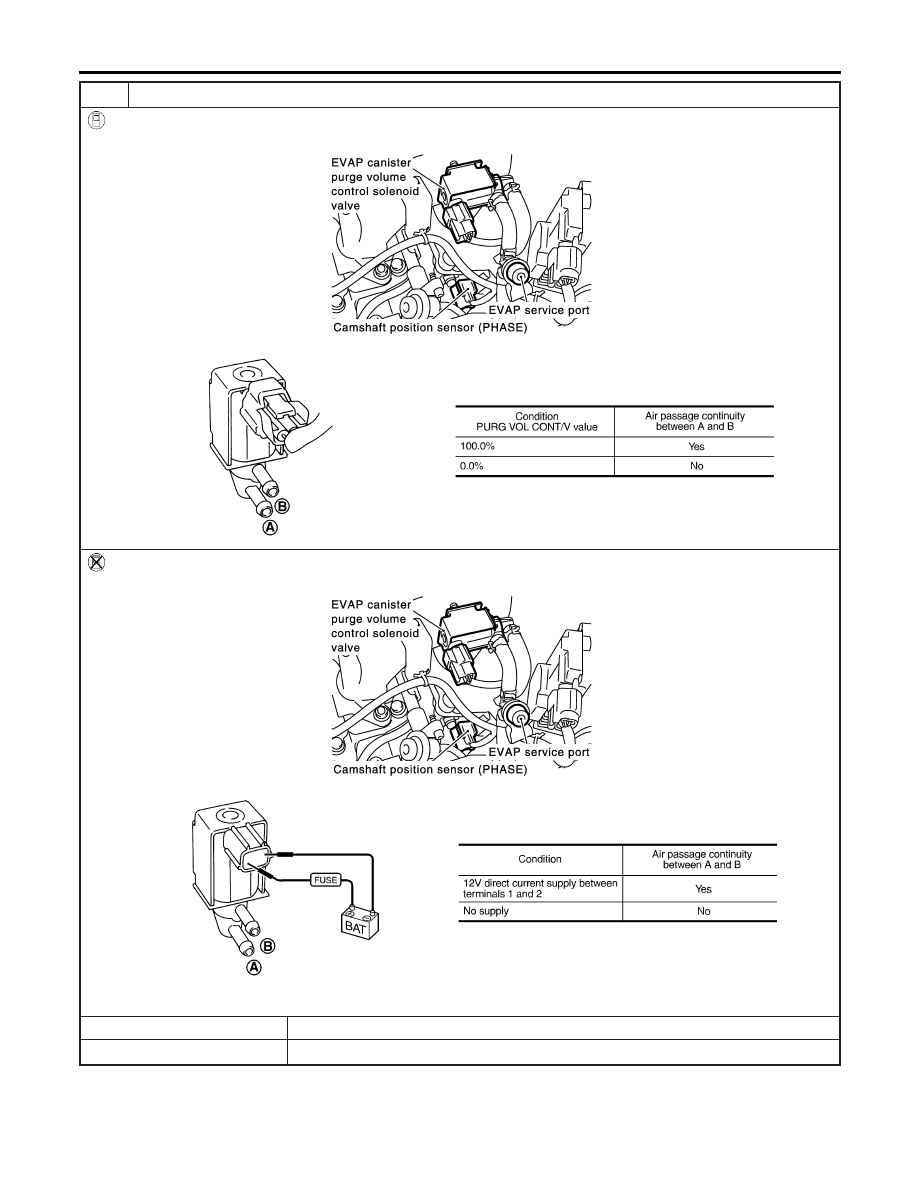

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

1. Start engine.
2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-II. Check that engine speed varies according

to the valve opening.

SEC142D

OK or NG

OK

©

GO TO 18.

NG

©

GO TO 17.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0456 EVAP CONTROL SYSTEM

Diagnostic Procedure (Cont’d)

EC-413

17

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEC929C

SEF334X

Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEC929C

SEF335X

OK or NG

OK

©

GO TO 18.

NG

©

Replace EVAP canister purge volume control solenoid valve.

DTC P0456 EVAP CONTROL SYSTEM

Diagnostic Procedure (Cont’d)

EC-414

18

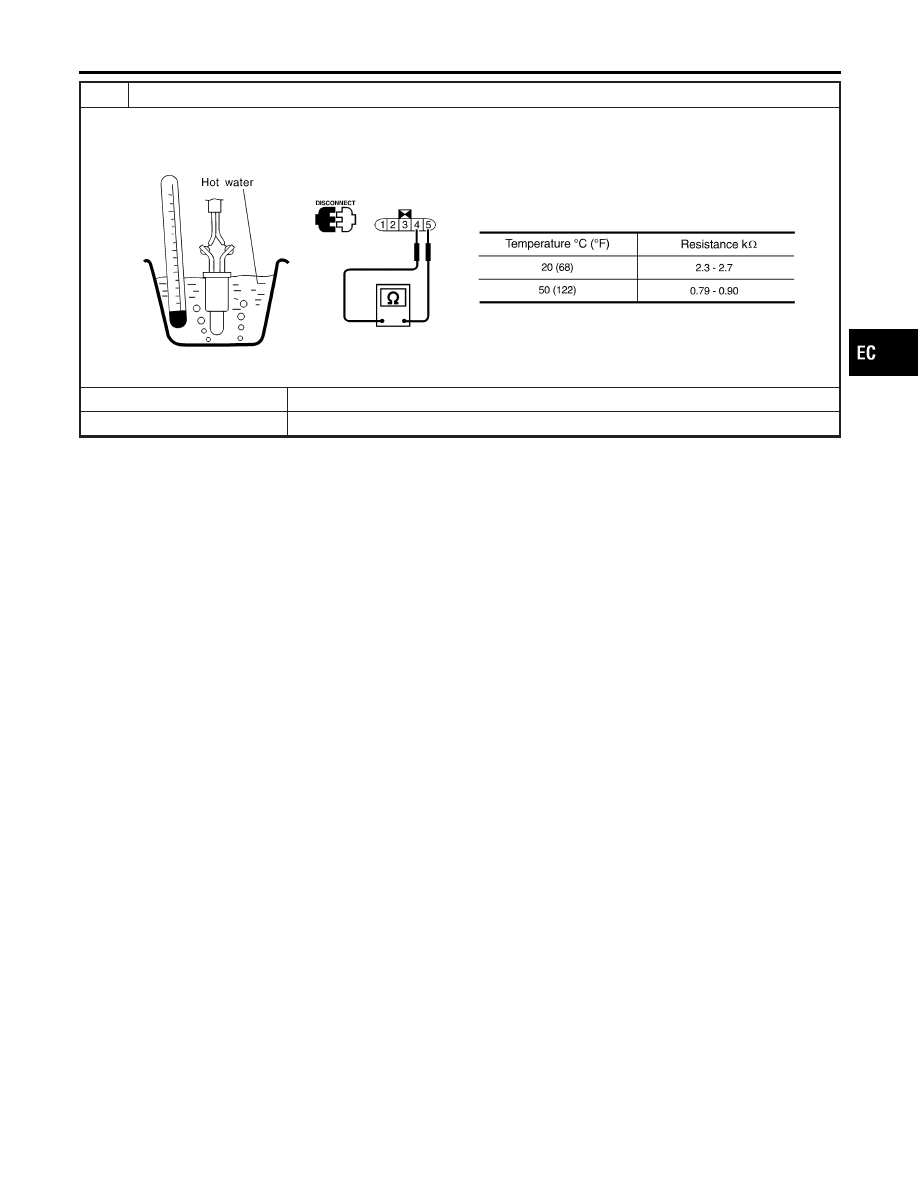

CHECK FUEL TANK TEMPERATURE SENSOR

1. Remove fuel level sensor unit.
2. Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5 by heating with hot water or heat gun

as shown in the figure.

SEF587X

OK or NG

OK

©

GO TO 19.

NG

©

Replace fuel level sensor unit.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0456 EVAP CONTROL SYSTEM

Diagnostic Procedure (Cont’d)

EC-415

19

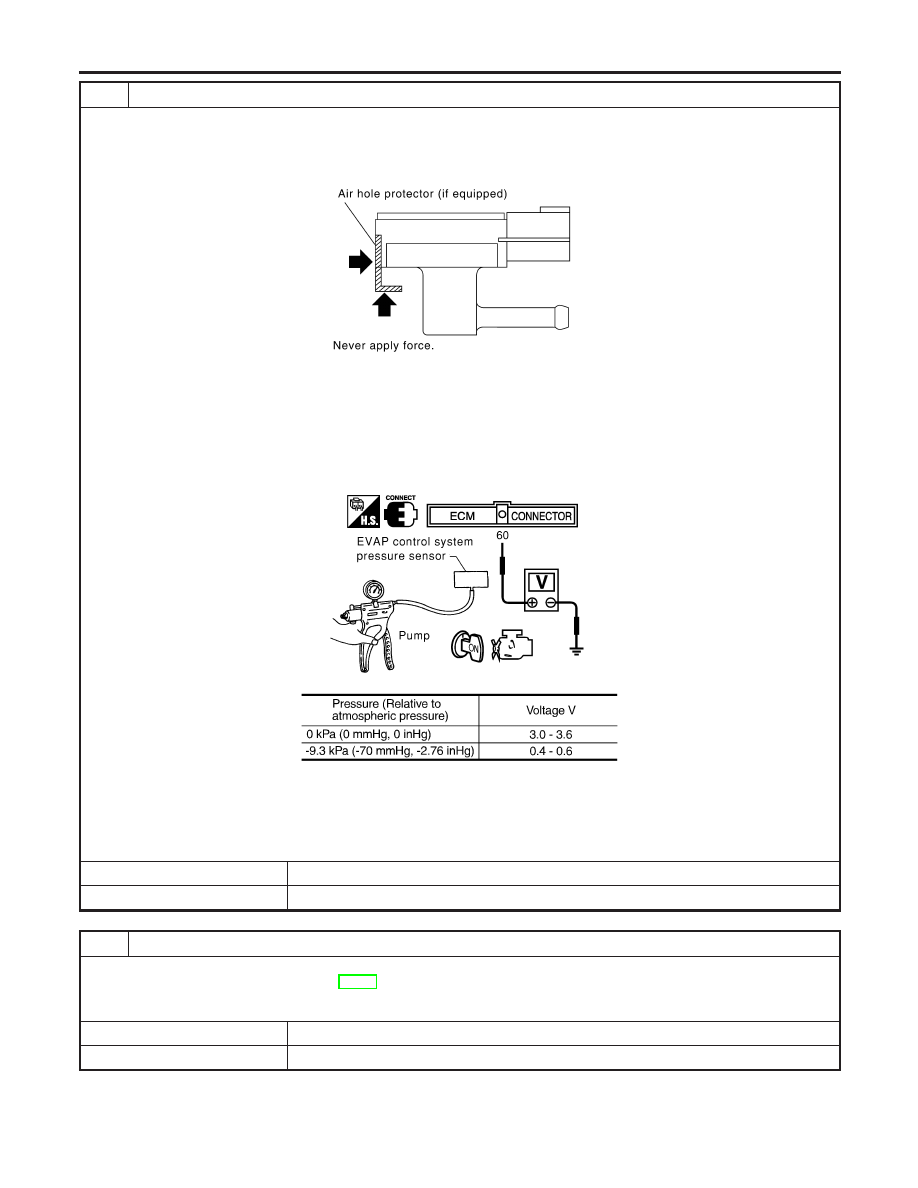

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1. Remove EVAP control system pressure sensor with its harness connector connected.

CAUTION:

Never apply force to the air hole protector of the sensor if equipped.

SEF799W

2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch ON.
4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

I

Always calibrate the vacuum pump gauge when using it.

I

Do not apply below −20 kPa (−150 mmHg, −5.91 inHg) or over 20 kPa (150 mmHg, 5.91 inHg) of pressure.

5. Check input voltage between ECM terminal 60 and ground.

SEC908C

MTBL1159

CAUTION:

Discard and EVAP control system pressure sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

OK or NG

OK

©

GO TO 20.

NG

©

Replace EVAP control system pressure sensor.

20

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer to “Evaporative Emission System”, EC-37.

OK or NG

OK

©

GO TO 21.

NG

©

Repair or reconnect the hose.

DTC P0456 EVAP CONTROL SYSTEM

Diagnostic Procedure (Cont’d)

EC-416
