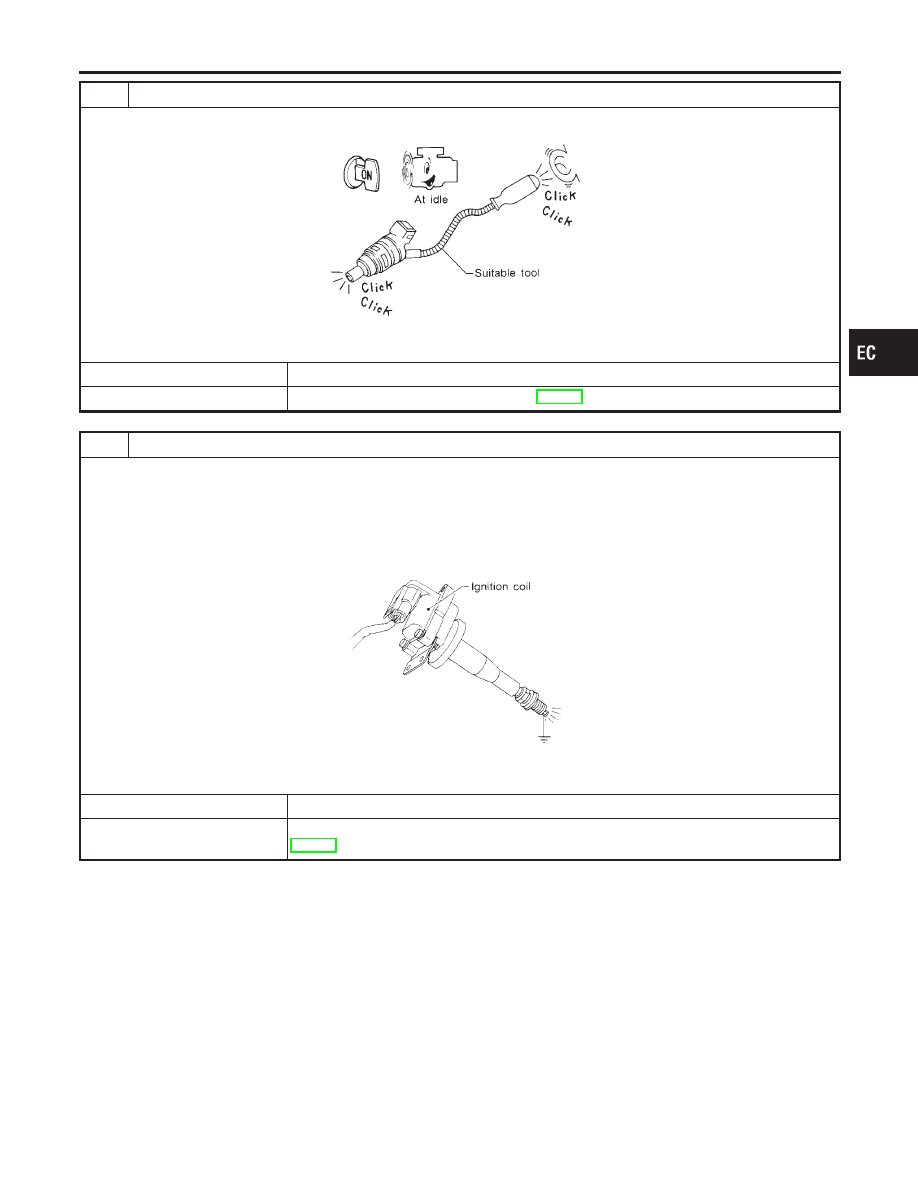

4

CHECK INJECTOR

Does each injector make an operating sound at idle?

MEC703B

Yes or No

Yes

©

GO TO 5.

No

©

Check injector(s) and circuit(s). Refer to EC-696.

5

CHECK IGNITION SPARK

1. Turn ignition switch OFF.
2. Remove ignition coil assembly from rocker cover.
3. Connect a known good spark plug to the ignition wire.
4. Disconnect all injector harness connectors.
5. Place end of spark plug against a suitable ground and crank engine.
6. Check for spark.

SEF575Q

OK or NG

OK

©

GO TO 6.

NG

©

Check ignition coil, power transistor and their circuits. Refer to “IGNITION SIGNAL”,
EC-685.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER

MISFIRE

Diagnostic Procedure (Cont’d)

EC-305

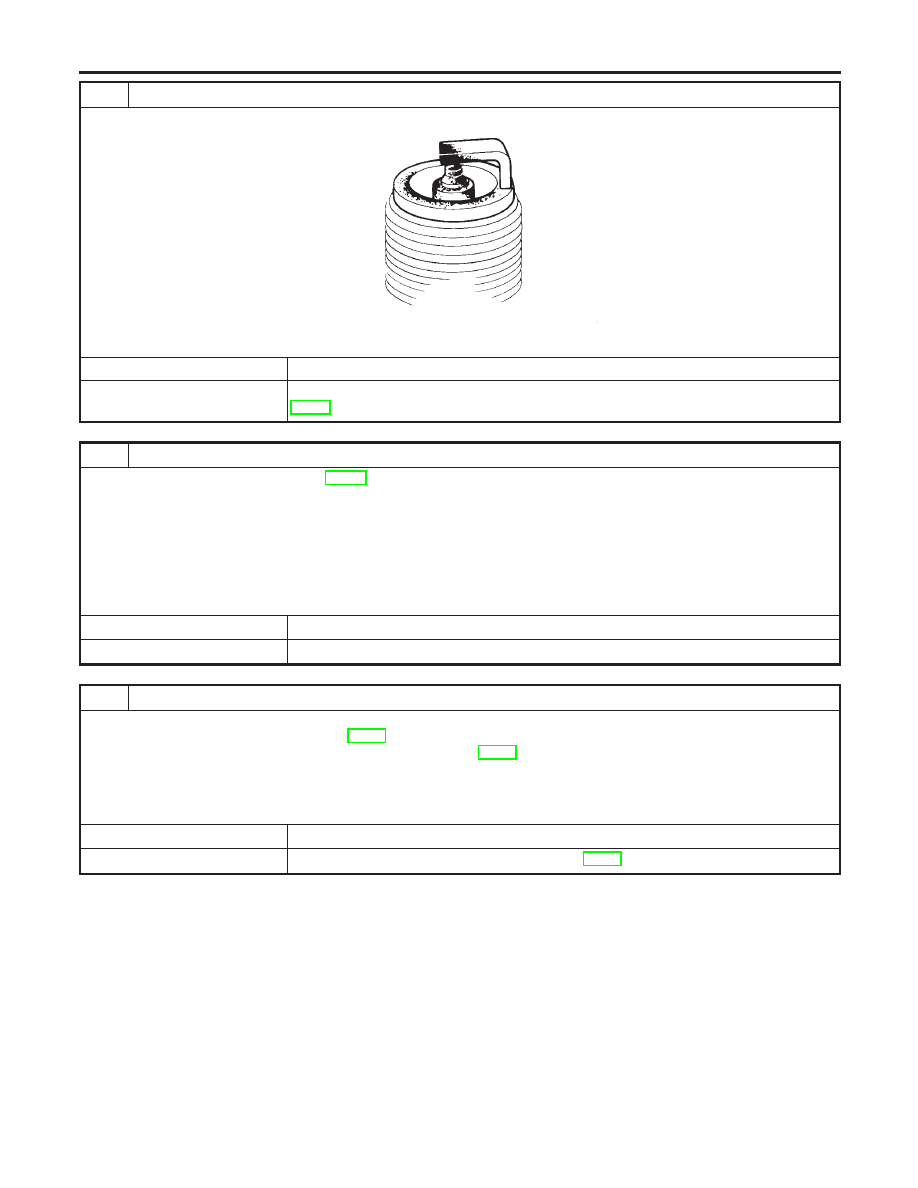

6

CHECK SPARK PLUGS

Remove the spark plugs and check for fouling, etc.

SEF156I

OK or NG

OK

©

GO TO 7.

NG

©

Repair or replace spark plug(s) with standard type one(s). For spark plug type, refer to
MA-17, “Changing Spark Plugs”.

7

CHECK COMPRESSION PRESSURE

Check compression pressure. Refer to EM-13, “Measurement of Compression Pressure”.

Standard:

1,275 kPa (13.0 kg/cm

2

, 185 psi)/300 rpm

Minimum:

981 kPa (10.0 kg/cm

2

, 142 psi)/300 rpm

Difference between each cylinder:

98 kPa (1.0 kg/cm

2

, 14 psi)/300 rpm

OK or NG

OK

©

GO TO 8.

NG

©

Check pistons, piston rings, valves, valve seats and cylinder head gaskets.

8

CHECK FUEL PRESSURE

1. Install all removed parts.
2. Release fuel pressure to zero. Refer to EC-55.
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-55.

At idle:

Approx. 350 kPa (3.57 kg/cm

2

, 51 psi)

OK or NG

OK

©

GO TO 9.

NG

©

Follow the instruction of “Fuel Pressure Check”, EC-55.

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER

MISFIRE

Diagnostic Procedure (Cont’d)

EC-306

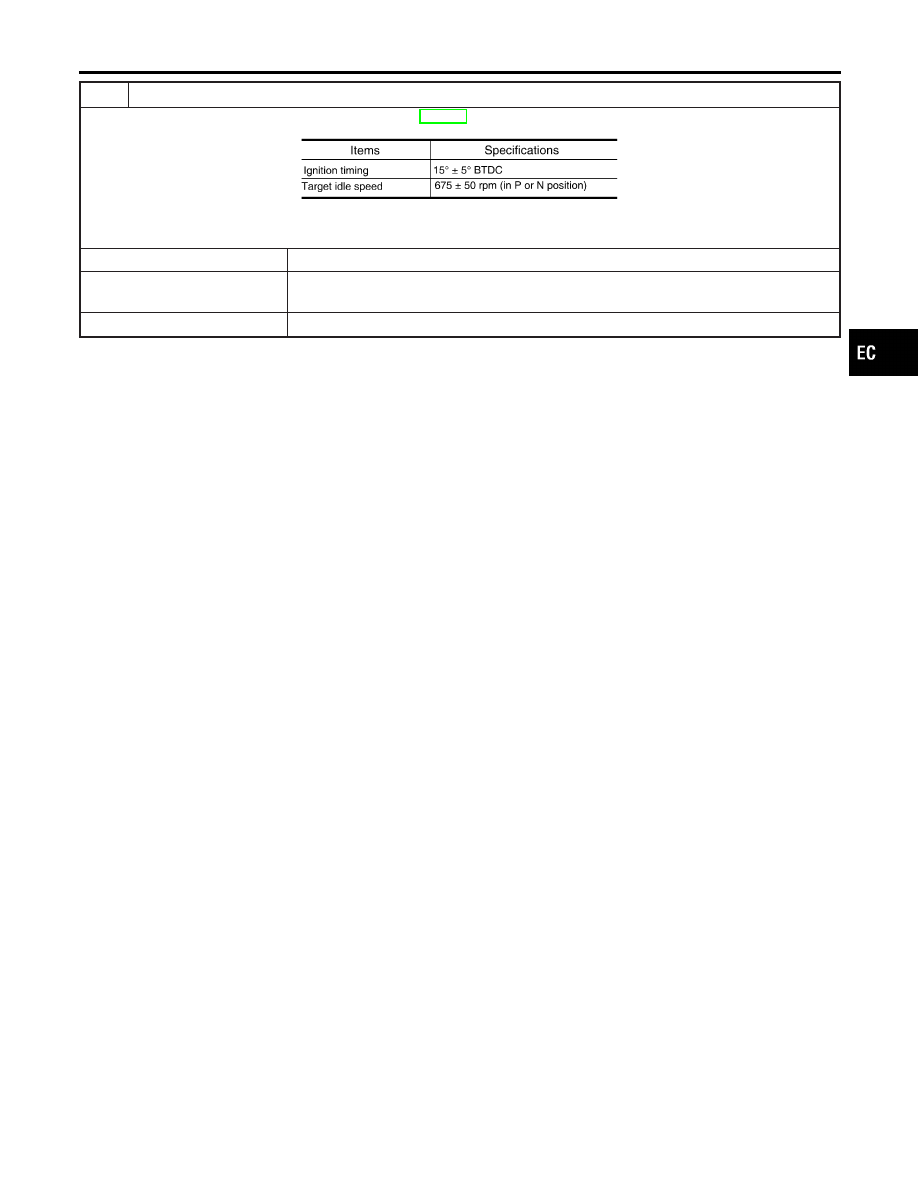

9

CHECK IGNITION TIMING

Check the following items. Refer to “Basic Inspection”, EC-120.

MTBL1839

OK or NG

OK (With CONSULT-II)

©

GO TO 10.

OK (Without CONSULT-
II)

©

GO TO 11.

NG

©

Follow the “Basic Inspection”.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER

MISFIRE

Diagnostic Procedure (Cont’d)

EC-307

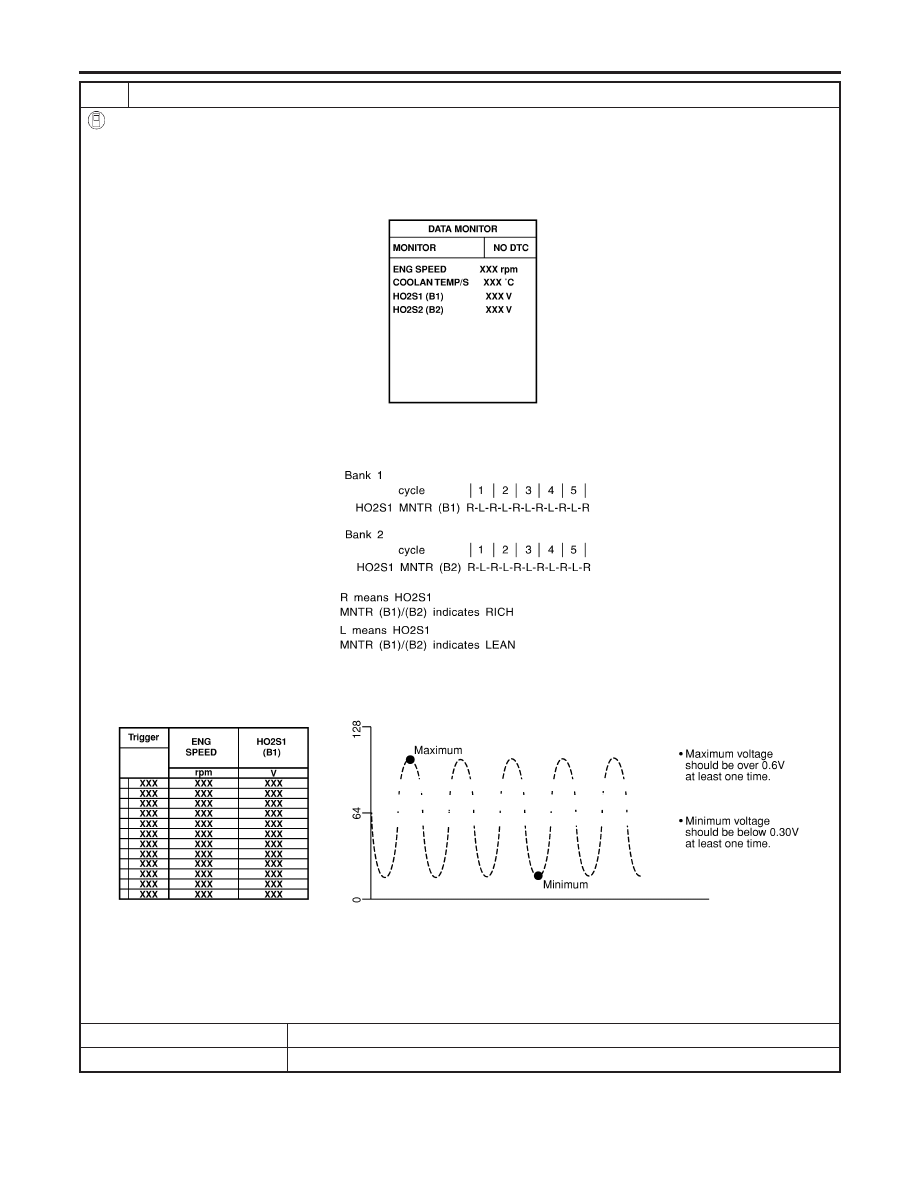

10

CHECK HEATED OXYGEN SENSOR 1

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Select “MANU TRIG” and “HI SPEED” in “DATA MONITOR” mode with CONSULT-II, and select “HO2S1 (B1)/(B2)” and

“HO2S1 MNTR (B1)/(B2)”.

3. Hold engine speed at 2,000 rpm under no load during the following steps.
4. Touch “RECORD” on CONSULT-II screen.

SEF967Y

5. Check the following.

I

“HO2S1 MNTR (B1)/(B2)” in “DATA MONITOR” mode changes from “RICH” to “LEAN” to “RICH” 5 times in 10 seconds.
5 times (cycles) are counted as shown left:

SEF647Y

I

“HO2S1 (B1)/(B2)” voltage goes above 0.6V at least once.

I

“HO2S1 (B1)/(B2)” voltage goes below 0.3V at least once.

I

“HO2S1 (B1)/(B2)” voltage never exceeds 1.0V.

SEF648Y

CAUTION:

I

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

I

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool
J-43897-18 or J-43897-12 and approved anti-seize lubricant.

OK or NG

OK

©

GO TO 12.

NG

©

Replace malfunctioning heated oxygen sensor 1.

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER

MISFIRE

Diagnostic Procedure (Cont’d)

EC-308
