DTC Confirmation Procedure

NHEC1437

NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 10V at idle.

SEF058Y

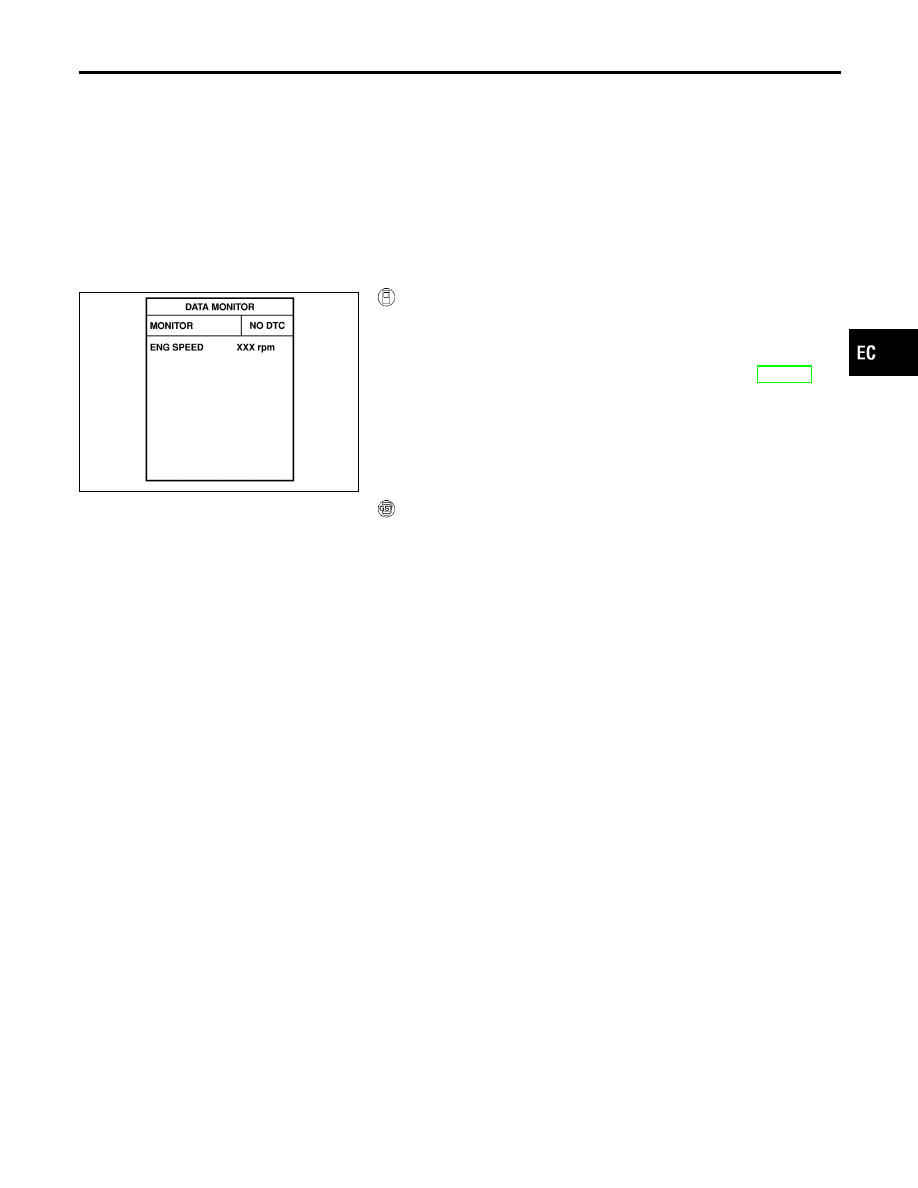

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to “Diagnostic Procedure”, EC-299.

With GST

Follow the procedure “WITH CONSULT-II” above.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0222, P0223 TP SENSOR

DTC Confirmation Procedure

EC-297

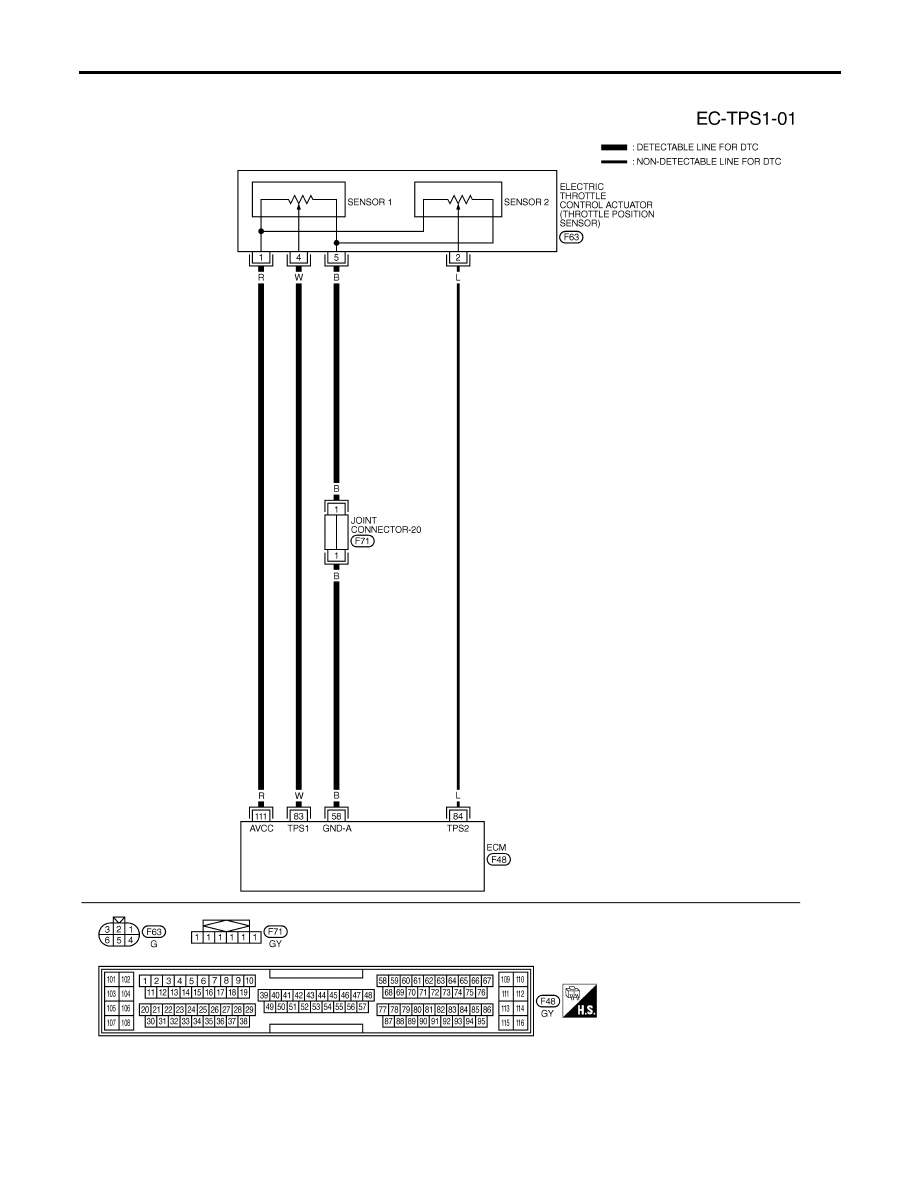

Wiring Diagram

NHEC1376

MEC635E

DTC P0222, P0223 TP SENSOR

Wiring Diagram

EC-298

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

58

B

Sensor ground

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 0V

83

W

Throttle position sensor
1

[Ignition switch ON]

I

Shift lever position is D

I

Accelerator pedal released

More than 0.36V

[Ignition switch ON]

I

Shift lever position is body D

I

Accelerator pedal fully depressed

Less than 4.75V

84

L

Throttle position sensor
2

[Ignition switch ON]

I

Shift lever position is D

I

Accelerator pedal released

Less than 4.75V

[Ignition switch ON]

I

Shift lever position is D

I

Accelerator pedal fully depressed

More than 0.36V

111

R

Sensor power supply

[Ignition switch ON]

Approximately 5V

Diagnostic Procedure

NHEC1377

1

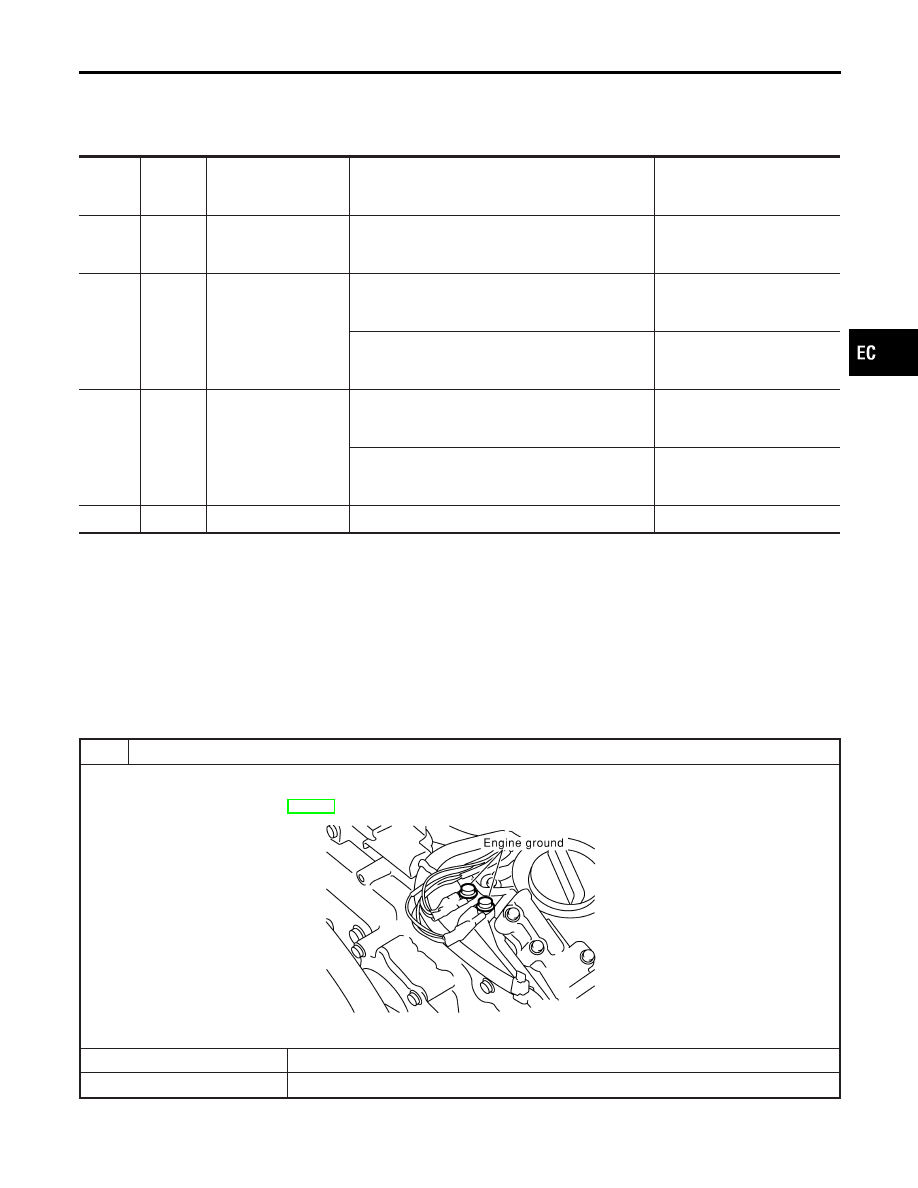

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.
2. Loosen and retighten two engine ground screws.

Refer to “Ground Inspection”, EC-160.

SEC047D

OK or NG

OK

©

GO TO 2.

NG

©

Repair or replace ground connections.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0222, P0223 TP SENSOR

Wiring Diagram (Cont’d)

EC-299

2

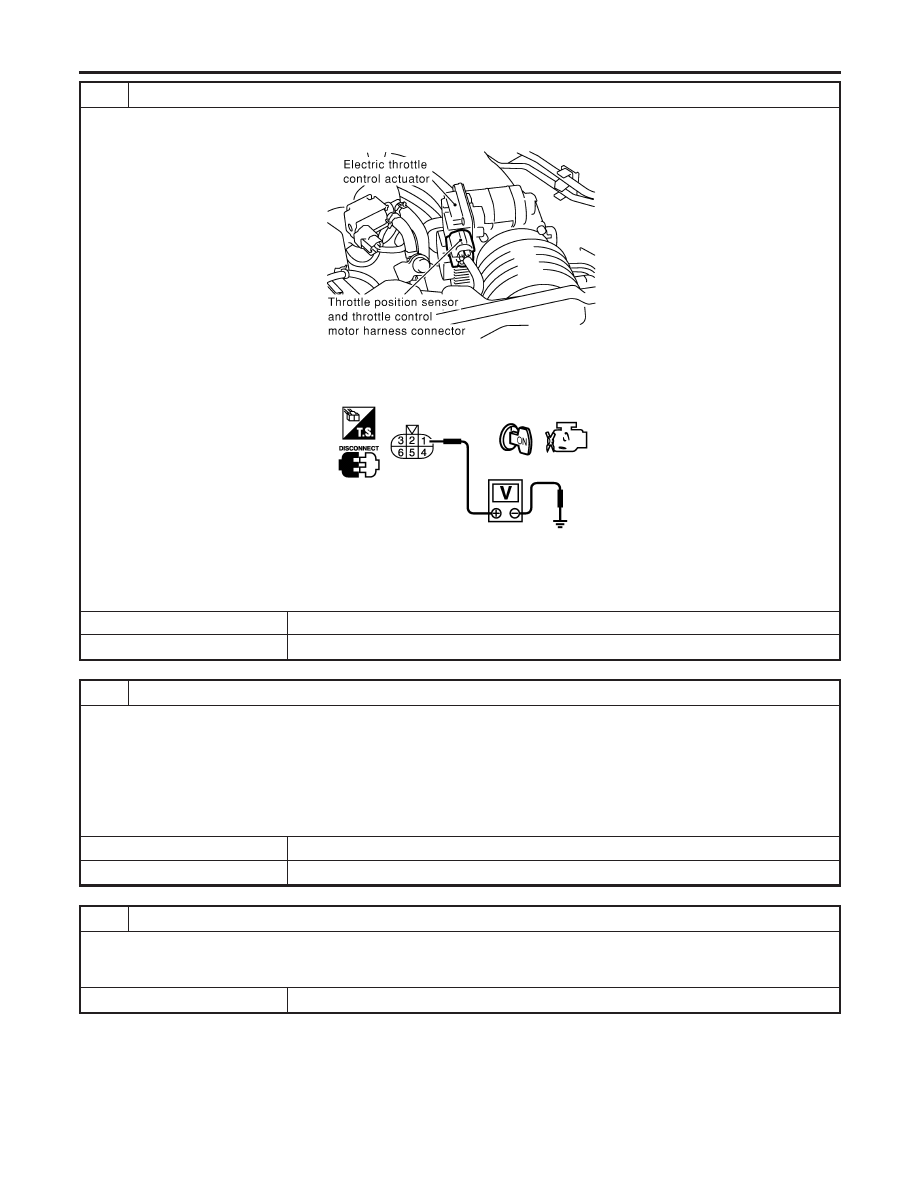

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

SEC054D

3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.

PBIB0082E

Voltage: Approximately 5V

OK or NG

OK

©

GO TO 3.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

3

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 58.

Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Joint connector-20

I

Harness for open or short between electric throttle control actuator and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P0222, P0223 TP SENSOR

Diagnostic Procedure (Cont’d)

EC-300
