Infiniti I35 (A33). Manual - part 238





Wiring Diagram

NHEC0923

MEC634E

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0182, P0183 FTT SENSOR

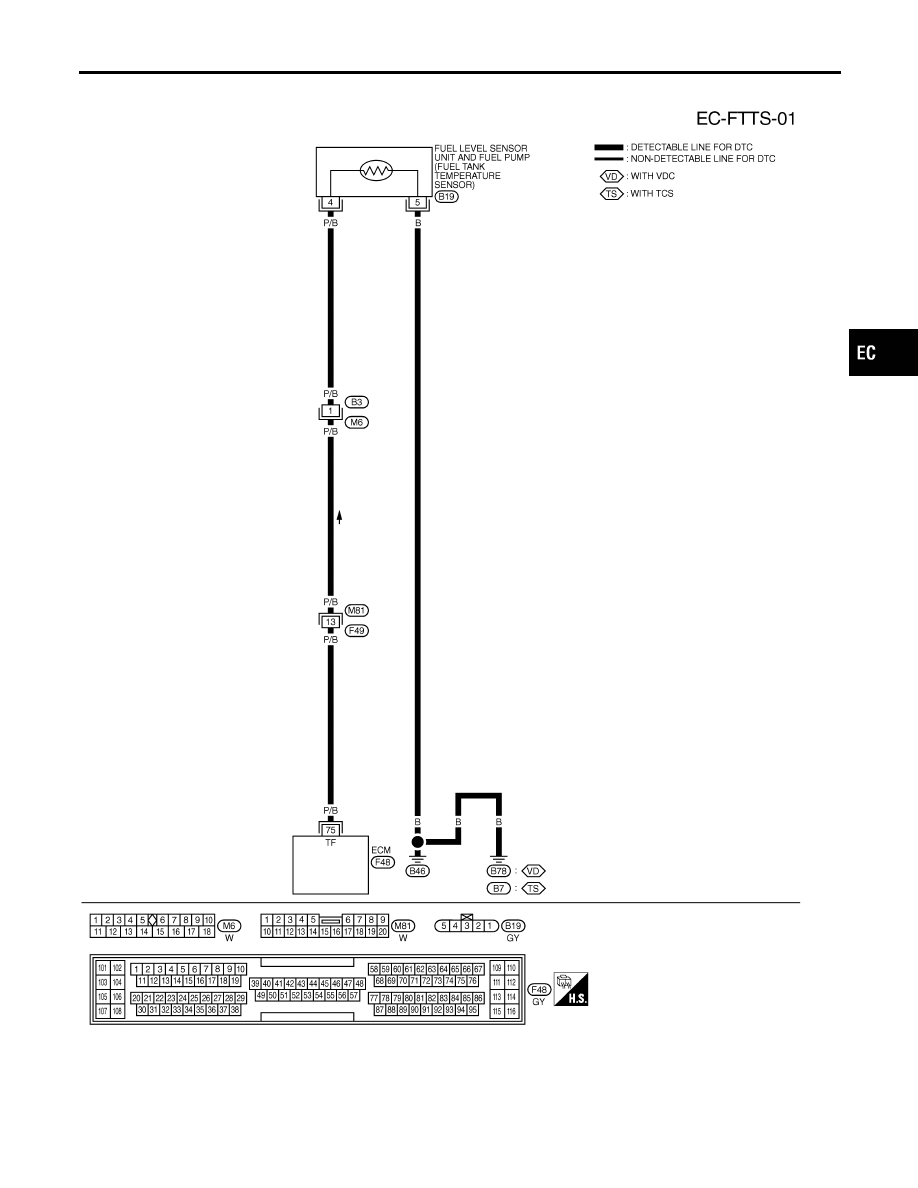

Wiring Diagram

EC-293

Diagnostic Procedure

NHEC0924

1

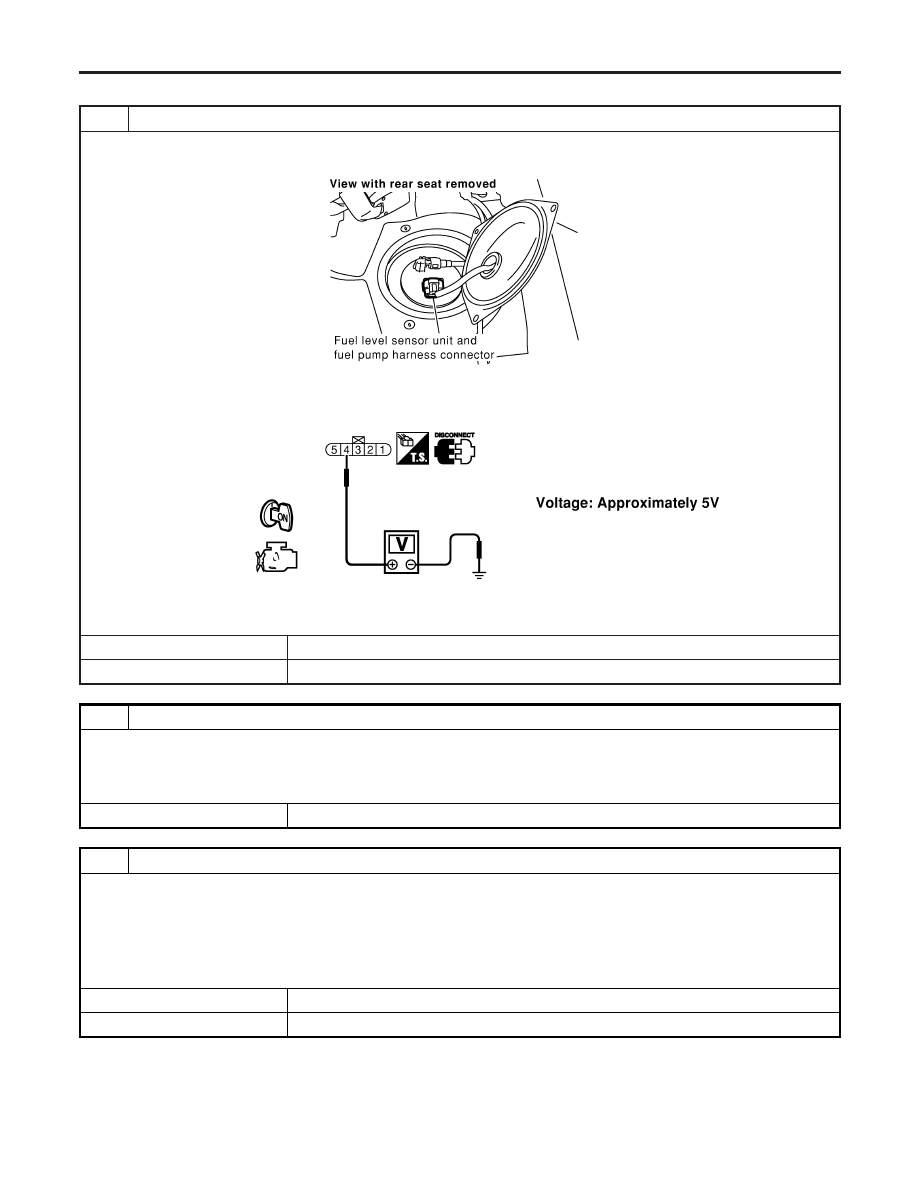

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor unit and fuel pump” harness connector.

SEC082D

3. Turn ignition switch ON.
4. Check voltage between fuel level sensor unit terminal 4 and ground with CONSULT-II or tester.

SEC116D

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors B3, M6

I

Harness connectors M81, F49

I

Harness for open or short between ECM and “fuel level sensor unit and fuel pump”

©

Repair harness or connector.

3

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.
2. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 5 and ground. Refer to Wiring Dia-

gram.

Continuity should exist.

3. Also check harness for short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to power in harness or connectors.

DTC P0182, P0183 FTT SENSOR

Diagnostic Procedure

EC-294

4

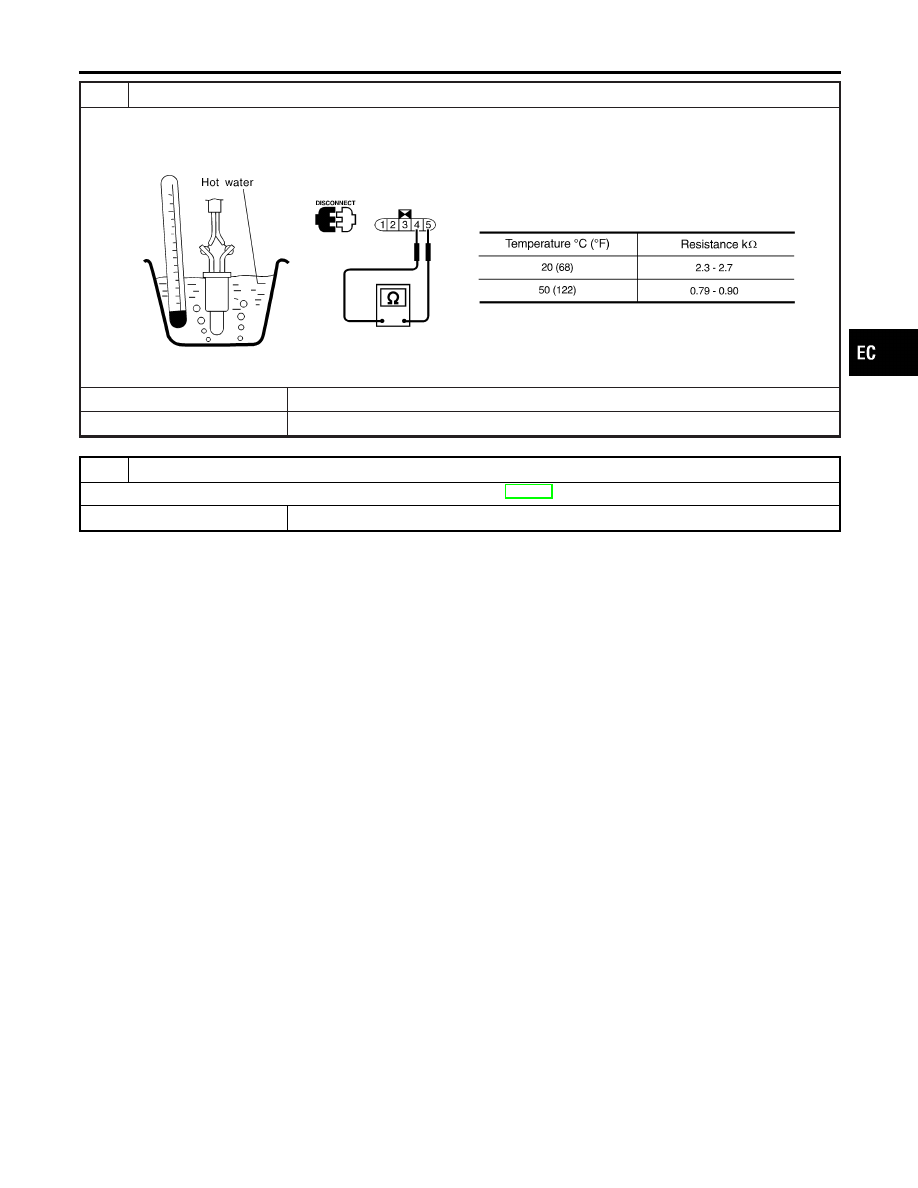

CHECK FUEL TANK TEMPERATURE SENSOR

1. Remove fuel level sensor unit.
2. Check resistance between “fuel level sensor unit and fuel pump” terminals 4 and 5 by heating with hot water or heat

gun as shown in the figure.

SEF587X

OK or NG

OK

©

GO TO 5.

NG

©

Replace fuel level sensor unit.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-152.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0182, P0183 FTT SENSOR

Diagnostic Procedure (Cont’d)

EC-295

PBIB0145E

Component Description

NHEC1372

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds
to the throttle valve movement.
The throttle position sensor has the two sensors. These sensors
are a kind of potentiometers which transform the throttle valve
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the throttle valve and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the throttle valve from
these signals and the ECM controls the throttle control motor to
make the throttle valve opening angle properly in response to driv-
ing condition.

CONSULT-II Reference Value in Data Monitor
Mode

NHEC1373

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL SEN1

I

Ignition switch:
ON (Engine stopped)

I

Shift lever: D

Accelerator pedal: Released

More than 0.36V

Accelerator pedal: Fully depressed

Less than 4.75V

On Board Diagnosis Logic

NHEC1436

These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P0222 or P0223 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to EC-539.

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P0222
0222

Throttle position sen-
sor 1 circuit low input

An excessively low voltage from the TP sensor 1
is sent to ECM.

I

Harness or connectors
(The TP sensor 1 circuit is open or
shorted.)

I

Electric throttle control actuator (TP
sensor 1)

P0223
0223

Throttle position sen-
sor 1 circuit high
input

An excessively high voltage from the TP sensor 1
is sent to ECM.

FAIL-SAFE MODE

NHEC1436S01

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

Engine operation condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within
+10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0222, P0223 TP SENSOR

Component Description

EC-296
