SEC902C

Overall Function Check

NHEC0893

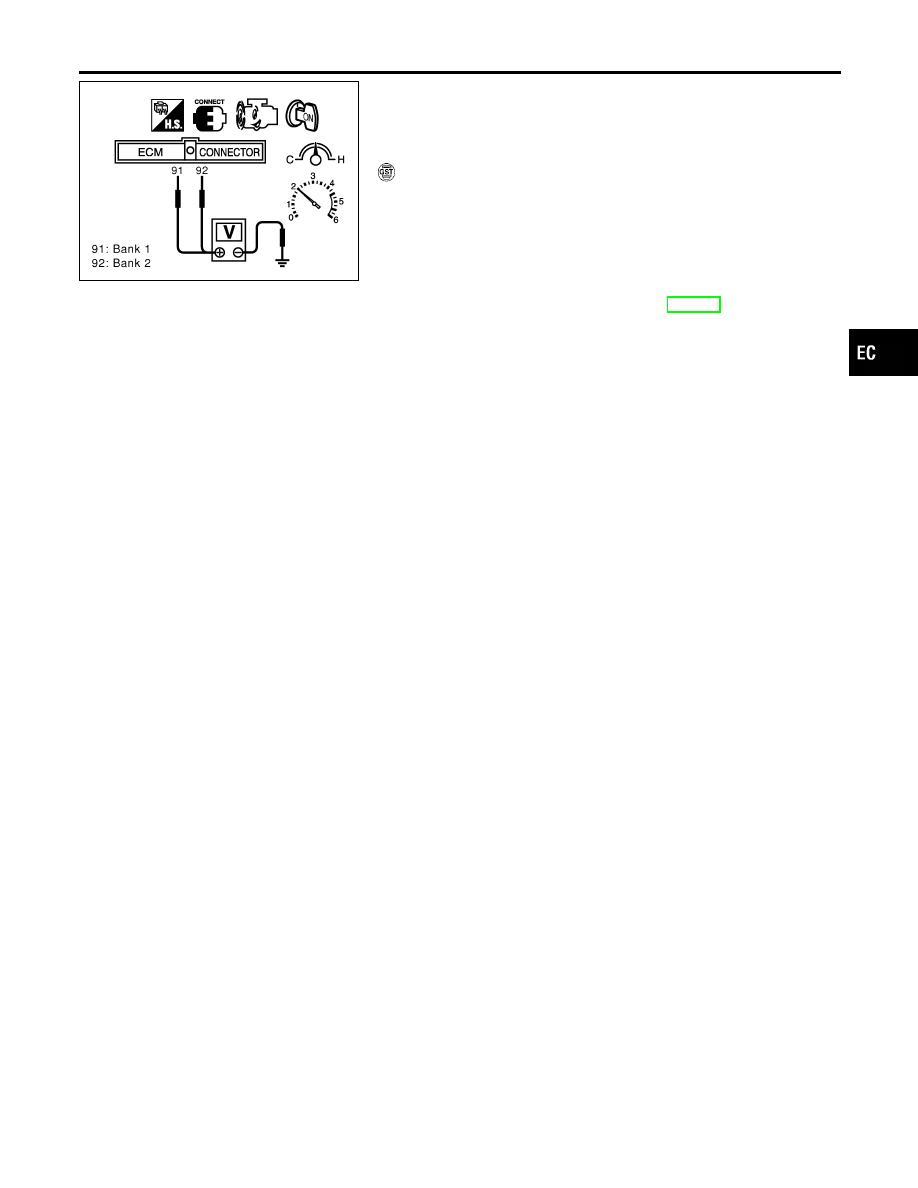

Use this procedure to check the overall function of the heated oxy-
gen sensor 1 circuit. During this check, a 1st trip DTC might not be
confirmed.

WITH GST

NHEC0893S01

1)

Start engine and warm it up to normal operating temperature.

2)

Set voltmeter probes between ECM terminal 91 (HO2S1 bank
1 signal) or 92 (HO2S1 bank 2 signal) and ground.

3)

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

I

The voltage does not remain in the range of 0.2 - 0.4V.

4)

If NG, go to “Diagnostic Procedure”, EC-252.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0134, P0154 HO2S1

Overall Function Check

EC-249

Wiring Diagram

=NHEC0894

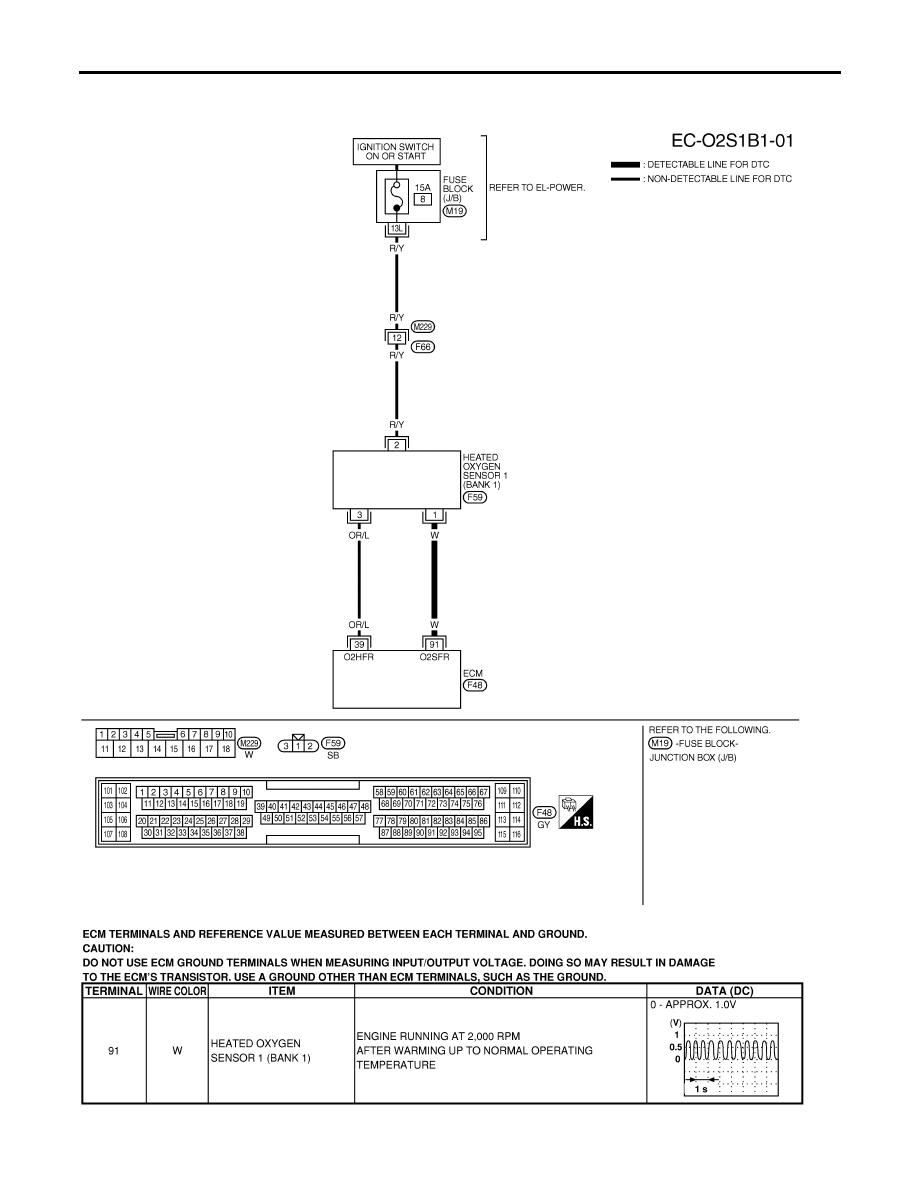

BANK 1

NHEC0894S01

MEC537D

SEC107D

DTC P0134, P0154 HO2S1

Wiring Diagram

EC-250

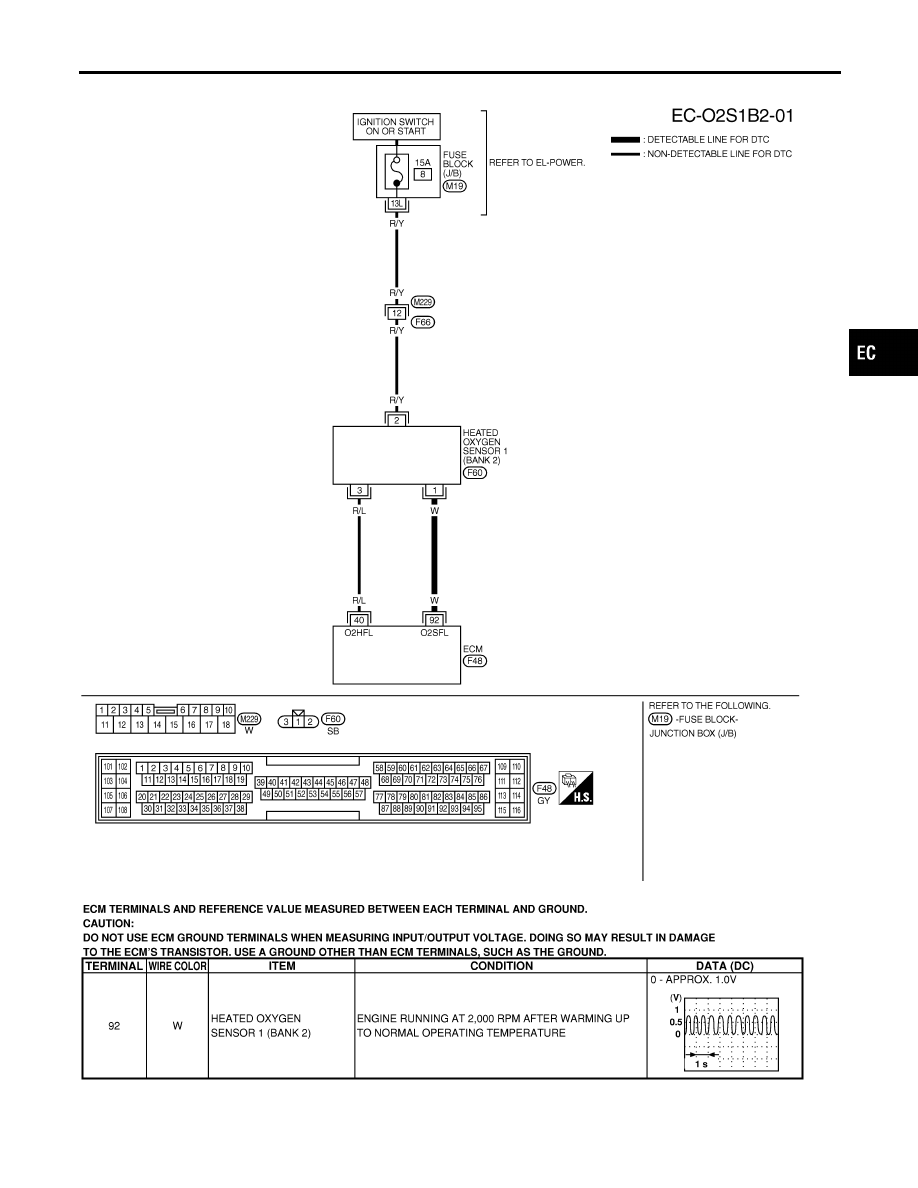

BANK 2

NHEC0894S02

MEC538D

SEC108D

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0134, P0154 HO2S1

Wiring Diagram (Cont’d)

EC-251

Diagnostic Procedure

NHEC0895

1

CHECK GROUND CONNECTIONS

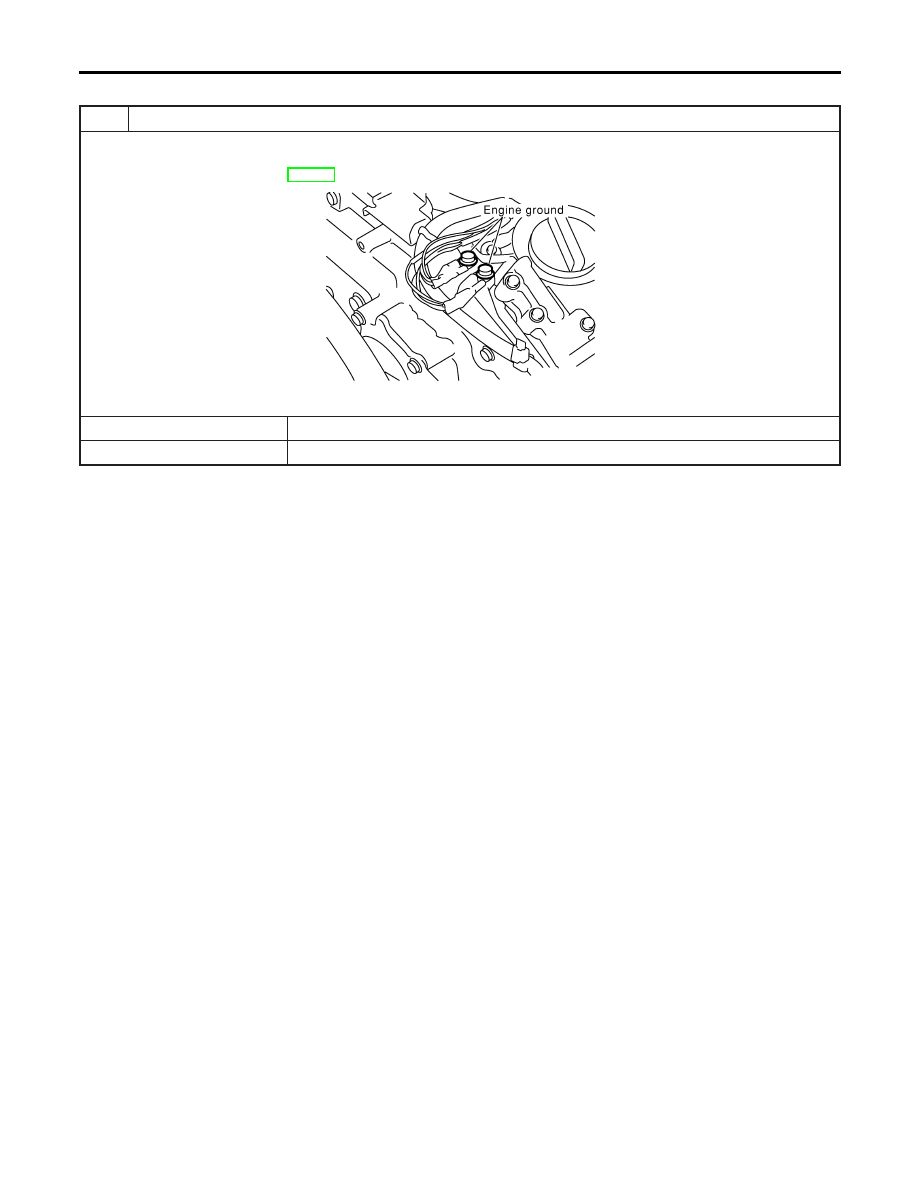

1. Turn ignition switch OFF.
2. Loosen and retighten two engine ground screws.

Refer to “Ground Inspection”, EC-160.

SEC047D

OK or NG

OK

©

GO TO 2.

NG

©

Repair or replace ground connections.

DTC P0134, P0154 HO2S1

Diagnostic Procedure

EC-252
