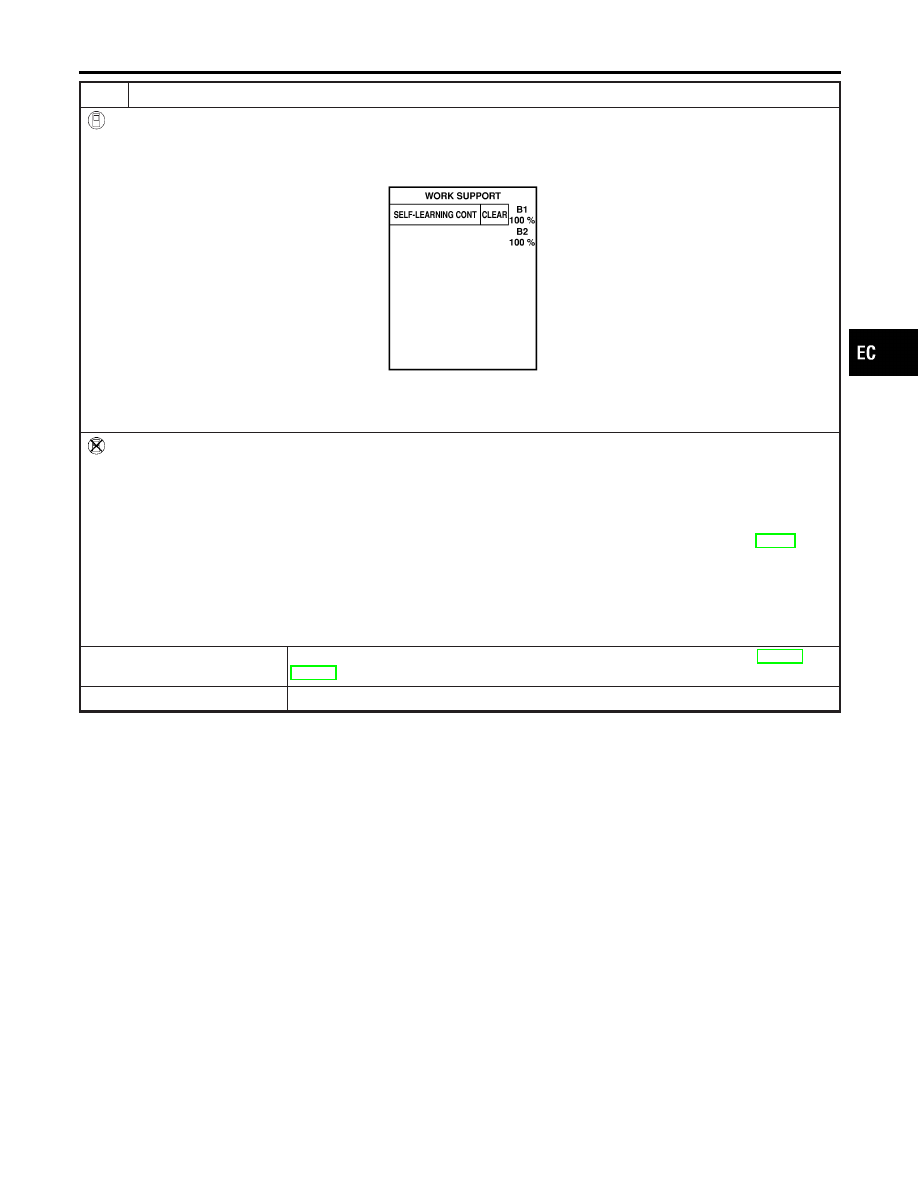

CLEAR THE SELF-LEARNING DATA

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-II.
3. Clear the self-learning control coefficient by touching “CLEAR”.

SEF968Y

4. Run engine for at least 10 minutes at idle speed.

Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector, and restart and run engine for at least 5 seconds at idle speed.
4. Stop engine and reconnect mass air flow sensor harness connector.
5. Make sure DTC P0102 is displayed.
6. Erase the DTC memory. Refer to “HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION”, EC-88.
7. Make sure DTC P0000 is displayed.
8. Run engine for at least 10 minutes at idle speed.

Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

©

Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to EC-273,
EC-281.

No

©

GO TO 6.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0133, P0153 HO2S1

Diagnostic Procedure (Cont’d)

EC-241

6

DISCONNECT HO2S1 HARNESS CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect corresponding heated oxygen sensor 1 harness connector.

SEC099D

SEC134D

©

GO TO 7.

7

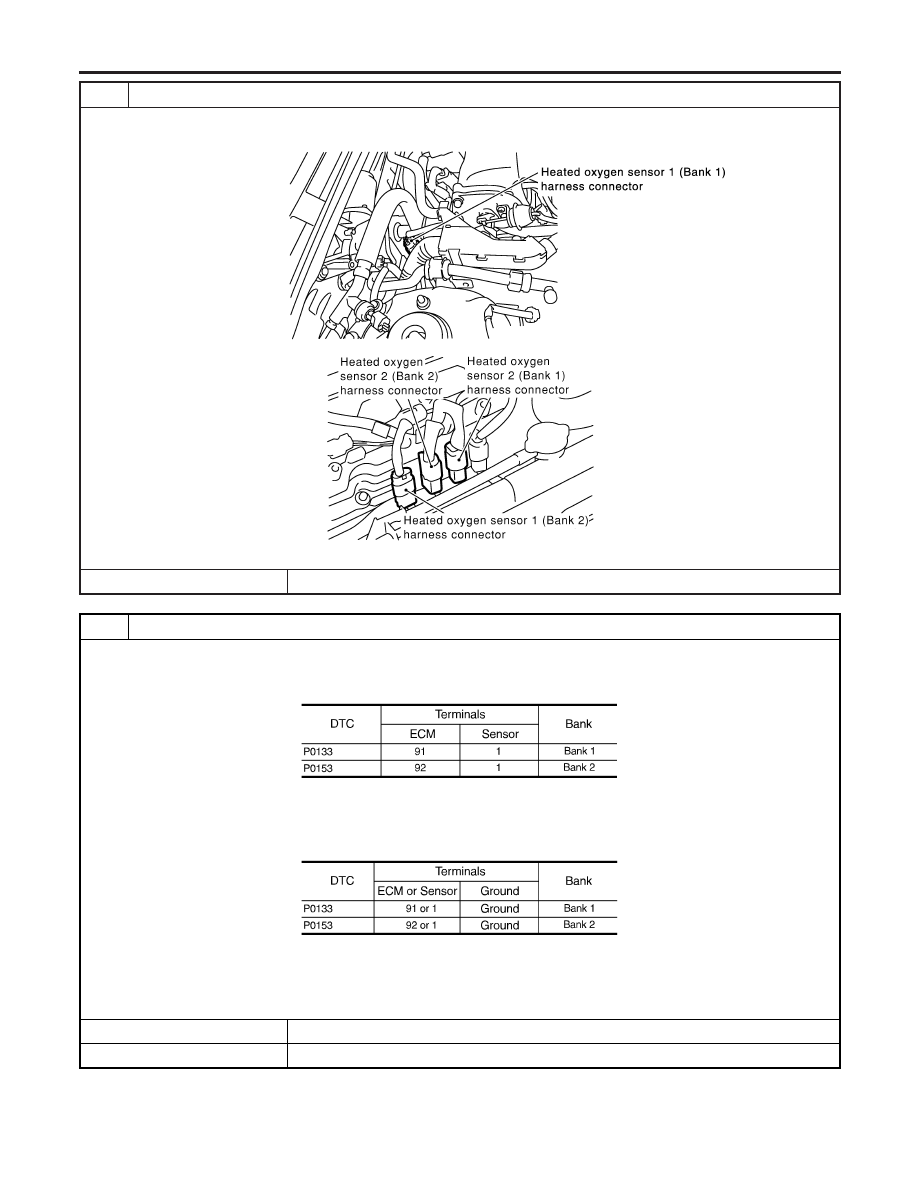

CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal and HO2S1 terminal as follows.

Refer to Wiring Diagram.

MTBL1146

Continuity should exist.

3. Check harness continuity between ECM terminal or HO2S1 terminal and ground as follows.

Refer to Wiring Diagram.

MTBL1147

Continuity should not exist.

4. Also check harness for short to power.

OK or NG

OK

©

GO TO 8.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P0133, P0153 HO2S1

Diagnostic Procedure (Cont’d)

EC-242

8

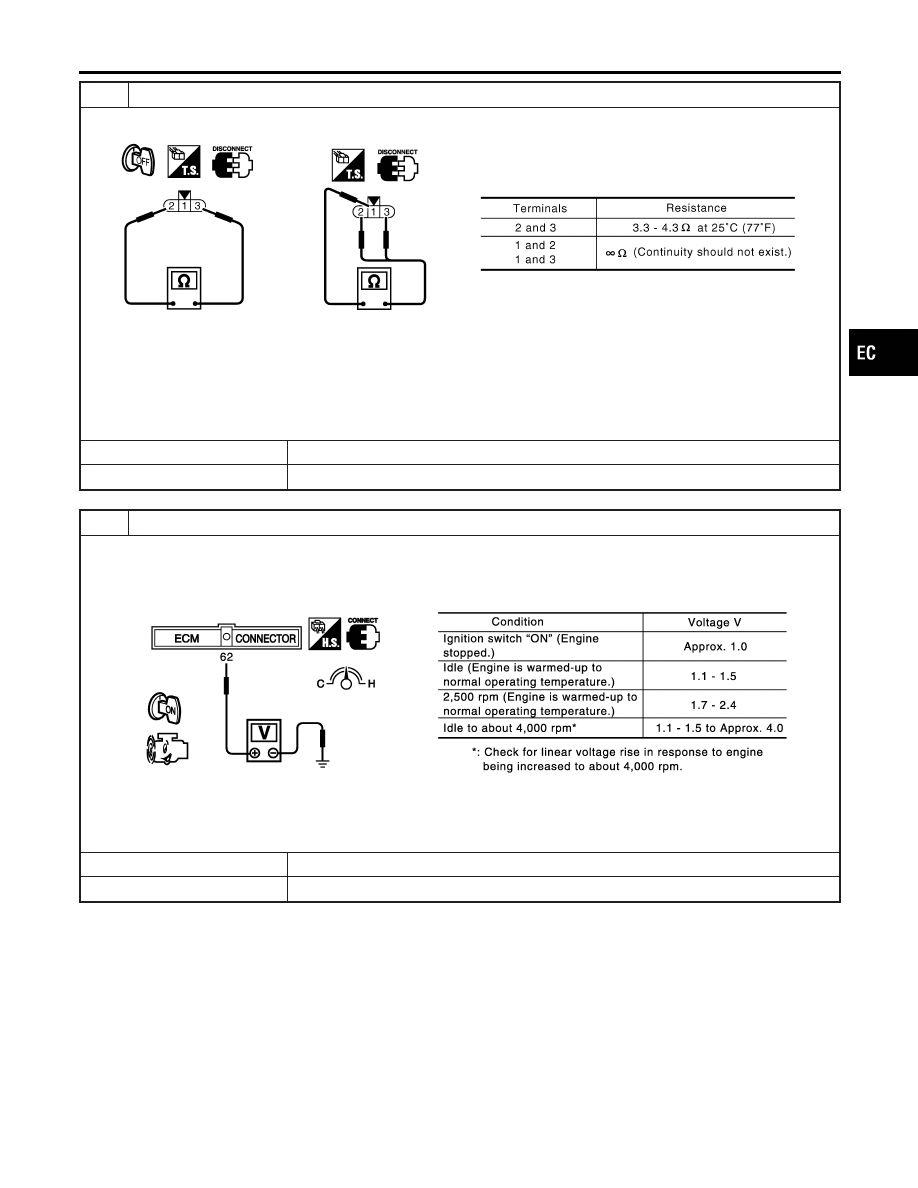

CHECK HEATED OXYGEN SENSOR 1 HEATER

Check resistance between HO2S1 terminals as follows.

SEF310XB

CAUTION:

I

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

I

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool
J-43897-18 or J-43897-12 and approved anti-seize lubricant.

OK or NG

OK

©

GO TO 9.

NG

©

Replace malfunctioning heated oxygen sensor 1.

9

CHECK MASS AIR FLOW SENSOR

1. Reconnect harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 62 (Mass air flow sensor signal) and ground.

SEC103D

4. If the voltage is out of specification, disconnect mass air flow sensor harness connector and connect it again.

Then repeat above check.

OK or NG

OK

©

GO TO 10.

NG

©

Replace mass air flow sensor.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0133, P0153 HO2S1

Diagnostic Procedure (Cont’d)

EC-243

10

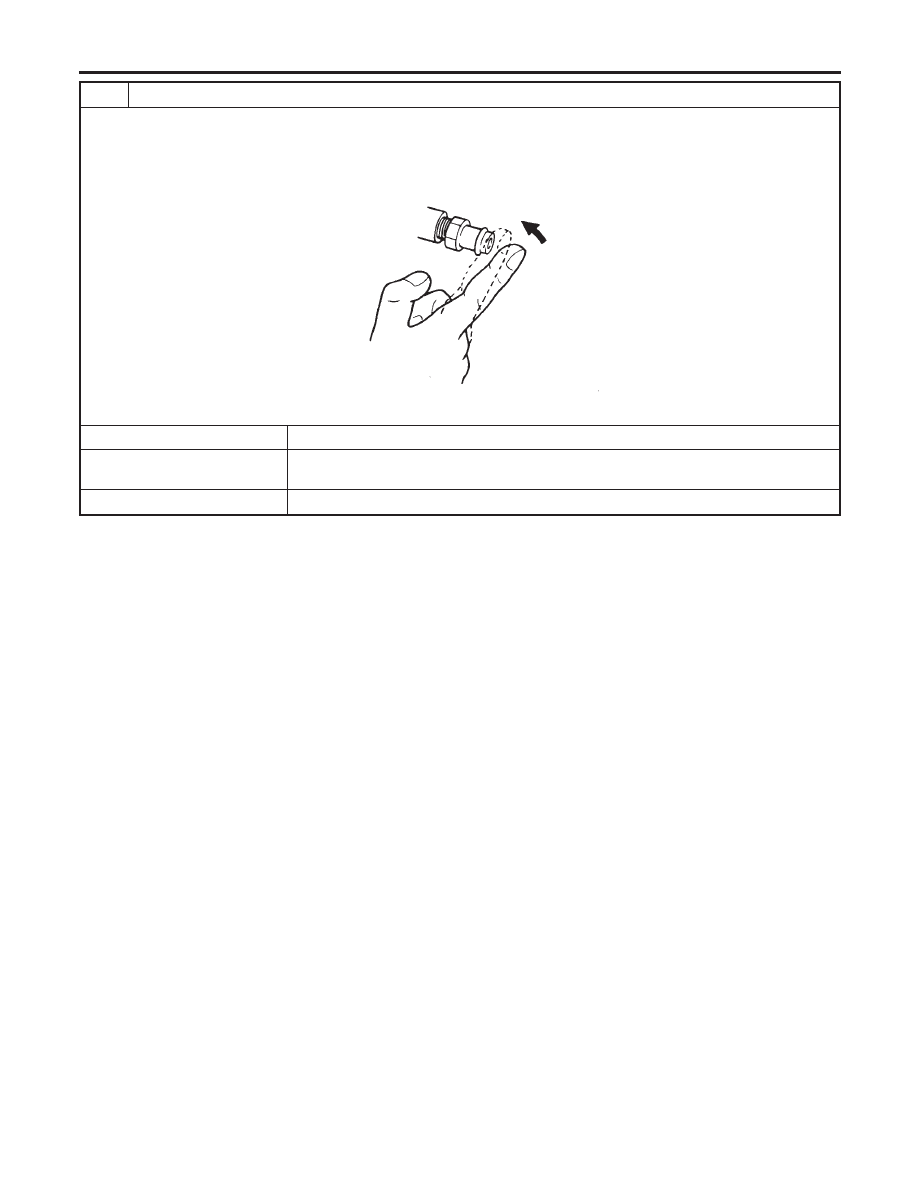

CHECK PCV VALVE

1. Install all removed parts.
2. Start engine and let it idle.
3. Remove PCV valve from rocker cover.
4. Make sure that a hissing noise will be heard as air passes through it and a strong vacuum should be felt immediately

when a finger is placed over valve inlet.

SEC137A

OK or NG

OK (With CONSULT-II)

©

GO TO 11.

OK (Without CONSULT-
II)

©

GO TO 12.

NG

©

Replace PCV valve.

DTC P0133, P0153 HO2S1

Diagnostic Procedure (Cont’d)

EC-244
