Infiniti I35 (A33). Manual - part 210





Description

NHEC0833

SYSTEM DESCRIPTION

NHEC0833S01

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

Heated
oxygen
sensor
heater 2
control

Heated oxygen sensor 2 heater

Engine coolant temperature sensor

Engine coolant temperature

Main air flow sensor

Amount of intake air

The ECM performs ON/OFF control of the heated oxygen sensor 2 heaters corresponding to the engine speed,
amount of intake air and engine coolant temperature.

OPERATION

NHEC0833S02

Engine speed rpm

Heated oxygen sensor 2 heater

Above 3,600

OFF

Below 3,600 (After the following conditions are met.)

I

After warming up

I

After keeping the engine speed between 3,500 and 4,000
rpm for 1 minute and at idle for 1 minute under no load

ON

CONSULT-II Reference Value in Data Monitor
Mode

NHEC0834

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)
HO2S2 HTR (B2)

I

Engine is running above 3,600 rpm.

OFF

I

Engine is running below 3,600 rpm after the following conditions are
met.

I

After warming up

I

After keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load

ON

On Board Diagnosis Logic

NHEC0836

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P0037
0037
(Bank 1)
P0057
0057
(Bank 2)

Heated oxygen sen-
sor 2 heater control
circuit low

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

I

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is open or shorted.)

I

Heated oxygen sensor 2 heater

P0038
0038
(Bank 1)
P0058
0058
(Bank 2)

Heated oxygen sen-
sor 2 heater control
circuit high

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

I

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is shorted.)

I

Heated oxygen sensor 2 heater

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

Description

EC-181

SEF174Y

DTC Confirmation Procedure

NHEC0837

NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is between 11.0V and 16V at idle.

WITH CONSULT-II

NHEC0837S01

1)

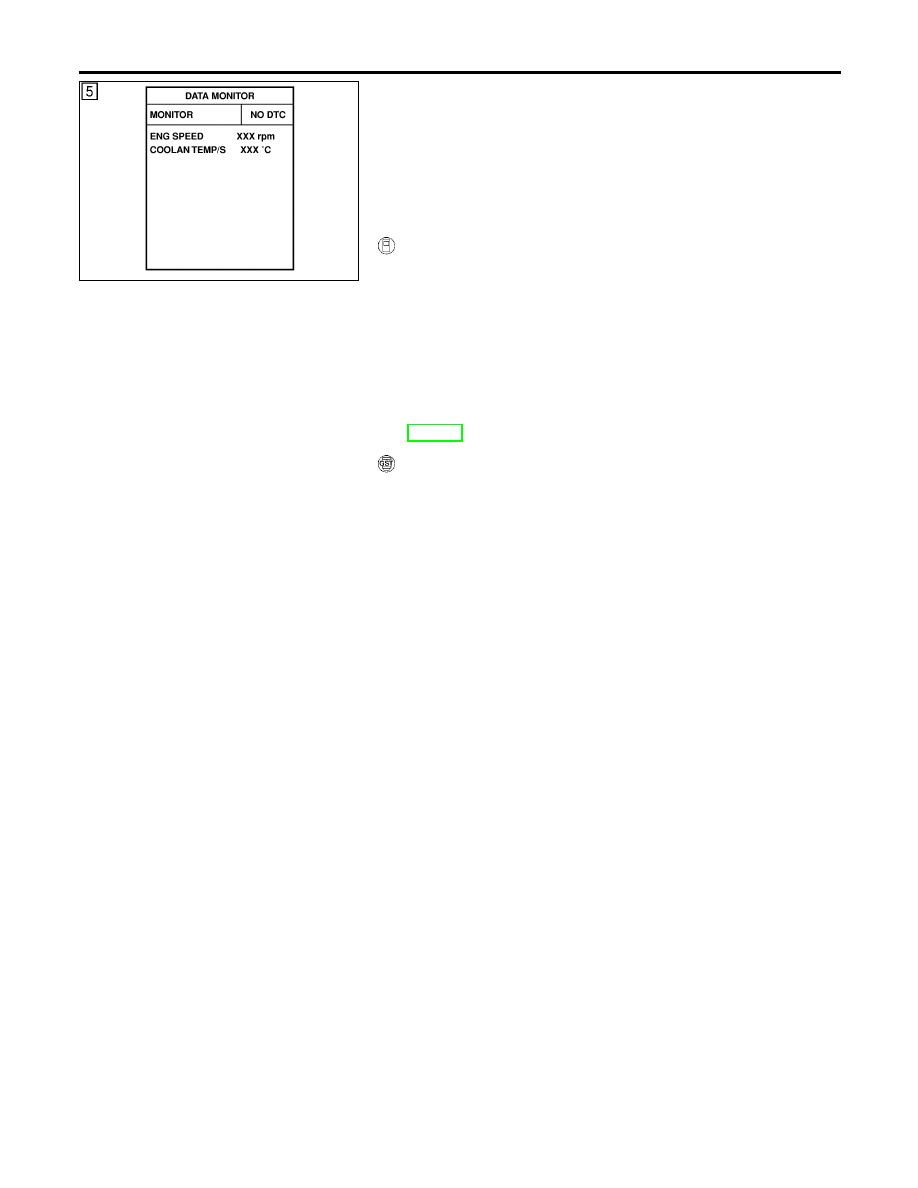

Turn ignition switch ON and select “DATA MONITOR” mode
with CONSULT-II.

2)

Start engine and warm it up to the normal operating tempera-
ture.

3)

Turn ignition switch OFF and wait at least 10 seconds.

4)

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.

5)

Let engine idle for 1 minute.

6)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-185.

WITH GST

NHEC0837S02

Follow the procedure “WITH CONSULT-II” above.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

DTC Confirmation Procedure

EC-182

Wiring Diagram

=NHEC0838

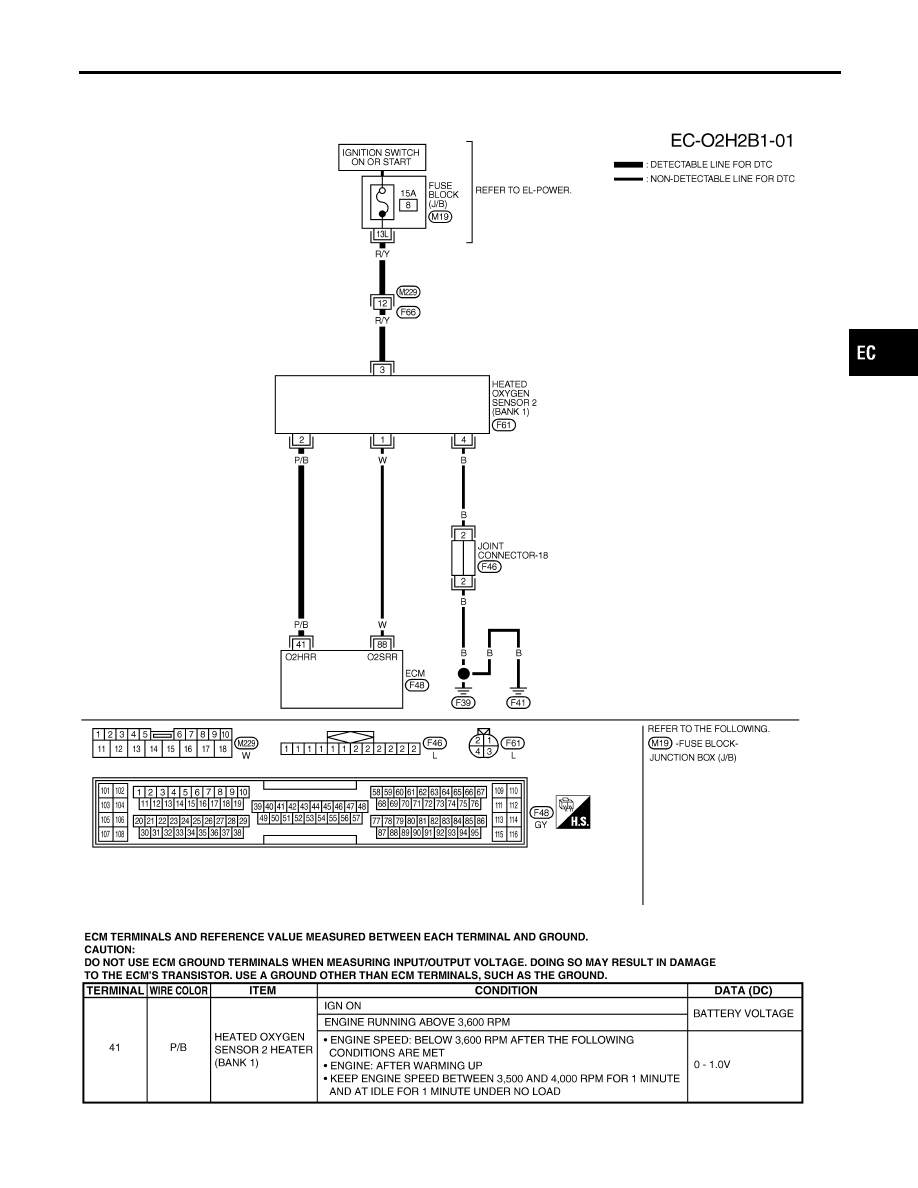

BANK 1

NHEC0838S01

MEC543D

SEC659DC

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

Wiring Diagram

EC-183

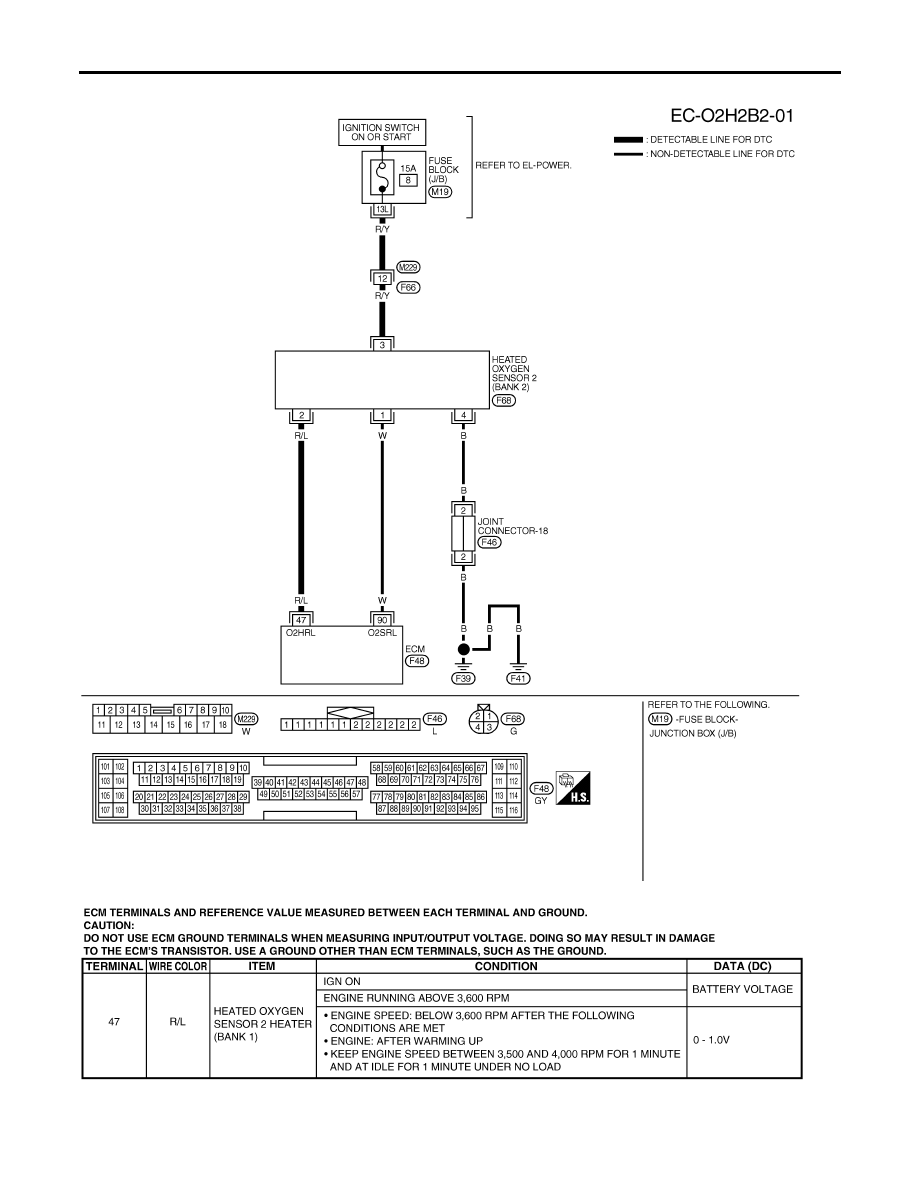

BANK 2

NHEC0838S02

MEC544D

SEC660DC

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
