Infiniti I35 (A33). Manual - part 208





PBIB0193E

Component Inspection

NHEC1411

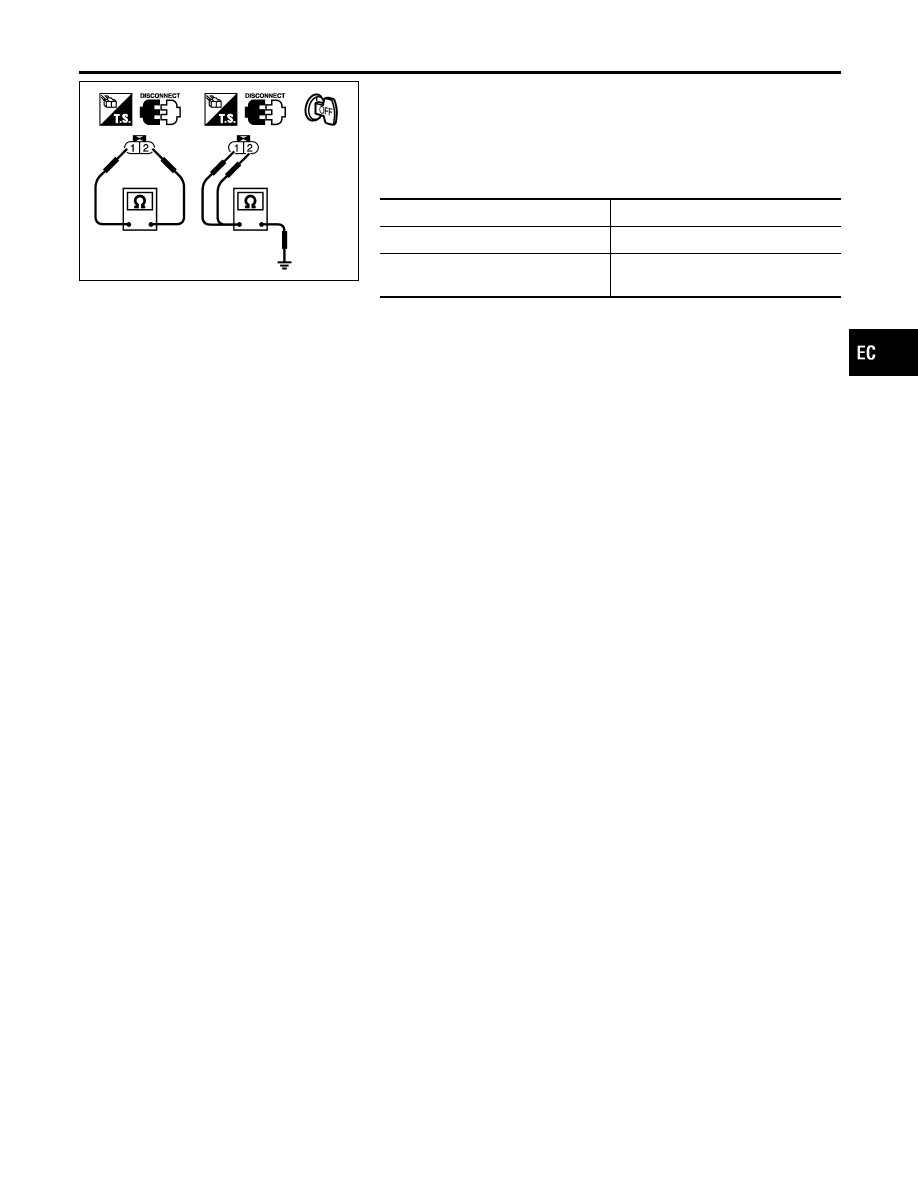

INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1.

Disconnect intake valve timing control solenoid valve harness
connector.

2.

Check resistance between intake valve timing control solenoid
valve terminals as follows.

Terminals

Resistance

1 and 2

7.0 - 7.5

at 20°C (68°F)

1 or 2 and ground

∞Ω

(Continuity should not exist)

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0011, P0021 IVT CONTROL

Component Inspection

EC-173

Description

NHEC0826

SYSTEM DESCRIPTION

NHEC0826S01

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

Heated
oxygen
sensor 1
heater con-
trol

Heated oxygen sensor 1 heater

Engine coolant temperature sensor

Engine coolant temperature

The ECM performs ON/OFF control of the heated oxygen sensor 1 heaters corresponding to the engine speed
and engine coolant temperature. The duty percent varies with engine coolant temperature when engine is
started.

OPERATION

NHEC0826S02

Engine speed

rpm

Heated oxygen sensor 1 heater

Above 3,600

OFF

Below 3,600 after warming up

ON

CONSULT-II Reference Value in Data Monitor
Mode

NHEC0827

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S1 HTR (B1)
HO2S1 HTR (B2)

I

Engine: After warming up

I

Engine speed: Below 3,600 rpm

ON

I

Engine speed: Above 3,600 rpm

OFF

On Board Diagnosis Logic

NHEC0829

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P0031
0031
(Bank 1)
P0051
0051
(Bank 2)

Heated oxygen sen-
sor 1 heater control
circuit low

The current amperage in the heated oxygen sen-
sor 1 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 1 heater.)

I

Harness or connectors
(The heated oxygen sensor 1 heater
circuit is open or shorted.)

I

Heated oxygen sensor 1 heater

P0032
0032
(Bank 1)
P0052
0052
(Bank 2)

Heated oxygen sen-
sor 1 heater control
circuit high

The current amperage in the heated oxygen sen-
sor 1 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 1 heater.)

I

Harness or connectors
(The heated oxygen sensor 1 heater
circuit is shorted.)

I

Heated oxygen sensor 1 heater

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER

Description

EC-174

SEF174Y

DTC Confirmation Procedure

NHEC0830

NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is between 10.5V and 16V at idle.

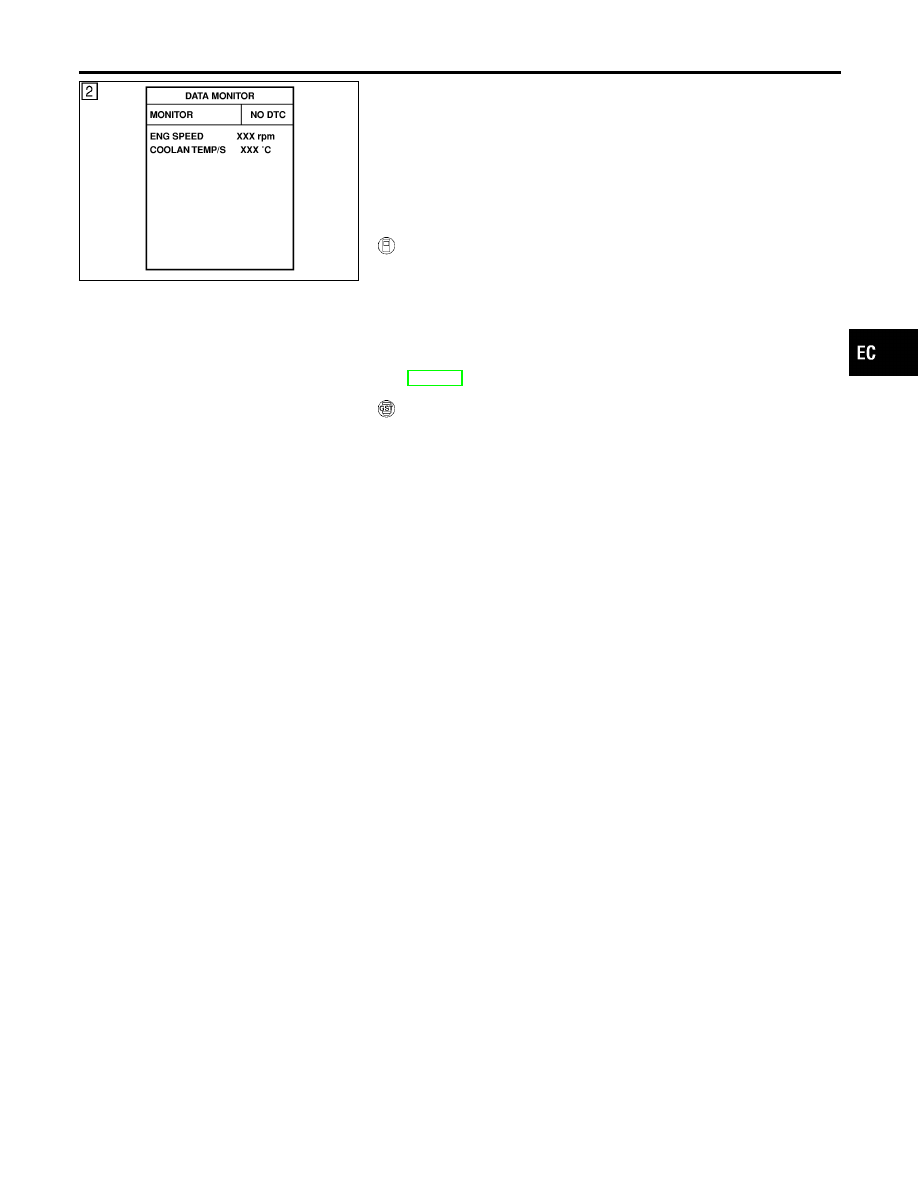

WITH CONSULT-II

NHEC0830S01

1)

Start engine and warm it up to normal operating temperature.

2)

Turn ignition switch OFF and wait at least 10 seconds.

3)

Turn ignition switch ON and select “DATA MONITOR” mode
with CONSULT-II.

4)

Start engine and run it for at least 6 seconds at idle speed.

5)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-178.

WITH GST

NHEC0830S02

Follow the procedure “WITH CONSULT-II” above.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER

DTC Confirmation Procedure

EC-175

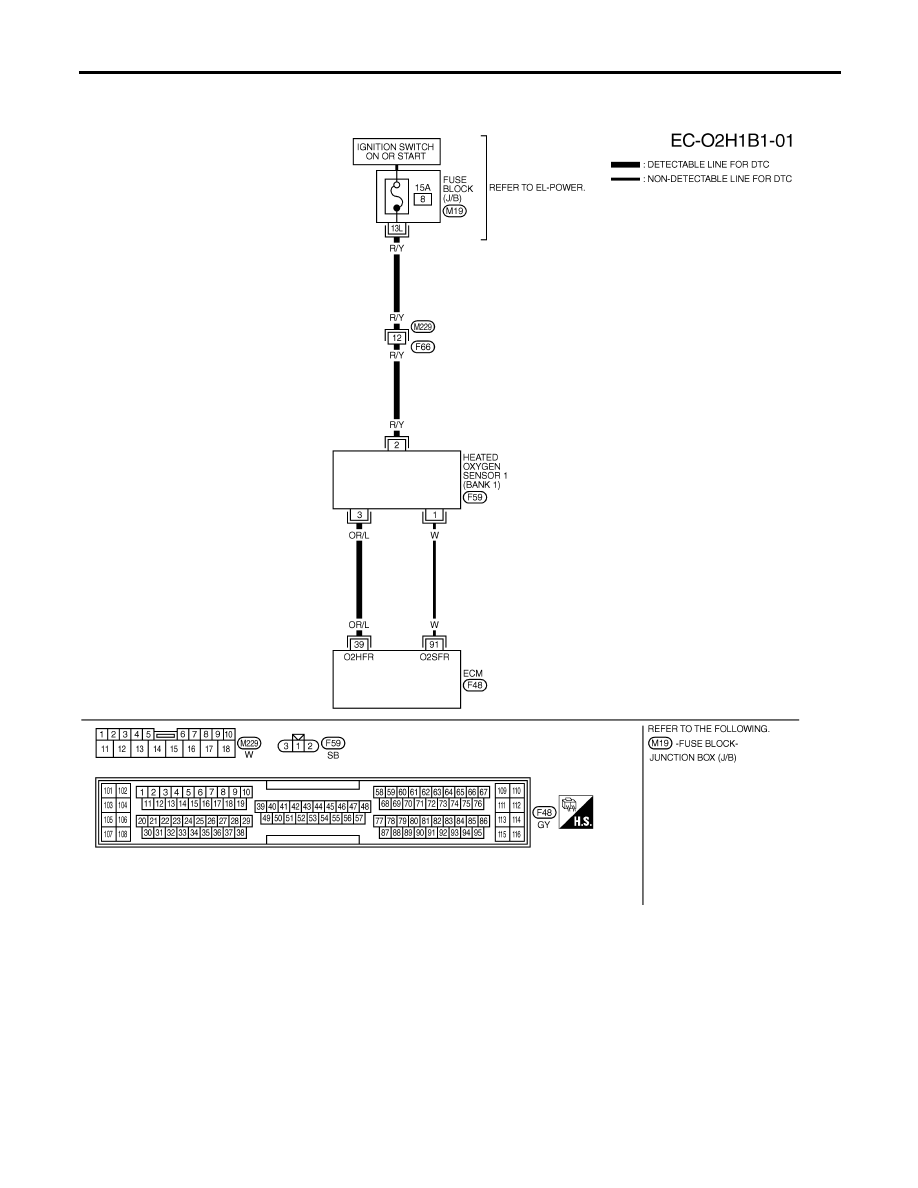

Wiring Diagram

NHEC0831

BANK 1

NHEC0831S01

MEC539D

DTC P0031, P0032, P0051, P0052 HO2S1 HEATER

Wiring Diagram

EC-176
