TROUBLE DIAGNOSIS — SPECIFICATION VALUE

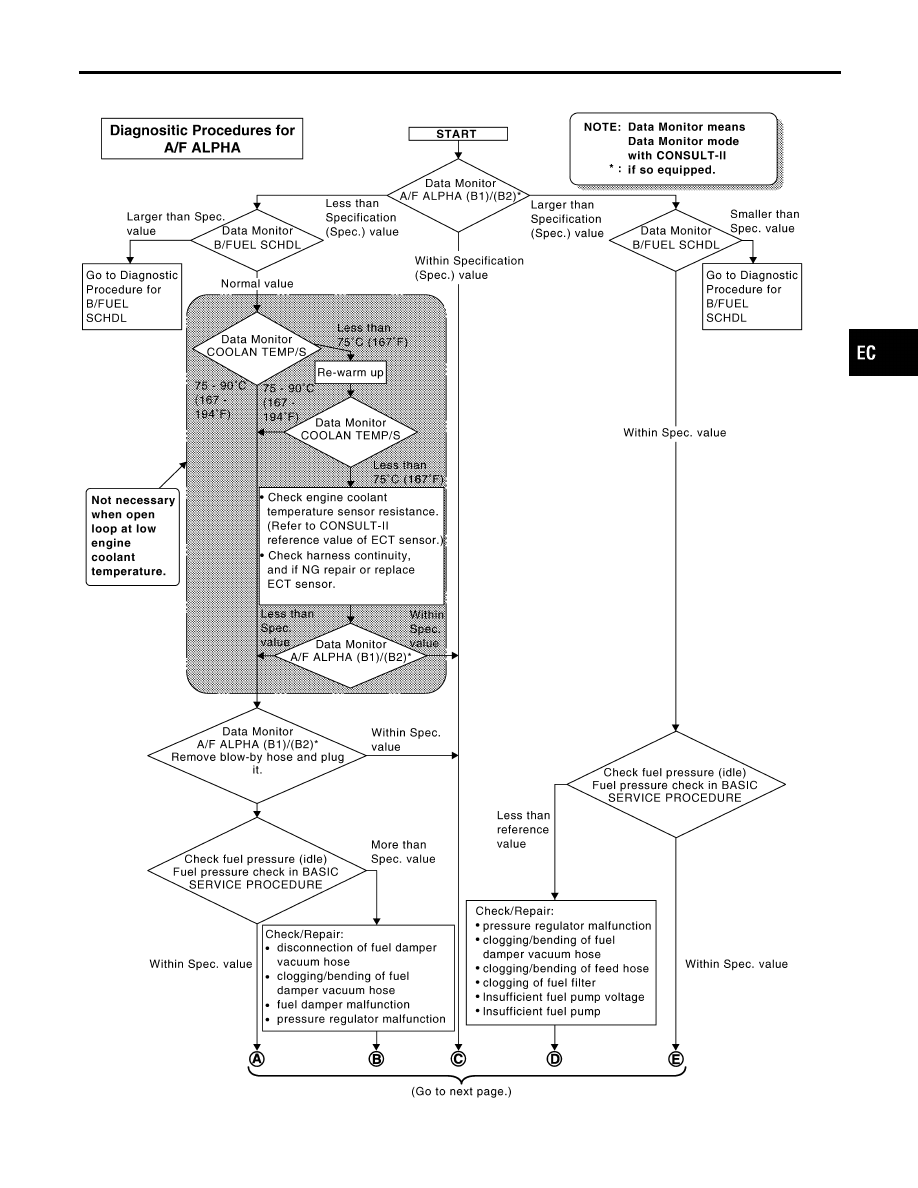

Diagnostic Procedure

EC-149

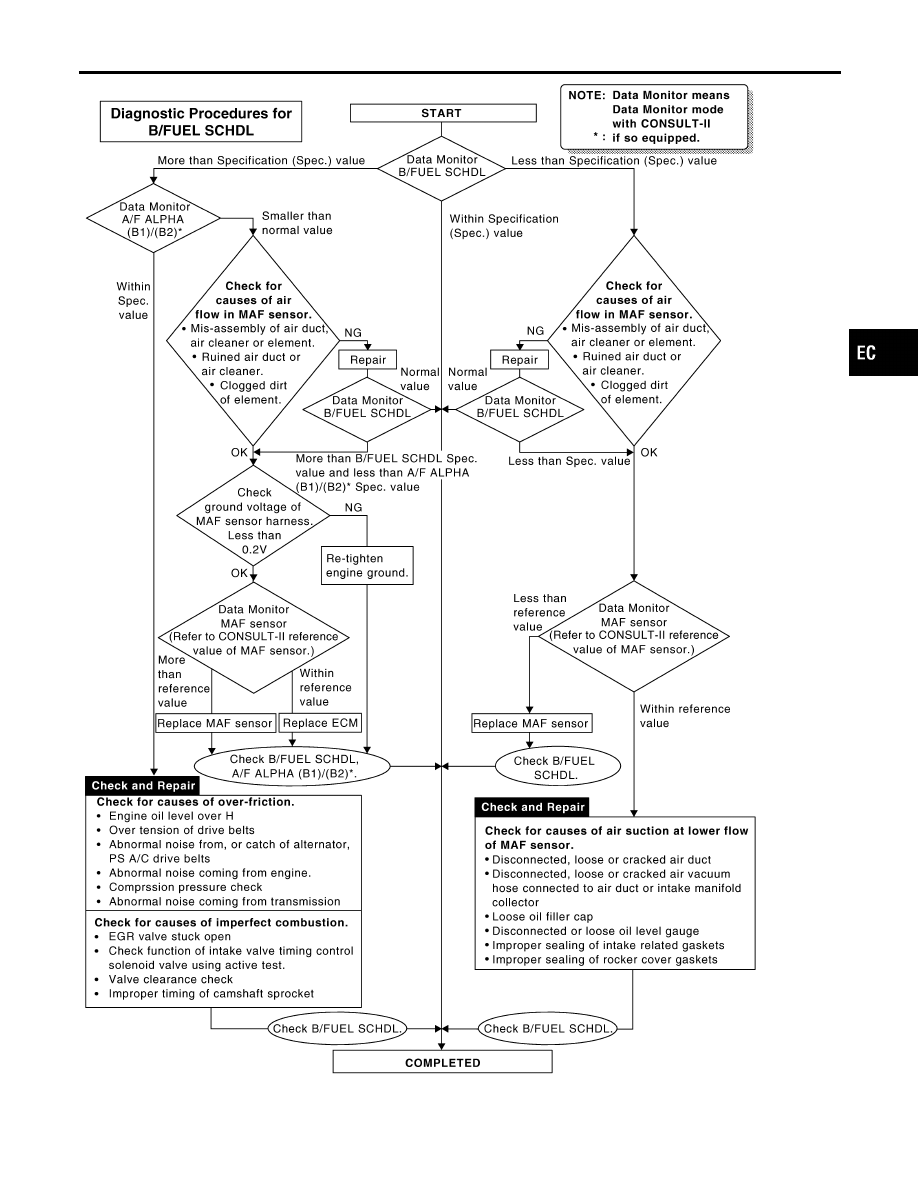

SEF768Z

TROUBLE DIAGNOSIS — SPECIFICATION VALUE

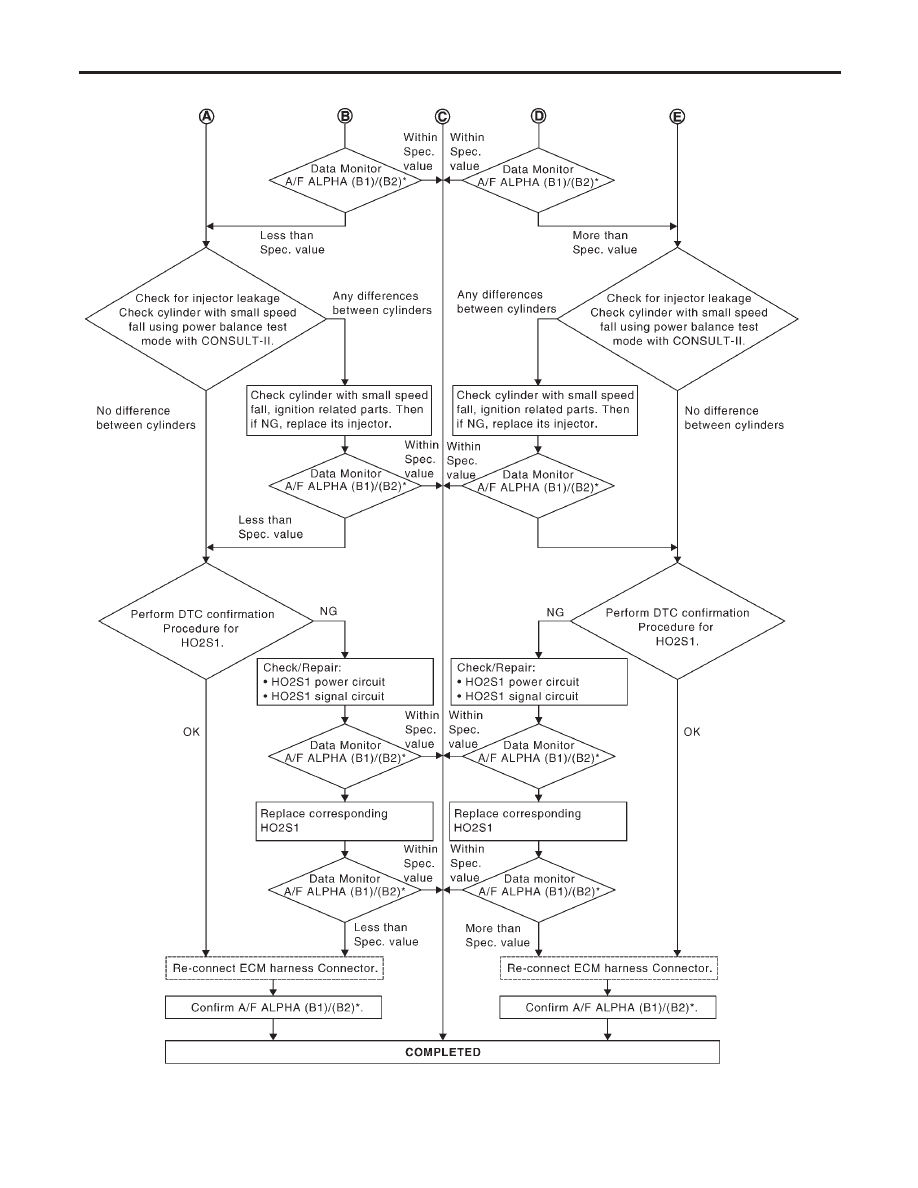

Diagnostic Procedure (Cont’d)

EC-150

SEF615ZA

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — SPECIFICATION VALUE

Diagnostic Procedure (Cont’d)

EC-151

Description

NHEC0045

Intermittent incidents (I/I) may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the custom-
er’s complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I
occurrences is poor electrical connections. Because of this, the conditions under which the incident occurred
may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indi-
cate the specific malfunctioning area.

COMMON I/I REPORT SITUATIONS

NHEC0045S01

STEP in Work Flow

Situation

II

The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.

III

The symptom described by the customer does not recur.

IV

(1st trip) DTC does not appear during the DTC Confirmation Procedure.

VI

The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.

Diagnostic Procedure

NHEC0046

1

INSPECTION START

Erase (1st trip) DTCs. Refer to “HOW TO ERASE EMISSION — RELATED INFORMATION”, EC-88.

©

GO TO 2.

2

CHECK GROUND TERMINALS

Check ground terminals for corroding or loose connection.
Refer to GI-31, “GROUND INSPECTION”.

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace.

3

SEARCH FOR ELECTRICAL INCIDENT

Perform GI-26, “Incident Simulation Tests”.

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace.

4

CHECK CONNECTOR TERMINALS

Refer to GI-22, “How to Check Enlarged Contact Spring of Terminal”.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace connector.

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

Description

EC-152
