Infiniti I35 (A33). Manual - part 195





3

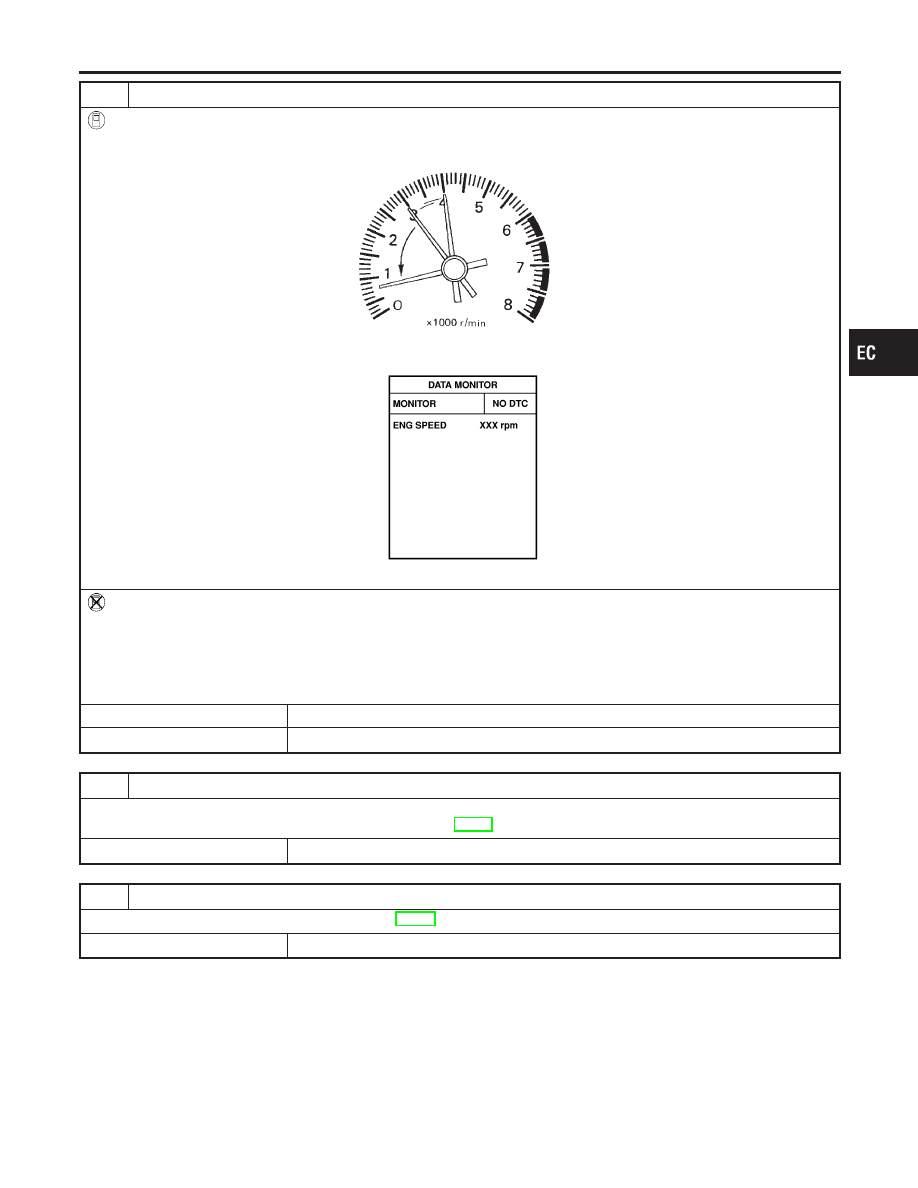

CHECK TARGET IDLE SPEED

With CONSULT-II

1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-load, then run engine at idle speed for about 1 minute.

SEF978U

3. Read idle speed in “DATA MONITOR” mode with CONSULT-II.

675

±

50 rpm (in P or N position)

SEF058Y

Without CONSULT-II

1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-load, then run engine at idle speed for about 1 minute.
3. Check idle speed.

675

±

50 rpm (in P or N position)

OK or NG

OK

©

GO TO 10.

NG

©

GO TO 4.

4

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.
2. Perform “Accelerator Pedal Released Position Learning”, EC-70.

©

GO TO 5.

5

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform “Throttle Valve Closed Position Learning”, EC-70.

©

GO TO 6.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-121

6

PERFORM IDLE AIR VOLUME LEARNING

Refer to “Idle Air Volume Learning”, EC-70.
Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

©

GO TO 7.

No

©

1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.

7

CHECK TARGET IDLE SPEED AGAIN

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.

675

±

50 rpm (in P or N position)

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

675

±

50 rpm (in P or N position)

OK or NG

OK

©

GO TO 10.

NG

©

GO TO 8.

8

DETECT MALFUNCTIONING PART

Check the following.

I

Check camshaft position sensor (PHASE) and circuit. Refer to EC-323.

I

Check crankshaft position sensor (POS) and circuit. Refer to EC-316.

OK or NG

OK

©

GO TO 9.

NG

©

1. Repair or replace.
2. GO TO 4.

9

CHECK ECM FUNCTION

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of a malfunction, but this is the

rarely the case.)

2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to “IVIS (INFINITI

VEHICLE IMMOBILIZER SYSTEM — NATS)”, EC-90.

©

GO TO 4.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-122

10

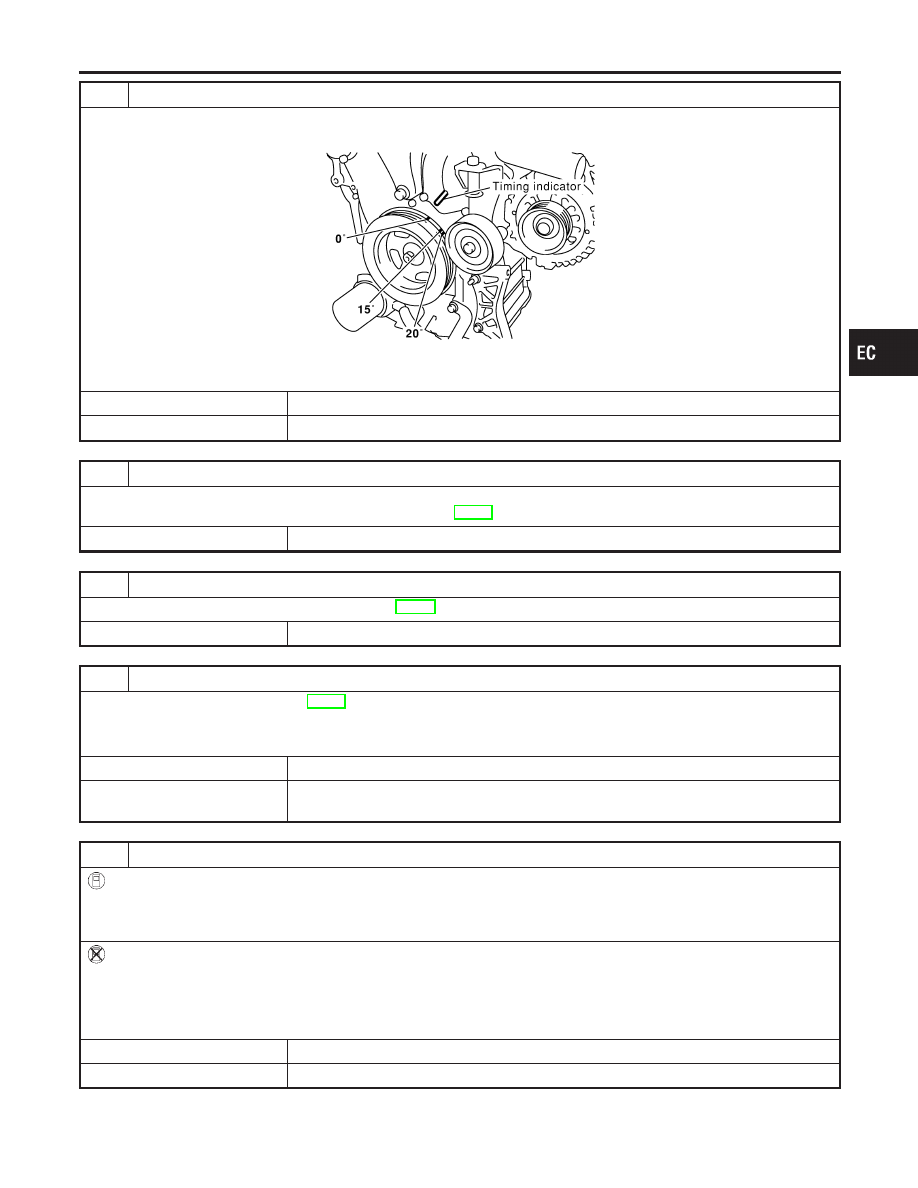

CHECK IGNITION TIMING

1. Run engine at idle.
2. Check ignition timing with a timing light.

SEC004D

15°

±

5° BTDC (in P or N position)

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 11.

11

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.
2. Perform “Accelerator Pedal Released Position Learning”, EC-70.

©

GO TO 12.

12

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform “Throttle Valve Closed Position Learning”, EC-70.

©

GO TO 13.

13

PERFORM IDLE AIR VOLUME LEARNING

Refer to “Idle Air Volume Learning”, EC-70.
Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

©

GO TO 14.

No

©

1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.

14

CHECK TARGET IDLE SPEED AGAIN

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.

675

±

50 rpm (in P or N position)

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

675

±

50 rpm (in P or N position)

OK or NG

OK

©

GO TO 15.

NG

©

GO TO 17.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-123

15

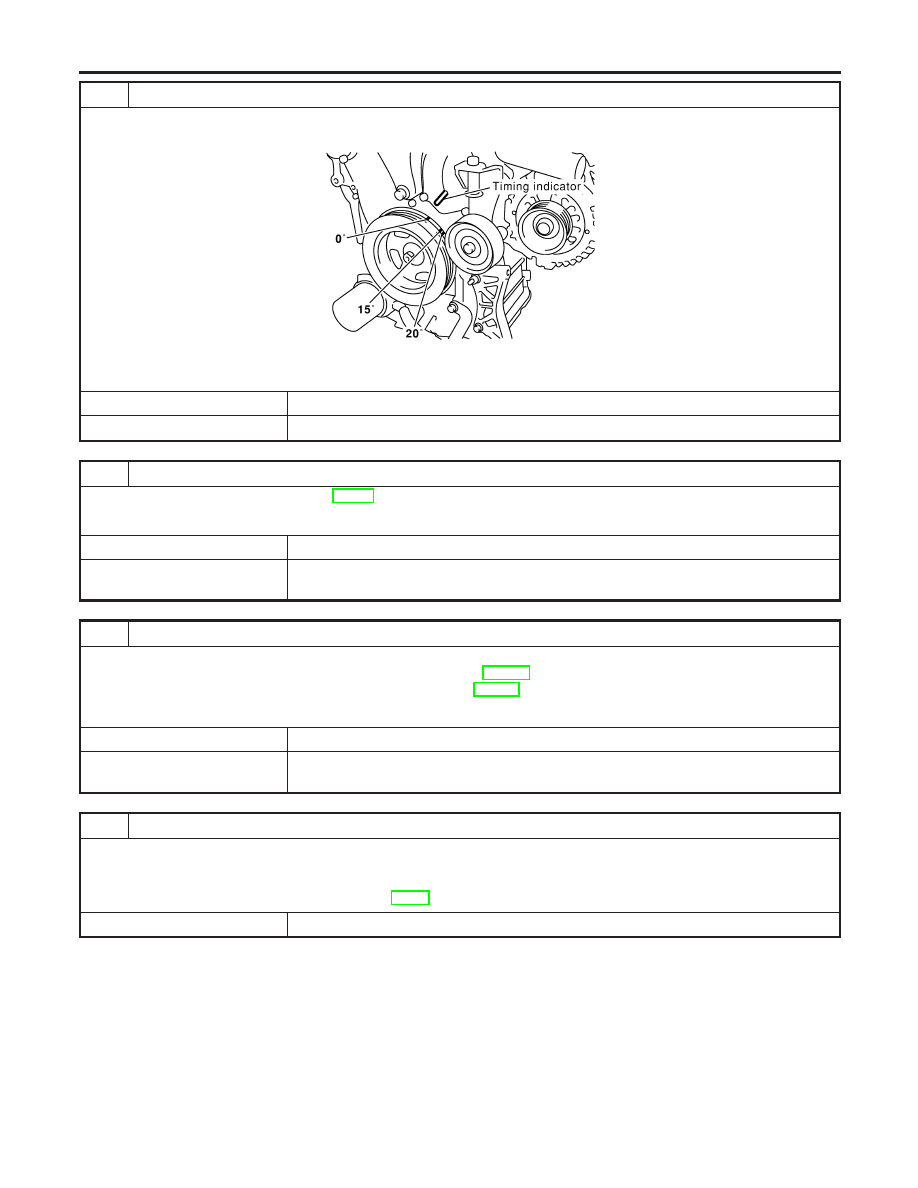

CHECK IGNITION TIMING AGAIN

1. Run engine at idle.
2. Check ignition timing with a timing light.

SEC004D

15°

±

5° BTDC (in P or N position)

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 16.

16

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to EM-29, “TIMING CHAIN”.

OK or NG

OK

©

GO TO 17.

NG

©

1. Repair the timing chain installation.
2. GO TO 4.

17

DETECT MALFUNCTIONING PART

Check the following.

I

Check camshaft position sensor (PHASE) and circuit. Refer to EC-323.

I

Check crankshaft position sensor (POS) and circuit. Refer to EC-316.

OK or NG

OK

©

GO TO 18.

NG

©

1. Repair or replace.
2. GO TO 4.

18

CHECK ECM FUNCTION

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of a malfunction, but this is the

rarely the case.)

2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to “IVIS (INFINITI

VEHICLE IMMOBILIZER SYSTEM — NATS)”, EC-90.

©

GO TO 4.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-124
