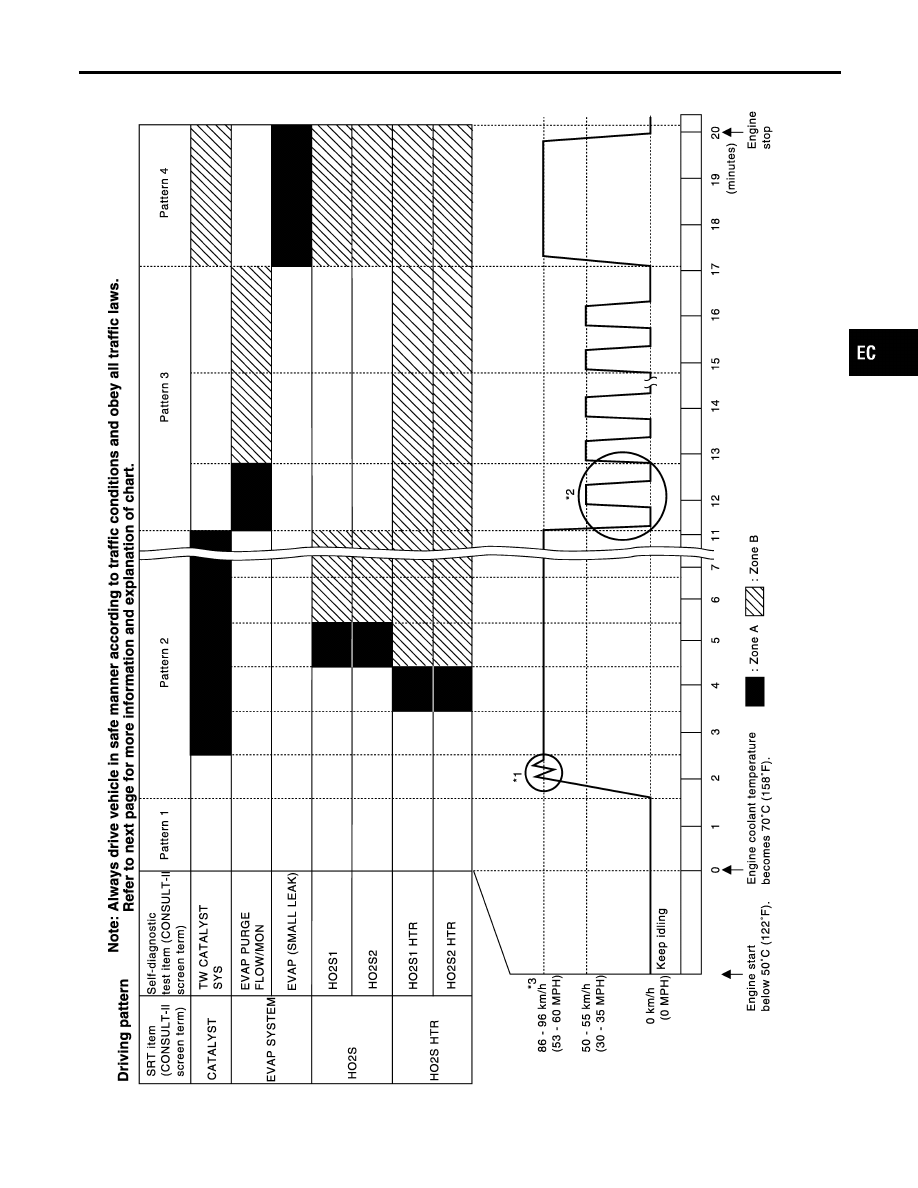

Driving Pattern

NHEC0031S0303

SEC390D

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-81

I

The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driv-
ing habits, etc.
Zone A refers to the range where the time required, for the diagnosis under normal conditions*, is the
shortest.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed
within zone A.

*: Normal conditions refer to the following:

Sea level

Flat road

Ambient air temperature: 20 - 30°C (68 - 86°F)

Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diag-
nosis may also be performed.

Pattern 1:

I

The engine is started at the engine coolant temperature of −10 to 35°C (14 to 95°F)
(where the voltage between the ECM terminal 93 and ground is 3.0 - 4.3V).

I

The engine must be operated at idle speed until the engine coolant temperature is greater than 70°C
(158°F) (where the voltage between the ECM terminal 93 and ground is lower than 1.4V).

I

The engine is started at the fuel tank temperature of warmer than 0°C (32°F) (where the voltage
between the ECM terminal 75 and ground is less than 4.1V).

Pattern 2:

I

When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.

Pattern 3:

I

The driving pattern outlined in *2 must be repeated at least 3 times.

Pattern 4:

I

Tests are performed after the engine has been operated for at least 17 minutes.

I

The accelerator pedal must be held very steady during steady-state driving.

I

If the accelerator pedal is moved, the test must be conducted all over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Operate the vehicle in the following driving pattern.
1) Decelerate vehicle to 0 km/h (0 MPH) and let engine idle.

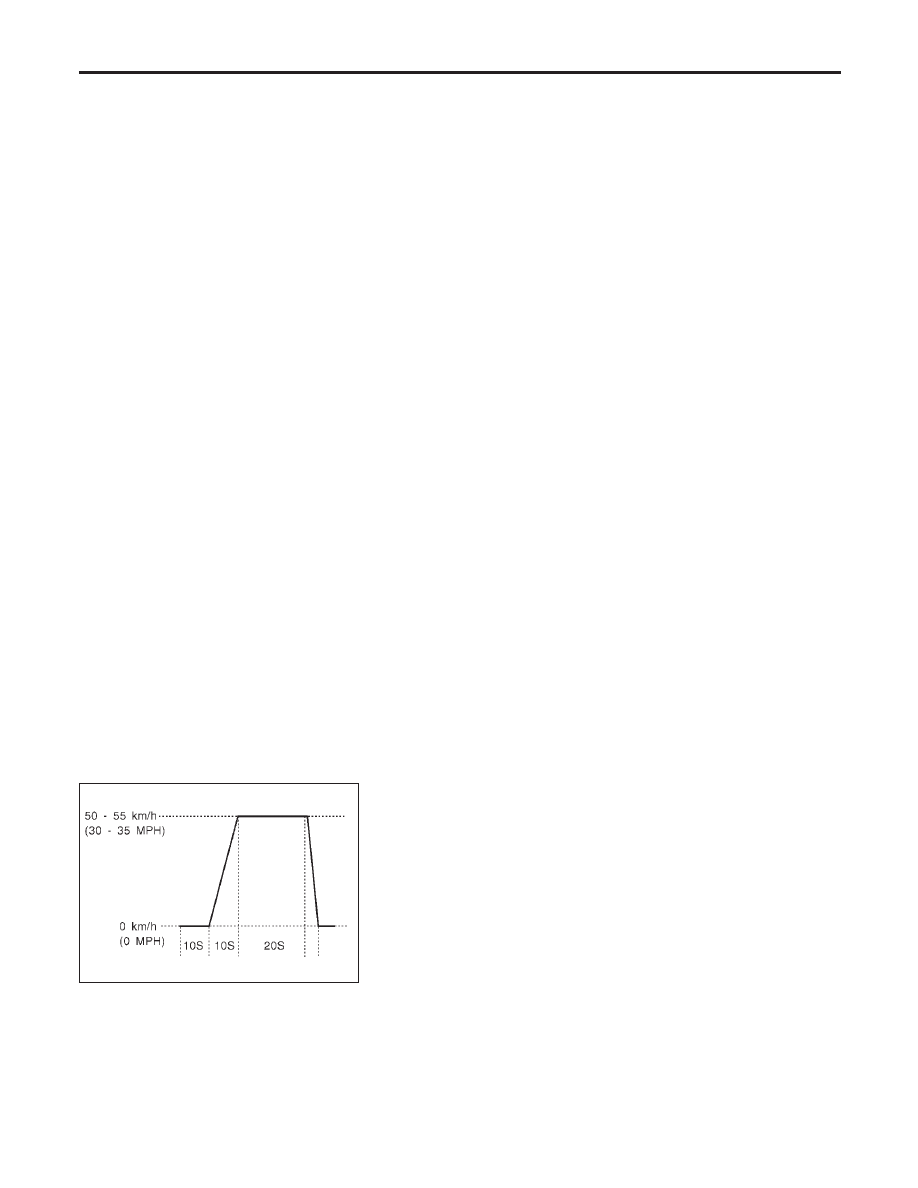

2) Repeat driving pattern shown below at least 10 times.

I

During acceleration, hold the accelerator pedal as steady as possible.

SEF414S

*3: Checking the vehicle speed with GST is advised.
Suggested Transmission Gear Position
Set the selector lever in the “D” position with the overdrive switch turned ON.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-82

TEST VALUE AND TEST LIMIT (GST ONLY — NOT APPLICABLE TO CONSULT-II)

NHEC0031S04

The following is the information specified in Mode 6 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is “OK” or “NG” while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.

SRT item

Self-diagnostic test item

DTC

Test value (GST

display)

Test limit

Conversion

TID

CID

CATALYST

Three way catalyst function (Bank 1)

P0420

01H

01H

Max.

1/128

P0420

02H

81H

Min.

1

Three way catalyst function (Bank 2)

P0430

03H

02H

Max.

1/128

P0430

04H

82H

Min.

1

EVAP SYSTEM

EVAP control system (Small leak)

P0442

05H

03H

Max.

1/128 mm

2

EVAP control system purge flow monitoring

P0441

06H

83H

Min.

20 mV

EVAP control system (Very small leak)

P0456

07H

03H

Max.

1/128 mm

2

P1456

07H

03H

Max.

1/128 mm

2

HO2S

Heated oxygen sensor 1 (Bank 1)

P0133

09H

04H

Max.

16 ms

P1143

0AH

84H

Min.

10 mV

P1144

0BH

04H

Max.

10 mV

P0132

0CH

04H

Max.

10 mV

P0134

0DH

04H

Max.

1 s

Heated oxygen sensor 1 (Bank 2)

P0153

11H

05H

Max.

16 ms

P1163

12H

85H

Min.

10 mV

P1164

13H

05H

Max.

10 mV

P0152

14H

05H

Max.

10 mV

P0154

15H

05H

Max.

1 s

Heated oxygen sensor 2 (Bank 1)

P0139

19H

86H

Min.

10 mV/500 ms

P1147

1AH

86H

Min.

10 mV

P1146

1BH

06H

Max.

10 mV

P0138

1CH

06H

Max.

10 mV

Heated oxygen sensor 2 (Bank 2)

P0159

21H

87H

Min.

10 mV/500 ms

P1167

22H

87H

Min.

10 mV

P1166

23H

07H

Max.

10 mV

P0158

24H

07H

Max.

10 mV

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-83

SRT item

Self-diagnostic test item

DTC

Test value (GST

display)

Test limit

Conversion

TID

CID

HO2S HTR

Heated oxygen sensor 1 heater (Bank 1)

P0032

29H

08H

Max.

20 mV

P0031

2AH

88H

Min.

20 mV

Heated oxygen sensor 1 heater (Bank 2)

P0052

2BH

09H

Max.

20 mV

P0051

2CH

89H

Min.

20 mV

Heated oxygen sensor 2 heater (Bank 1)

P0038

2DH

0AH

Max.

20 mV

P0037

2EH

8AH

Min.

20 mV

Heated oxygen sensor 2 heater (Bank 2)

P0058

2FH

0BH

Max.

20 mV

P0057

30H

8BH

Min.

20 mV

EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS

NHEC0031S05

X: Applicable

—: Not applicable

Items

(CONSULT-II screen terms)

DTC*1

SRT code

Test value/

Test limit

(GST only)

1st trip
DTC*1

Reference

page

CONSULT-II

GST*2

ECM*3

CAN COMM CIRCUIT

U1000

1000*5

EC-162

CAN COMM CIRCUIT

U1001

1001*5

X

EC-162

NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.

P0000

0000

INT/V TIM CONT-B1

P0011

0011

X

EC-165

INT/V TIM CONT-B2

P0021

0021

X

EC-165

HO2S1 HTR (B1)

P0031

0031

X

X

X

EC-174

HO2S1 HTR (B1)

P0032

0032

X

X

X

EC-174

HO2S2 HTR (B1)

P0037

0037

X

X

X

EC-181

HO2S2 HTR (B1)

P0038

0038

X

X

X

EC-181

HO2S1 HTR (B2)

P0051

0051

X

X

X

EC-174

HO2S1 HTR (B2)

P0052

0052

X

X

X

EC-174

HO2S2 HTR (B2)

P0057

0057

X

X

X

EC-181

HO2S2 HTR (B2)

P0058

0058

X

X

X

EC-181

MAF SEN/CIRCUIT

P0101

0101

EC-187

MAF SEN/CIRCUIT

P0102

0102

EC-194

MAF SEN/CIRCUIT

P0103

0103

EC-194

ABSL PRES SEN/CIRC

P0107

0107

X

EC-200

ABSL PRES SEN/CIRC

P0108

0108

X

EC-200

IAT SEN/CIRCUIT

P0112

0112

X

EC-202

IAT SEN/CIRCUIT

P0113

0113

X

EC-202

ECT SEN/CIRC

P0117

0117

EC-206

ECT SEN/CIRC

P0118

0118

EC-206

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-84
