ENGINE COMPARTMENT

NHBT0026S01

Measurement

NHBT0026S0101

SBT881

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

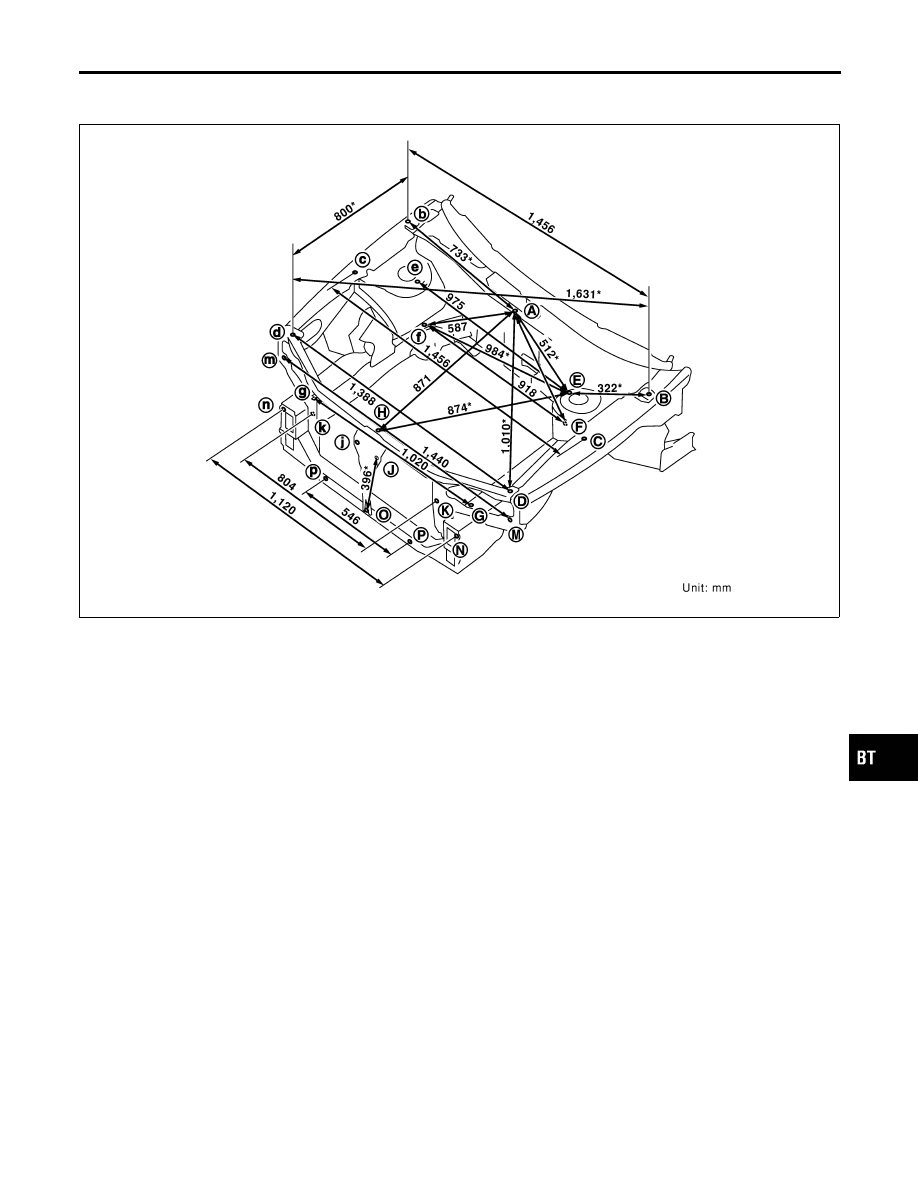

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-67

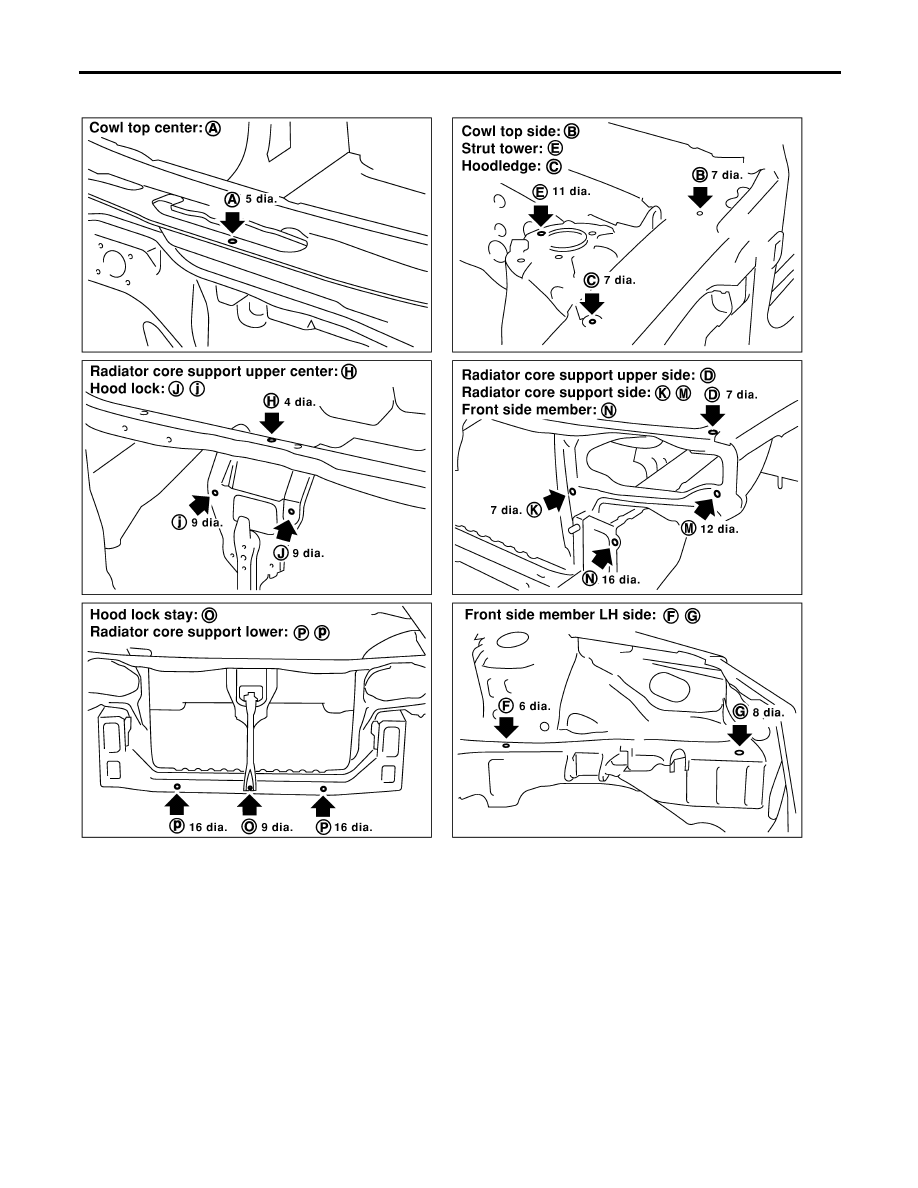

Measurement Points

NHBT0026S0102

SBT882

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-68

UNDERBODY

NHBT0026S02

Measurement

NHBT0026S0201

SBT883

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

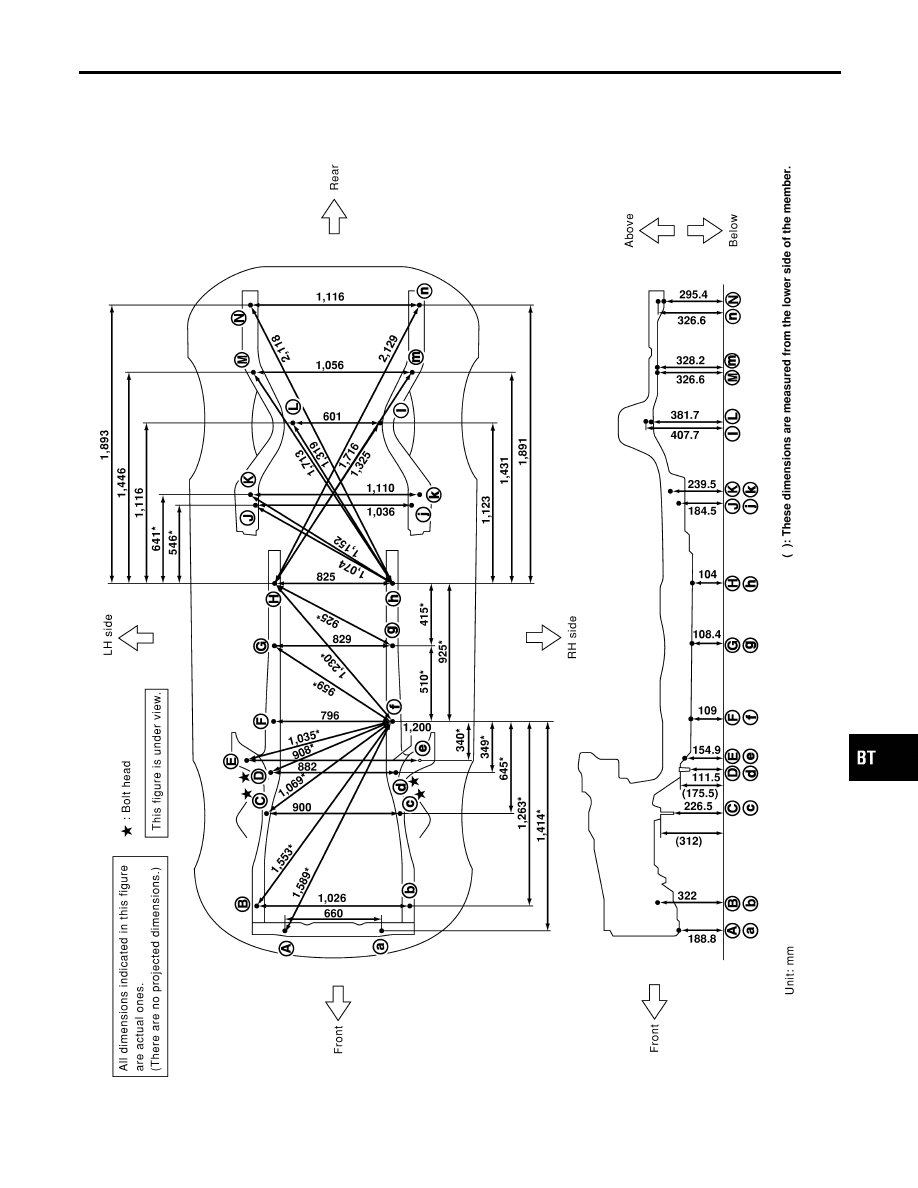

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-69

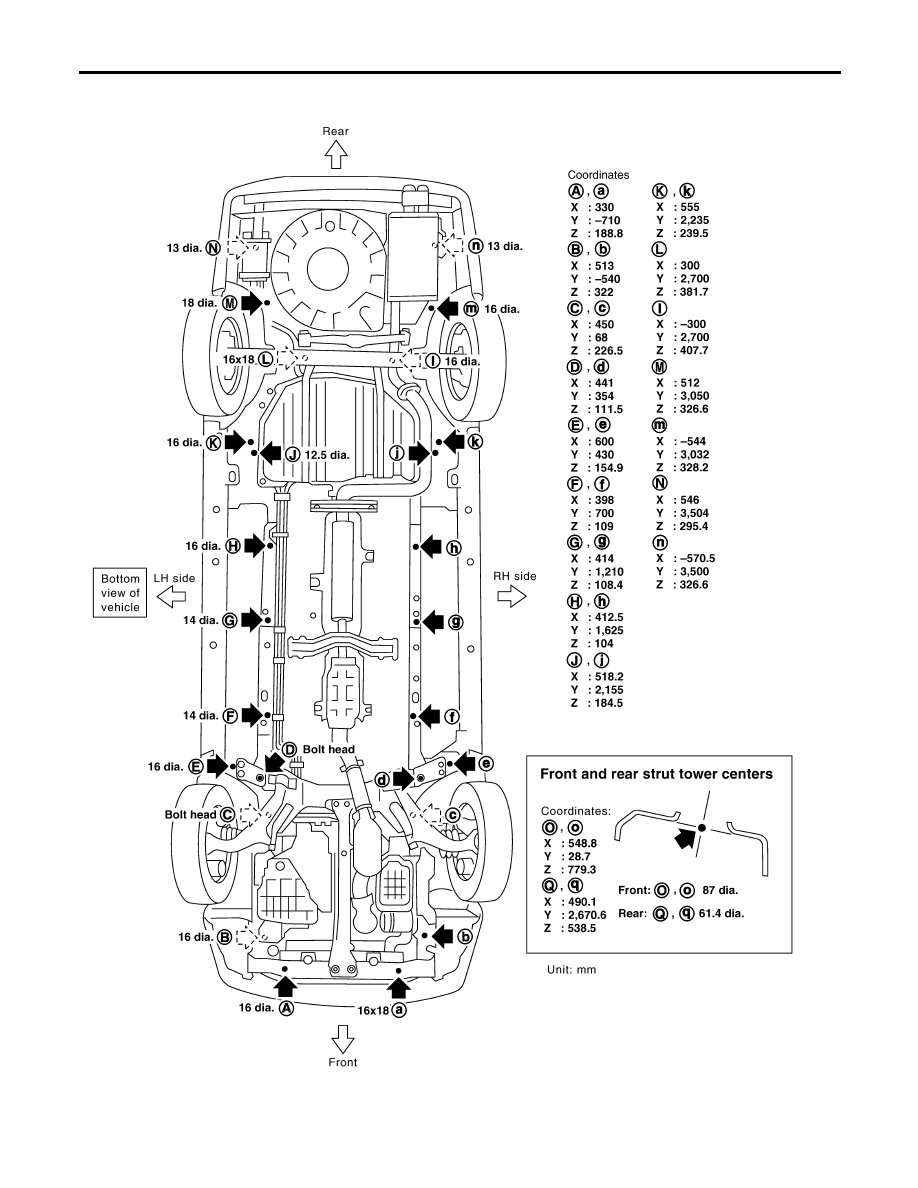

Measurement Points

NHBT0026S0202

SBT884

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-70
