Infiniti I35 (A33). Manual - part 154





SBT789

REMOVAL

NHBT0010S03

I

For removal of front door trim, refer to “DOOR TRIM”, BT-38.

I

Remove sealing screen.

I

For removal of front door glass, refer to “Front Door Glass”,
BT-22.

1.

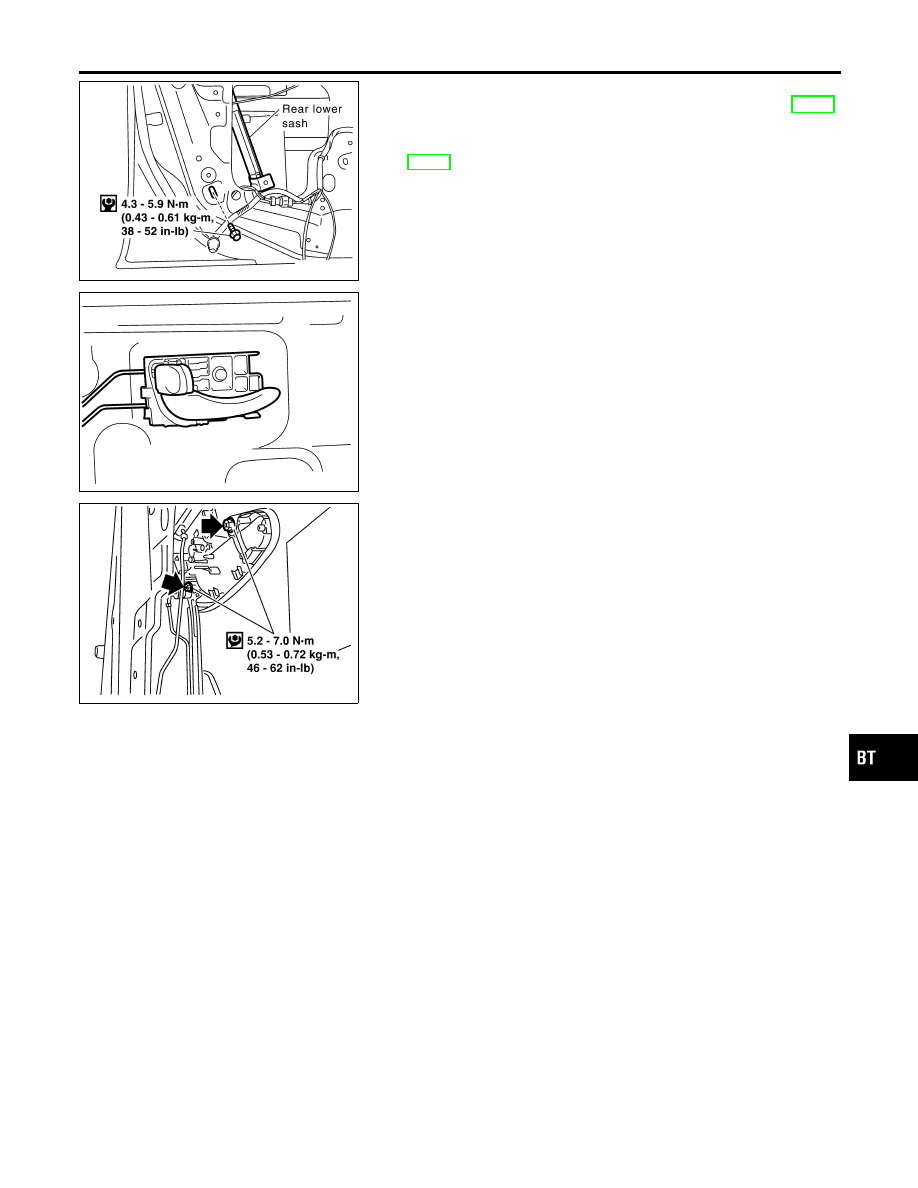

Remove lower rear sash (unitized with glass run) securing
bolts. Remove lower rear sash from door panel and away from
door lock.

SBT790

2.

Remove inside handle escutcheon A.

3.

Remove screw securing inside handle.

4.

Detach bell crank at lock knob joining area.

5.

Detach inside handle rod on the door lock assembly side.

6.

Slide inside handle backward and remove inside handle.

7.

Remove rod from inside handle.

SBT791

8.

Detach key lock rod and outside handle rod at joining area (on
the outside handle side).

9.

Disconnect door lock actuator connector.

10. Remove screws securing door lock assembly, then remove

door lock assembly.

11. Remove bolts securing outside handle, then remove outside

handle assembly.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

DOOR

Front Door Lock (Cont’d)

BT-27

Rear Door Lock

=NHBT0011

SBT792

I

For removal of rear door trim, refer to “DOOR TRIM”, BT-38.

I

Remove sealing screen.

SBT788

OUTSIDE HANDLE ROD ADJUSTMENT

NHBT0011S01

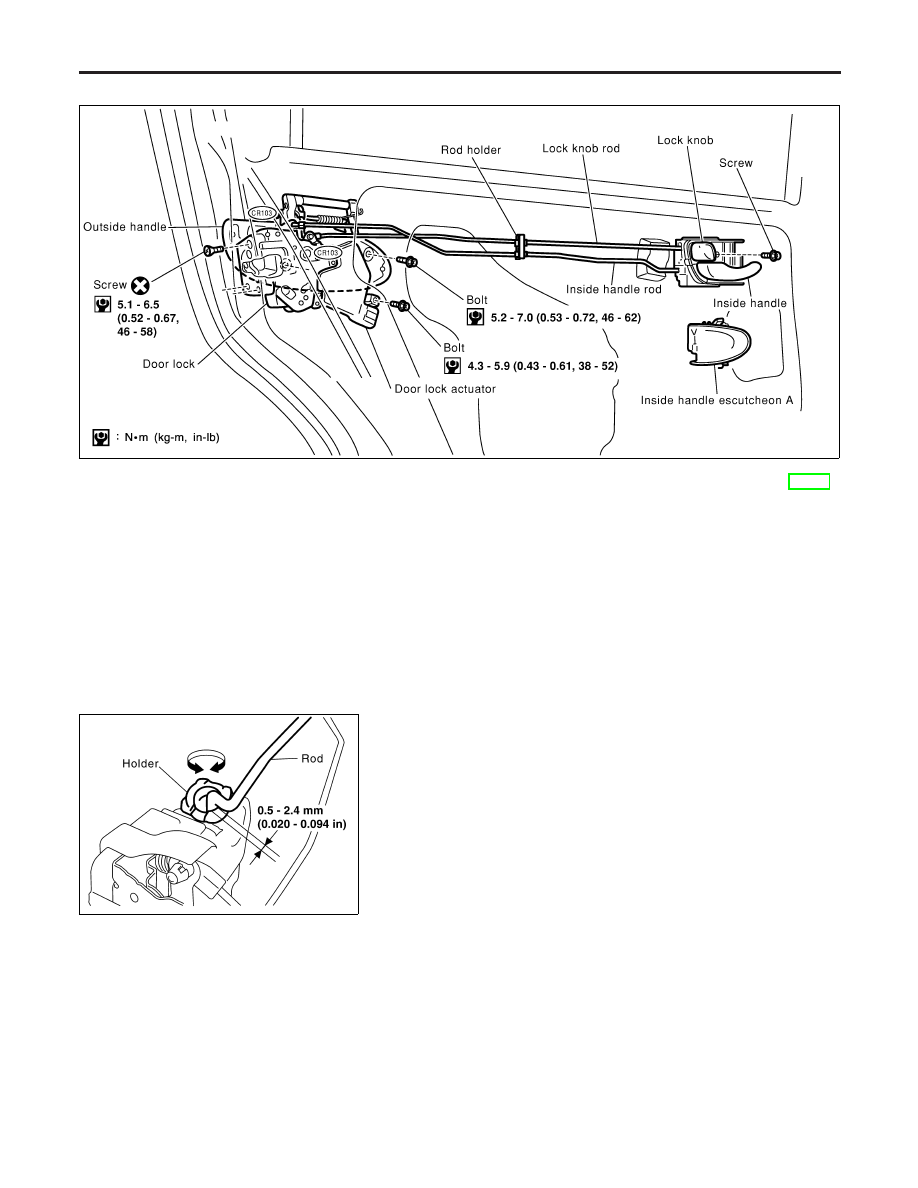

Rotate rod holder so that rod-to-holder clearance is adjusted as
shown in the figure at left.

CAUTION:

Make sure that rod-to-holder clearance is not “0” mm (0 in),
and that rod is not held pressed.

DOOR

Rear Door Lock

BT-28

SBT793

REMOVAL

=NHBT0011S02

I

For removal of rear door trim, refer to “DOOR TRIM”, BT-38.

I

Remove sealing screen.

I

For removal of rear door glass, refer to “Rear Door Glass”,
BT-24.

1.

Remove inside handle escutcheon A.

2.

Remove screw securing inside handle.

3.

Detach inside handle rod on the door lock assembly side.

SBT794

4.

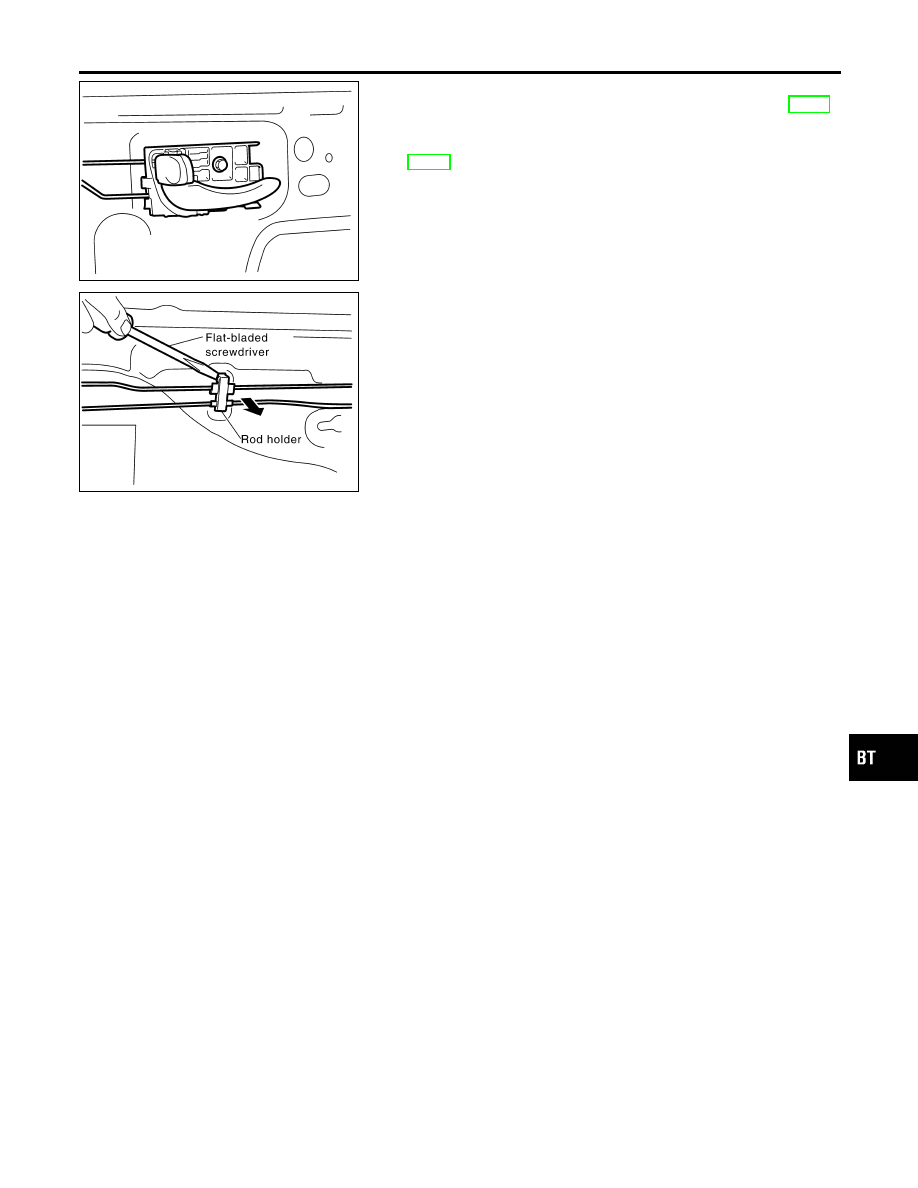

Detach lock knob rod (on the door lock assembly side).

5.

Using a flat-bladed screwdriver, expand rod holder. Remove
rod from rod holder.

6.

Slide inside handle backward and remove inside handle.

7.

Remove rod from inside handle.

8.

Disconnect door lock actuator connector.

9.

Remove screws securing door lock assembly, then remove
door lock assembly.

10. Remove bolts securing outside handle, then remove outside

handle.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

DOOR

Rear Door Lock (Cont’d)

BT-29

Removal and Installation

NHBT0012

CAUTION:

I

Disconnect both terminals from battery in advance.

I

Disconnect air bag system line in advance.

I

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

I

Be careful not to scratch pad and other parts.
