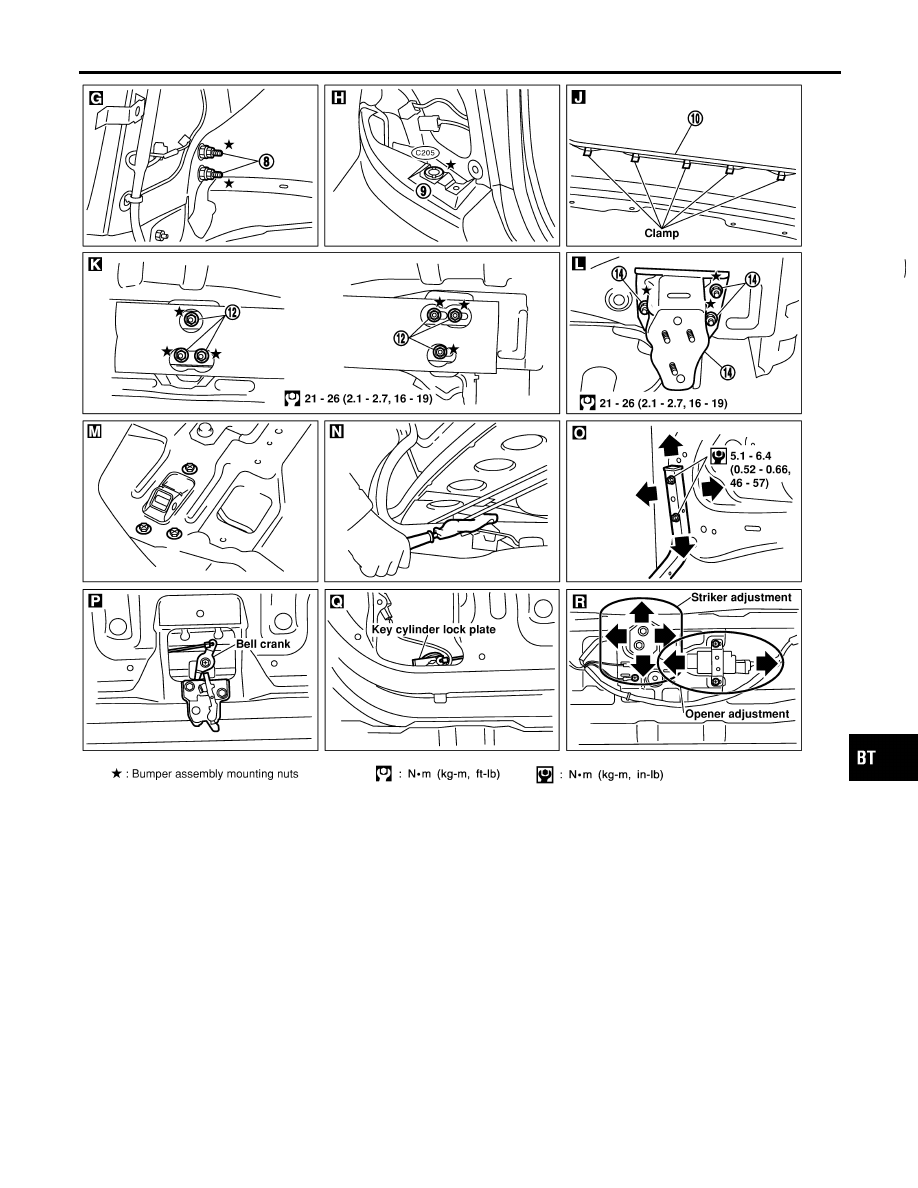

BODY REAR END AND OPENER

Removal and Installation (Cont’d)

BT-19

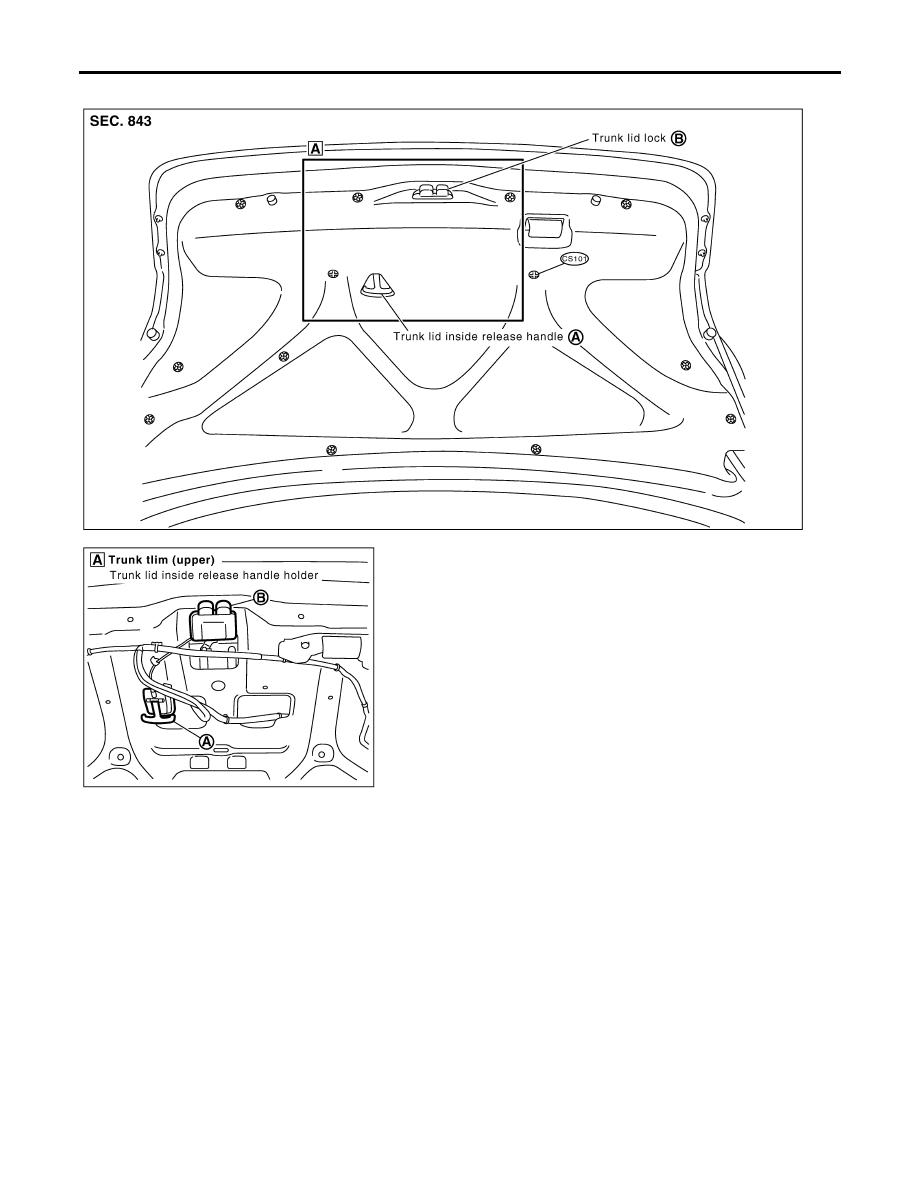

Trunk Lid Inside Release Handle

NHBT0005S0302

SBT266AA

INSTALLATION

NHBT0005S04

I

Install in the reverse order of removal.

BODY REAR END AND OPENER

Removal and Installation (Cont’d)

BT-20

Adjustment

NHBT0006

SBT771

SBT772

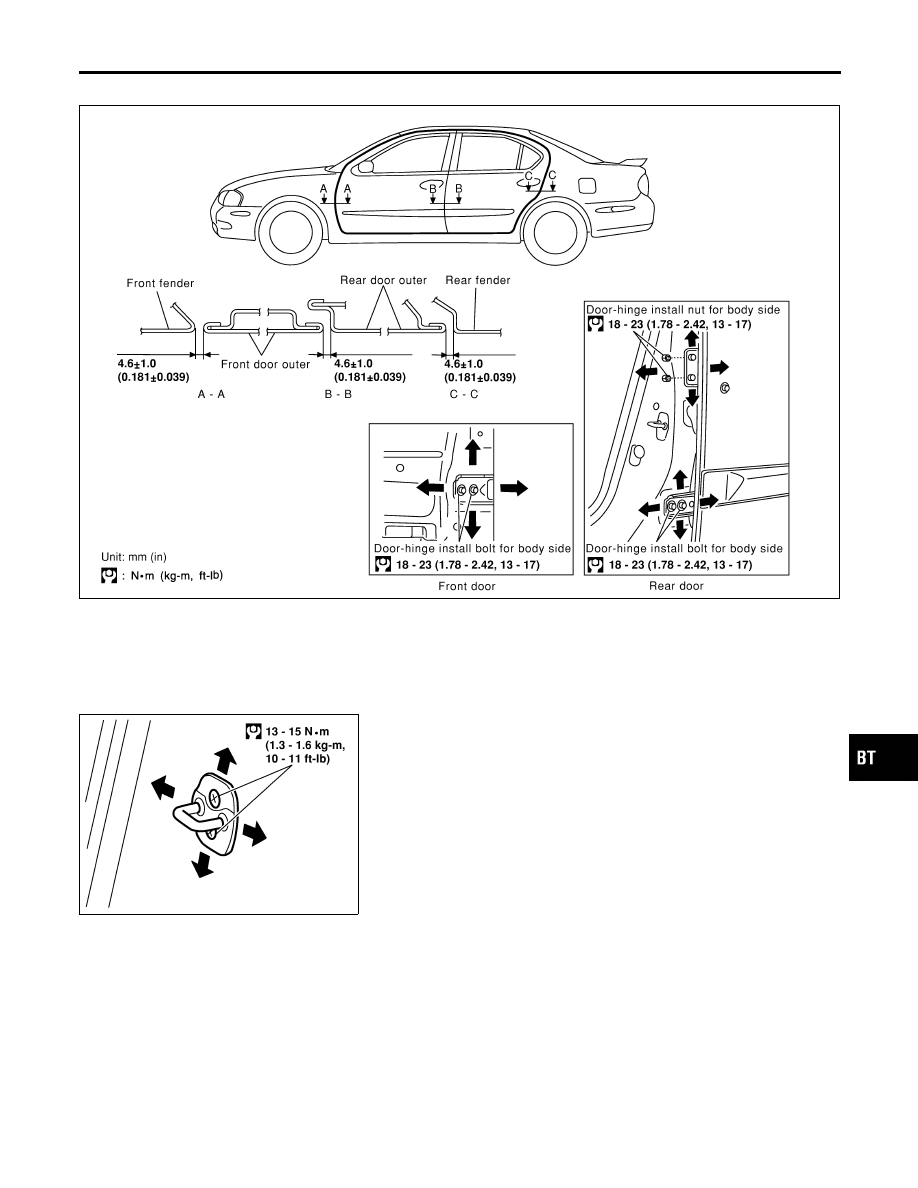

STRIKER ADJUSTMENT

NHBT0006S01

Adjust striker so that it is parallel with advancing direction of door
lock.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

DOOR

Adjustment

BT-21

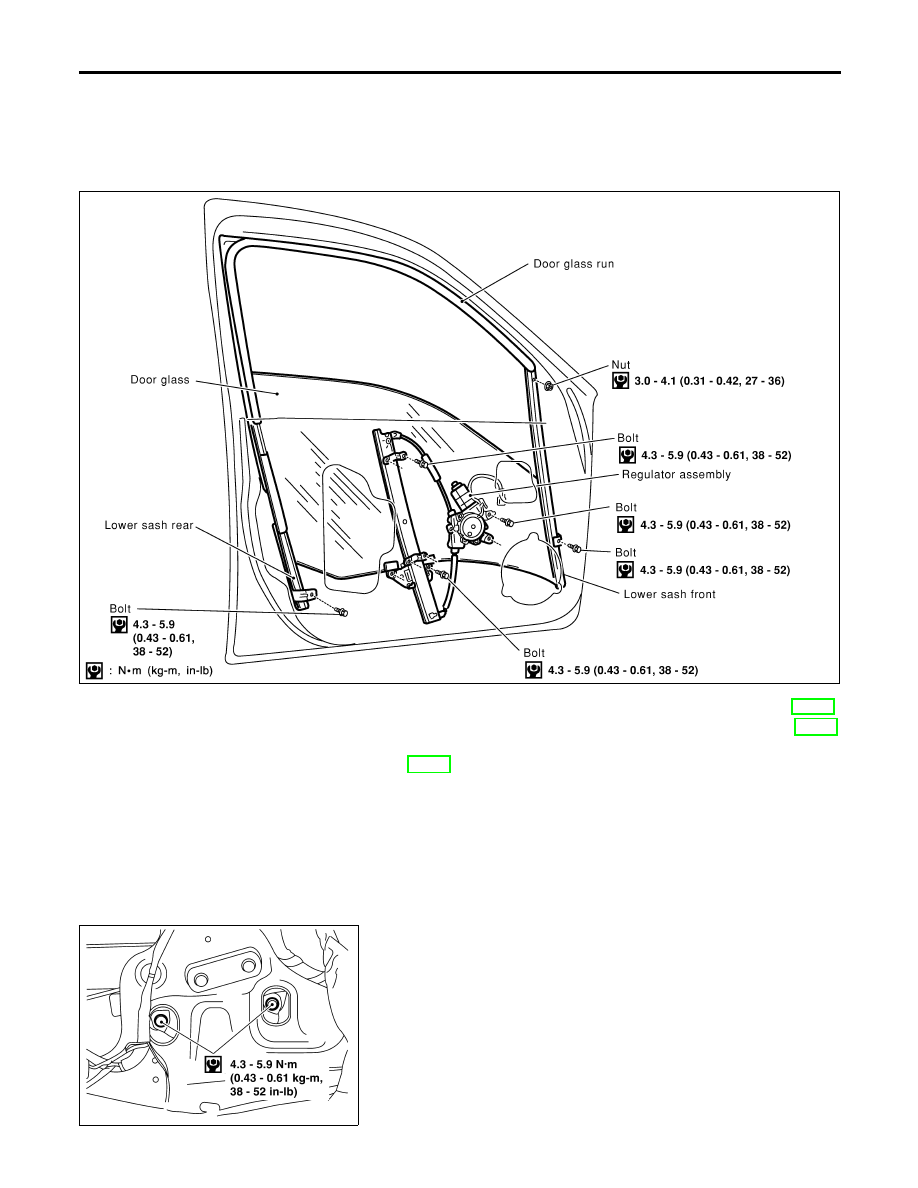

Front Door Glass

=NHBT0007

I

Make sure that door glass is positioned in glass run groove.

I

Make sure that there is no abnormality when door glass is
raised or lowered.

FRONT DOOR GLASS AND REGULATOR

NHBT0007S01

SBT773

I

For removal of front door trim, refer to “DOOR TRIM”, BT-38.

I

For removal of door mirror, refer to “DOOR MIRROR”, BT-64.

I

For removal of door outside molding, refer to “EXTERIOR”,
BT-44.

I

Remove sealing screen.

SBT774

1.

Using power window main switch, raise or lower door glass
until carrier plate securing bolts are visible.

2.

Remove bolts securing carrier plate.

DOOR

Front Door Glass

BT-22
