Infiniti I35 (A33). Manual - part 122





CAN Communication Line

NHBR0175

DIAGNOSTIC PROCEDURE

NHBR0175S01

1

CHECK CONNECTOR

1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check the terminal

for deformation, disconnection, looseness, etc. If there is a malfunction, repair or replace the terminal.

2. Reconnect connector to perform self-diagnosis.

Is “CAN COMM CIRCUIT” displayed in the self-diagnosis display items?

Yes

©

Print out the self-diagnostic results. Refer to EL-450.

No

©

Connector terminal connection is loose, damaged, open or shorted.

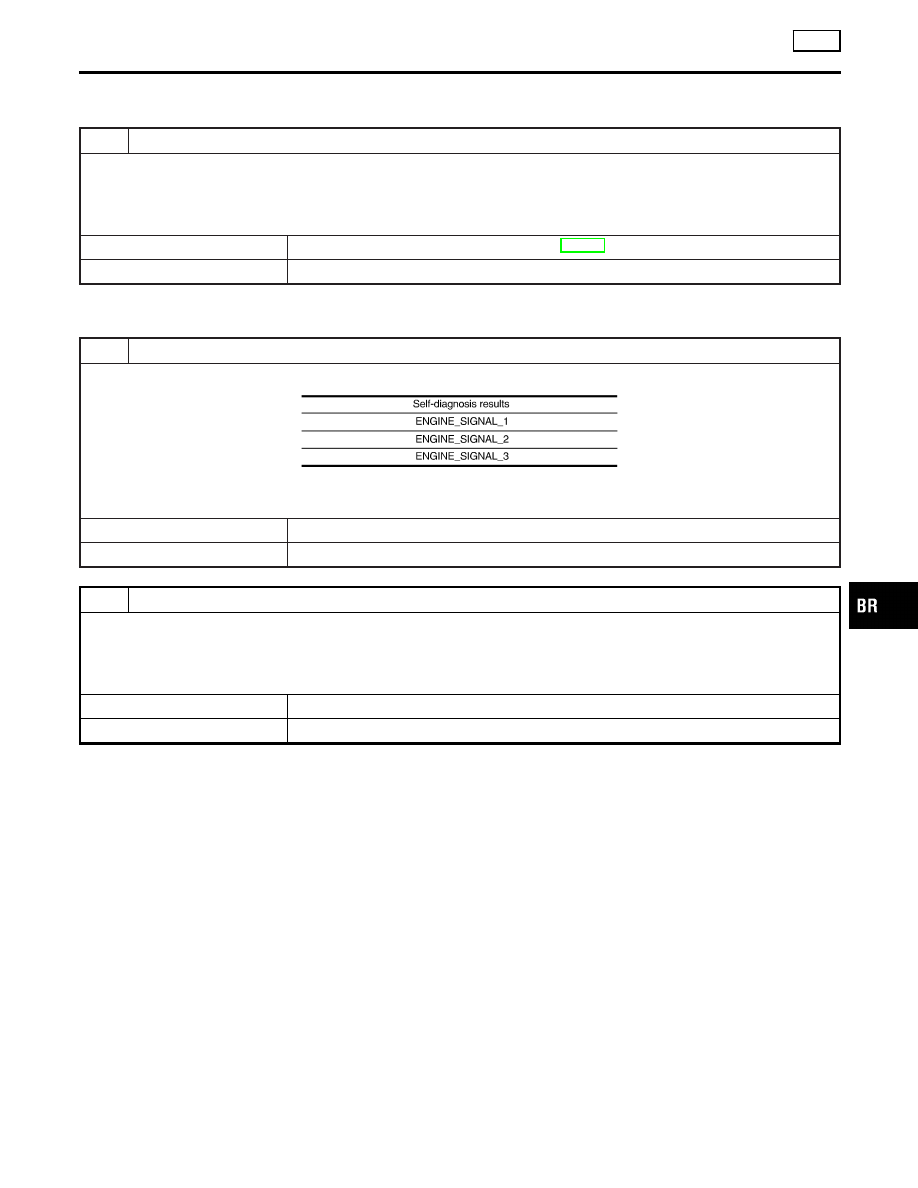

Engine System

NHBR0176

DIAGNOSTIC PROCEDURE

NHBR0176S01

1

SELF-DIAGNOSIS RESULT CHECK 1

Check the self-diagnosis results.

MTBL1189

Are any items other than above indicated in self-diagnosis results?

Yes

©

Repair or replace harness or connector.

No

©

GO TO 2.

2

SELF-DIAGNOSIS RESULT CHECK 2

1. Perform the ECM self-diagnosis, and repair or replace harness or connector, then perform the ECM self-diagnosis

again.

2. Perform the ABS/TCS control unit self-diagnosis again.

Is inspection result OK?

OK

©

INSPECTION END

NG

©

Repair or replace harness or connector. Perform the self-diagnosis again.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

CAN Communication Line

BR-73

A/T System

NHBR0208

DIAGNOSTIC PROCEDURE

NHBR0208S01

1

SELF-DIAGNOSIS RESULT CHECK 1

Check the self-diagnosis results.

MTBL1190

Are any items other than above indicated in self-diagnosis results?

Yes

©

Repair or replace related parts.

No

©

GO TO 2.

2

SELF-DIAGNOSIS RESULT CHECK 2

1. Perform the TCM self-diagnosis, and replace harness or connector, then perform the TCM self-diagnosis again.
2. Perform the ABS/TCS control unit self-diagnosis again.

Is inspection result OK?

OK

©

INSPECTION END

NG

©

Repair or replace related parts.

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

A/T System

BR-74

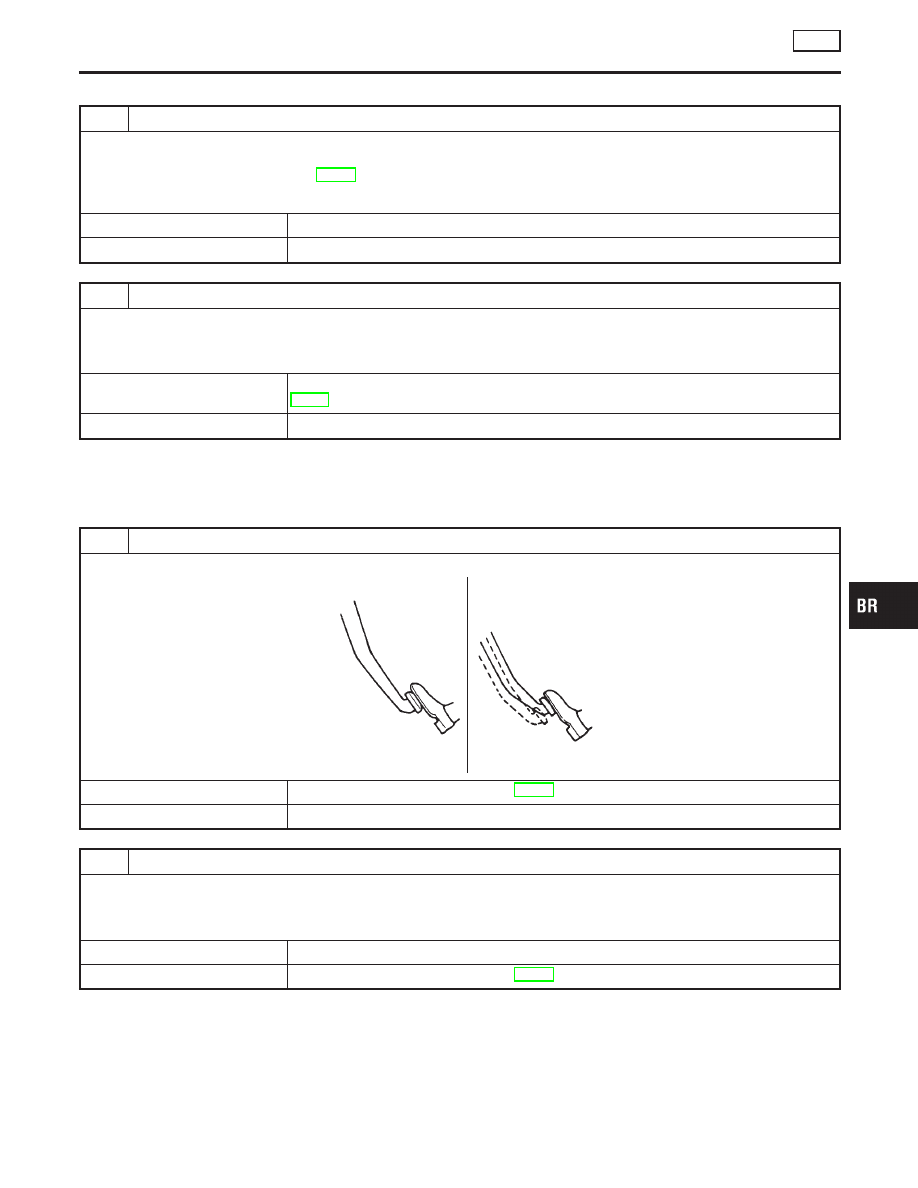

1. ABS Works Frequently

NHBR0188

1

CHECK WHEEL SENSOR

1. Check wheel sensor connector for terminal damage or loose connections.
2. Perform wheel sensor mechanical check.

Refer to “Wheel Sensor or Rotor”, BR-61.

Are wheel sensors functioning properly?

Yes

©

GO TO 2.

No

©

Repair.

2

CHECK FRONT AXLE

Check front and rear axles for excessive looseness. Refer to AX section, “Front Wheel Bearing”, “ON-VEHICLE SERVICE”
and “Rear Wheel Bearing”, “ON-VEHICLE SERVICE”.

Is front axle installed properly?

Yes

©

Go to “3. CHECK WARNING LAMP INDICATION” in “2. Unexpected Pedal Action”,
BR-75.

No

©

Repair.

2. Unexpected Pedal Action

NHBR0189

1

CHECK BRAKE PEDAL STROKE

Check brake pedal stroke. Is stroke excessively large?

SBR540A

Yes

©

Perform Preliminary Check. Refer to BR-54.

No

©

GO TO 2.

2

CHECK CONNECTOR AND PERFORMANCE

1. Disconnect ABS actuator and electric unit (control unit) connector E162.
2. Check whether brake is effective.

Yes or No?

Yes

©

GO TO 3.

No

©

Perform Preliminary Check. Refer to BR-54.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

TCS

1. ABS Works Frequently

BR-75

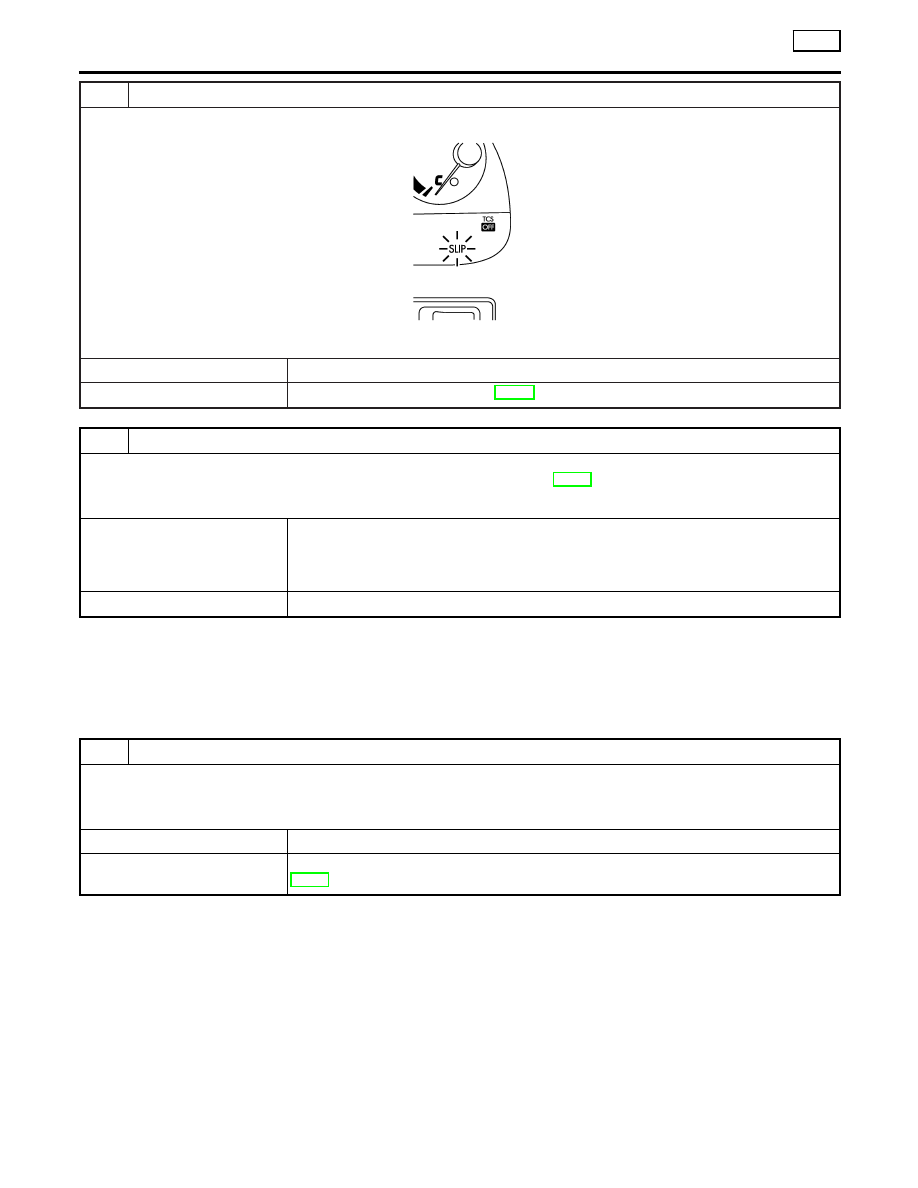

3

CHECK WARNING LAMP INDICATION

Ensure warning lamp remains off while driving.

SBR655E

Is warning lamp turned off?

Yes

©

GO TO 4.

No

©

Carry out self-diagnosis. Refer to BR-46.

4

CHECK WHEEL SENSOR

1. Check wheel sensor connector for terminal damage or loose connection.
2. Perform wheel sensor mechanical check. Refer to “Wheel Sensor Rotor”, BR-61.

Is wheel sensor mechanism OK?

Yes

©

Check ABS actuator and electric unit (control unit) connector E162 pin terminals for dam-
age or the connection of ABS actuator and electric unit (control unit) harness connector
E162. Reconnect ABS actuator and electric unit (control unit) harness connector E162.
Then retest.

No

©

Repair.

3. Long Stopping Distance

NHBR0190

1

CHECK CONNECTOR AND PERFORMANCE

1. Cancel ABS by removing 40A [E] fusible link (ABS ACTR) for ABS solenoid valve relay.
2. Check stopping distance.

OK or NG

OK

©

Perform Preliminary Check and air bleeding.

NG

©

Go to “3. CHECK WARNING LAMP INDICATION” in “2. Unexpected Pedal Action”,
BR-75.

NOTE:
Stopping distance may be longer than vehicles without ABS when
road condition is slippery.

TROUBLE DIAGNOSES FOR SYMPTOMS

TCS

2. Unexpected Pedal Action (Cont’d)

BR-76
