Infiniti I35 (A33). Manual - part 119





Wheel Sensor or Rotor

NHBR0159

DIAGNOSTIC PROCEDURE

NHBR0159S01

1

INSPECTION START

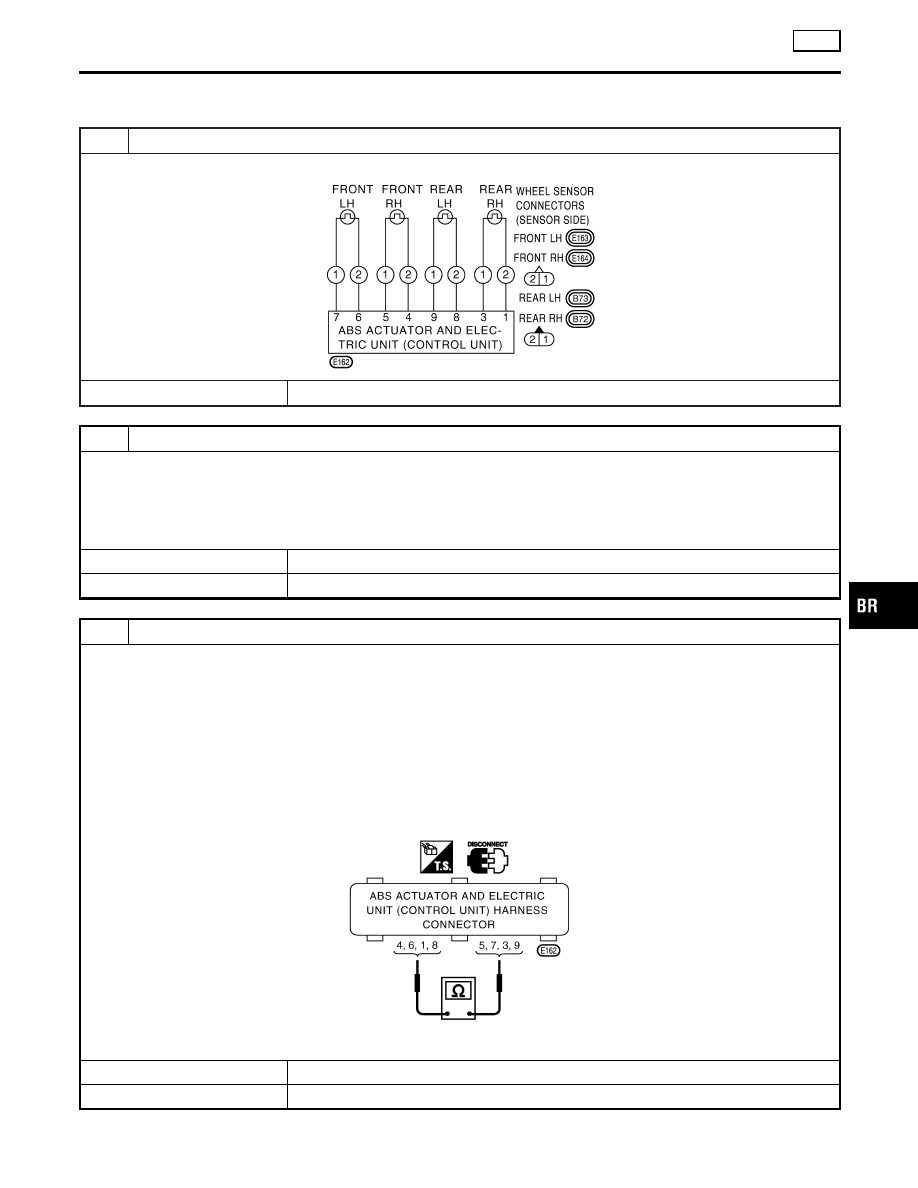

Wheel sensor inspection

SBR155F

©

GO TO 2.

2

CHECK CONNECTOR

1. Disconnect connectors from ABS actuator and electric unit (control unit) connector E162 and wheel sensor connector

E164, E163, B72 and B73 of malfunction code No. Check terminals for damage or loose connections. Then reconnect
connectors.

2. Carry out self-diagnosis again.

Does warning lamp activate again?

Yes

©

GO TO 3.

No

©

INSPECTION END

3

CHECK WHEEL SENSOR CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector E162.
2. Check resistance between ABS actuator and electric unit (control unit) harness connector E162 terminals.

Front RH wheel
Terminals 4 (B/W) and 5 (L/OR)
Front LH wheel
Terminals 6 (G) and 7 (R/B)
Rear RH wheel
Terminals 1 (B) and 3 (W)
Rear LH wheel
Terminals 8 (R/W) and 9 (L/W)

Resistance: 0.8 - 1.85 k

SBR156F

Is resistance 0.8 - 1.85 k

?

Yes

©

GO TO 5.

No

©

GO TO 4.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

Wheel Sensor or Rotor

BR-61

4

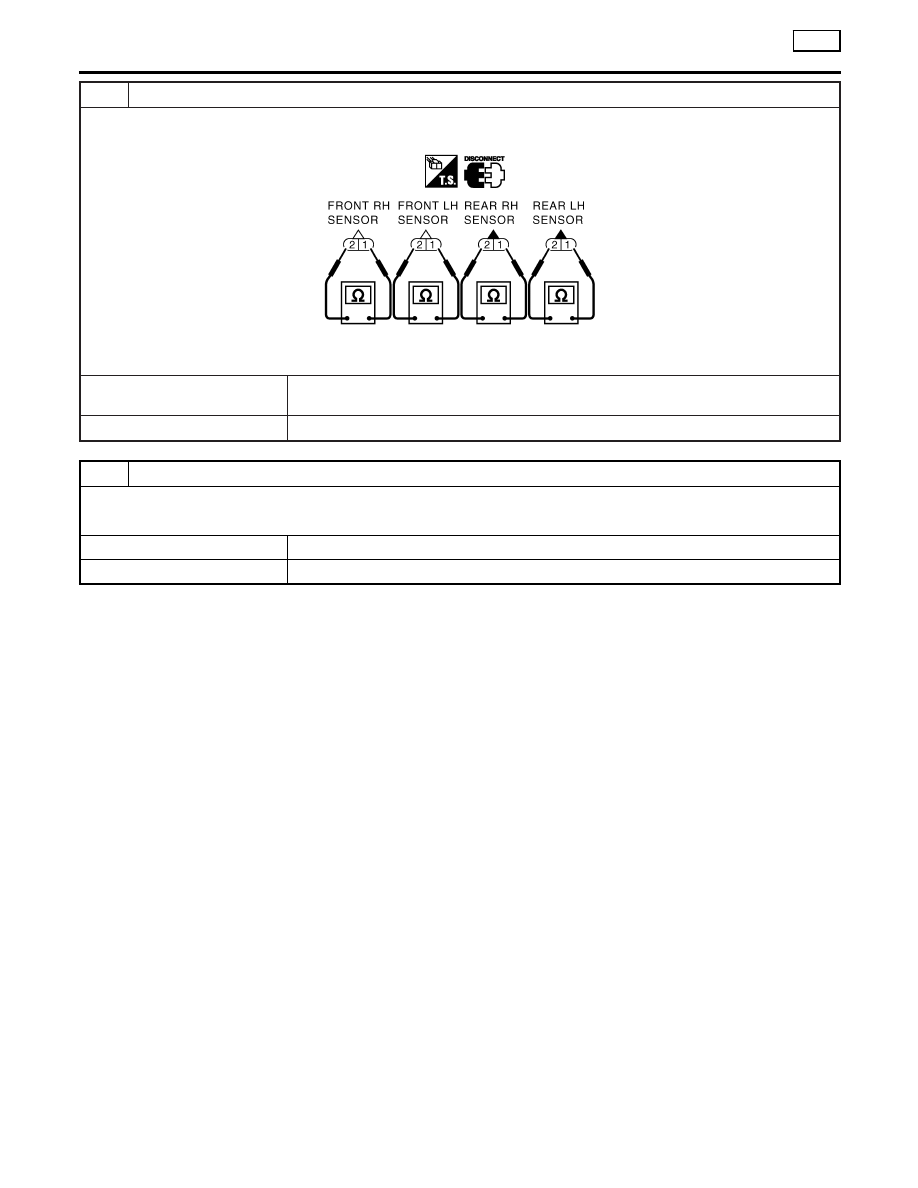

CHECK WHEEL SENSOR

Check resistance of each sensor. (See NOTE)

Resistance: 0.8 - 1.85 k

SBR157F

Is resistance 0.8 - 1.85 k

?

Yes

©

Repair harness and connectors between ABS actuator and electric unit (control unit) con-
nector E162 and wheel sensor connector.

No

©

Replace wheel sensor.

5

CHECK TIRE

Check for inflation pressure, wear and size of each tire.

Are tire pressure and size correct and is tire wear within specifications?

Yes

©

GO TO 6.

No

©

Adjust tire pressure or replace tire(s).

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

Wheel Sensor or Rotor (Cont’d)

BR-62

6

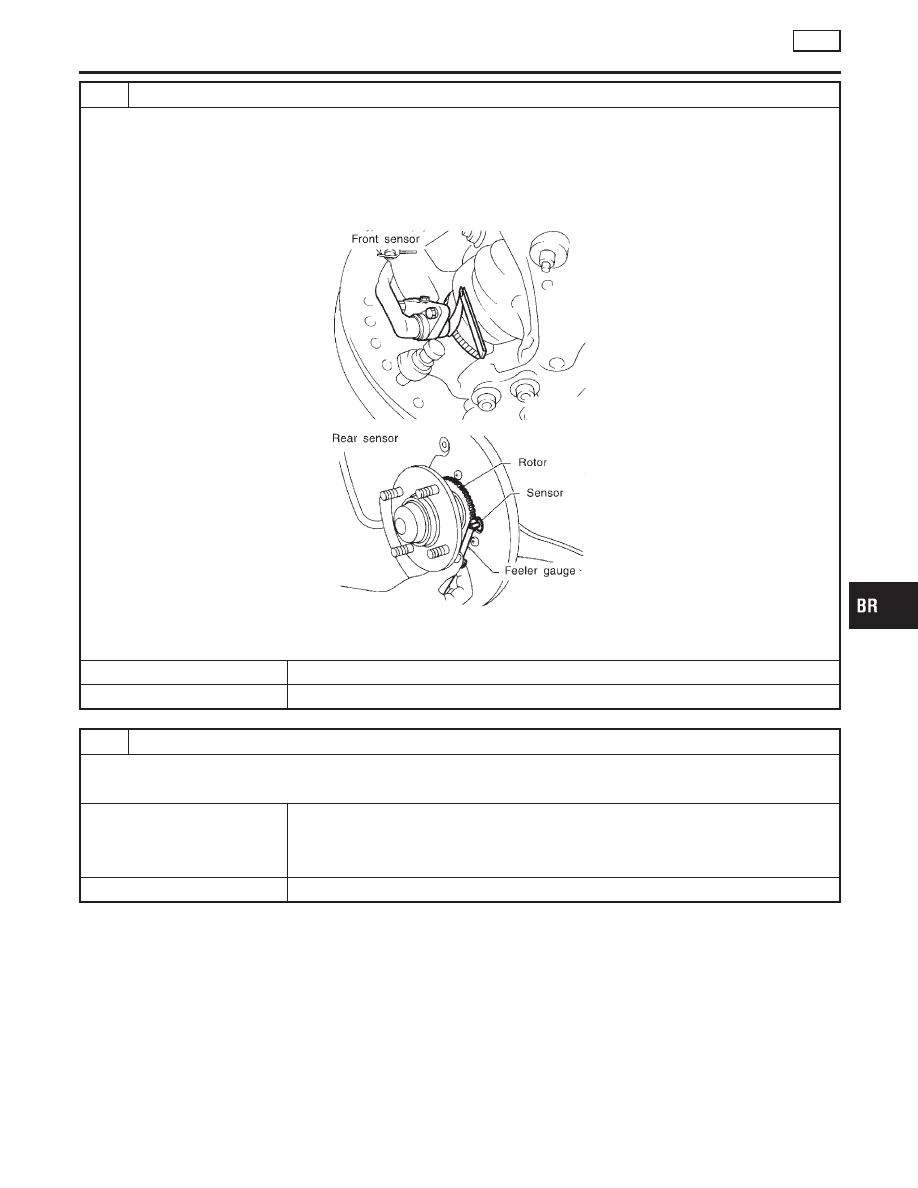

CHECK WHEEL BEARING

Check wheel bearing axial end play.
Check clearance between sensor and rotor.

Clearance:

Front

0.273 - 0.925 mm (0.0107 - 0.0364 in)

Rear

0.387 - 0.992 mm (0.0152 - 0.0391 in)

SBR605AA

SBR069CA

Is axial end play and clearance within specifications?

Yes

©

GO TO 7.

No

©

Clean sensor fixing portion, or replace sensor.

7

CHECK SENSOR ROTOR

Check sensor rotor for teeth damage.

Is sensor rotor free from damage?

Yes

©

Check ABS actuator and electric unit (control unit) connector E162 pin terminals for dam-
age or the connection of ABS actuator and electric unit (control unit) harness connector
E162. Reconnect ABS actuator and electric unit (control unit) harness connector E162.
Then retest.

No

©

Replace sensor rotor.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

Wheel Sensor or Rotor (Cont’d)

BR-63

8

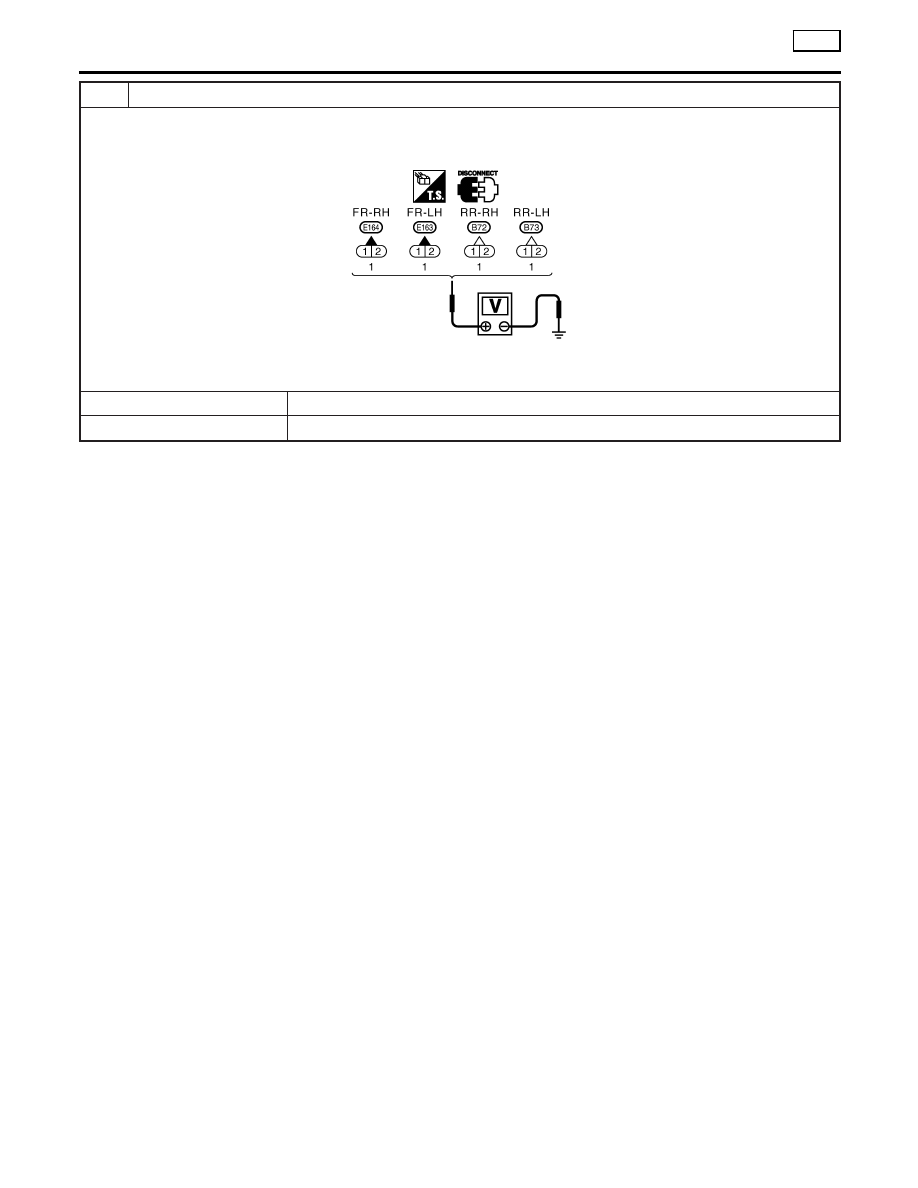

CHECK POWER SUPPLY

1. Disconnect wheel sensor connectors E164, E163, B72 and B73.
2. Check voltage between body side terminal of wheel sensor harness connectors E164, E163, B72 and B73 and body

ground.

SBR158F

Is voltage more than 8V?

Yes

©

Replace wheel sensor.

No

©

Replace ABS actuator and electric unit (control unit).

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC ITEMS

TCS

Wheel Sensor or Rotor (Cont’d)

BR-64
