Infiniti I35 (A33). Manual - part 118





SBR154F

Ground Circuit Check

NHBR0157

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT) GROUND

NHBR0157S01

I

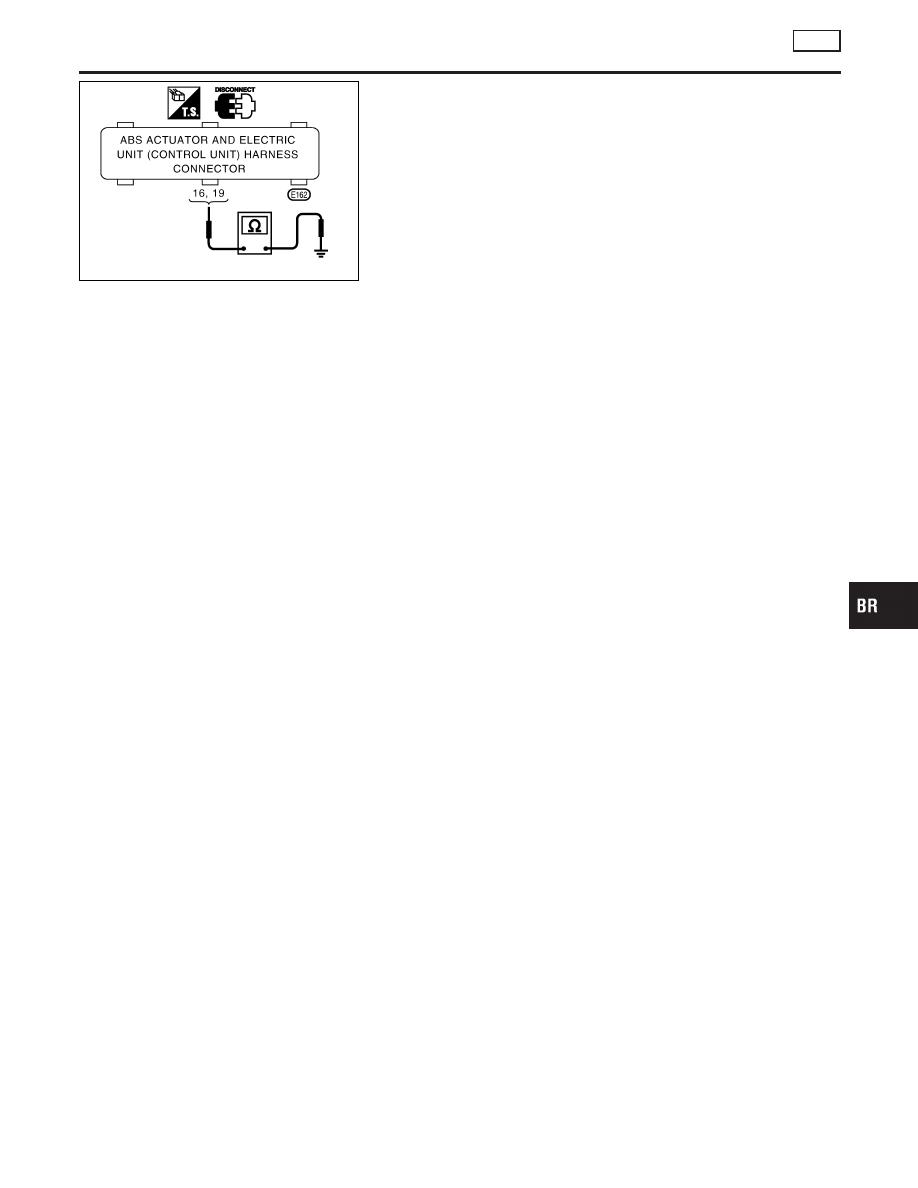

Check continuity between ABS actuator and electric unit (con-
trol unit) harness connector E162 terminals 16 (B), 19 (B) and
ground.

Continuity should exist.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Ground Circuit Check

BR-57

Malfunction Code/Symptom Chart

NHBR0158

Code No.

(FAIL CODE No.)

Malfunctioning part

Warn-

ing

lamp

Indicator

Fail-
safe

Refer-

ence

Page

ABS

TCS
OFF

SLIP

U1000

CAN communication system failure

ON or

OFF

ON

ON

X

BR-73

C1101

Rear right wheel sensor (open-circuit)

ON

ON

ON

X

BR-61

C1102

Rear left wheel sensor (open-circuit)

ON

ON

ON

X

BR-61

C1103

Front right wheel sensor (open-circuit)

ON

ON

ON

X

BR-61

C1104

Front left wheel sensor (open-circuit)

ON

ON

ON

X

BR-61

C1105

Rear right wheel sensor (short-circuit)*2

ON

ON

ON

X

BR-61

C1106

Rear left wheel sensor (short-circuit)*2

ON

ON

ON

X

BR-61

C1107

Front right wheel sensor (short-circuit)*2

ON

ON

ON

X

BR-61

C1108

Front left wheel sensor (short-circuit)*2

ON

ON

ON

X

BR-61

C1109

Power supply (Low or high voltage)

ON

ON

ON

—*1

BR-70

C1110

Control unit

ON

ON

ON

X

BR-72

C1111

Actuator motor or motor relay

ON

ON

ON

X

BR-68

C1114

Solenoid valve relay

ON

ON

ON

X

BR-65

C1120

Actuator front left inlet solenoid valve

ON

ON

ON

X

BR-65

C1121

Actuator front left outlet solenoid valve

ON

ON

ON

X

BR-65

C1122

Actuator front right inlet solenoid valve

ON

ON

ON

X

BR-65

C1123

Actuator front right outlet solenoid valve

ON

ON

ON

X

BR-65

C1124

Actuator rear left inlet solenoid valve

ON

ON

ON

X

BR-65

C1125

Actuator rear left outlet solenoid valve

ON

ON

ON

X

BR-65

C1126

Actuator rear right inlet solenoid valve

ON

ON

ON

X

BR-65

C1127

Actuator rear right outlet solenoid valve

ON

ON

ON

X

BR-65

C1130

CAN communication line or ECM*4

—*3

X

X

X

BR-73

C1131

CAN communication line or ECM*4

—*3

X

X

X

BR-73

C1132

CAN communication line or ECM*4

—*3

X

X

X

BR-73

C1133

CAN communication line or ECM*4

—*3

X

X

X

BR-73

C1135

CAN communication line or TCM*5

—*3

X

X

X

BR-73

C1155

Wheel sensor or the circuit

X

X

X

X

BR-61

X: Available

—: Not available

*1: Fail-safe operation does not activate. A signal from control unit suspends TCS and ABS control operation. Brakes operate conven-
tionally. After specified power supply voltage resumes, TCS OFF and SLIP indicator and ABS warning lamp go out, allowing for TCS
and ABS control operation.
*2: If a wheel or wheels spin on bad or slippery road surfaces for a period of approximately 10 to 80 seconds, the ABS warning lamp
and the TCS OFF indicator lamp light. But this is not a malfunction. When the ignition switch is turned “ON” after a shorted wheel sen-
sor circuit has been repaired, the ABS warning lamp and the TCS OFF indicator lamp light. Drive the vehicle at about 30 km/h (19 MPH)
or more to ensure these lamps go out within 1 minute.
*3: TCS control stops due to fail safe operation, however ABS keeps operation.
*4: For more detail, refer to BR-73.
*5: For more detail, refer to BR-74.

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCS

Malfunction Code/Symptom Chart

BR-58

NOTE:
When a system part have electric malfunction, ABS warning lamp is illuminated by fail-safe function. According to malfunctioning
condition, both ABS and EBD system become in following conditions.
1)

ABS is not operated. EBD is operated.

2)

Both ABS and EBD are operated. (Same condition as the vehicle without ABS and EBD)

On the condition 1), some sound for ABS system self-diagnosis can be heard same as usual, when key switch is turned ON or first
starting.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCS

Malfunction Code/Symptom Chart (Cont’d)

BR-59

System Description

NHBR0209

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many
electronic control units are equipped onto a vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected with
2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wir-
ing. Each control unit transmits/receives data but selectively reads required data only. Refer to EL-448, “Sys-
tem Description”.

CAN COMMUNICATION

TCS

System Description

BR-60
